Removing and Installing Additional Receiver For Telephone

Removing And Installing Additional Receiver For Telephone

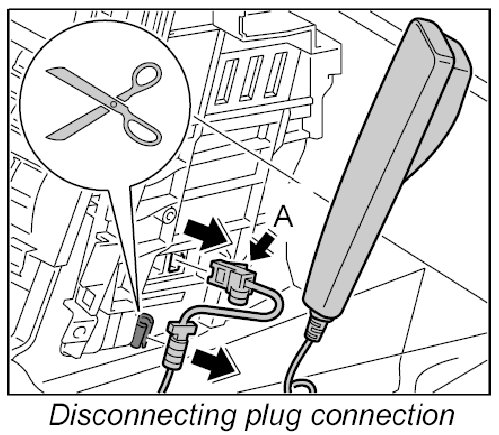

Removing additional receiver for telephone







1. Remove ignition key and switch off audio system.







2. Cut through the tie-wrap for the electric wire and disengage the wire at the retaining bracket.
3. Release electric plug from additional receiver -A- and unplug it.

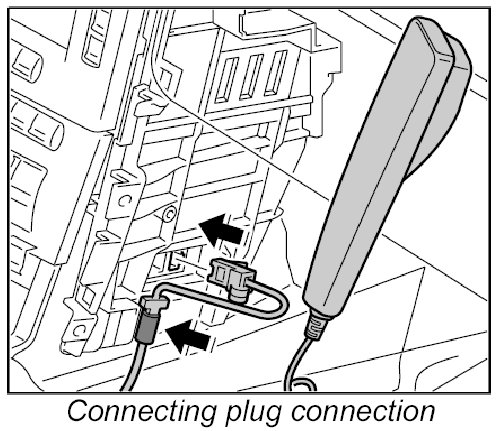

Installing additional telephone receiver







1. Insert electrical plug for additional receiver until it is felt to engage.
2. Engage electric wire at the retaining bracket and secure with a tie-wrap.
