Access Cover: Service and Repair

Removing And Installing Trim Panel For Convertible Top Rest/Engine Compartment Lid

Preliminary work

INFORMATION: Only for vehicles with luggage net.

Remove luggage net and luggage mesh. Refer to Removing and installing luggage net.

Removing trim panel for convertible top rest/engine compartment lid

Removing lining for engine compartment lid

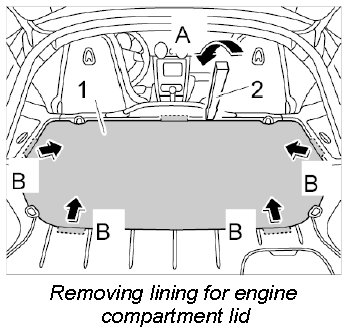

1. Lift lining of engine compartment lid at the front -1- with a plastic wedge -2- -Arrow A- and pull out to the front -Arrows B-.







Installing trim panel for convertible top rest/engine compartment lid

Installing lining for engine compartment lid

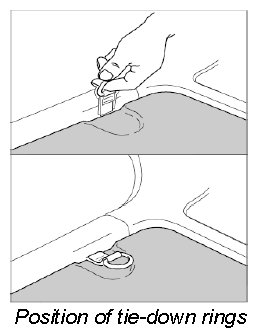

INFORMATION: During installation of the engine compartment lid lining, observe the position of the tie-down rings.

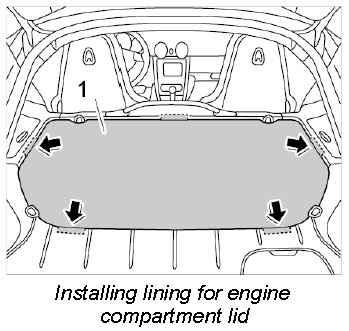

1. Insert lining for engine compartment lid -1- with the clips in the mounting points and press downwards.







Subsequent work

INFORMATION: Only for vehicles with luggage net.

Install luggage net and luggage mesh. Refer to Removing and installing luggage net.
