66711900 Removing and installing engine for rear spoiler

WM 667119 Removing and installing engine for rear spoiler

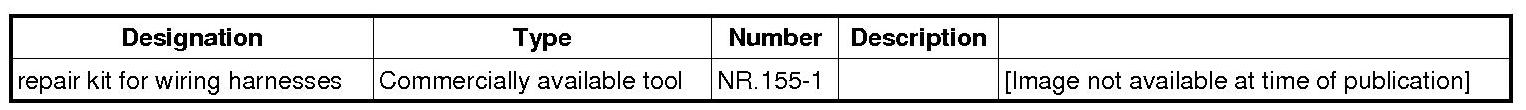

Tools





Technical values





Preliminary work

Remove spoiler drive. -> 667219 Removing and installing spoiler drive - section on "Removing" 66721900 Removing and installing spoiler drive

Removing engine for rear spoiler

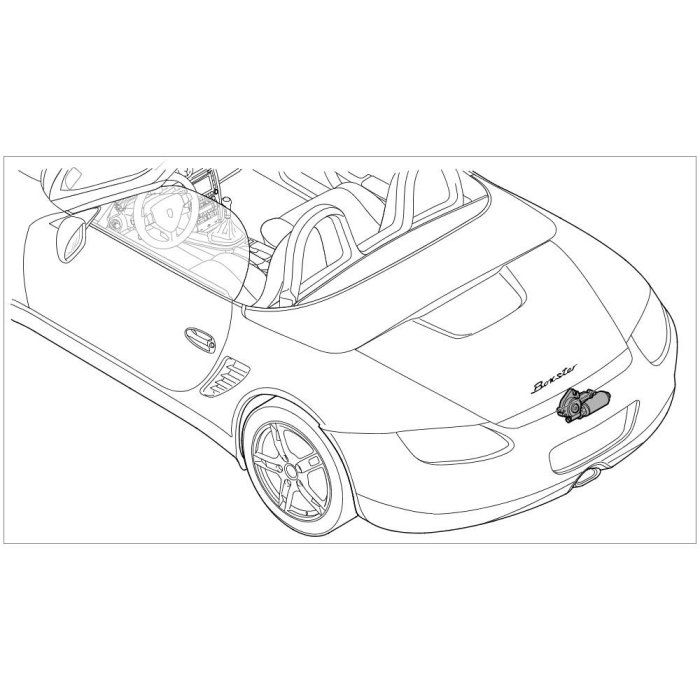

Installation position of spoiler drive

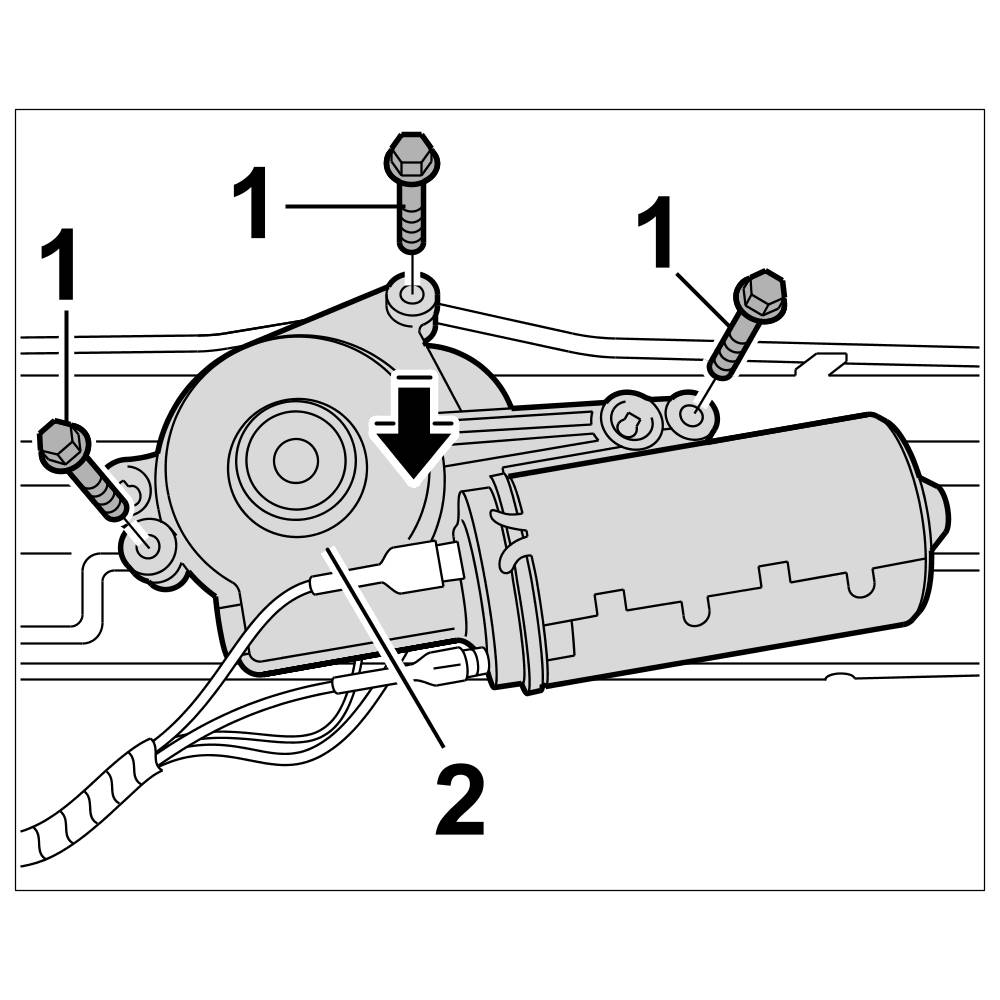

1. Unscrew the three fastening screws -1- on the engine for the spoiler drive -2-.





Removing engine for rear spoiler

Information

- If the engine is replaced, the lines from the engine to the microswitch must be pinched off and crimped on with the lines from the new engine.

2. Cut off the lines between the engine and the microswitch to a suitable length.

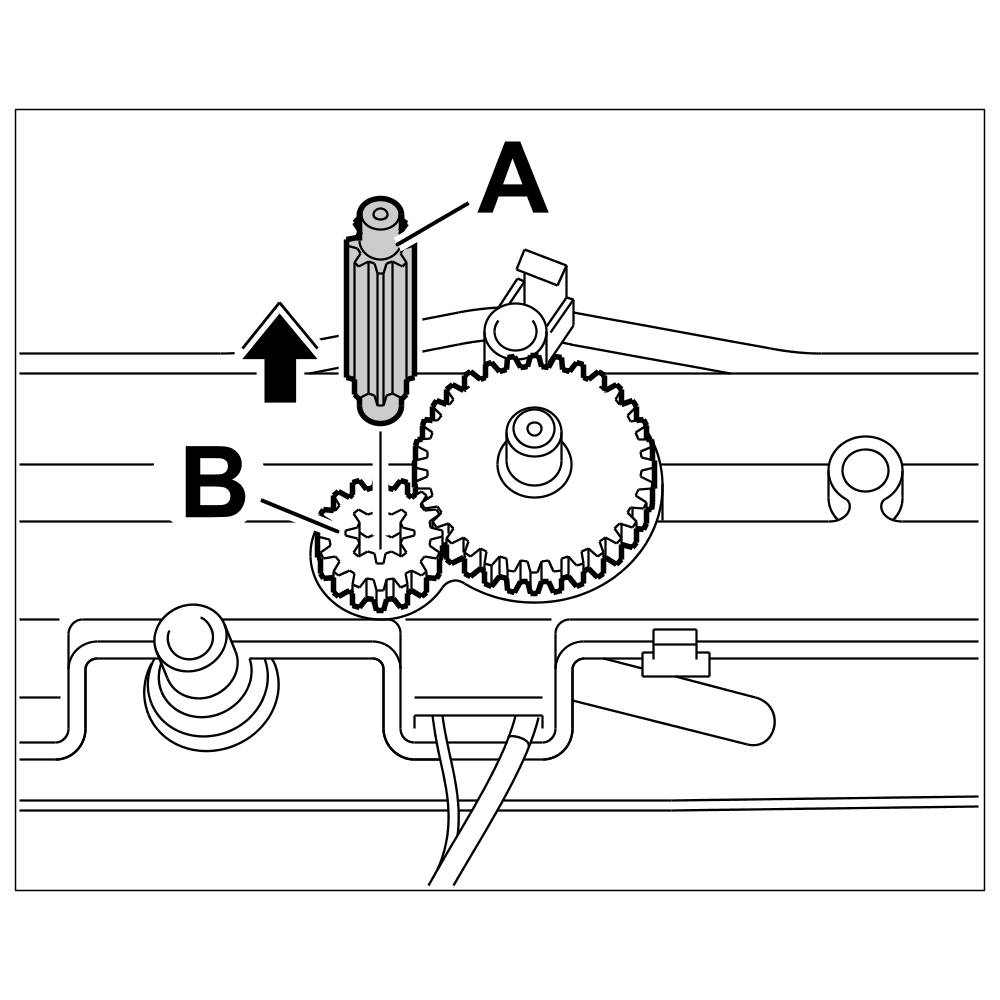

3. Pull out axle -A- and remove spur gear -B-.





Removing spur gear and axle

Installing engine for rear spoiler

Installing motor for rear spoiler

1. Insert spur gear -B- and push in axle -A-.





Fitting spur gear and axle

2. Position motor for spoiler drive -2- and screw down using the three fastening screws -1-. => Tightening torque: 6 Nm (4.5 ftlb.)





Installing motor for rear spoiler

3. Connect wires using repair kit for wiring harnesses NR.155-1.
3.1. Cut wires for subsequent schrink connections to various lengths.
3.2. Slide shrink-fit hose onto the wires.
3.3. Strip 10 mm of insulation off the wires.
3.4. Join wires using crimp connectors. Make sure not to confuse the wire colours.
3.5. Shrink shrink-fit hoses with a hot-air gun so that wires are watertight.
3.6. Wrap commercially available PVC adhesive tape all around the area of the connection points.

Subsequent work

Install spoiler drive. -> 667219 Removing and installing spoiler drive - section on "Installing" 66721900 Removing and installing spoiler drive
