Cabin Temperature Sensor / Switch: Service and Repair

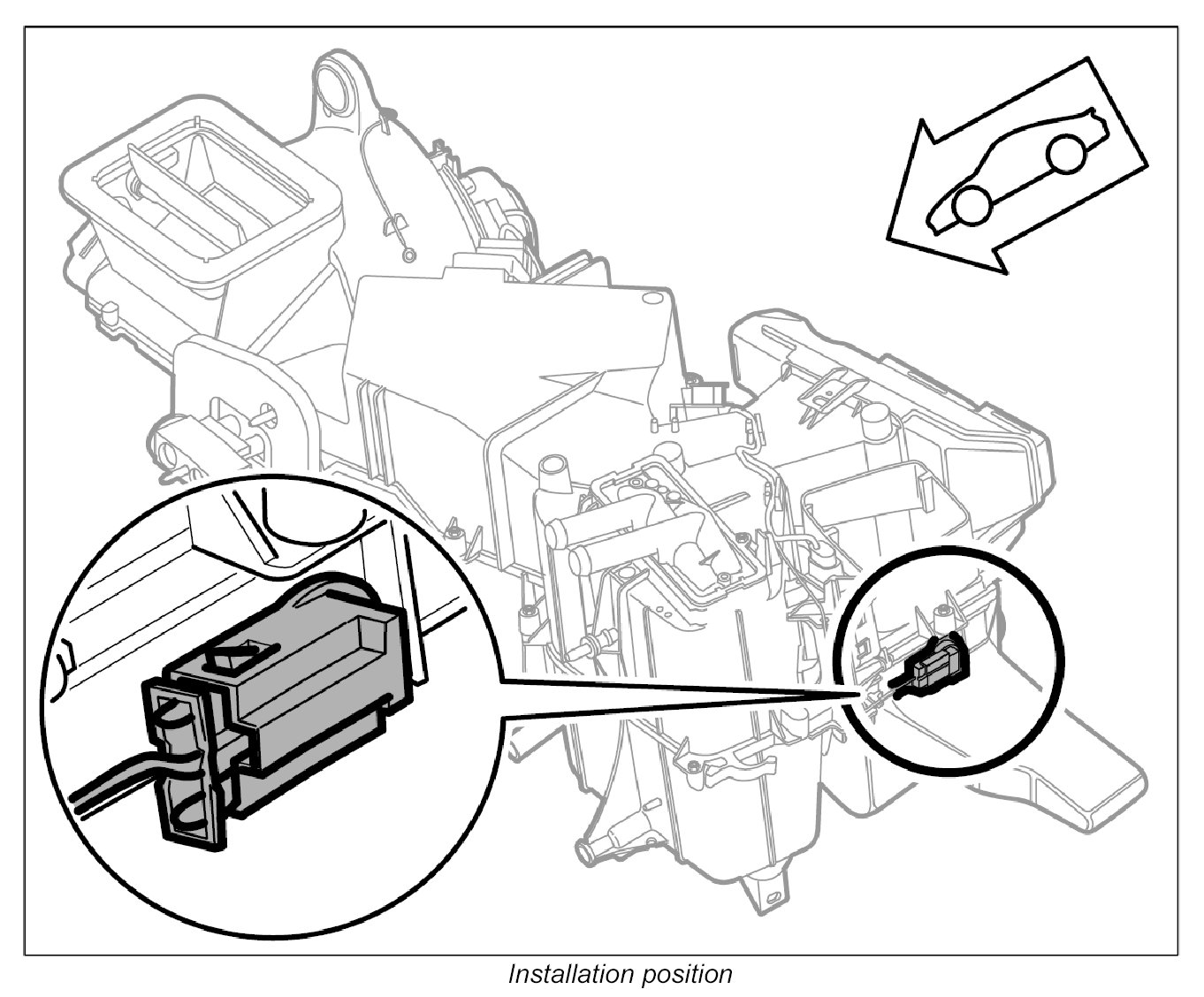

Removing And Installing Temperature Sensor

Removing temperature sensor







1. Switch off ignition and remove ignition key.

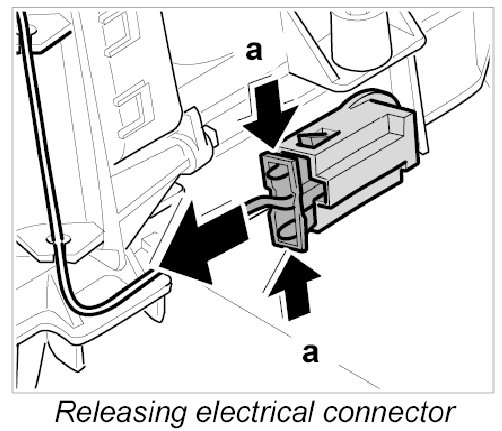

2. From the driver's side, reach around to the "driver's footwell" air vent to release and disconnect the electrical connector -a-.

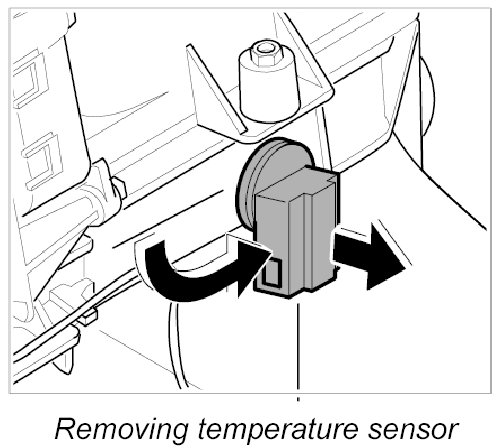

3. Turn temperature sensor through 90 degrees and pull it out of the heating/air conditioner unit.

Installing temperature sensor
1. Switch off ignition and remove ignition key.

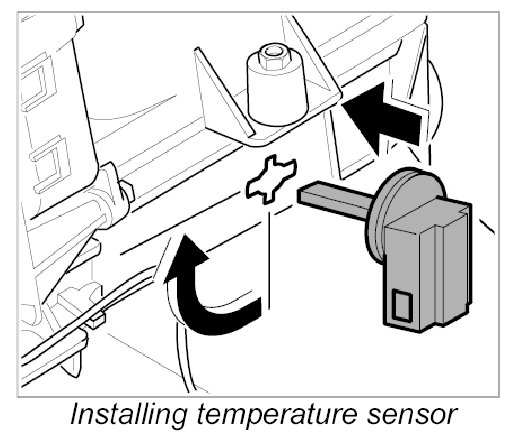

2. From the driver's side, reach around the "driver's footwell" air vent to insert the temperature sensor into the heater/air-conditioning unit and turn it through 90 degrees.

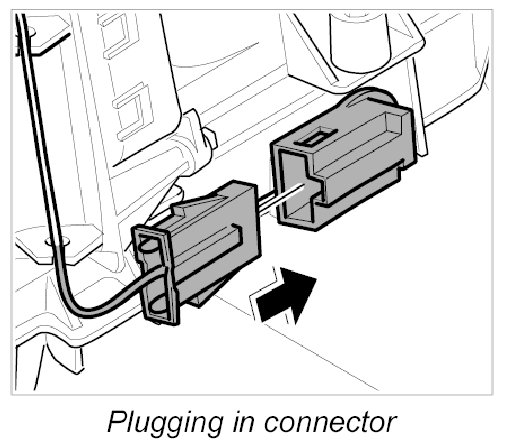

3. Plug in the electric connector until it clicks into place.
