942319 Removing and installing halogen bulb

WM 942319 Removing and installing halogen bulb

Preliminary work

Remove main headlight. -> 941519 Removing and installing headlight - section on "Removing" 94151900 Removing and installing main headlight

Removing halogen bulb

Removing cap of main headlight

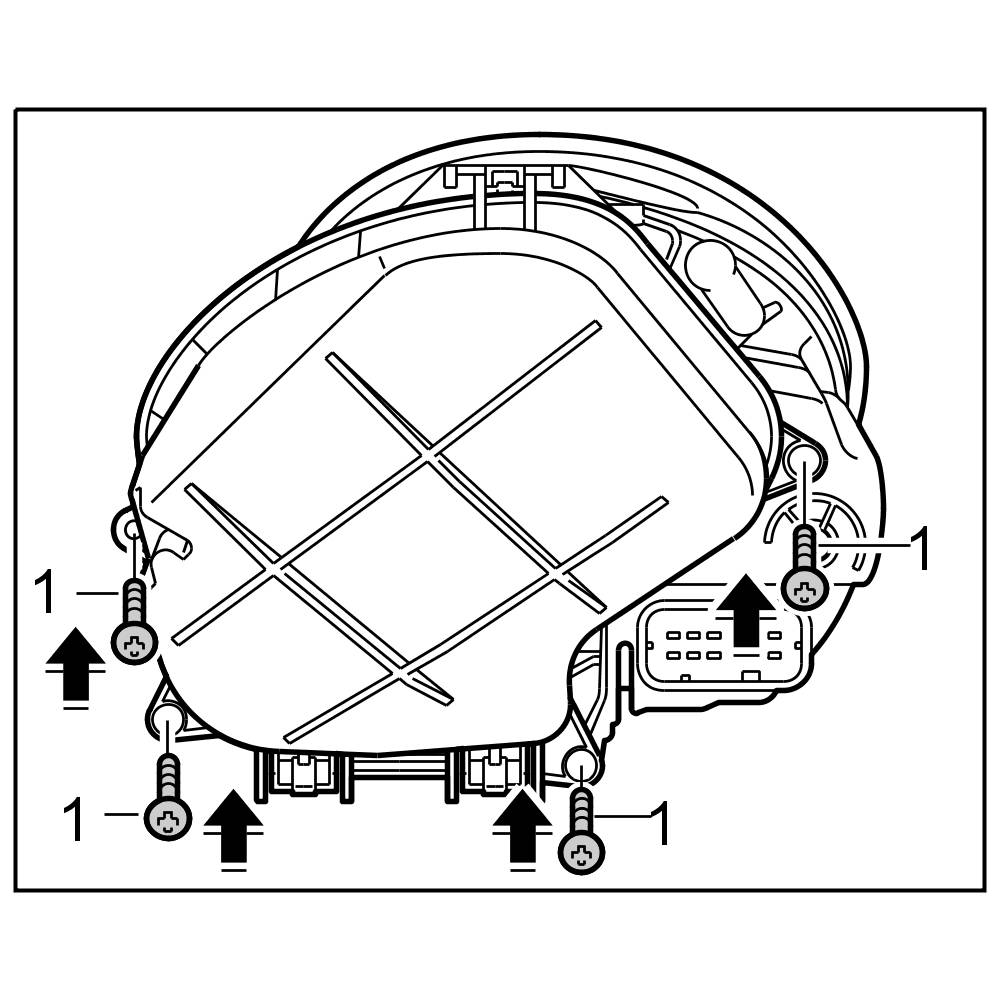

1. Unscrew four fastening screws -1- from the cap.

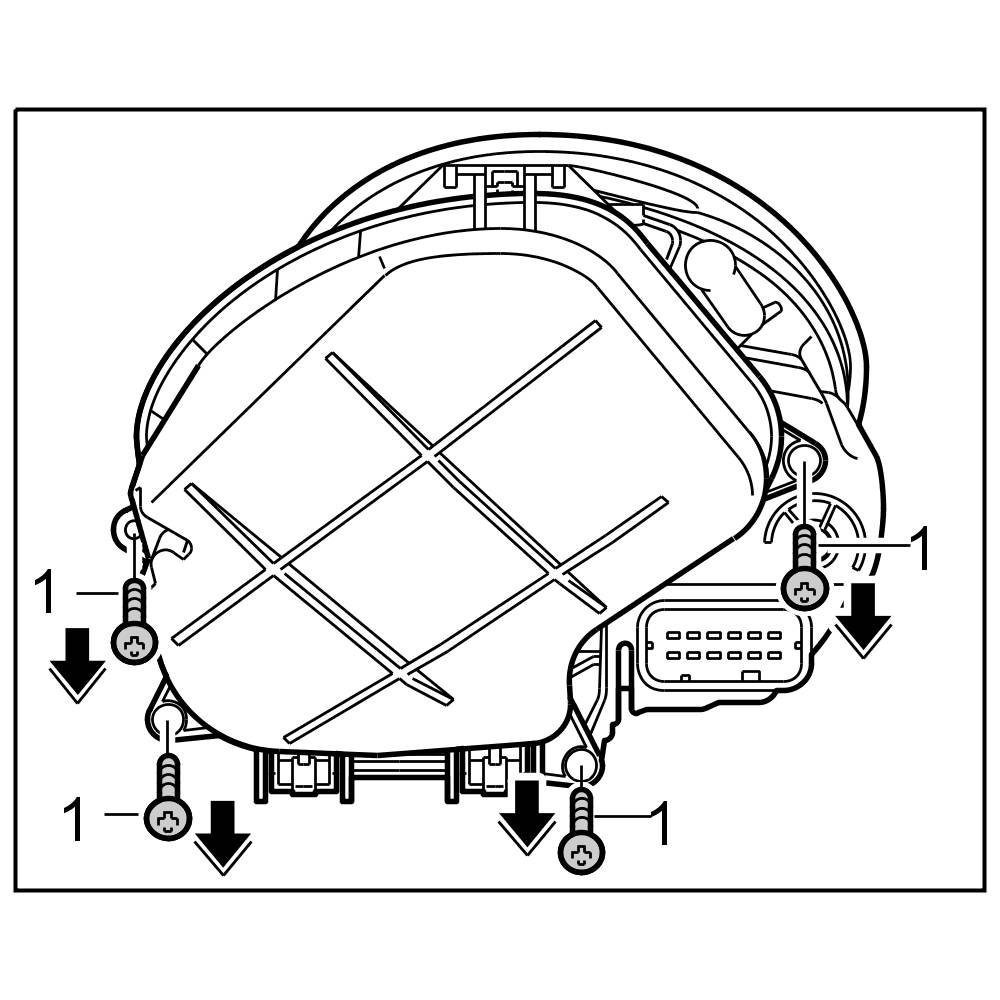

Fastening screws for cap

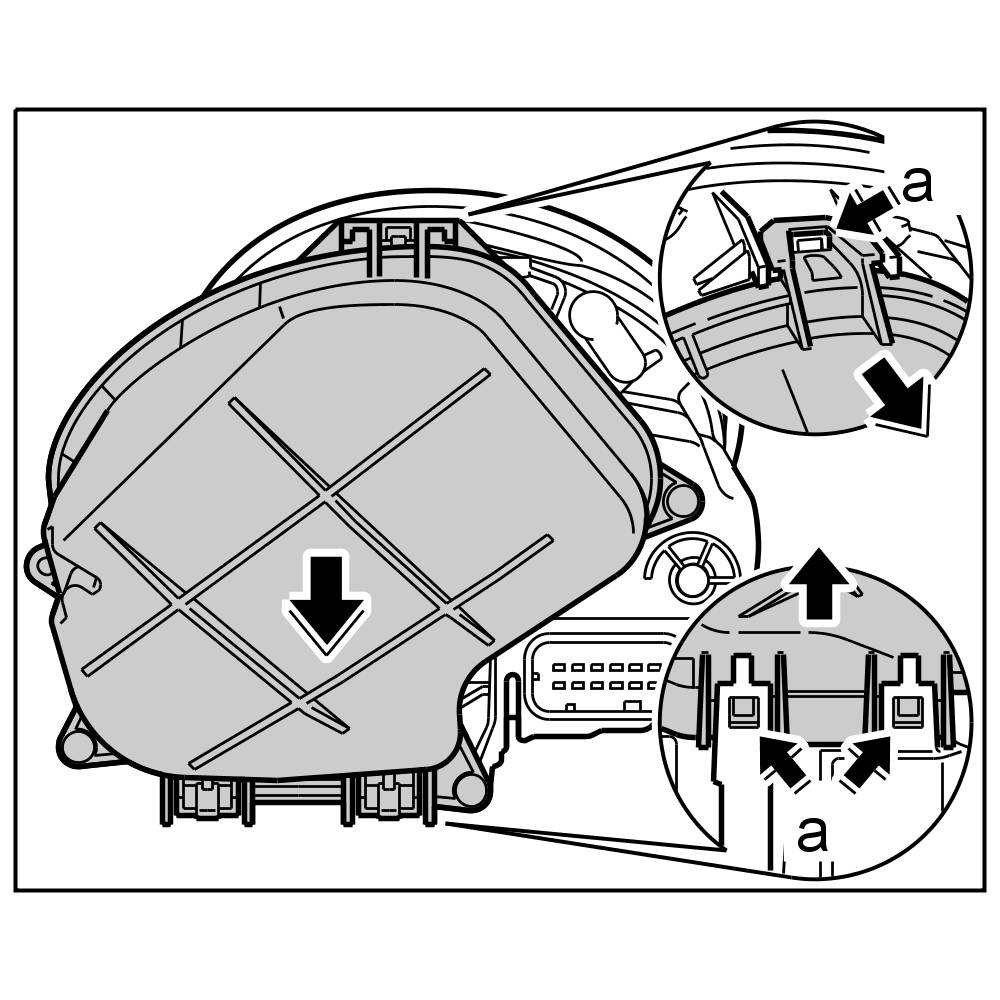

2. Release cap once at the top and twice at the bottom -a- and remove from the main headlight.





Releasing cap

Removing halogen bulb

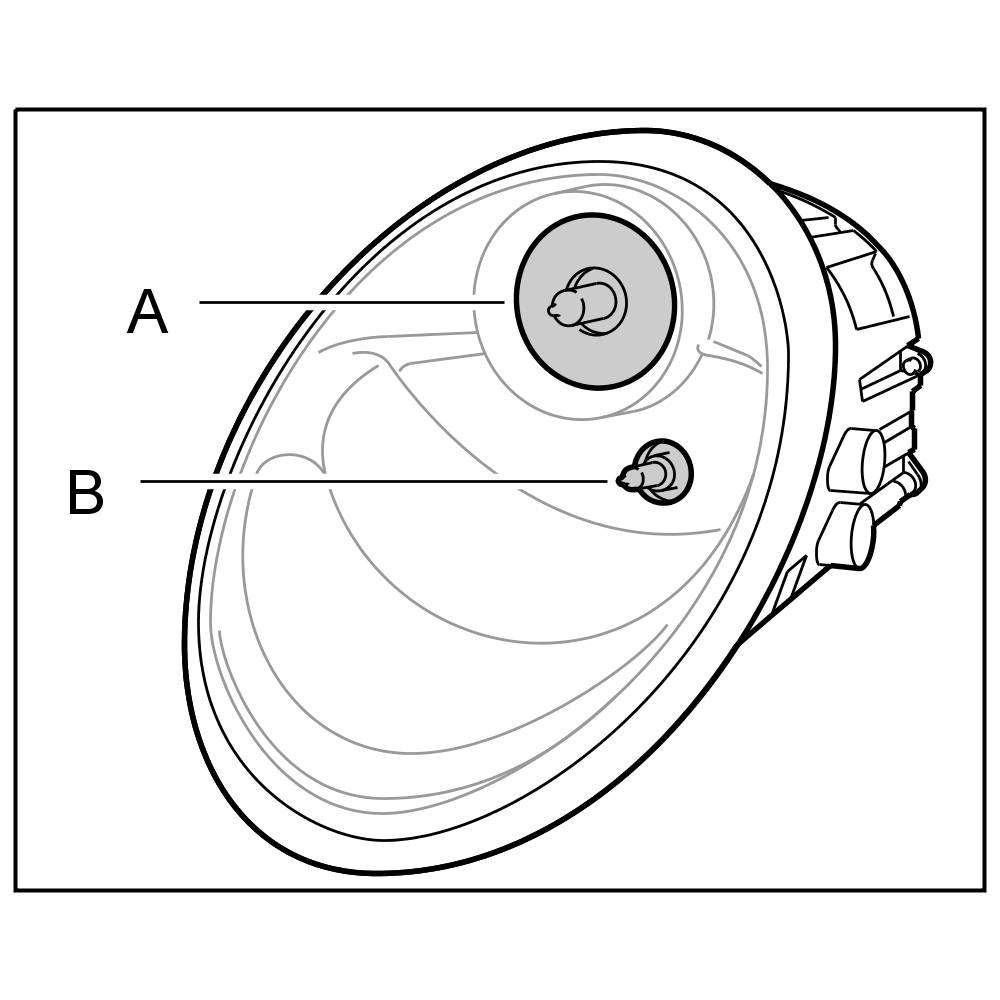

Installation position shown on the 911 headlight





1. Disengage securing clip.

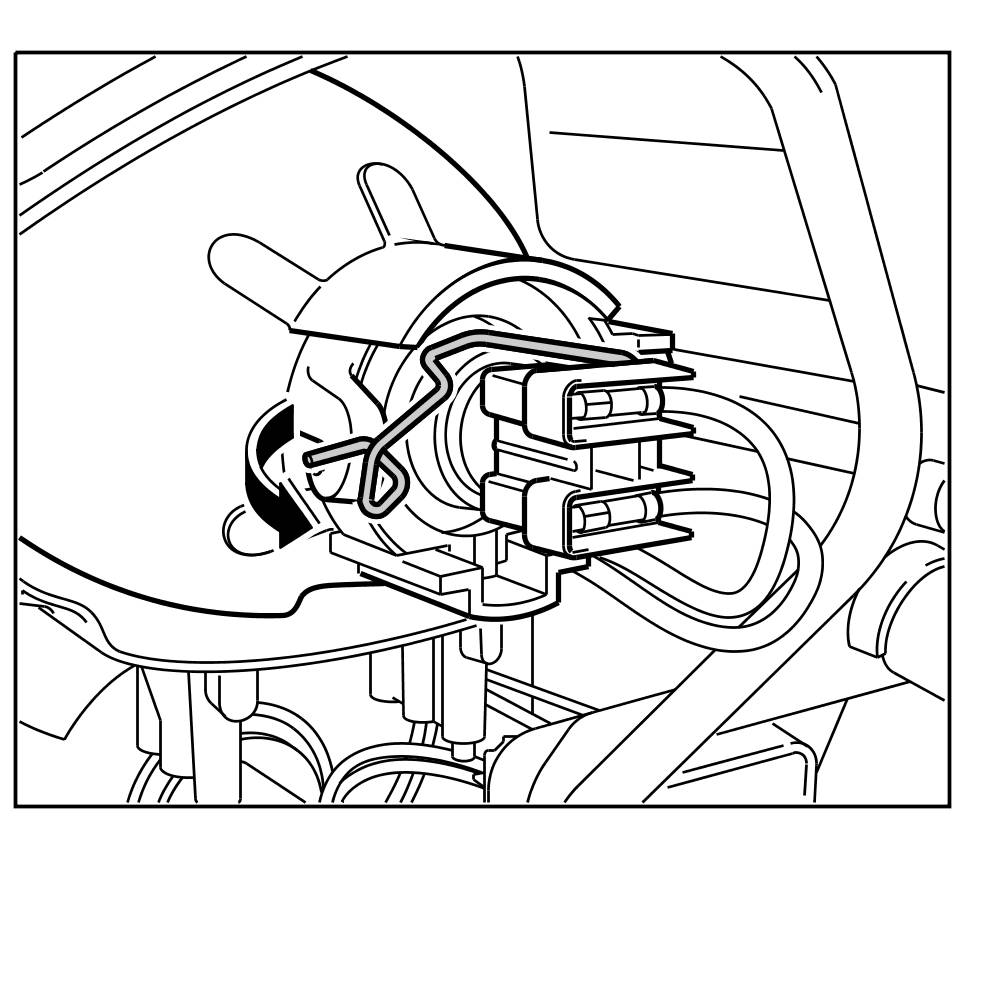

Disengaging securing clip

2. Pull electrical connector off bulb and remove bulb.





Pulling off electrical connector

Removing high beam halogen bulb





Installation position shown on the 911 headlight





1. Unscrew high beam bulb, bayonet lock counter-clockwise.

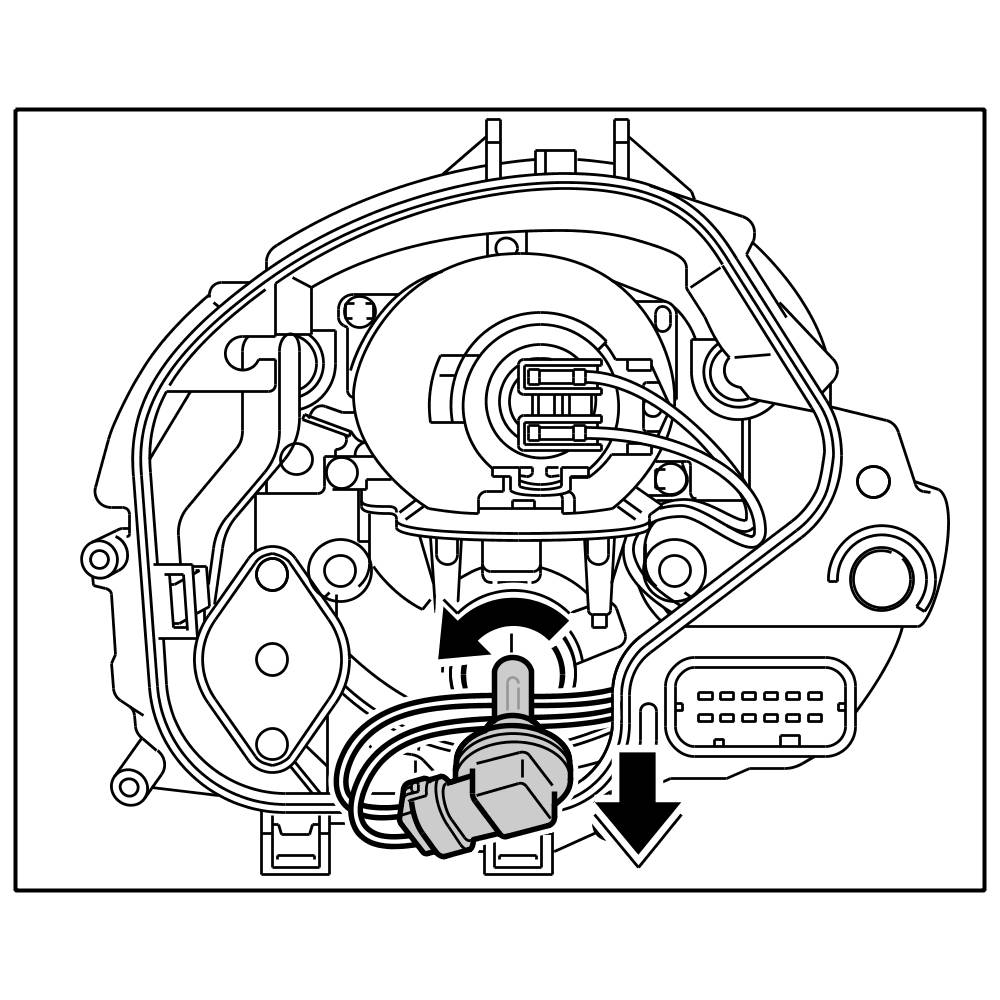

Unscrewing bayonet lock

2. Unclip electric connector -a- and unplug.

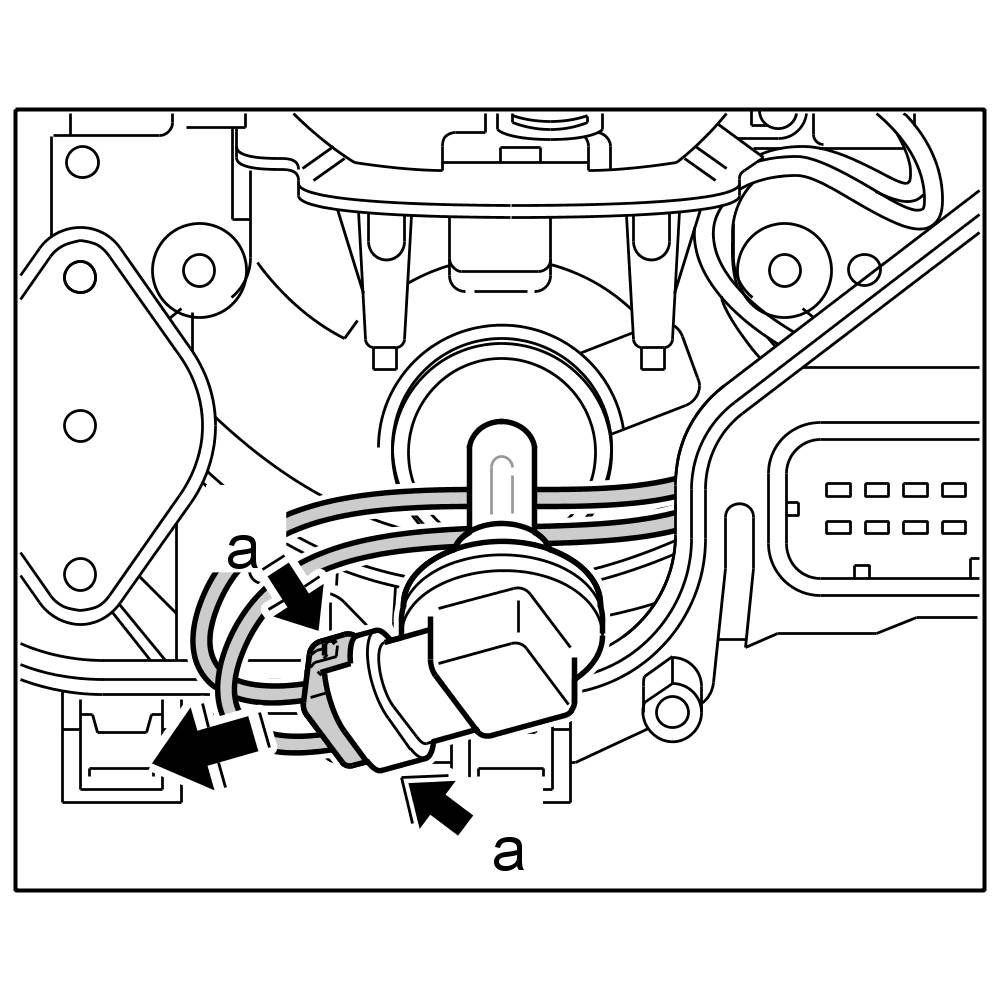

Unplugging electrical connector

Installing halogen bulb

CAUTION

Danger of injury! Danger of material damage if bulbs are used or handled incorrectly!

-> When installed, the headlight has a high voltage.
-> Only bulbs specified in the bulb table may be used!
-> Bulbs with a higher wattage may damage the bulb housing!
-> To prevent short circuits, the load in question must be switched off when changing bulbs!
-> New bulbs must be clean and free of grease. Therefore, never touch bulbs with your bare hands! To change the bulbs, use a cloth or soft paper.
-> Observe the safety instructions when replacing a bulb in a Bi-Xenon headlight.
-> In certain states, it is compulsory to carry spare light bulbs.

1. Push the electrical connector fully onto the bulb.

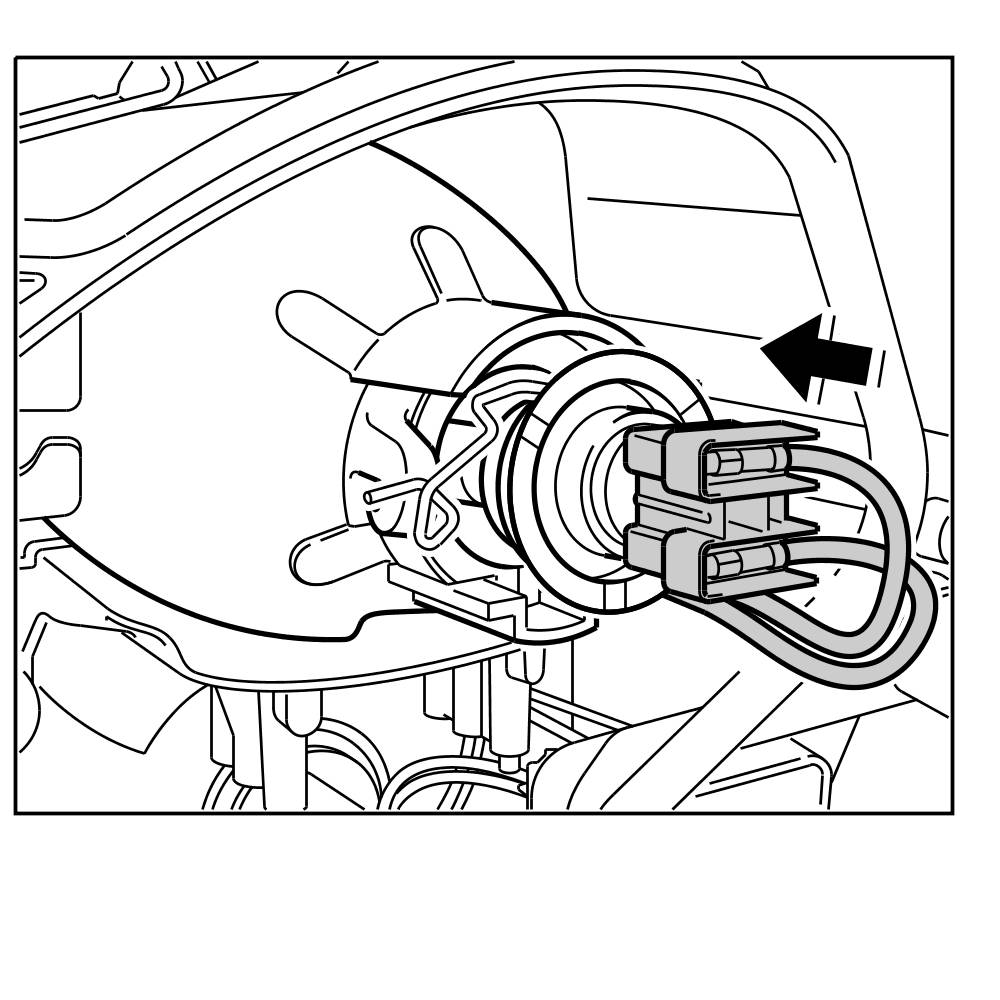

Pushing connector onto bulb

2. Engage locking clip.

Installing high beam halogen bulb

CAUTION

Danger of injury! Danger of material damage if bulbs are used or handled incorrectly!

-> When installed, the headlight has a high voltage.
-> Only bulbs specified in the bulb table may be used!
-> Bulbs with a higher wattage may damage the bulb housing!
-> To prevent short circuits, the load in question must be switched off when changing bulbs!
-> New bulbs must be clean and free of grease. Therefore, never touch bulbs with your bare hands! To change the bulbs, use a cloth or soft paper.
-> Observe the safety instructions when replacing a bulb in a Bi-Xenon headlight.
-> In certain states, it is compulsory to carry spare light bulbs.

1. Push electric connector onto bulb until it clicks into place.

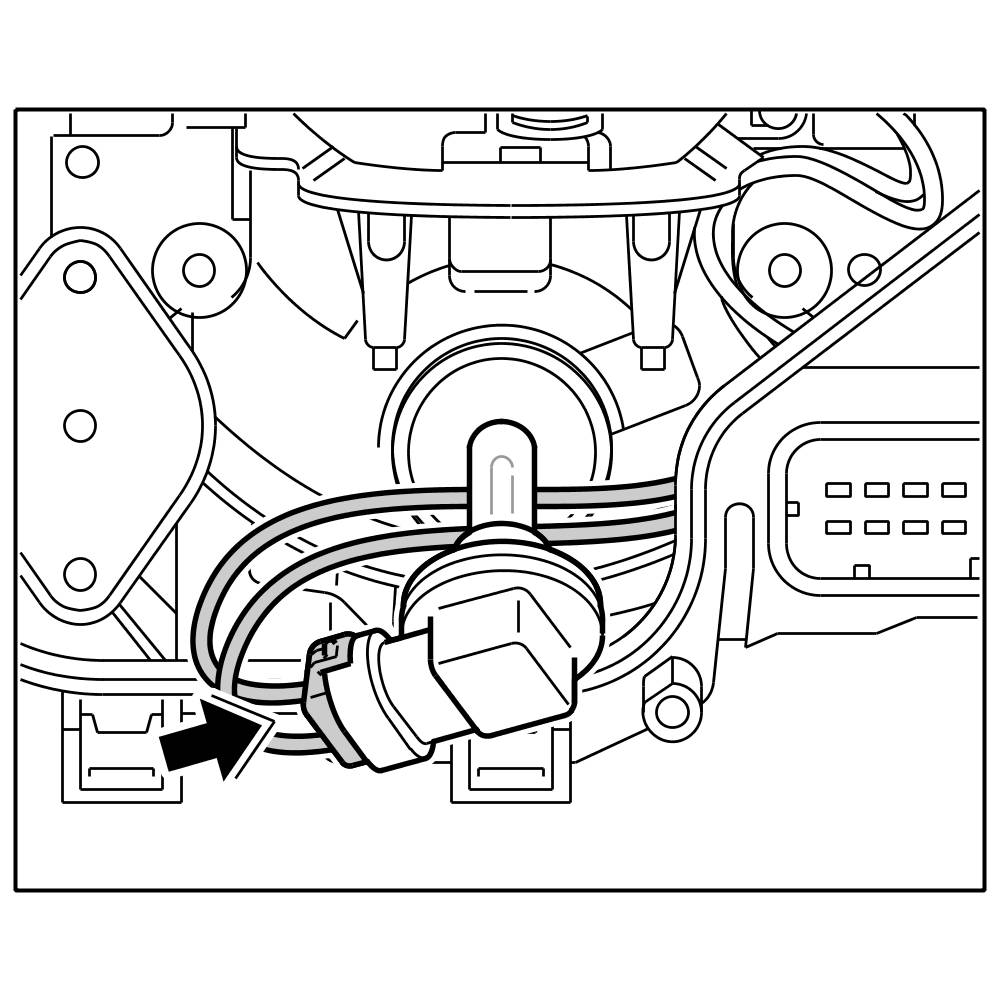

Pushing on electric connector

2. Insert high beam bulb into headlight and lock with bayonet lock.





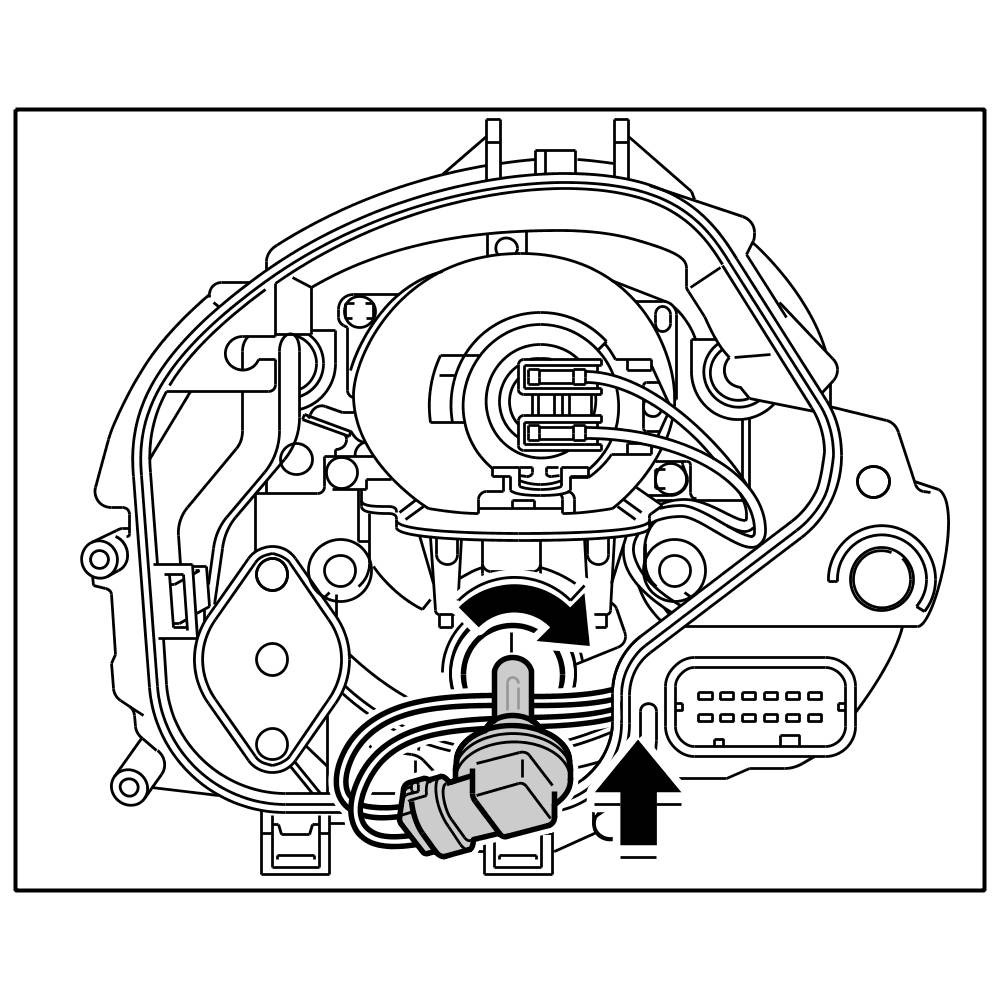

Installing high beam bulb

Installing main headlight cap

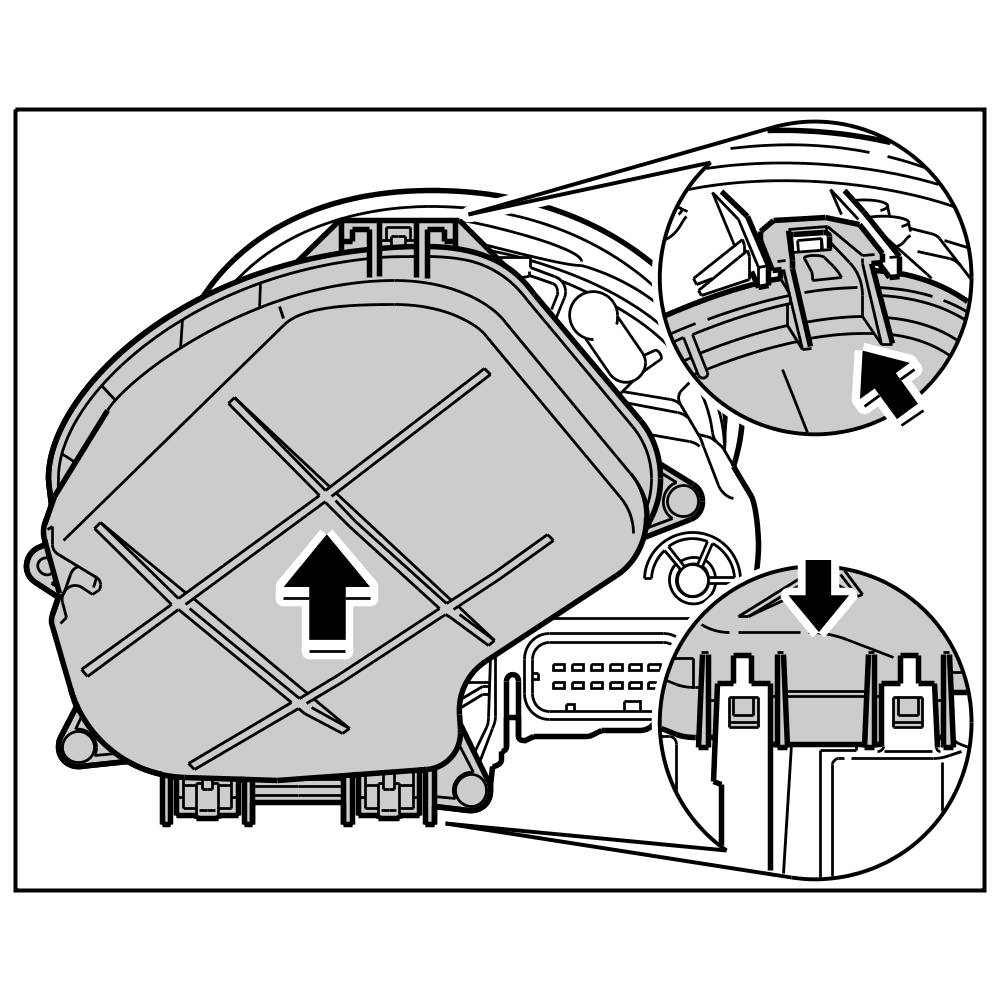

1. Position cap on main headlight and press into place, making sure that the cap engages once at the top and twice at the bottom.





Positioning cap

2. Screw in four fastening screws -1- for the cap.





Screwing in the fastening screws

Subsequent work

Install main headlight. -> 941519 Removing and installing headlight - section on "Installing" 94151900 Removing and installing main headlight

Carry out functional check of headlights.
