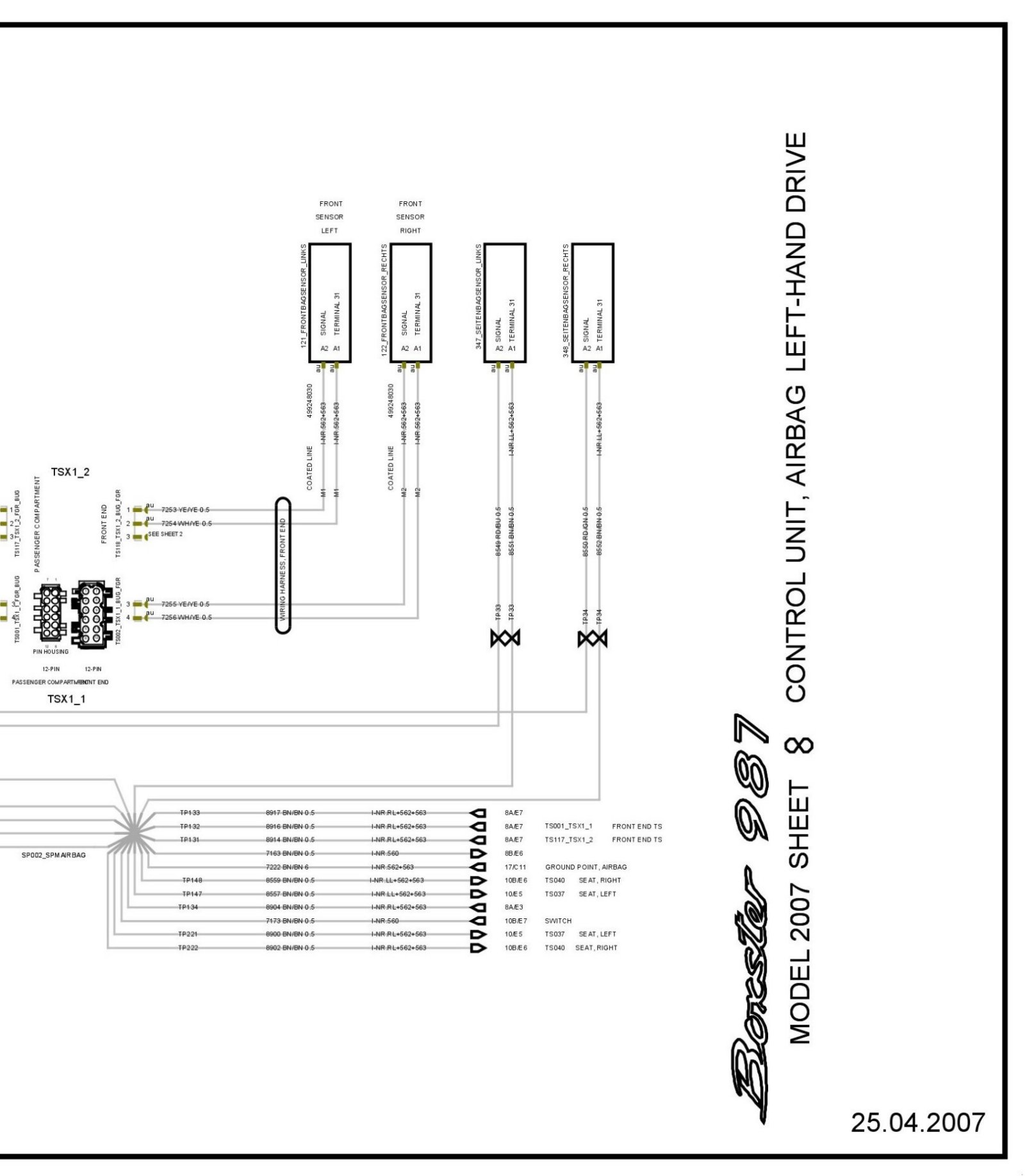

Control Unit, Airbag Left-Hand Drive - Sheet 8

Control Unit, Airbag Left-Hand Drive - Sheet 8

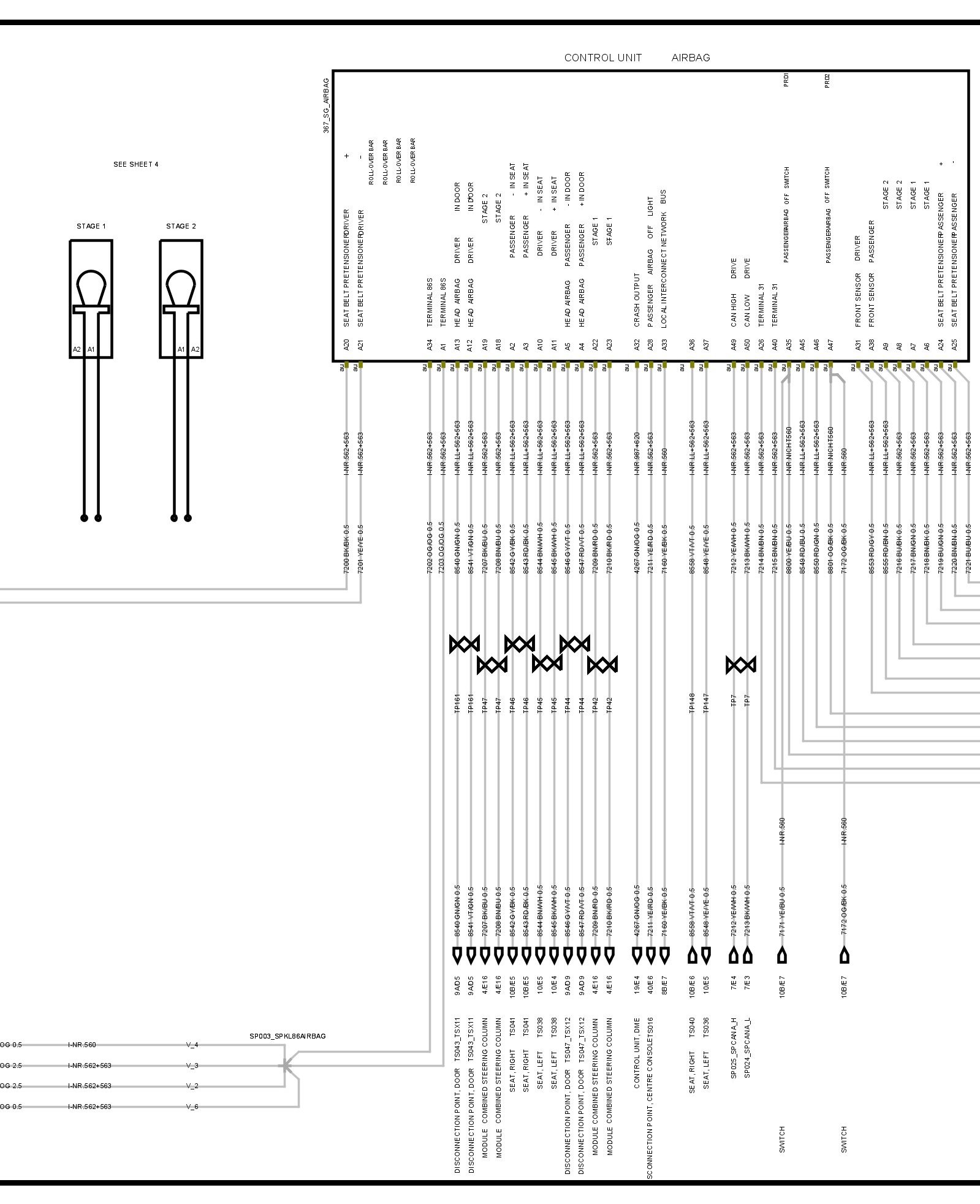

Control Unit, Airbag Left-Hand Drive - Sheet 8 (Part 1):

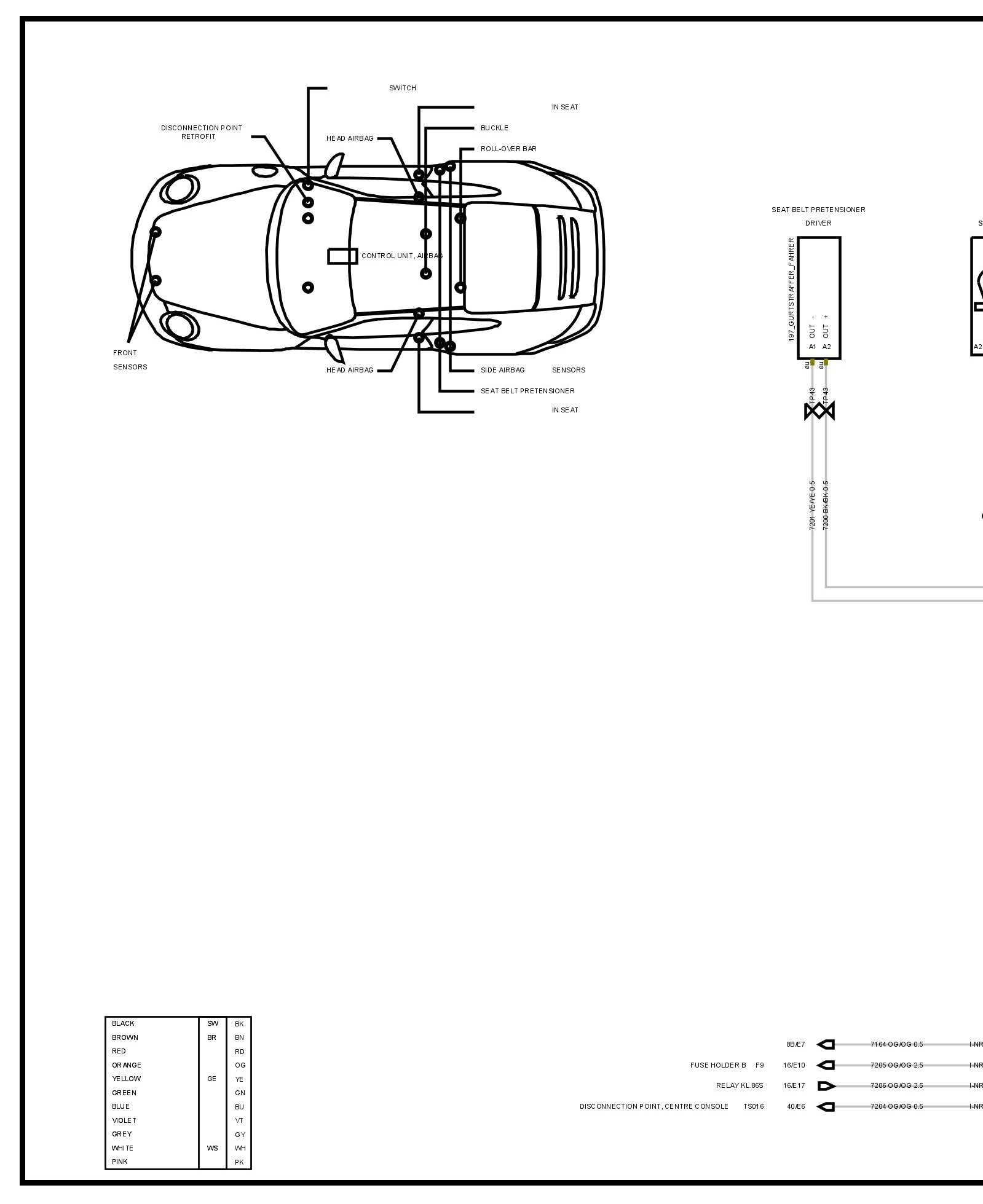

Control Unit, Airbag Left-Hand Drive - Sheet 8 (Part 2):

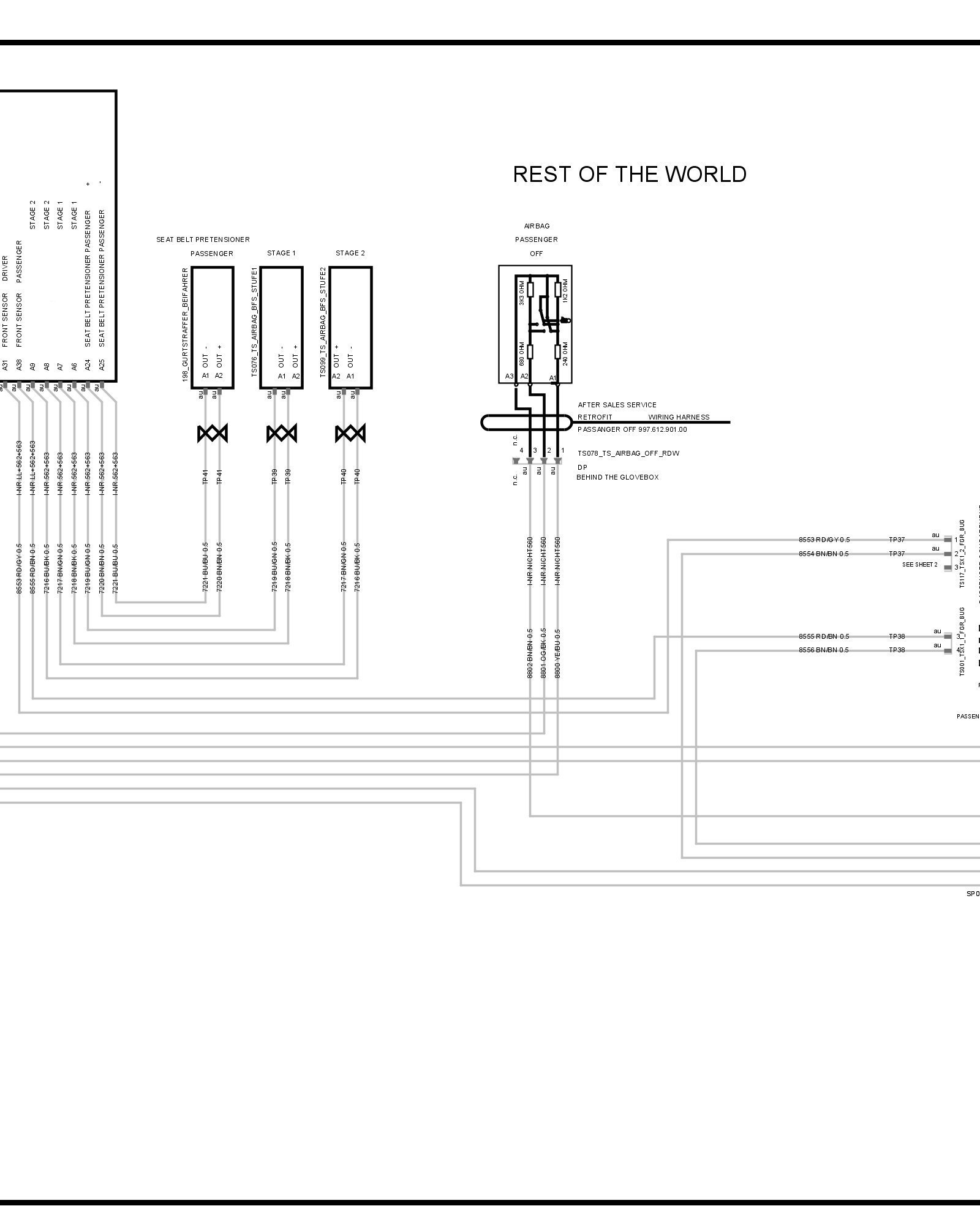

Control Unit, Airbag Left-Hand Drive - Sheet 8 (Part 3):

Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
