Part 2

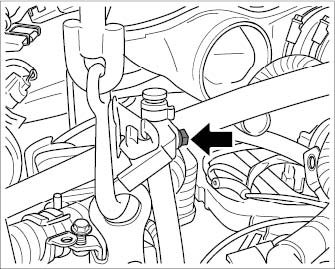

WM 373519 Removing and installing automatic transmission (Continued)3. Unscrew fastening screws between the body and the hydraulic mount -arrow-.
Transmission support
A - Transmission support
B - Hydraulic mount
C - Fastening nut (never loosen)

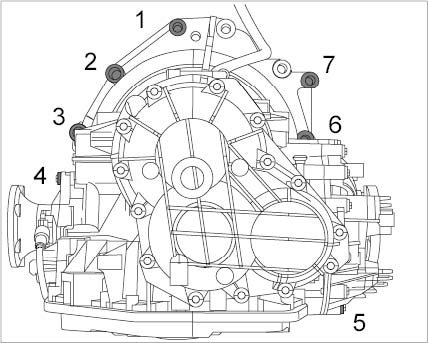

4. Unscrew fastening screws -1 to 7- and pull out transmission to the rear and downward.
Fastening transmission engine
Installing automatic transmission
Installing automatic transmission
Danger
If the supports are folded down, the vehicle will roll off the platform lift when it is lowered.
--> Ensure that the platform is prevented from lowering.
--> Remove supports before lowering.

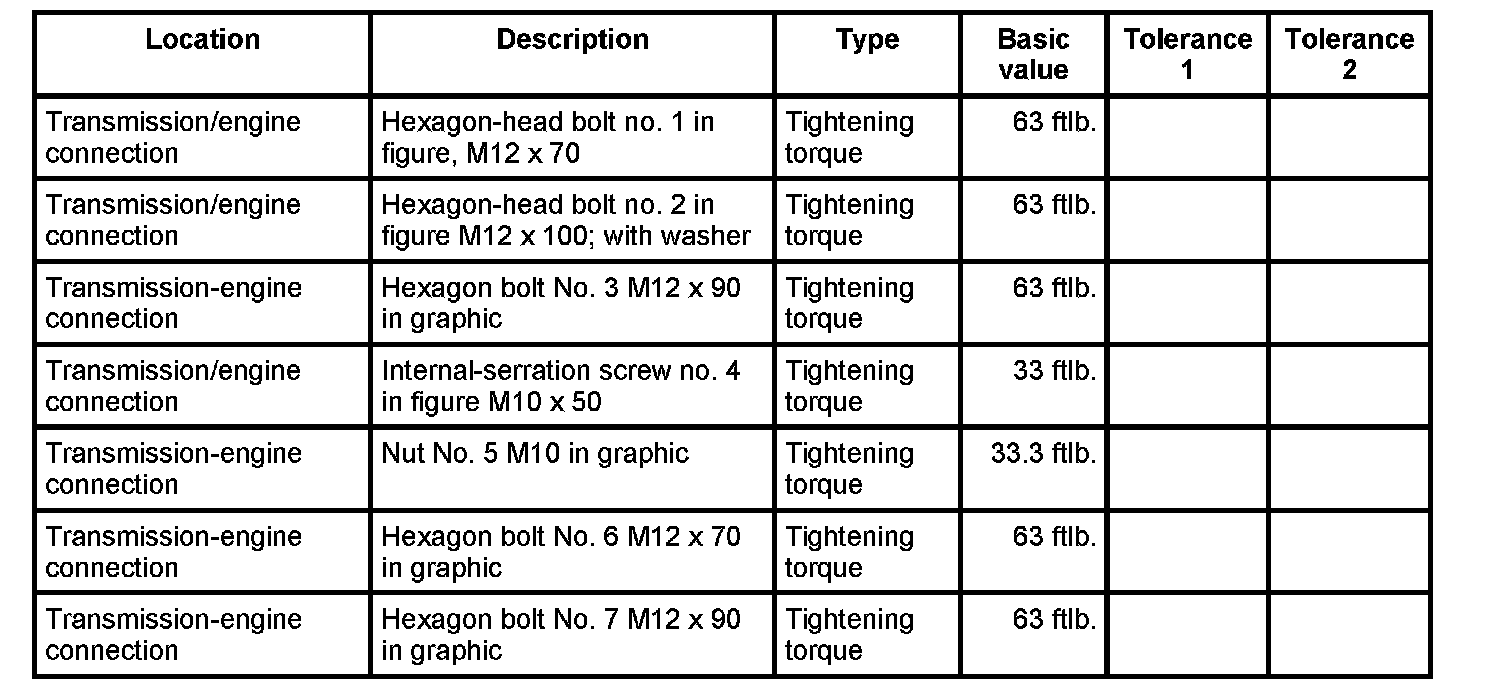

1. Run in transmission and screw in fastening screws -1 to 7-.
Fastening transmission engine
Information
In order to install the right-hand transmission support with hydraulic mount, the automatic transmission must be pushed towards the left.

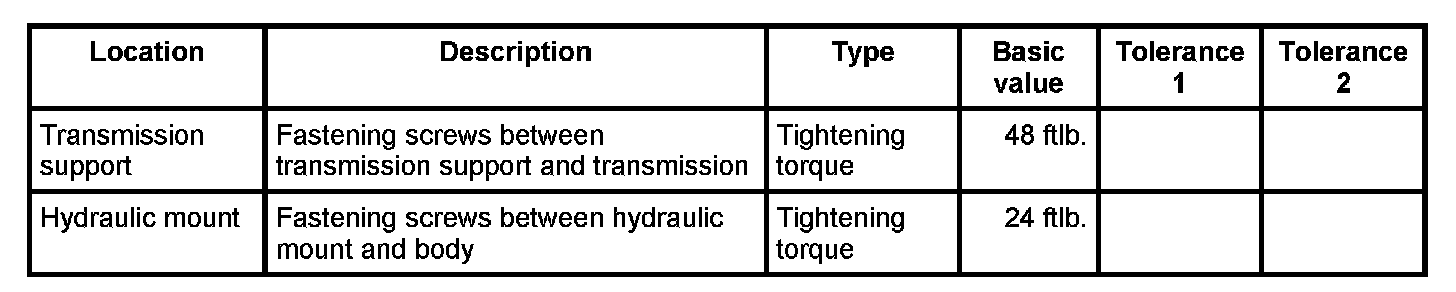

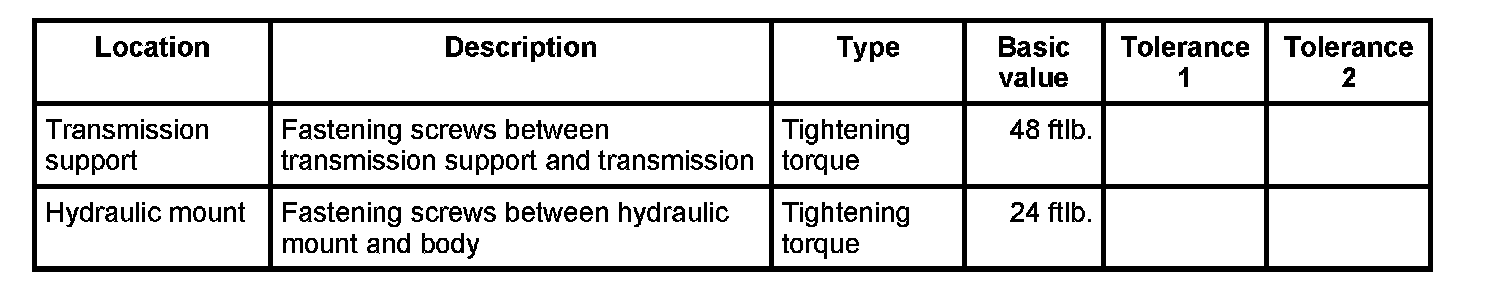

2. Install right transmission support with hydraulic mount.
3. Install left transmission support with hydraulic mount.
4. Remove transmission jack.
Assembly work

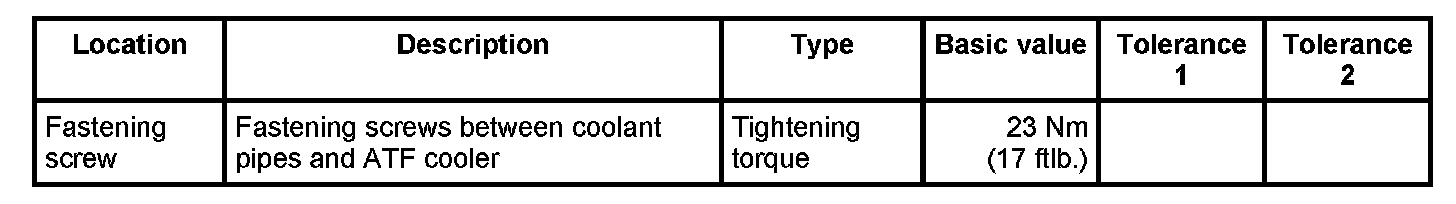

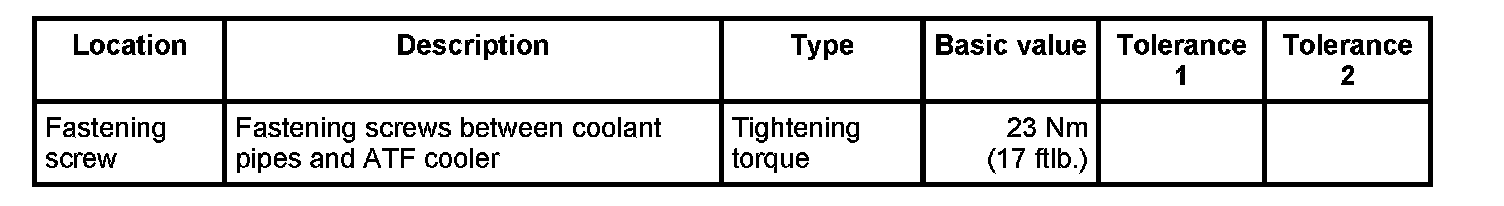

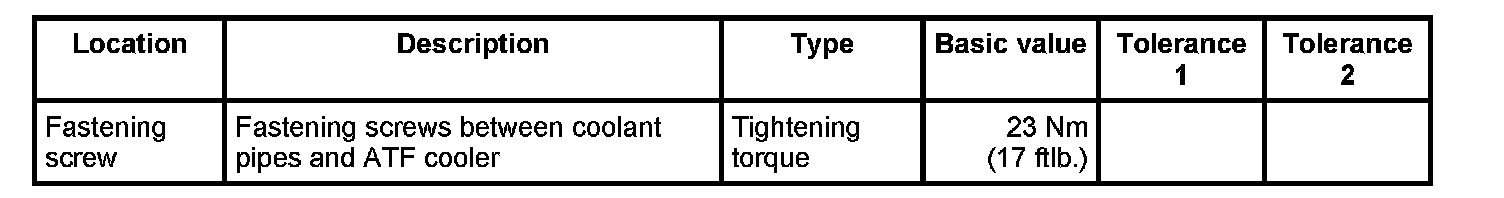

1. Insert coolant pipe with new O-ring in ATF cooler and screw in fastening screw.
Coolant line
2. Insert coolant pipe with new O-ring in ATF cooler and screw in fastening screw.
Coolant line

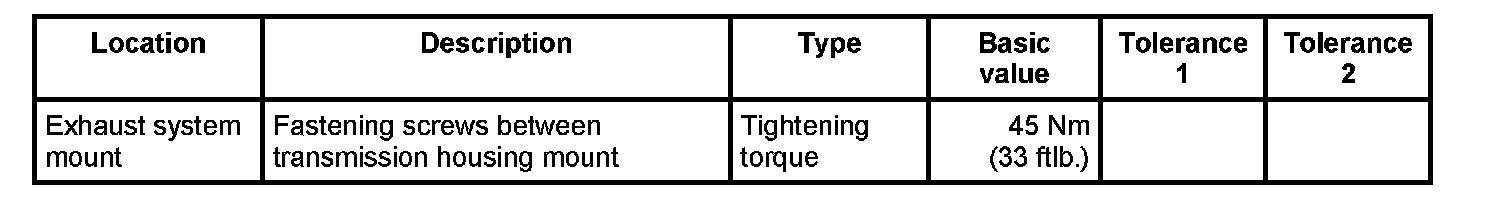

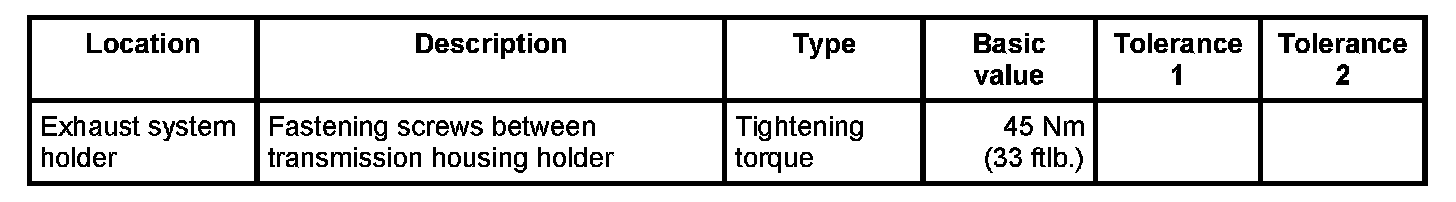

3. Install exhaust system mount and tighten fastening screws between transmission and exhaust system mount.
Fastening screws
4. Hose clamp 3094 must be removed from coolant pipes (flow and return sides).

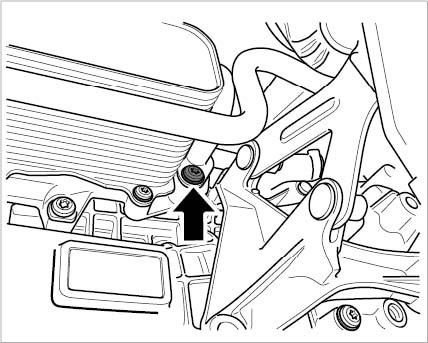

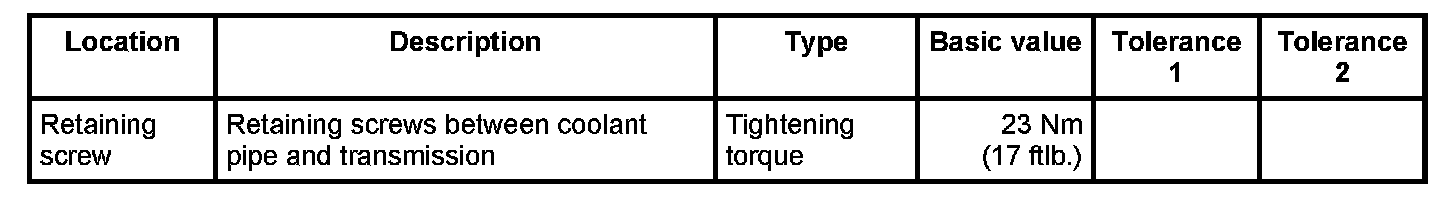

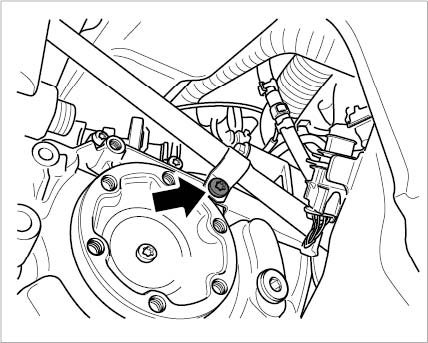

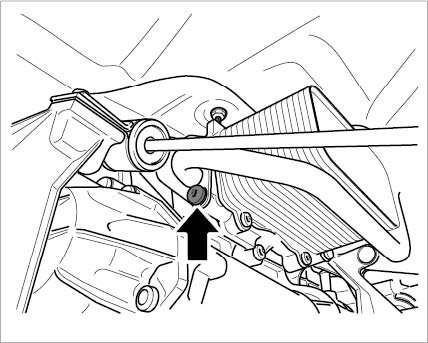

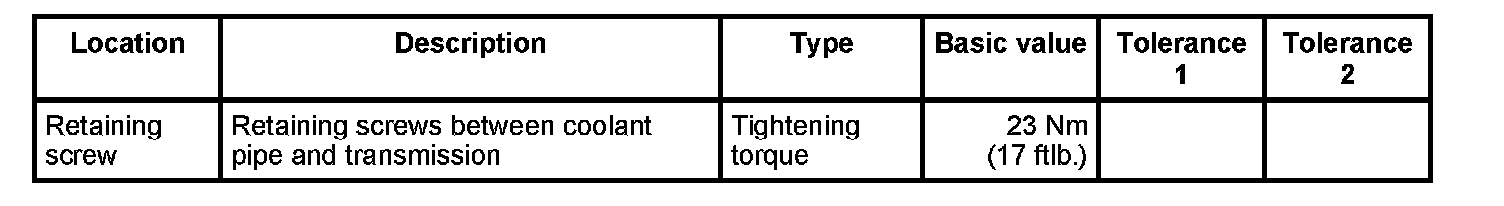

5. Screw in retaining screw between the transmission and the coolant pipe.
Retaining screw
6. Connect the plug connection for the multi-function switch.
Plug

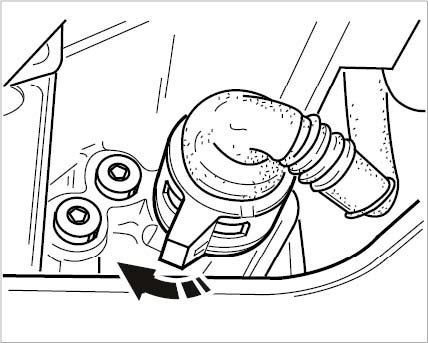

7. Plug in transmission socket plug and turn clockwise up to the stop.
Locking plug

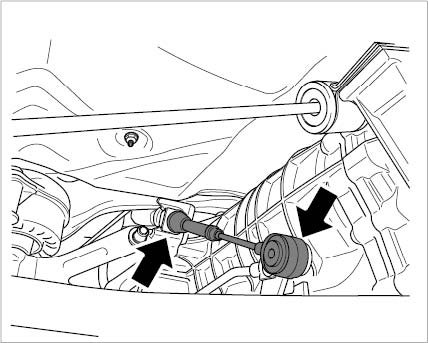

8. Engage selector cable in support bracket and push onto ball journals.
Selector cable

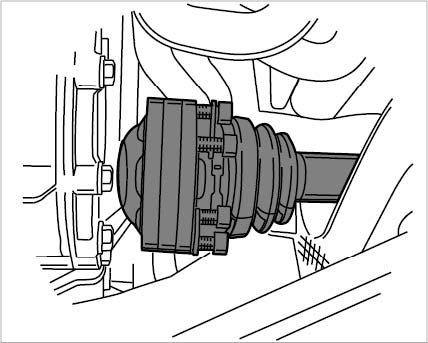

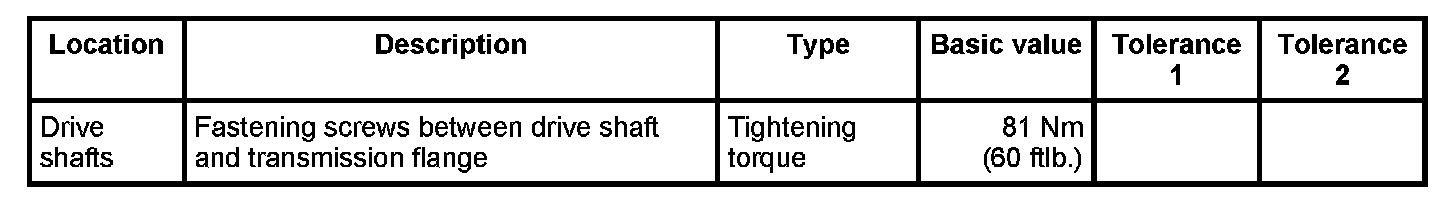

9. Fit drive shafts at transmission side. To do this, screw in the six hexagon socket head bolts joining each drive shaft and transmission flange and tighten screws. Counter at the brake disc or activate the parking brake to avoid simultaneous turning.
Drive shaft

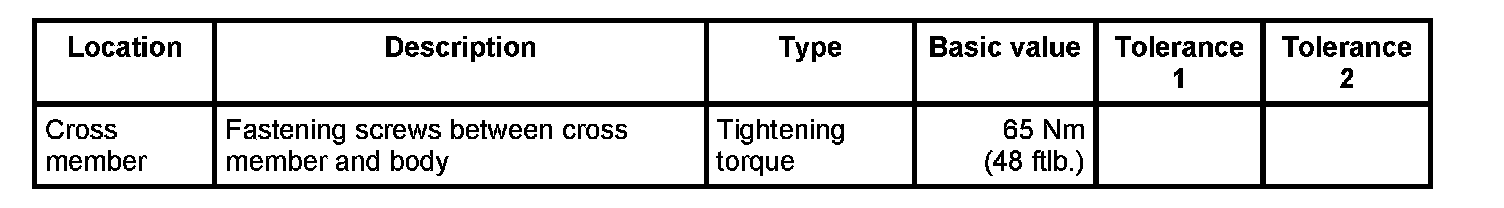

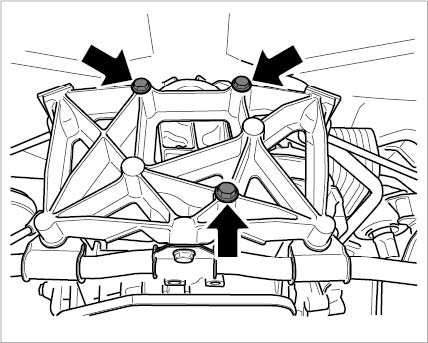

10. Install crossmember.
Cross member

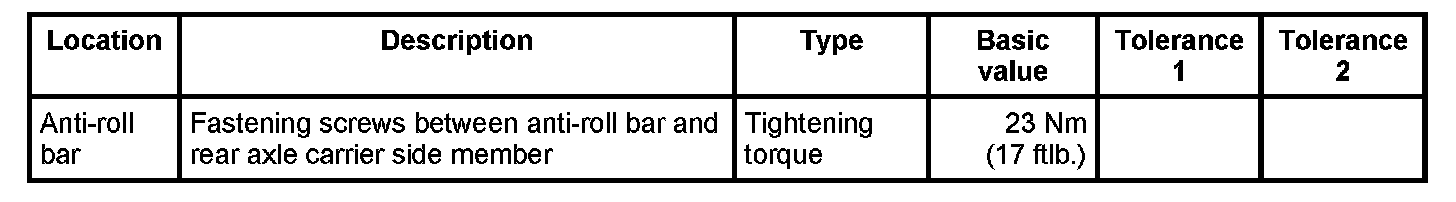

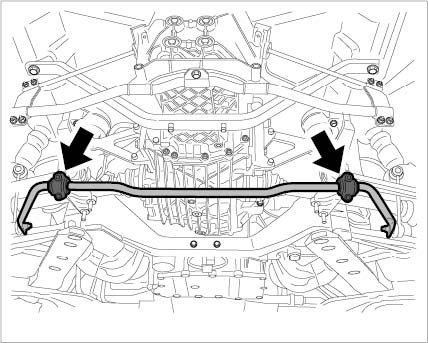

11. Screw in fastening screws between anti-roll bar and rear axle carrier side member.
Anti-roll bar

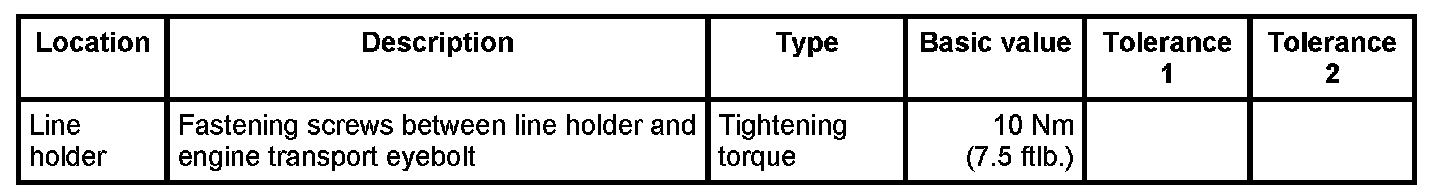

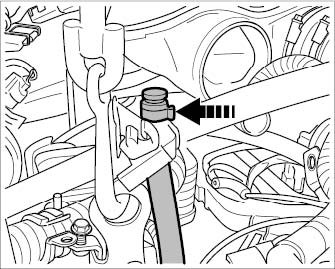

12. Clip in vent line on engine transport eyebolt.
Clipping in line

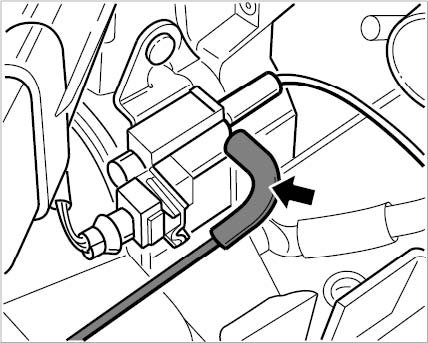

13. Push vacuum pipe onto switch-over valve.
Vacuum line
Assembly work
1. Insert coolant pipe with new O-ring in ATF cooler and screw in fastening screw.
Coolant line
2. Insert coolant pipe with new O-ring in ATF cooler and screw in fastening screw.
Coolant line
3. Install engine mount for exhaust system and tighten fastening screws between transmission and engine mount for exhaust system.
Fastening screws
4. Hose clamp 3094 must be removed from coolant pipes (flow and return sides).
5. Screw in retaining screw between the transmission and the coolant pipe.
Retaining screw
6. Connect the plug connection for the multi-function switch.
Plug
7. Plug in transmission socket plug and turn clockwise up to the stop.
Lock plug
8. Engage selector cable in support bracket and push onto ball journals.
Selector cable
9. Fit drive shafts on the transmission side. For this purpose, tighten six hexagon socket head bolts between the drive shaft and the transmission flange, respectively. Counter on the brake disc or activate the parking brake to avoid simultaneous turning.
Drive shaft

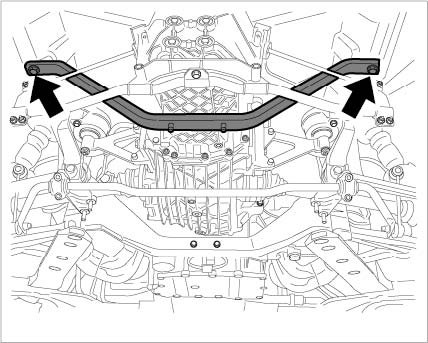

10. Install crossmember.
Cross member
11. Screw in fastening screws between anti-roll bar and rear axle carrier side member.
Anti-roll bar
12. Screw vent line onto the engine transport eyebolt.
Vent line
13. Push vacuum pipe onto change-over valve.
Vacuum line
Install converter screw connection
1. Pull fixing pins (long) 9595/1 out of the opening in the transmission housing.
Fasten converter

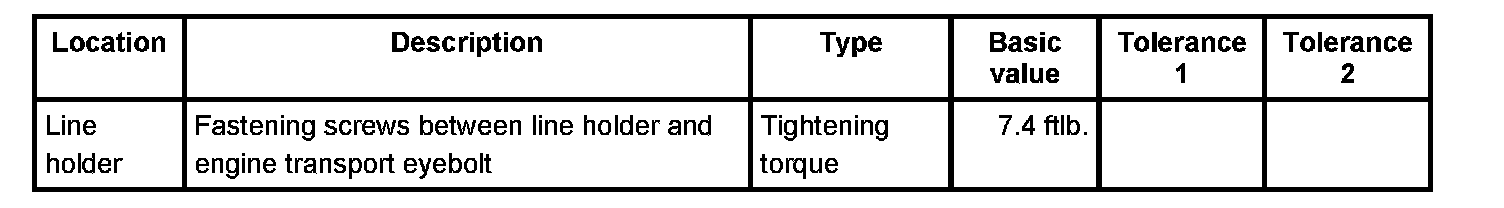

2. Screw on support for positive crankcase ventilation line to the engine transport eyebolt.
Fastening screw

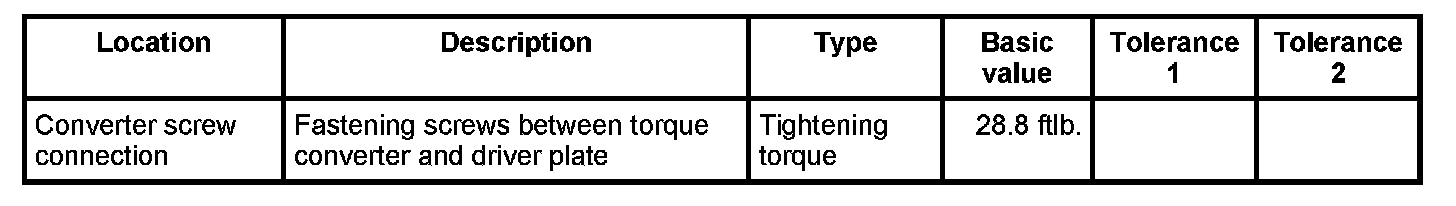

3. Screw in converter fastening screws with 6mm hexagon socket through the openings in the assembly aid 9596.
4. Pull fixing pins (short) 9595/1 out of the belt pulley.

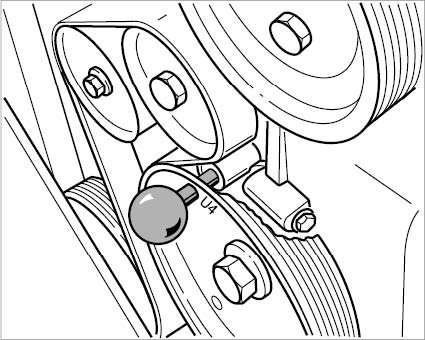

5. Turn crankshaft by 120° so that one of the U4, U5 or U6 bores in the belt pulley is aligned with the centering bore in the crankcase.
Information
^ The crankshaft is fixed in a defined position by inserting the fixing pin.
^ If the fixing pin can not be inserted, check the correct positioning of the belt pulley in relation to the crankcase.
6. Insert fixing pins (short) 9595/1 through the belt pulley in the crankcase housing bore.
Fix crankshaft
7. Screw in converter fastening screws with 6mm hexagon socket through the openings in the assembly aid 9596.
8. Pull fixing pins (short) 9595/1 out of the belt pulley.
9. Turn crankshaft by 120° so that one of the U4, U5 or U6 bores in the belt pulley is aligned with the centering bore in the crankcase.
Information
^ The crankshaft is fixed in a defined position by inserting the fixing pin.
^ If the fixing pin can not be inserted, check the correct positioning of the belt pulley in relation to the crankcase.
10. Insert fixing pins (short) 9595/1 through the belt pulley in the crankcase housing bore.
Fix crankshaft
11. Screw in converter fastening screws with 6mm hexagon socket through the openings in the assembly aid 9596.
12. Pull fixing pins (short) 9595/1 out of the belt pulley.

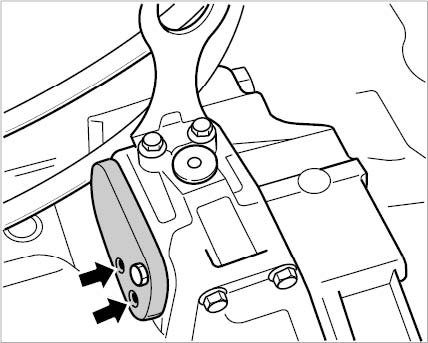

13. Remove assembly aid 9596 from the starter opening.
Special tool 9596 in starter opening
Subsequent work
Subsequent work
1. Remove retaining device P 9624/1 from crossmember.
Special tool

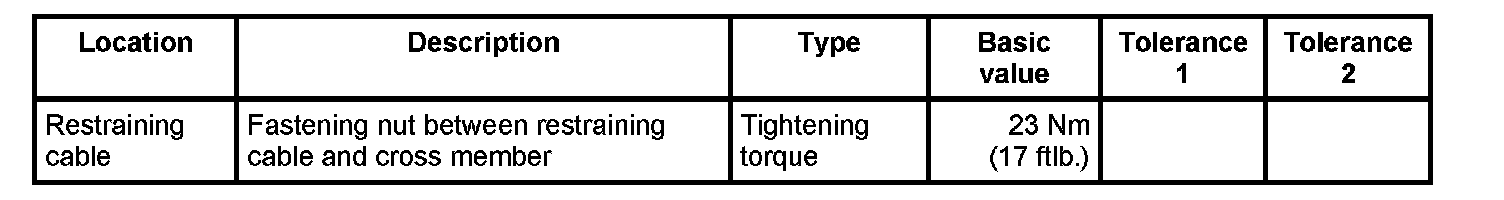

2. Fit restraining cables to crossmember.
3. Install support plate.
4. Install rear silencers.
5. Mount wheels.
6. Lower the vehicle.
7. Install the starter.
8. Install the engine-compartment lid.
9. Install rear wall cover.
10. Connect the battery.
11. Bleed the cooling system.
12. Check and top up the ATF.
