Changing Transmission Oil

Changing transmission oil





Information

Notes

Information
Fill only with oil approved by Porsche.

Preliminary work

1. Raise the vehicle at the prescribed jacking points.
2. Remove support plate.
3. Place oil collection pan under the transmission.

Filling transmission oil

Filling transmission oil - 6-speed

Caution
Oil fill level too low
Risk of damage to components

- Do not start engine.

- Do not tow the vehicle.

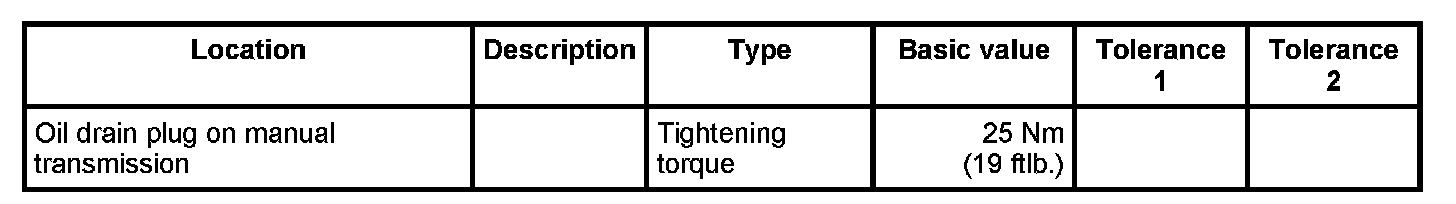

1. Clean oil drain plug and screw in with new sealing ring.

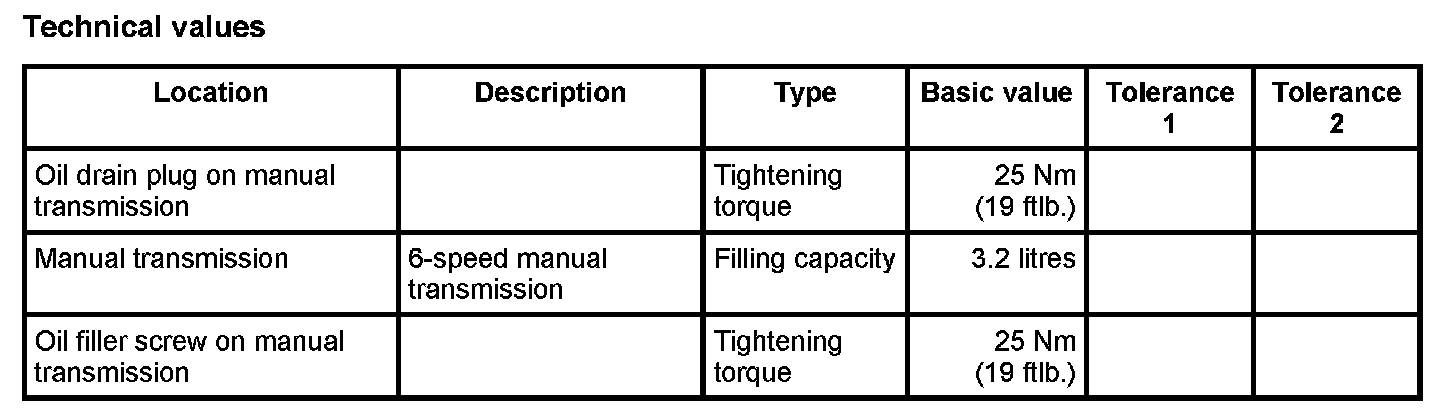

2. Fill with transmission oil.

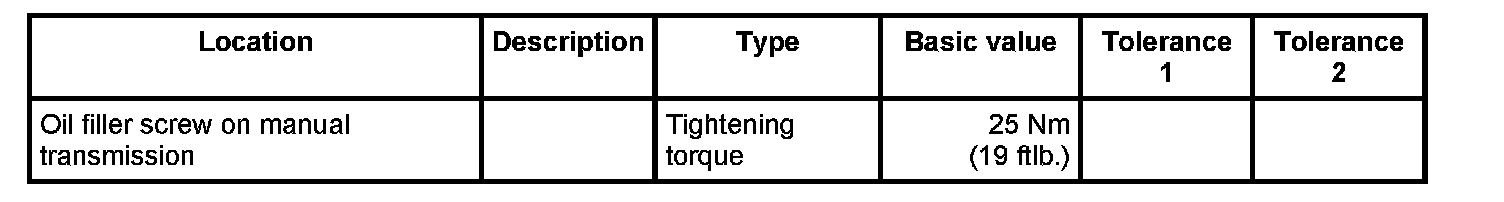

3. Clean oil filler screw and screw in with a new seal.





Subsequent work

1. Fit support plate.
2. Lower the vehicle.
