Disassembling and Assembling Key

Disassembling And Assembling Key

Disassembling key

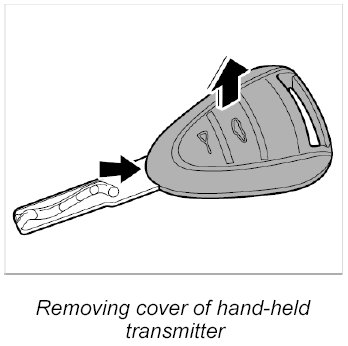

Removing cover of hand-held transmitter

1. Insert a small screwdriver between the cover and the bottom part of the hand-held transmitter -arrow- and carefully lift off the cover.

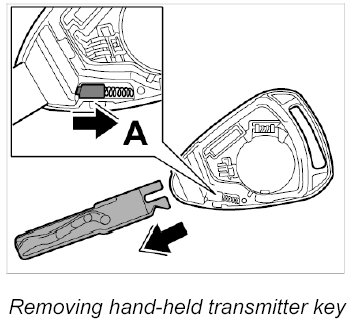

Removing hand-held transmitter key

1. Push the sliding latch back using a small screwdriver -arrow A- and pull the key out of the bottom part.







Assembling key

Installing hand-held transmitter key

INFORMATION: The lock code from IPAS must be specified when ordering a new key.

1. Push the key into the bottom part until the sliding latch -arrow- engages perceptibly.

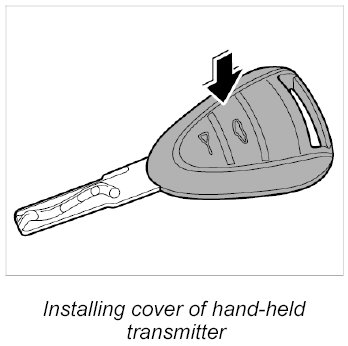

Installing cover of hand-held transmitter

1. Position the cover on the bottom part of the hand-held transmitter and press together until the cover clicks into place.
