Solar Sensor: Service and Repair

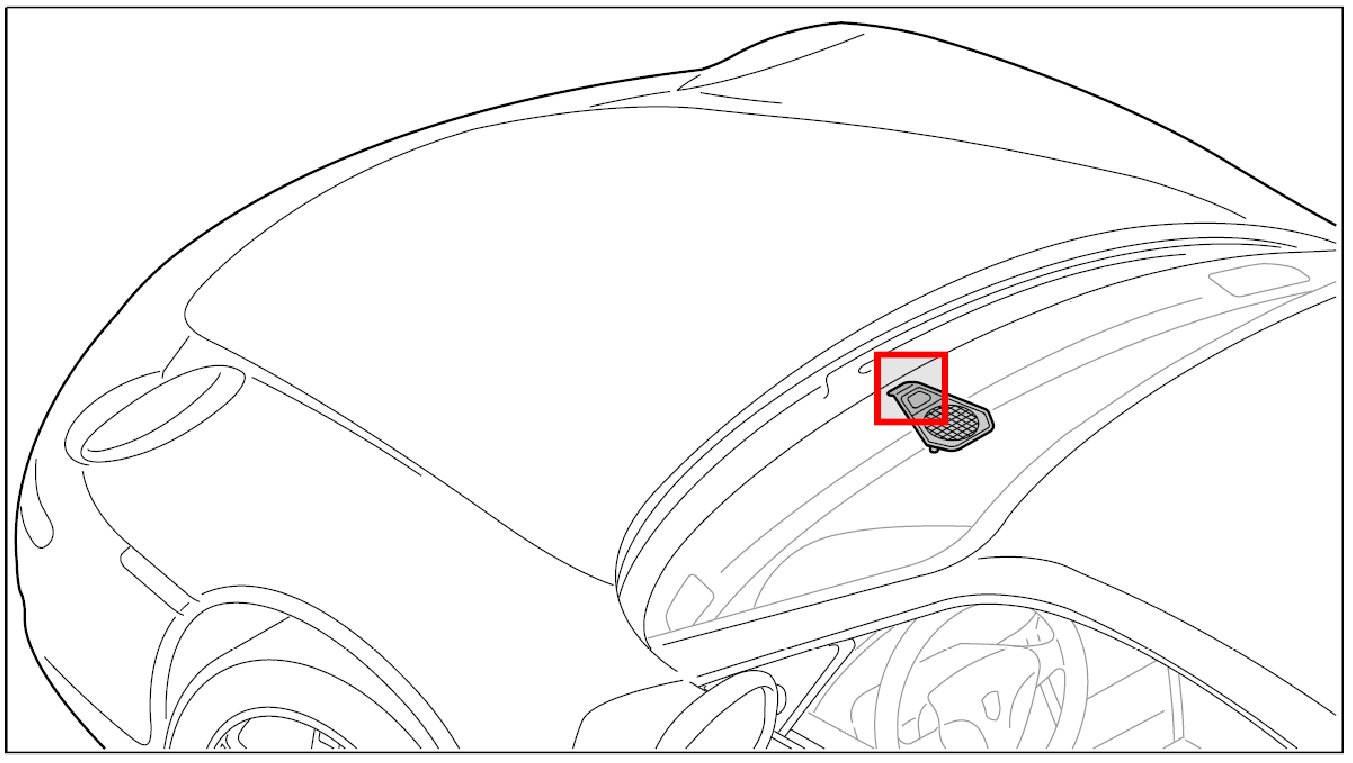

Removing And Installing Sun Sensor

Removing sun sensor

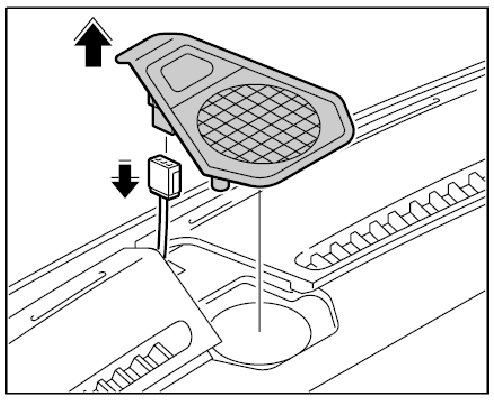

1. Lift cover on dashboard using plastic spatula and unclip.
2. Unplug electrical plug connection.

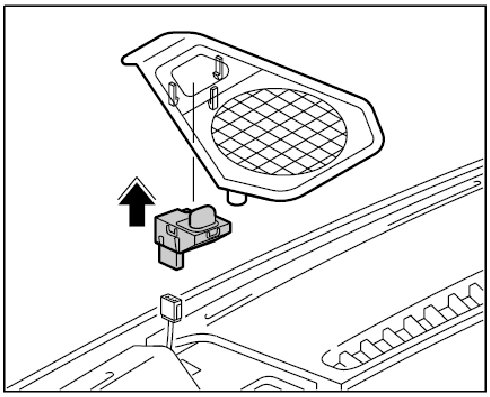

3. Carefully pull the three tabs out of the cover and remove the sun sensor.

Installing sun sensor

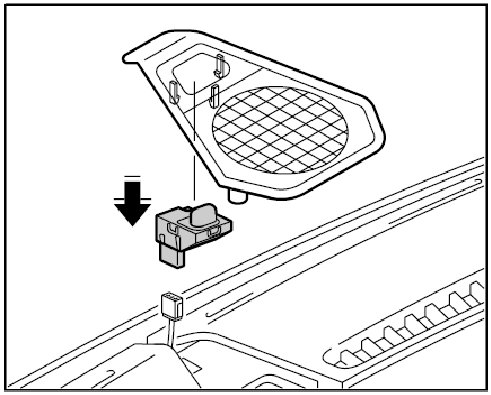

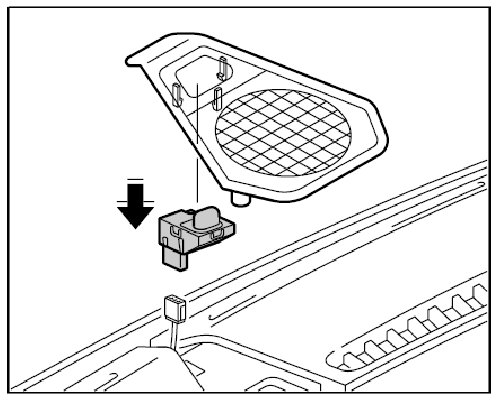

1. Press sensor into the holder until the sensor lugs engage.
2. Plug in the electrical plug connection.

3. Position cover and clip into dashboard.
