Fuse Block: Service and Repair

Undoing And Securing Fusebox

Technical values







Preliminary work

Preliminary work for fusebox
Remove front left side section trim.

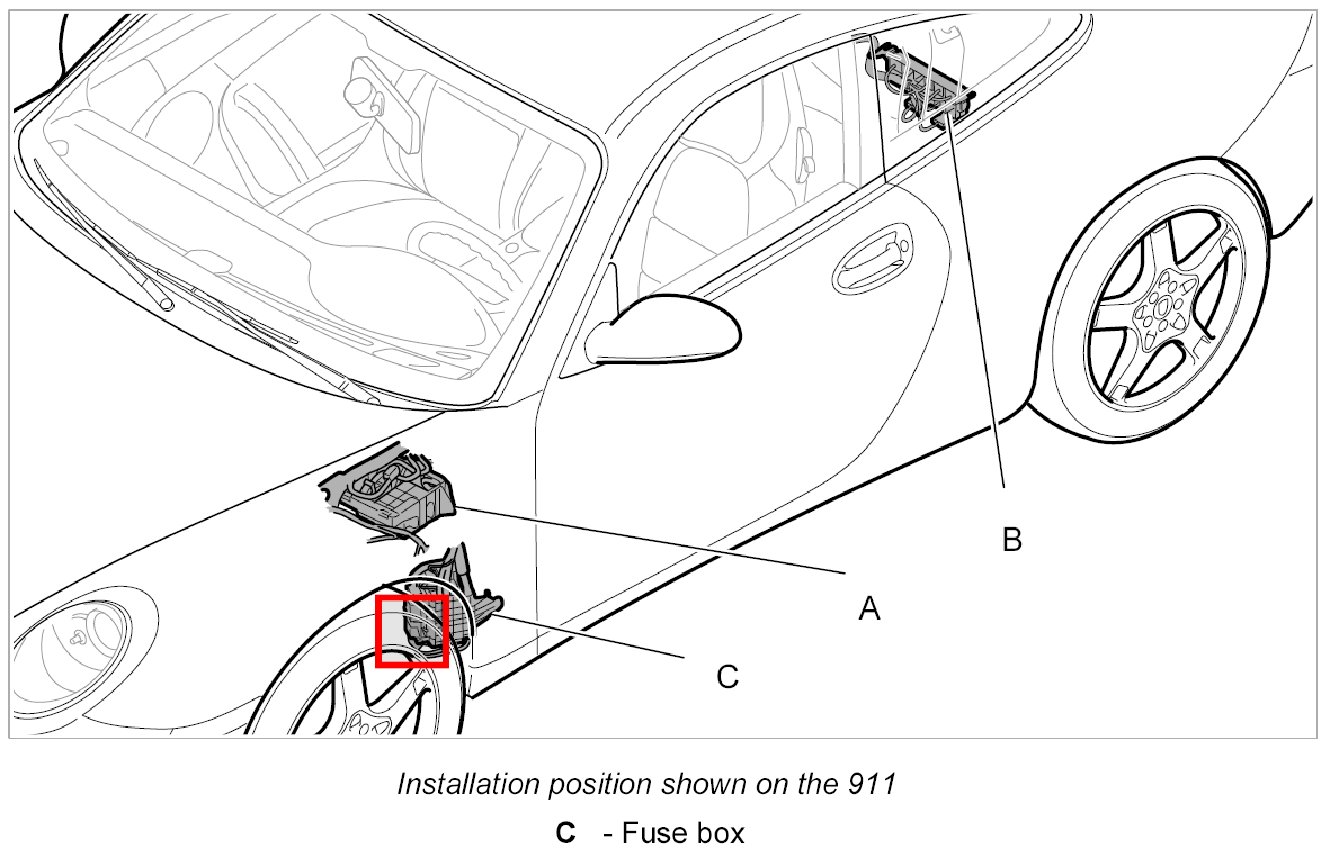

Undoing fusebox

Loosening fuse box

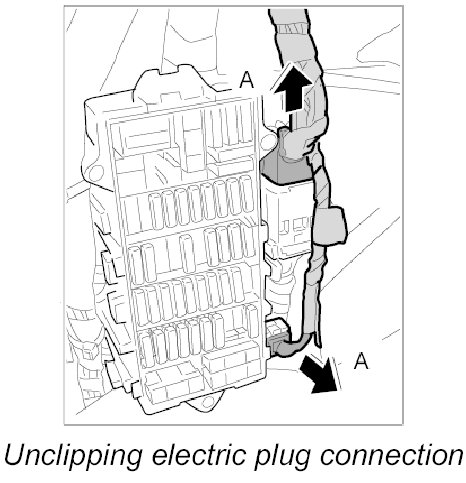

1. Unclip electric plug connection at the fuse box and move it aside.

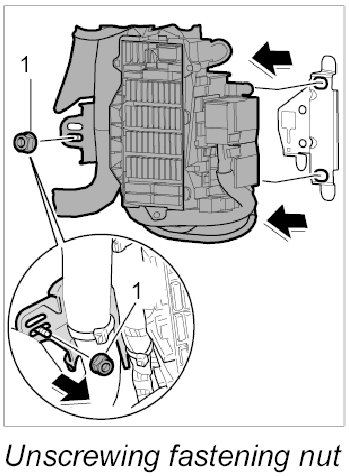

2. Unscrew the fastening nut -1-, pull the fuse box forward and disengage it from the support.

Securing fusebox

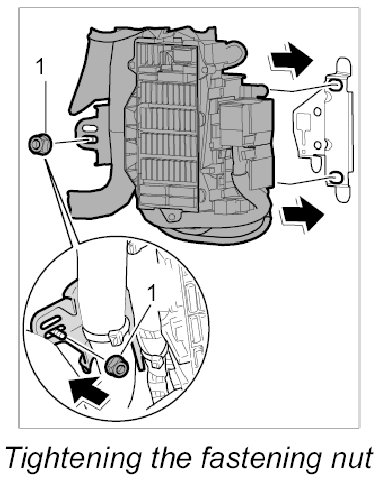

1. Engage the fuse box on the support and secure with the fastening nut -1-. Ensure that the electric lines are not trapped or installed live. - Tightening torque: 9.7 Nm (7 ftlb.)

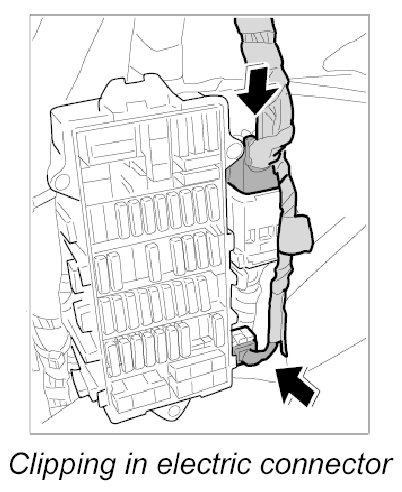

2. Clip in electric plug connection at the fuse box.

Subsequent work

Subsequent work on fusebox
Install front left side section trim.
