System Specifications



Technical data - Porsche Double Clutch (PDK)

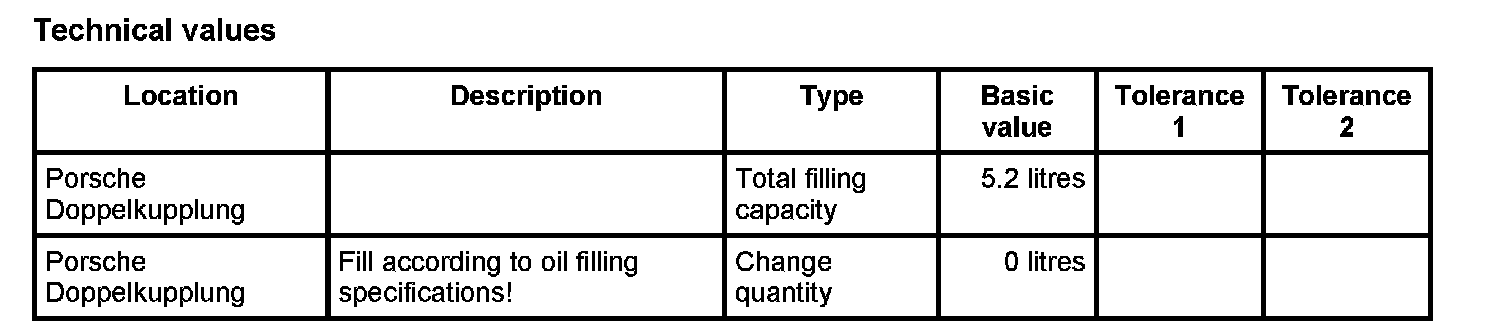

Technical values

Technical data

Transmission type: CG 100

Equipment: 7-speed

Installed in: Carrera (998 II) and Carrera S (998 II)

Model year: 2009

Type: Porsche Double Clutch (PDK)

Transmission ratios

1st gear: 43/11 = 3.909

2nd gear: 55/24 = 2.291

3rd gear: 43/26 = 1.654

4th gear: 43/33 = 1.303

5th gear: 40/37 = 1.081

6th gear: 37/42 = 0.881

7th gear: 29/47 = 0.617

Reverse gear: 39/11 = 3.545

Constant: 39/35 = 1.114

Ring gear and pinion shaft: 34/11 = 3.090

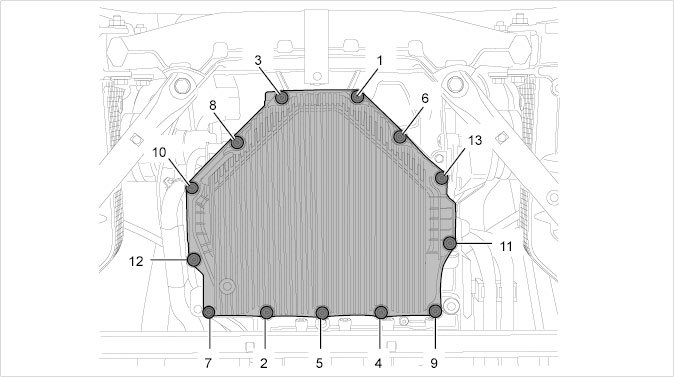

Transmission Fluid Pan M6 Screws 2.4 Nm (2 ftlb.)
