Cylinder Head Assembly

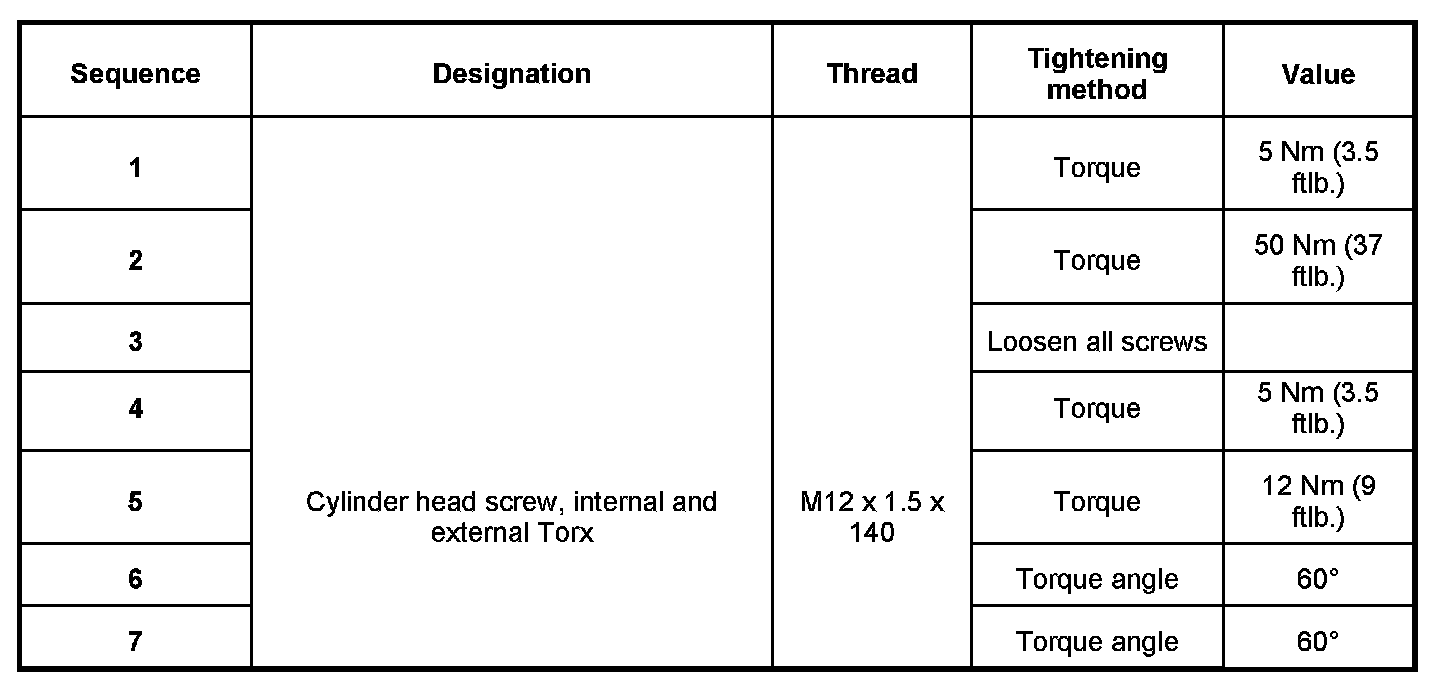

Cylinder head screws

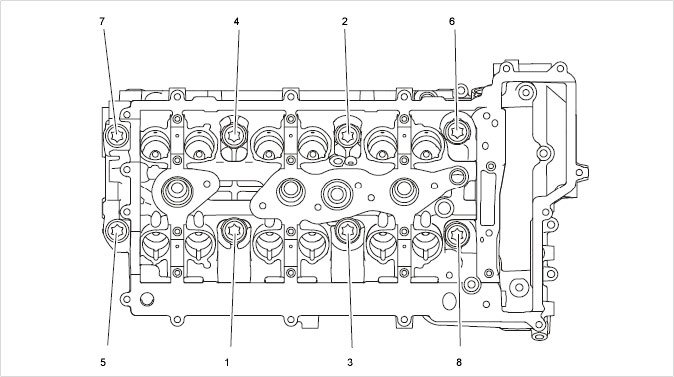

Tightening sequence for cylinder head screws
Intake-air distributor
13 Nm (9.5 ft lb.)

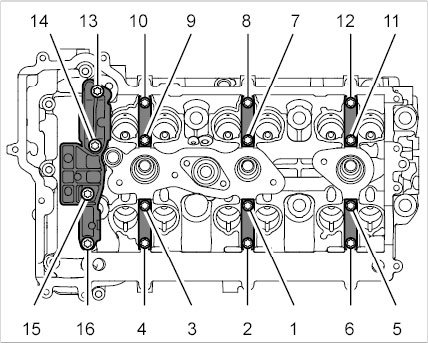

Cam bearing caps
Initial tightening
5 Nm (3.5 ft lb.)
Torque angle
50°
Camshaft controller
Initial tightening
35 Nm (26 ft lb.)
Torque angle
120°
Camshaft sprocket
Initial tightening
30 Nm (22 ft lb.)
Torque angle
60°
Exhaust manifold 23 Nm (17 ft lb.)
Tighten from the inside out
