Start / Stop Switch: Testing and Inspection

Eliminating Noise Symptoms - Replacing Ignition Starter Switch

General information

Symptoms
Buzzing noises from around the ignition starter switch.

Causes and remedial action
- Buzzing noises can be heard while driving due to the reset spring in the ignition starter switch.
- In the event of a complaint, the ignition starter switch must be replaced to remedy the situation on vehicles manufactured before the date of introduction September 2007.

Tools and materials

Materials
997.618.159.04 - CONTROL UNIT (ignition starter switch control unit)

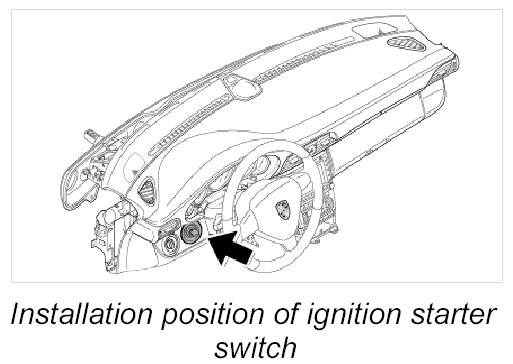

Replacing ignition starter switch







1. Replace ignition starter switch.
1.1 Remove ignition starter switch.
1.2. Install new ignition starter switch.
