Communications Control Module: Service and Repair

Removing And Installing Control Unit For Telephone

Preliminary work
1. Switch off ignition and remove ignition key.
2. Remove the left and right cover on the centre console.
3. Remove PCM display and operator control unit.

Removing control unit for telephone
The telephone control unit is installed in the PCM.

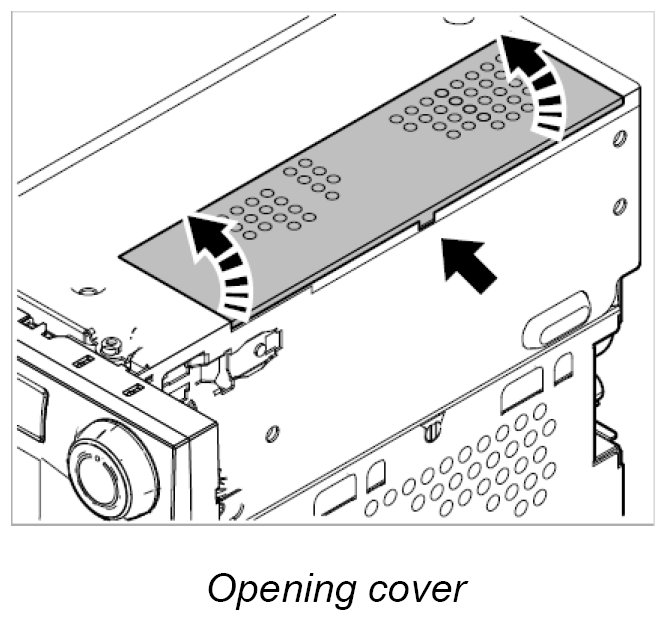

1. Carefully open the cover on the PCM using a screwdriver.

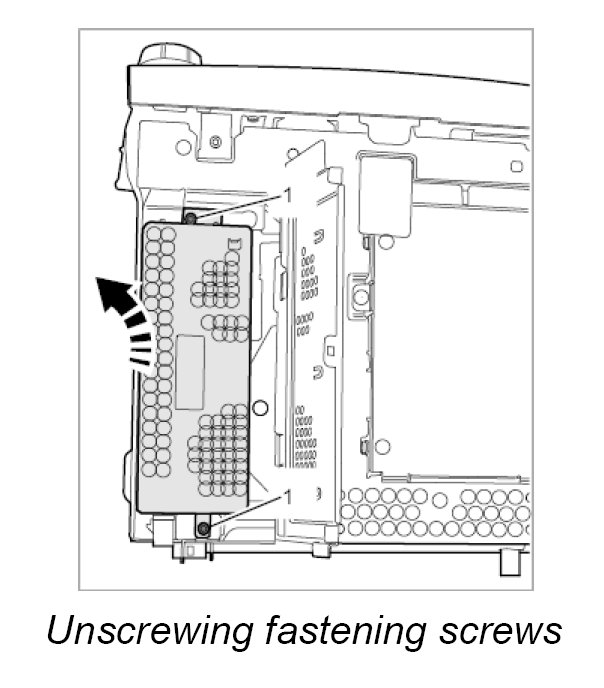

2. Unscrew the two fastening screws -1- for the control unit and remove the control unit.

Installing control unit for telephone

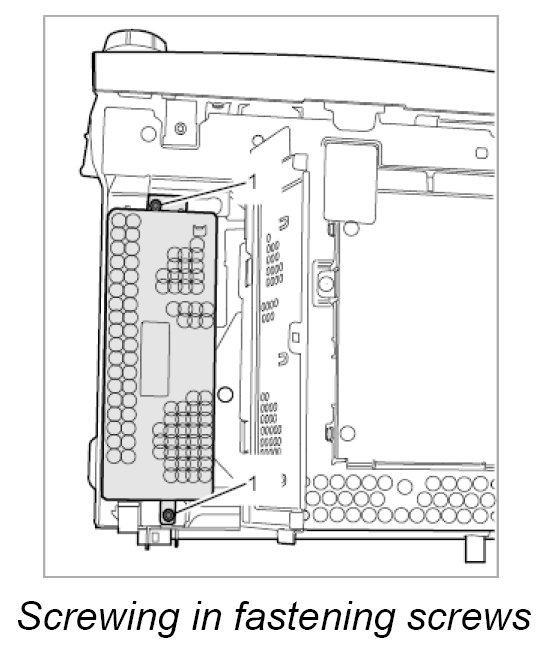

1. Fit the control unit and screw in the two fastening screws -1-.
2. Press the cover closed until it engages securely.

Subsequent work
1. Install PCM 3.0 display and operator control unit.
2. Install the left and right cover on the centre console.
