Starter Motor: Service and Repair

Removing And Installing Starter

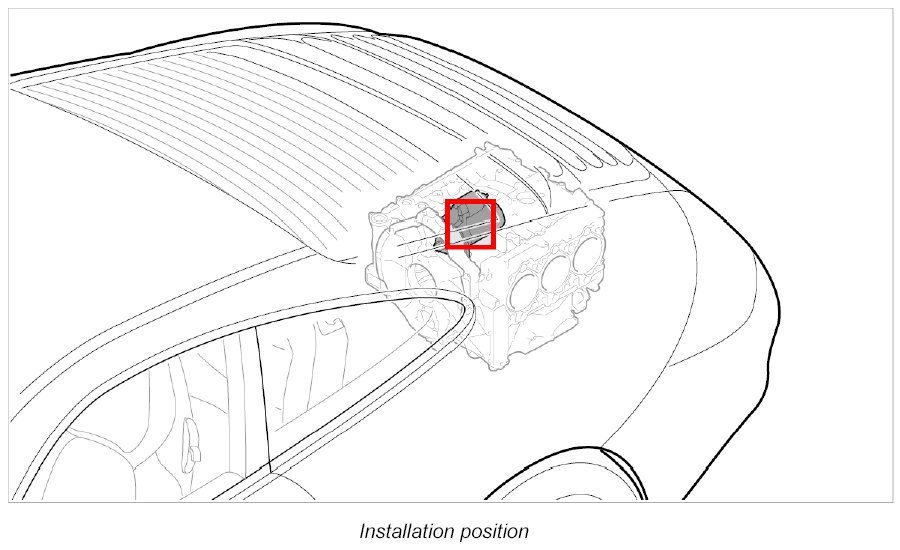

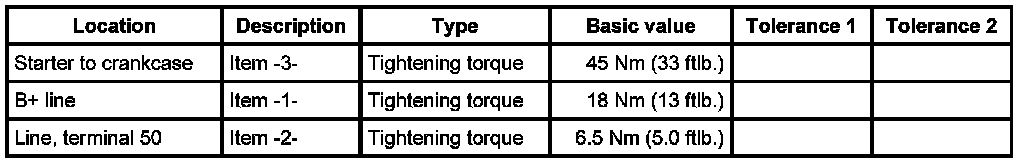

Technical values







Preliminary work
1. Disconnect the battery.
2. Remove air cleaner housing.
3. Remove resonance tube.

Removing starter

WARNING:
Live components
- Risk of electric shock
- Remove electric charge from component.
- Make sure it does not switch on again.
- Check that there is no electric charge
- Cover adjacent live parts.












1. Remove cap.

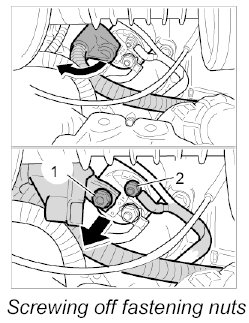

2. Screw off the two fastening nuts -1, 2- and remove the lines.

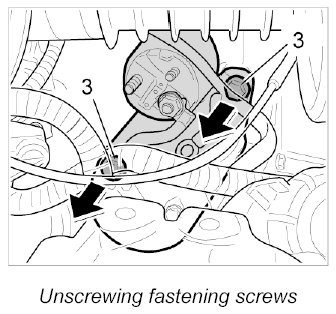

3. Unscrew the two fastening screws -3- for the starter and remove the starter.

Installing starter
1. Fit the starter.

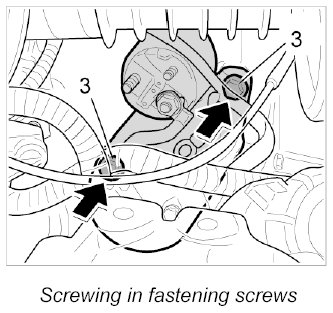

2. Screw in the two fastening screws -3- for the starter. - Tightening torque: 45 Nm (33 ftlb.)

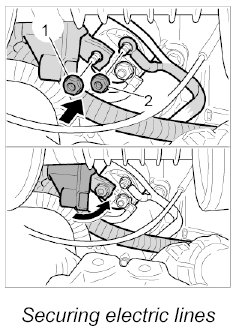

3. Fit the lines and screw on the two fastening nuts -1, 2-. - Tightening torque: 18 Nm (13 ftlb.) - Tightening torque: 6.5 Nm (5.0 ftlb.)
4. Fit the cap.

Subsequent work
1. Install resonance tube.
2. Install air cleaner housing.
3. Connect the battery.
