Engine Coolant Temperature Sensor Monitoring

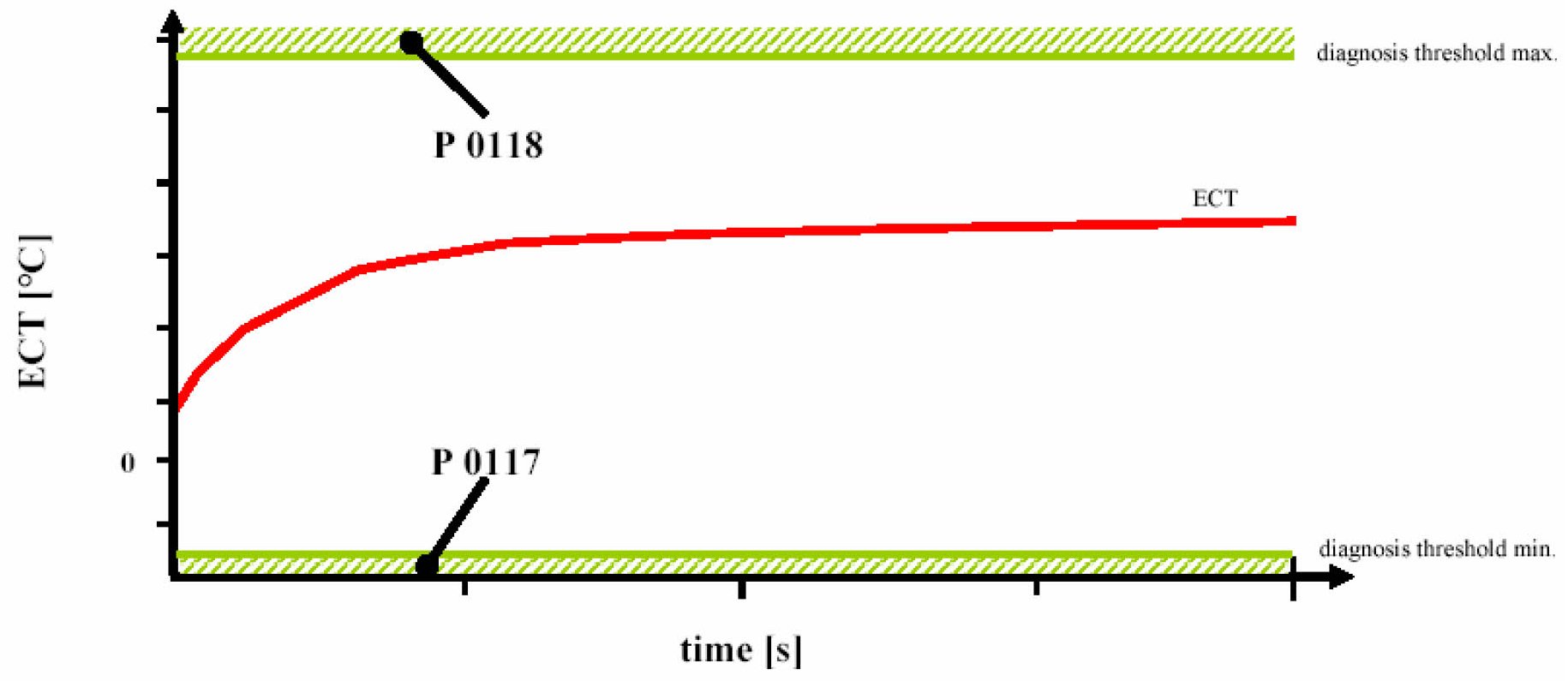

Engine Coolant Temperature Sensor MonitoringThe engine coolant temperature is electrical O.K., if the following condition is true:
Diagnosis threshold min. < engine coolant temperature < Diagnosis threshold max.

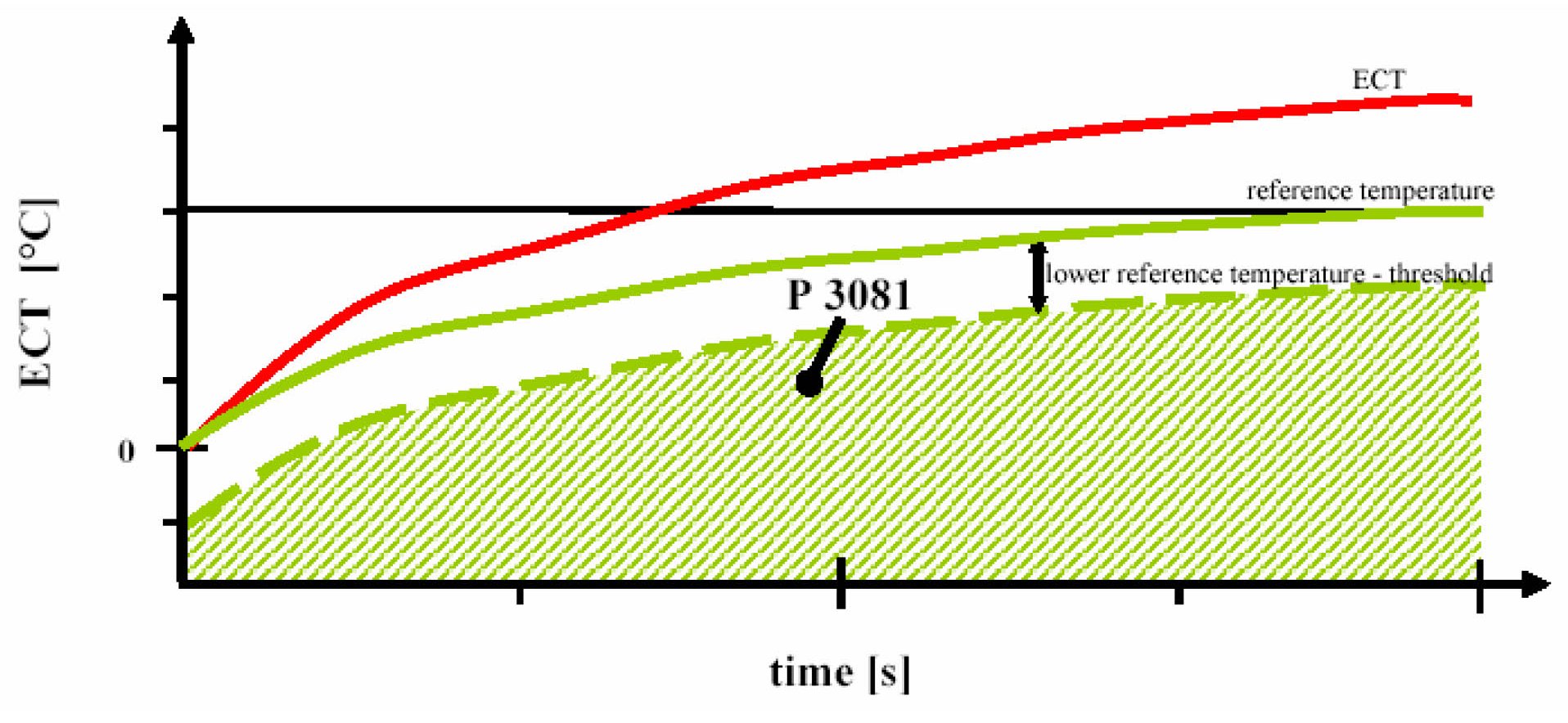

Range CheckPlausibility CheckThe engine coolant temperature is plausible, if:
(reference temperature - threshold) < engine coolant temperature

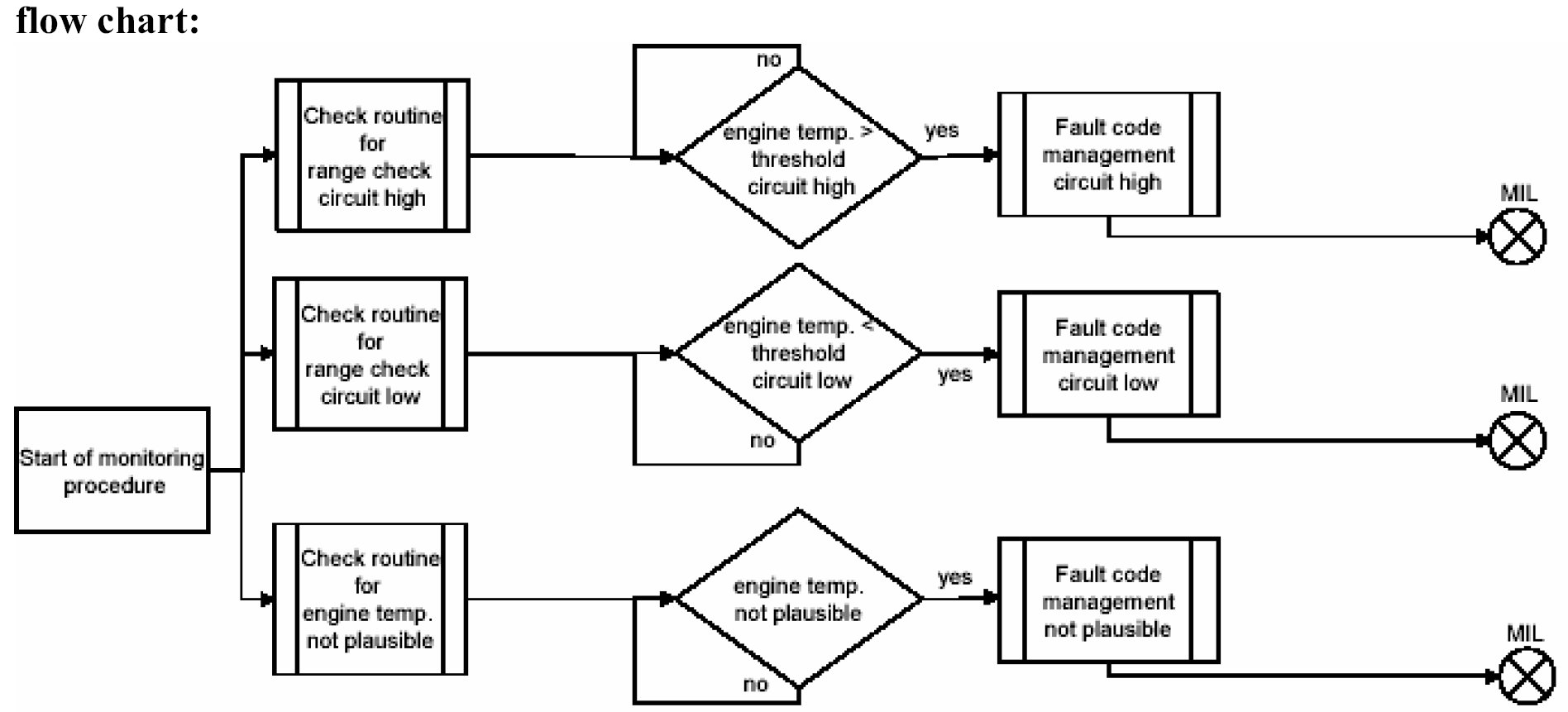

flow chart:
