Differential Assembly


Technical data on front final drive

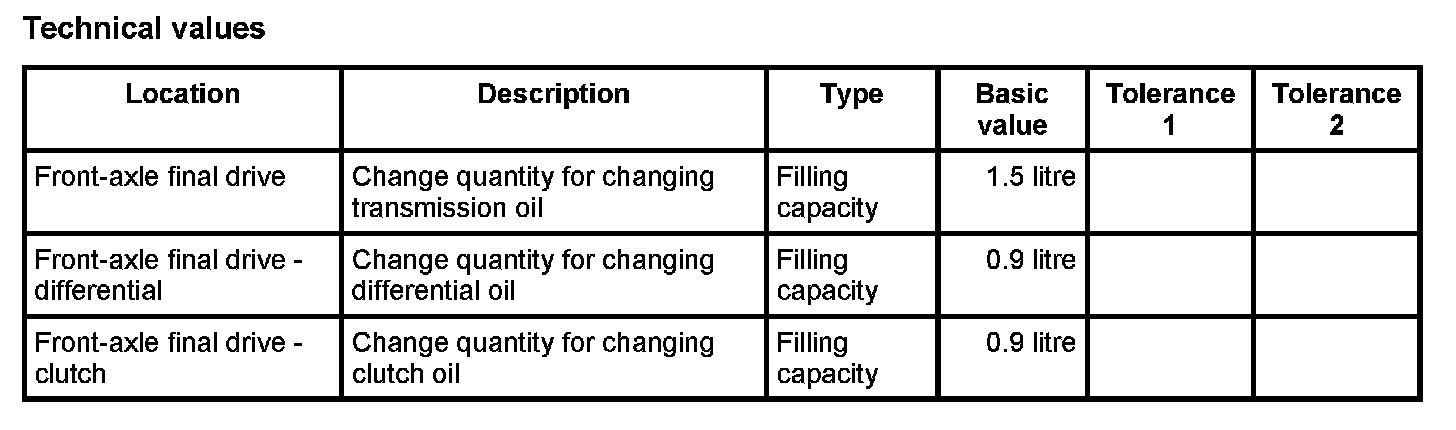

Technical values

Transmission type: Z97/50

Equipment: Bevel-gear drive without hypoid offset

Equipment: Electronically controlled, electromagnetically actuated multi-plate clutch

Installed in: 911 Turbo (997)

Model Year: 2007

Transmission ratio

Final-drive ratio: 3.33
