System Specifications

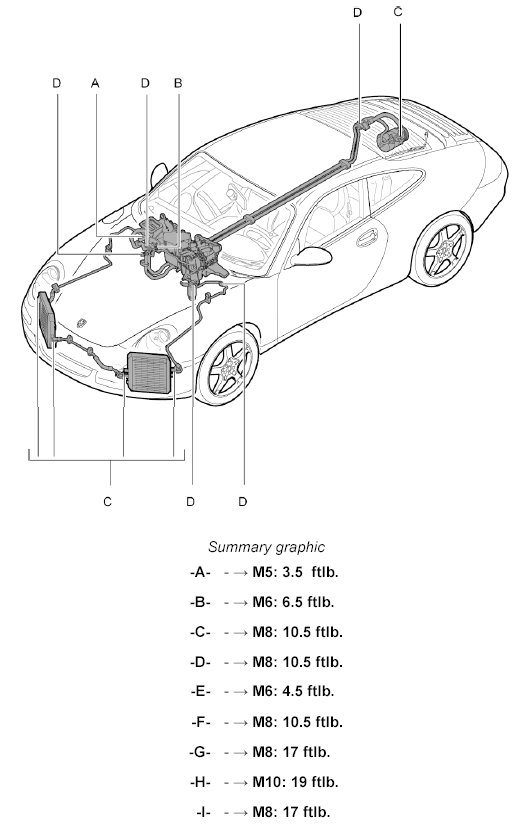

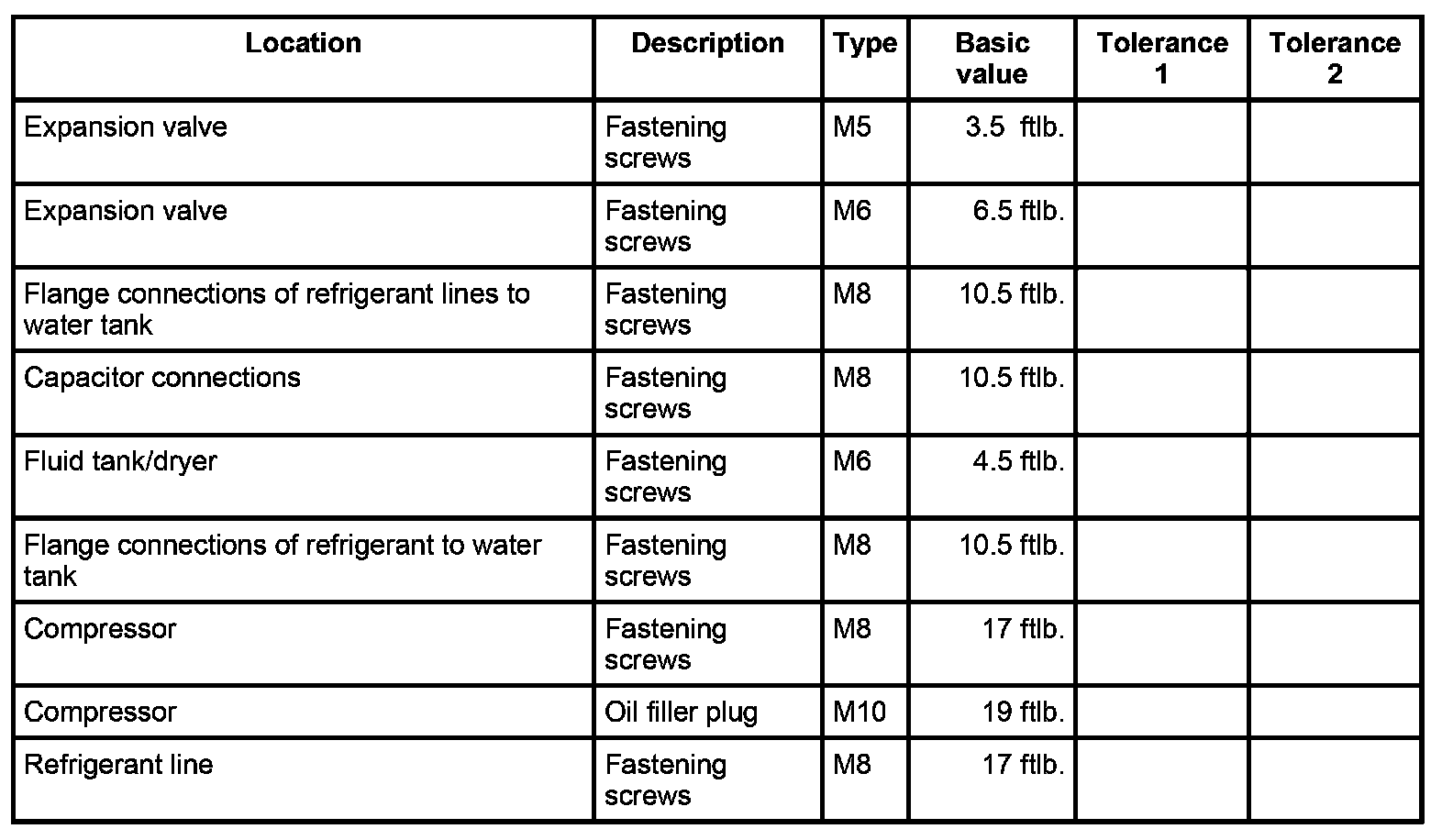

Technical Data, Air-conditioning SystemTechnical valuesTightening torques for air-conditioning system INFORMATION: -
When installing the refrigerant lines, the screw connections must always be wet with
refrigerant oil.
-
The extracted
refrigerant oil must be disposed of as special-category waste.
