Start / Stop Switch: Testing and Inspection

Eliminating Noise Symptoms - Replacing Ignition Starter Switch

General information

Symptoms

Buzzing noises from around the ignition starter switch.

Causes and remedial action

Buzzing noises can be heard while driving due to the reset spring in the ignition starter switch.

In the event of a complaint, the ignition starter switch must be replaced to remedy the situation on vehicles manufactured before the date of introduction September 2007.

Tools and materials

Materials
997.618.159.04 - CONTROL UNIT (ignition starter switch control unit)

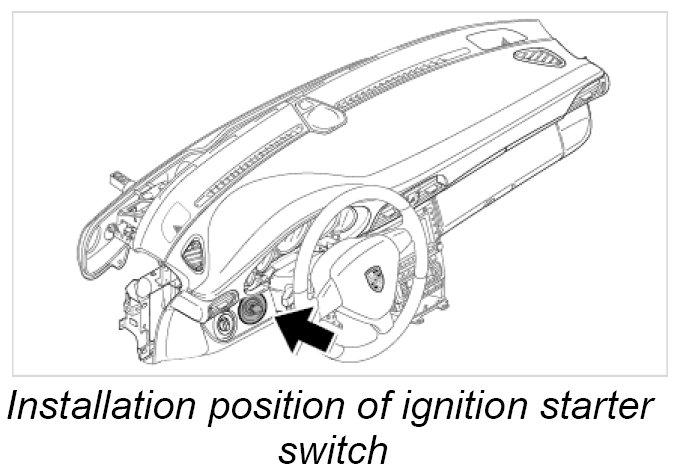

Replacing ignition starter switch







1. Replace ignition starter switch.
1.1. Remove ignition starter switch.
1.2. Install new ignition starter switch.
