Removing and Installing Switch For Power Windows



Removing And Installing Switch For Power Windows

Preliminary work

Remove door trim panel. Refer to Removing and installing door trim panel.

Removing switch for power windows

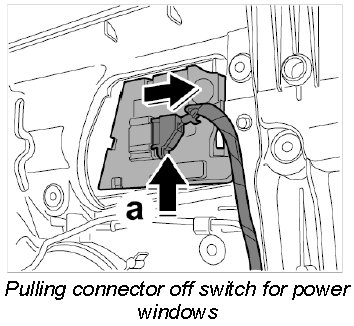

1. Release -arrow a- and pull off connector.

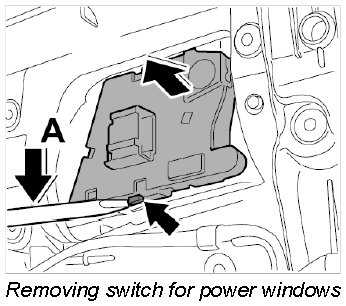

2. Lever off switch for power windows at the locking tab -arrow- (-arrow A-) and remove it.







Installing switch for power windows

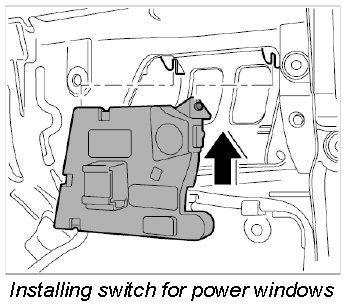

1. Insert the switch for power windows into the mounting points at the door trim panel using the locking tabs.







2. Press in switch for electric power windows until the locking tab -arrow- clicks into place.

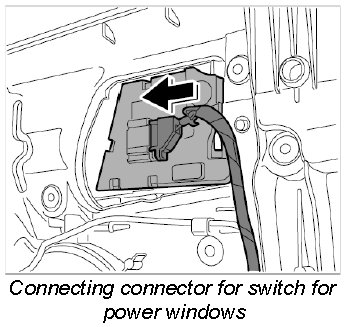

3. Press in the connector until it is felt to engage.







Subsequent work

Install door trim panel. Refer to Removing and installing door trim panel.
