Removing and Installing Rear-View Mirror

Removing And Installing Rear-view Mirror

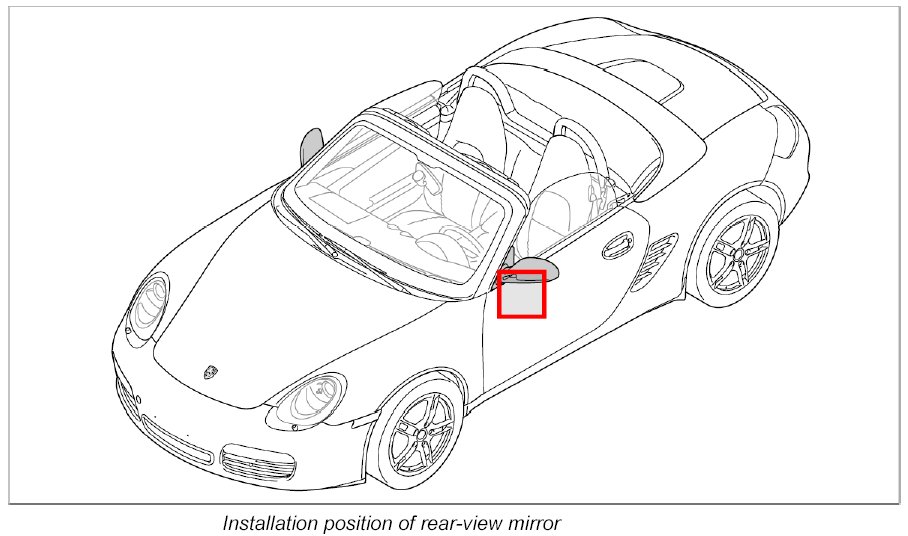

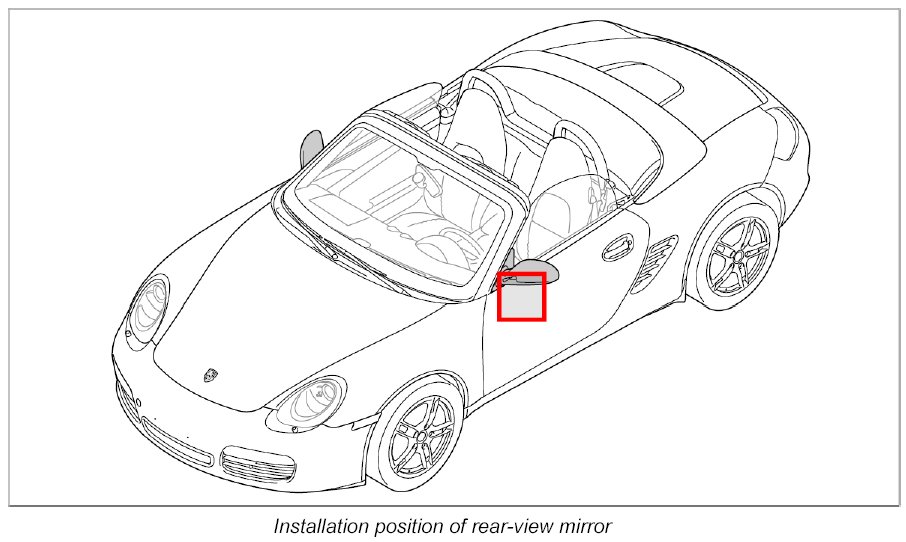

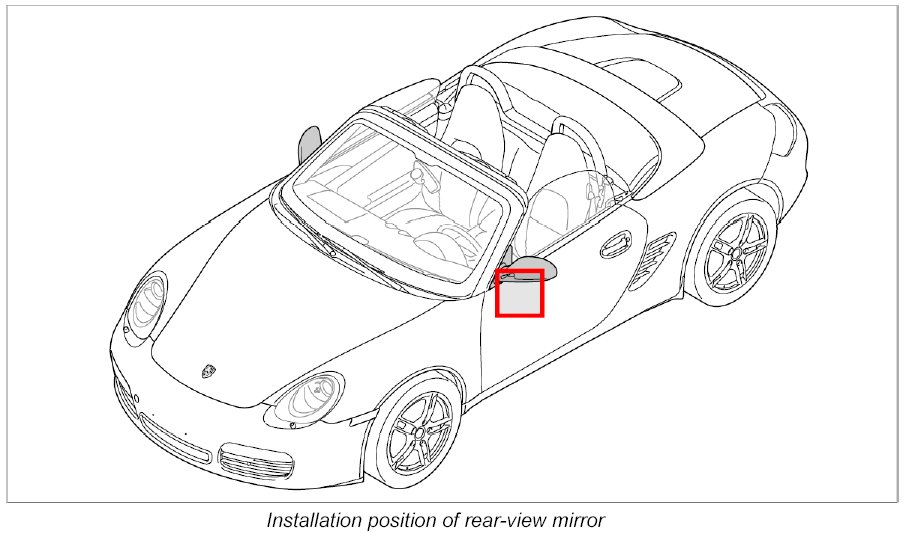

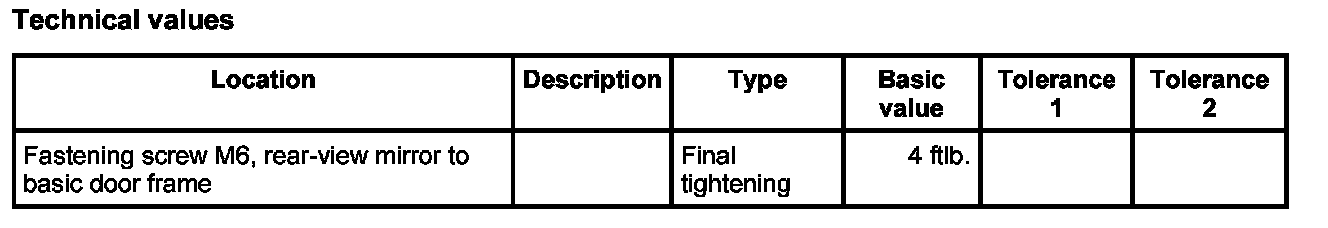

Technical values

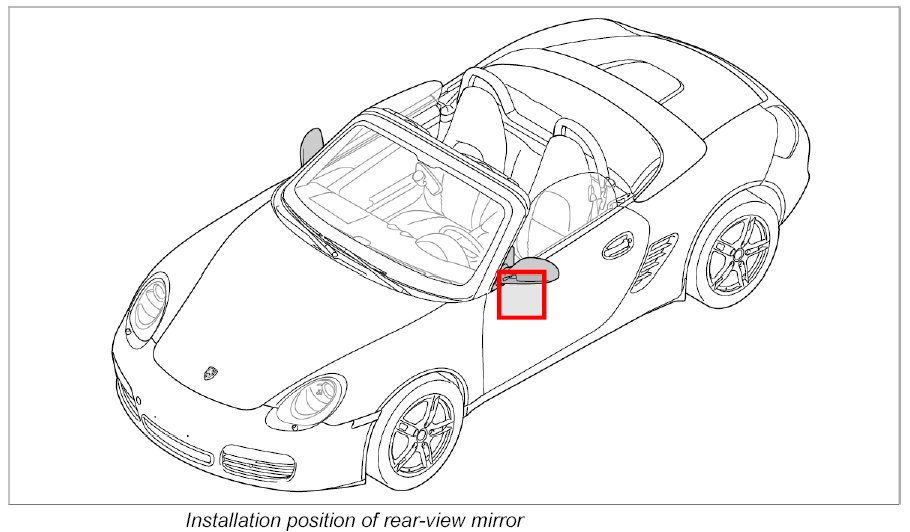

Removing rear-view mirror

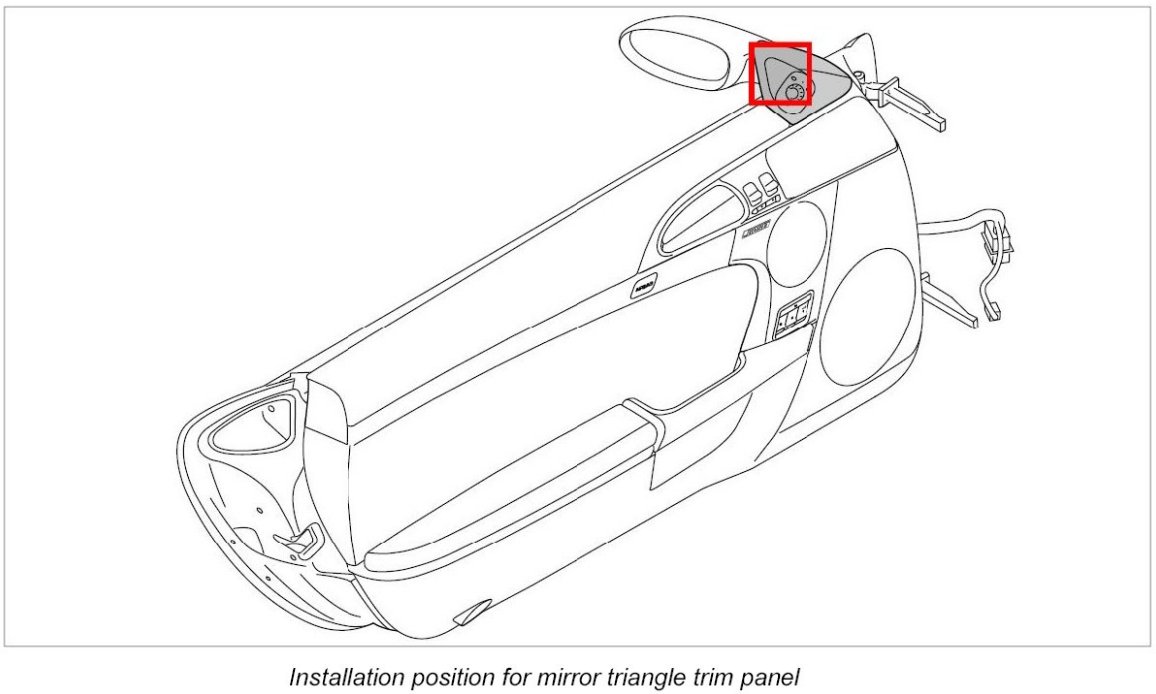

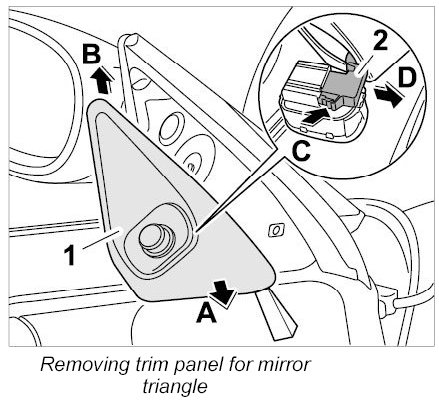

Removing trim panel for mirror triangle







1. Carefully lever out trim panel for mirror triangle -1- using plastic wedge -Arrow A- and pull upwards -Arrow B-.







2. Press -2- electrical plug connection -Arrow C- and pull off -2- the plug -Arrow D-.
3. Remove trim panel for mirror triangle -1-.

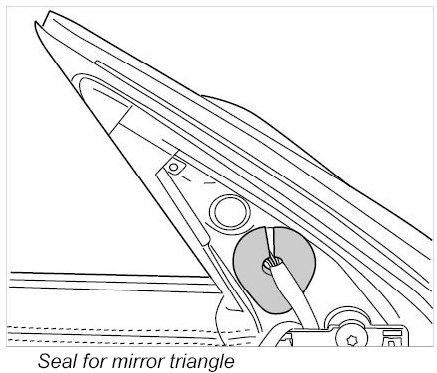

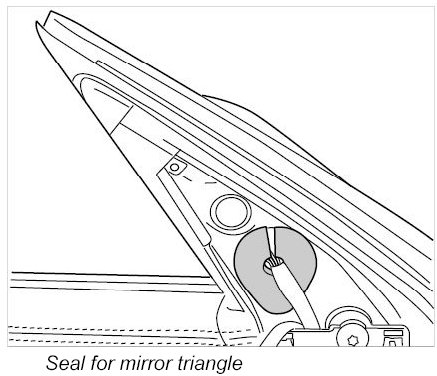

Removing seal for mirror triangle







1. Pull out seal for mirror triangle from cable cutout opening for door mirror.

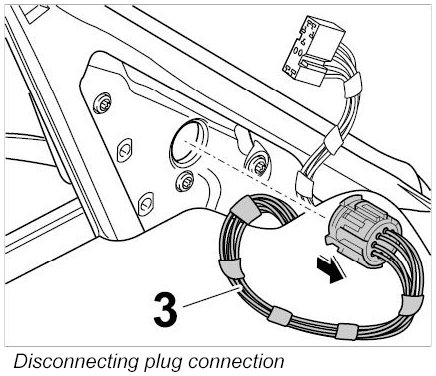

Disconnecting electrical plug connection







1. Disconnect the plug connection of the mirror housing -3-.

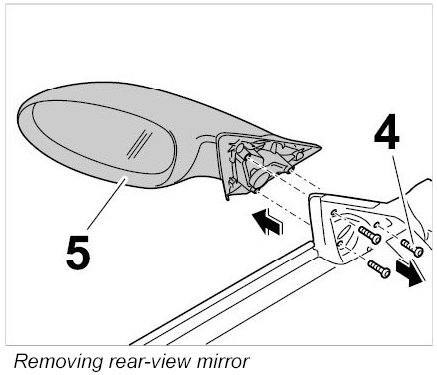

Removing rear-view mirror







1. Unscrew fastening screws -4- and remove mirror housing -5-.

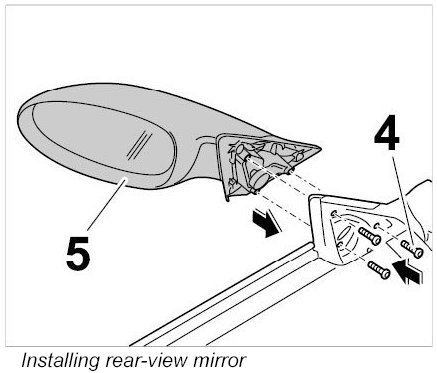

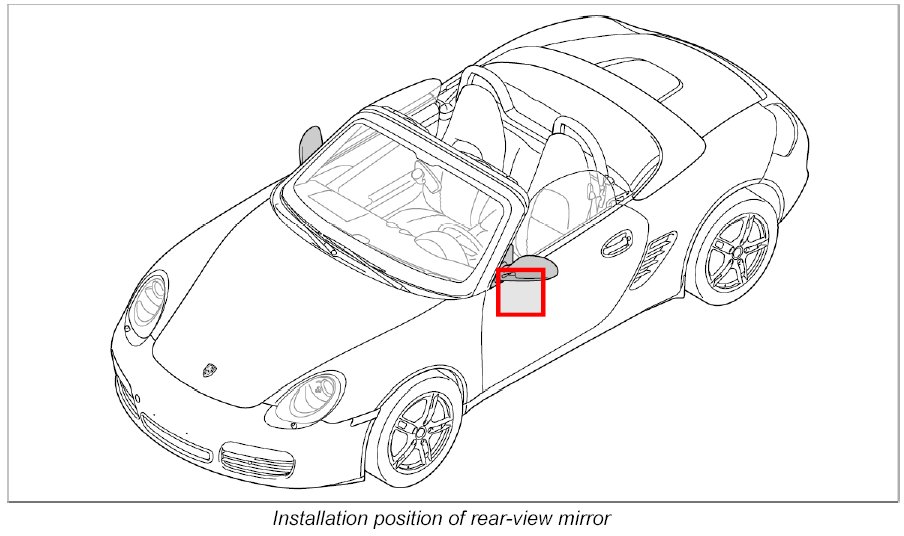

Installing rear-view mirror







1. Position mirror housing -5- and tighten with M6 fastening screws -4-. Tightening torque: Final tightening: 4 ftlb.

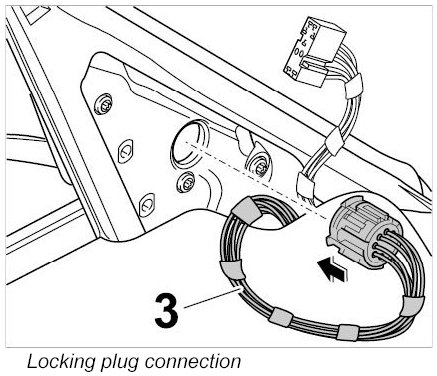

Locking electrical plug connection







1. Connect the plug connection of the mirror housing -3-.







Fitting seal for mirror triangle







1. Stick seal for mirror triangle at cable cutout opening on door mirror to the basic door frame.

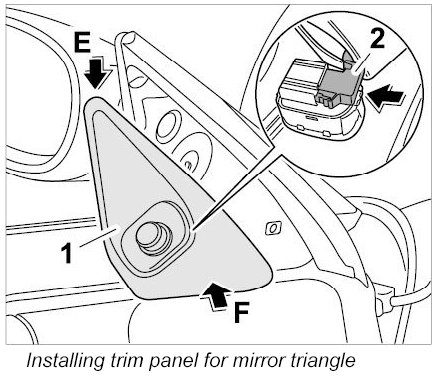

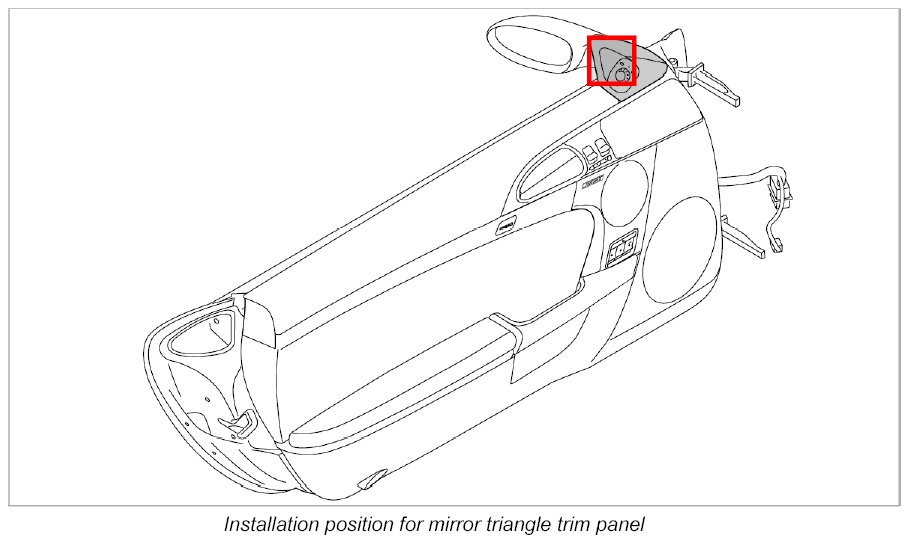

Installing trim panel for mirror triangle







1. Lock electrical plug connection -2- until it audibly engages.







2. Hook cover -1- into the door triangle from above -Arrow E- and press into the fastening clips on the underside until it engages audibly -Arrow F-.
