942619 Removing and installing control unit for cornering light


WM 942619 Removing and installing control unit for cornering light

Preliminary work

1. Switch off ignition and remove ignition key.
2. Remove trim panel for tool box.

Removing control unit for cornering light

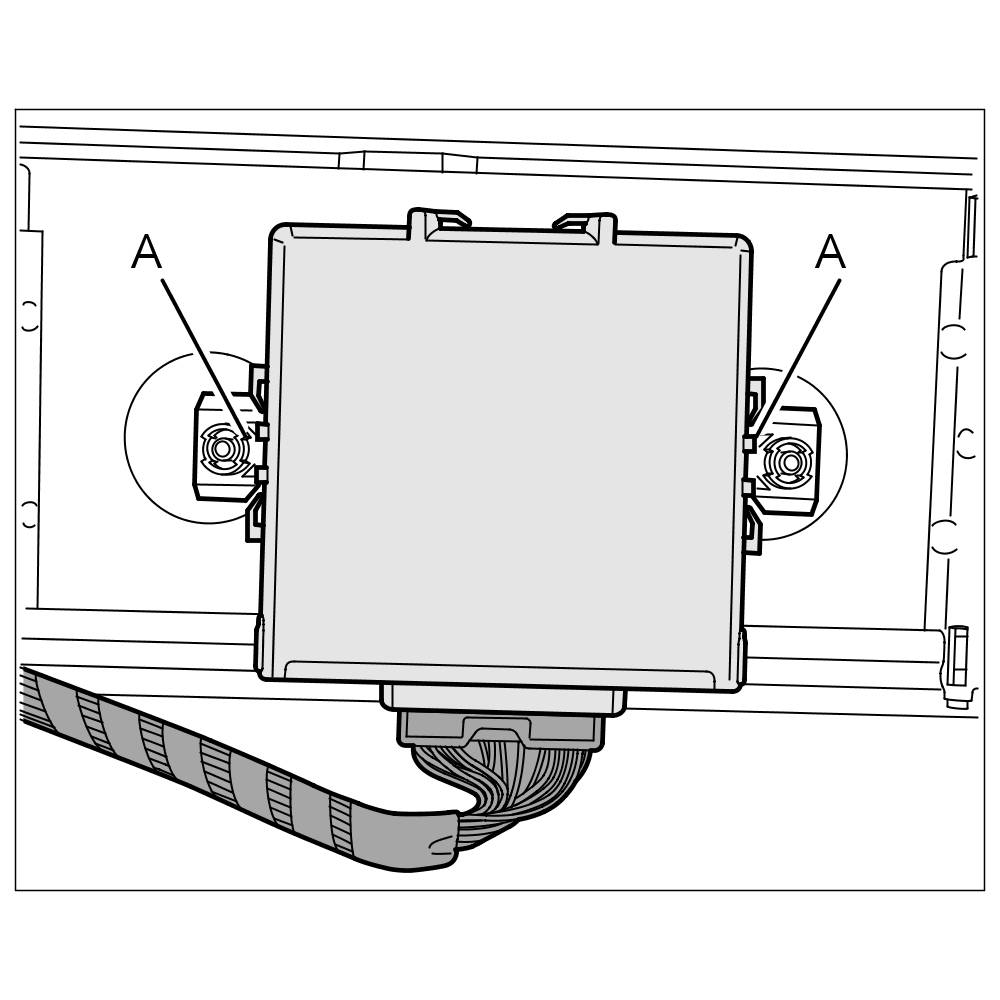

1. Carefully unclip the two holders -A- on the control unit using a screwdriver.

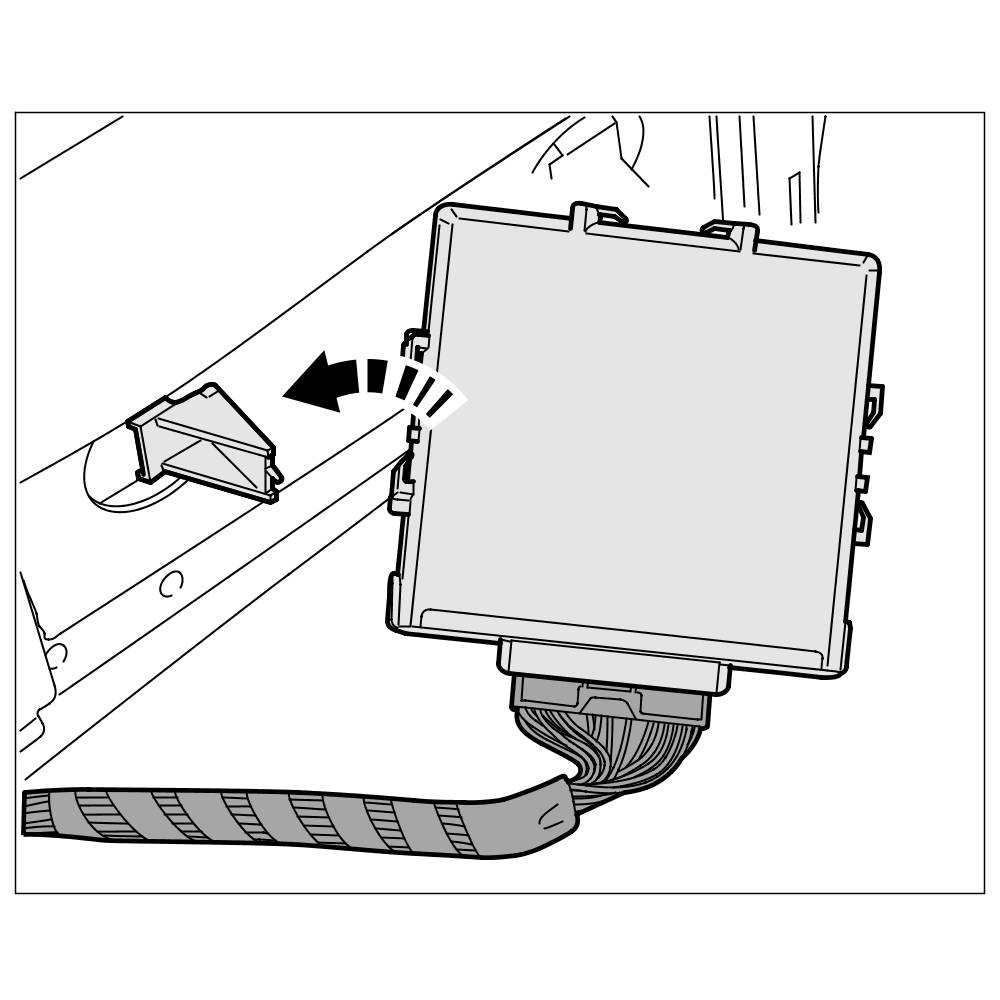

Removing control unit for cornering light

2. Unplug electric connector.

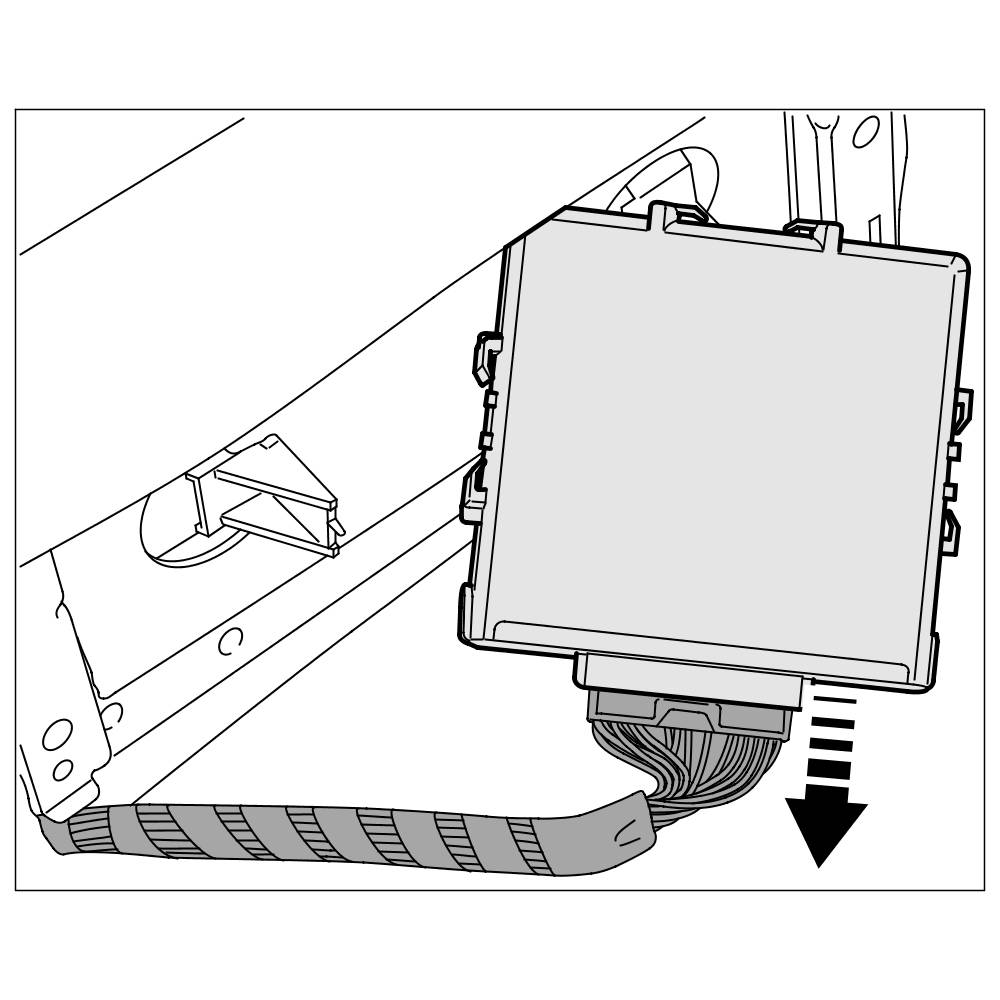

Unplugging electric connector

Installing control unit for cornering light

1. Plug in electric connector.

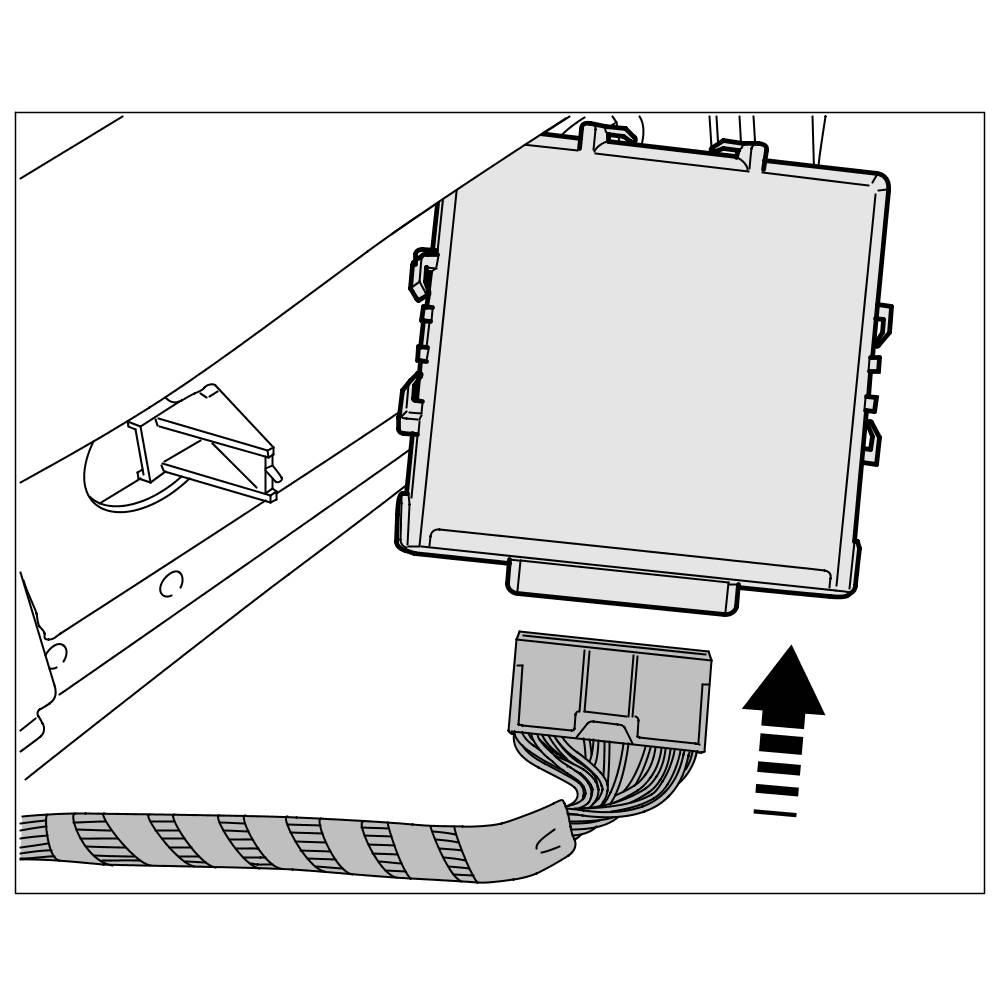

Connecting electric connector

2. Insert control unit into the two holders. Make sure it is seated securely.





Inserting control unit for cornering light

Subsequent work

1. Install trim panel for tool box.
