Bulb Table and Installation Instructions



Bulb Table And Installation Instructions

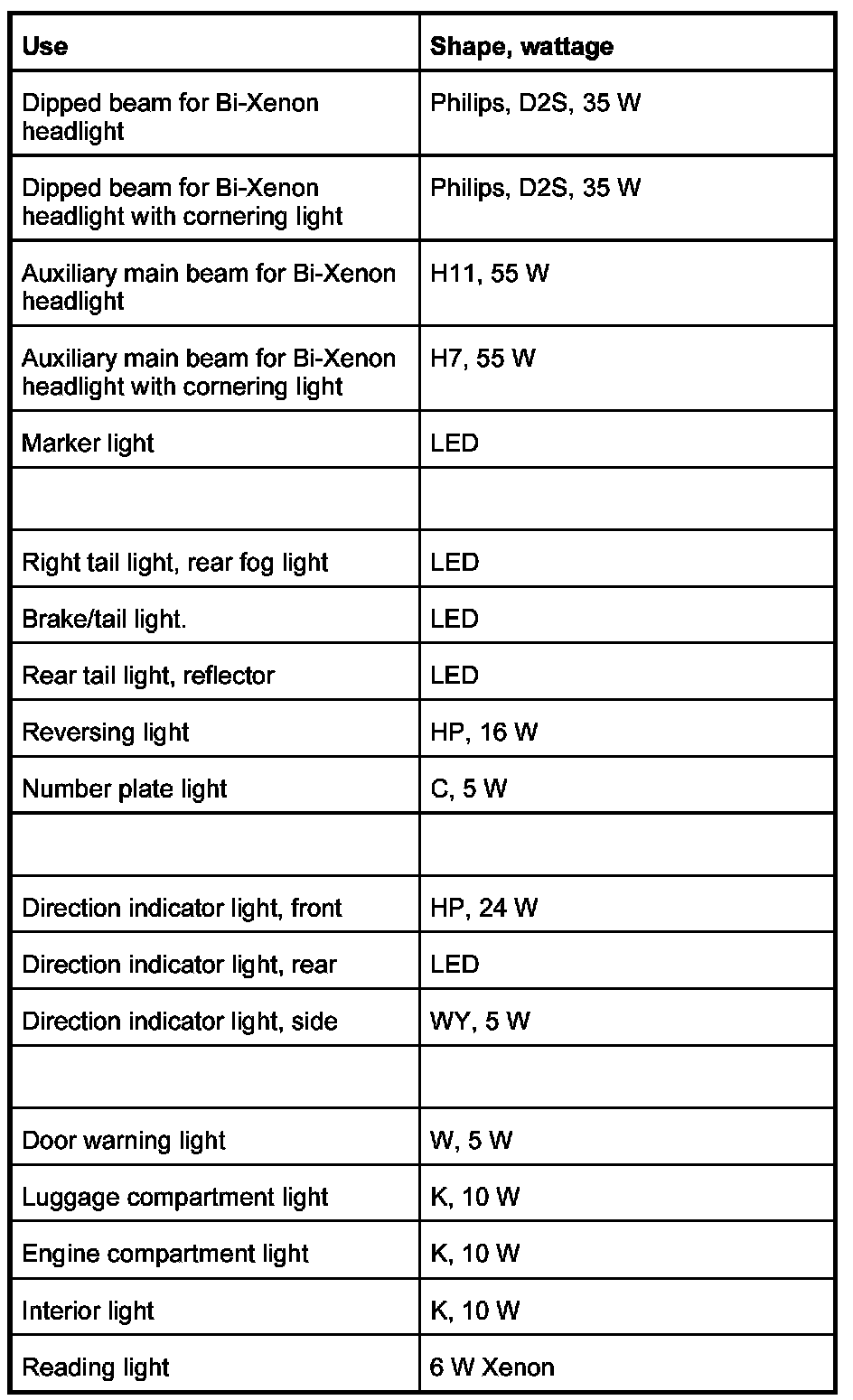

Bulb table







Installation instructions

WARNING:
Live components
- Risk of electric shock
- Remove electric charge from component.
- Make sure it does not switch on again.
- Check that there is no electric charge
- Cover adjacent live parts.

CAUTION:
Incorrect handling of bulbs
- Risk of damage to bulbs and the bulb housing
- Switch off ignition and remove ignition key.
- Switch off the relevant loads when changing bulbs.
- Only use bulbs listed in the bulb table.
- Only install clean bulbs that are free of grease.
- Always use a cloth or soft paper when working with bulbs.
- Observe the safety instructions when changing a bulb in a Bi-Xenon headlight.
- In certain states, it is compulsory to carry spare light bulbs.
