Fuses

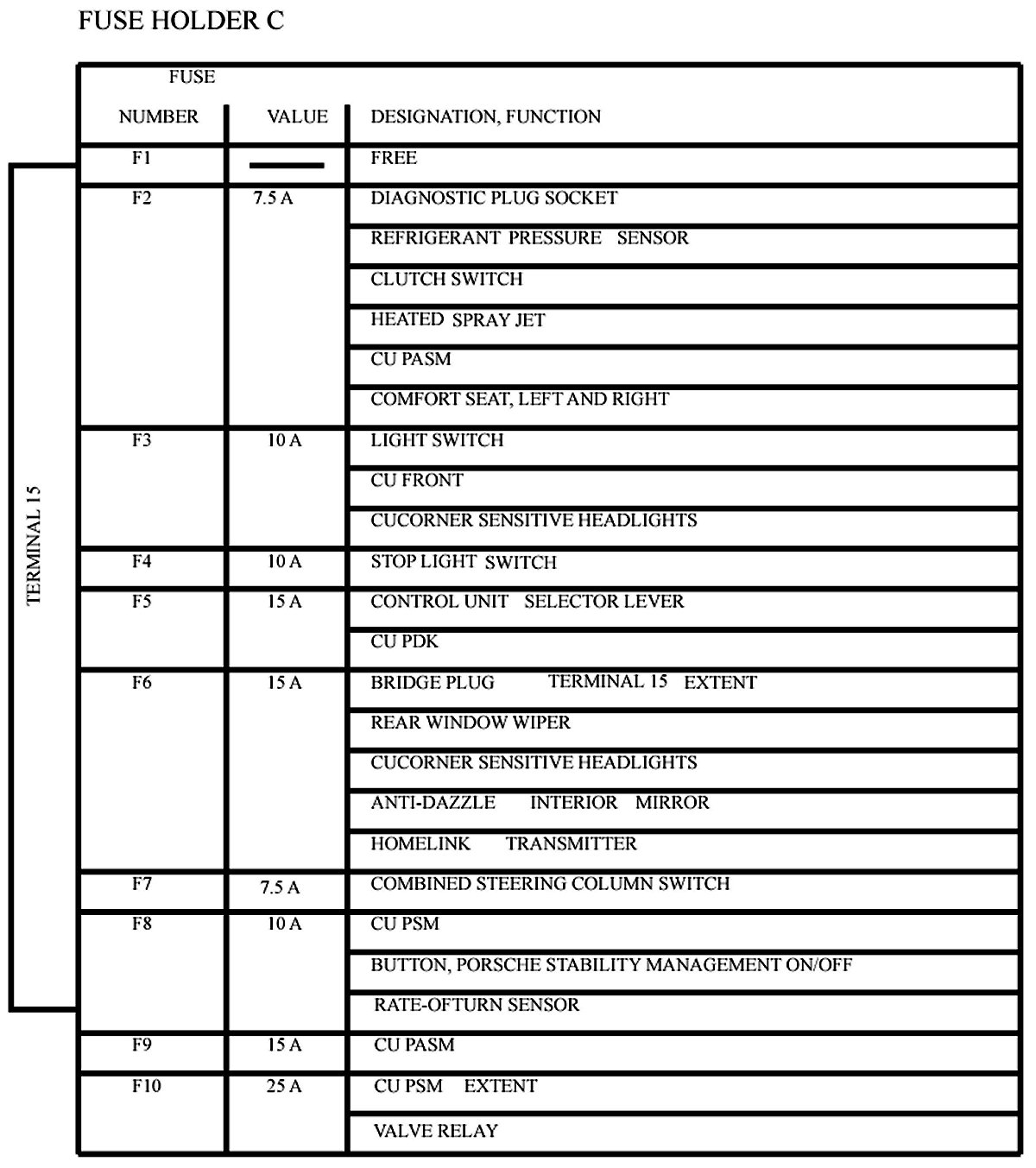

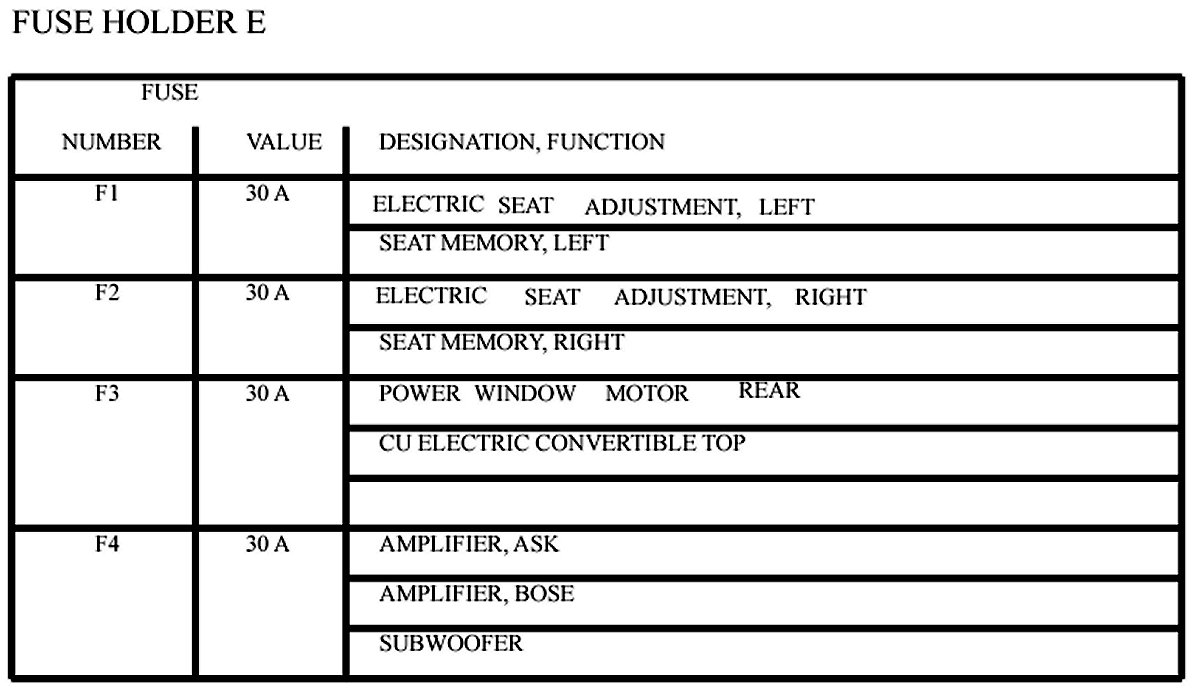

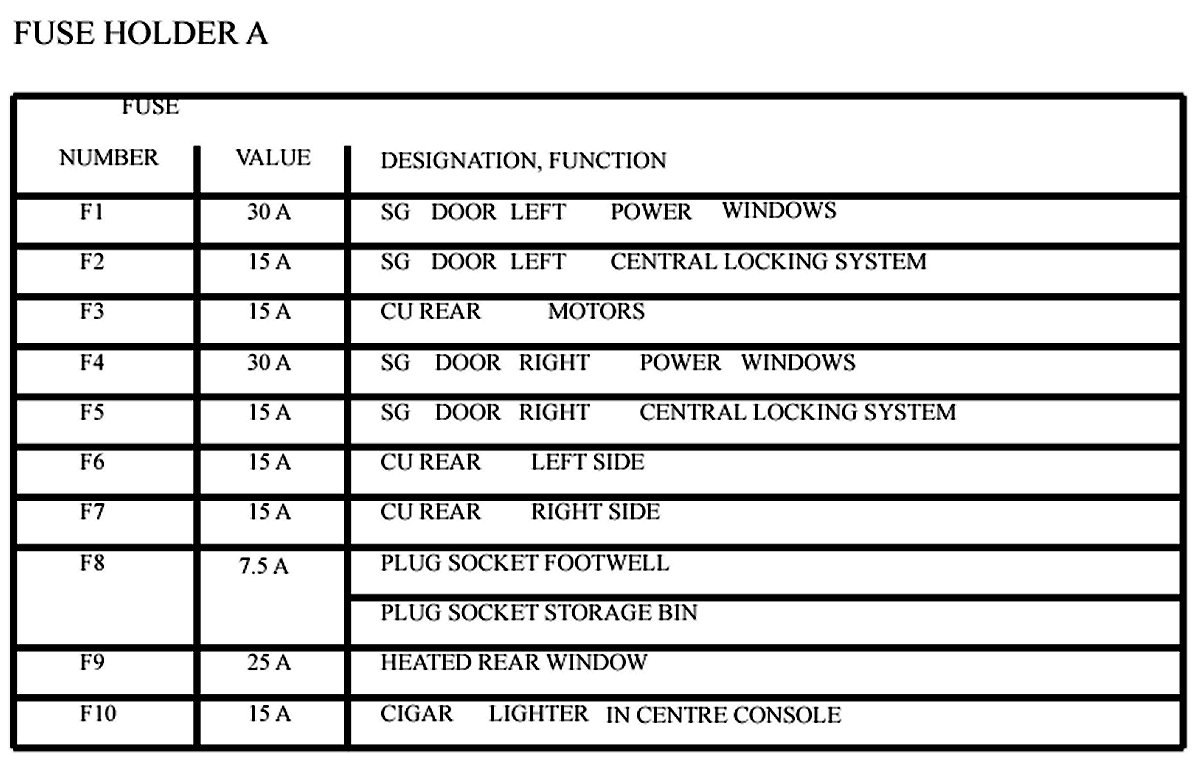

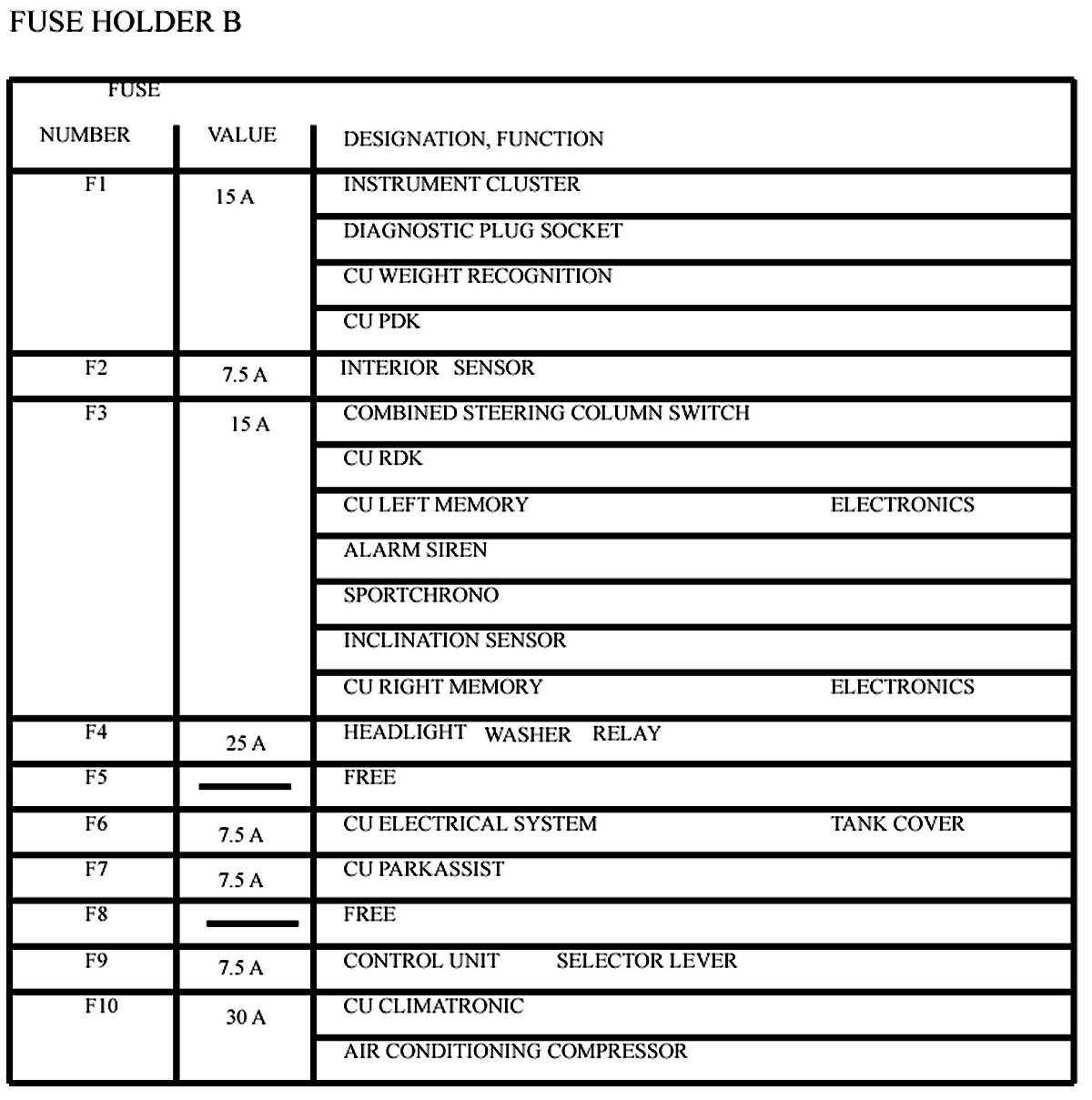

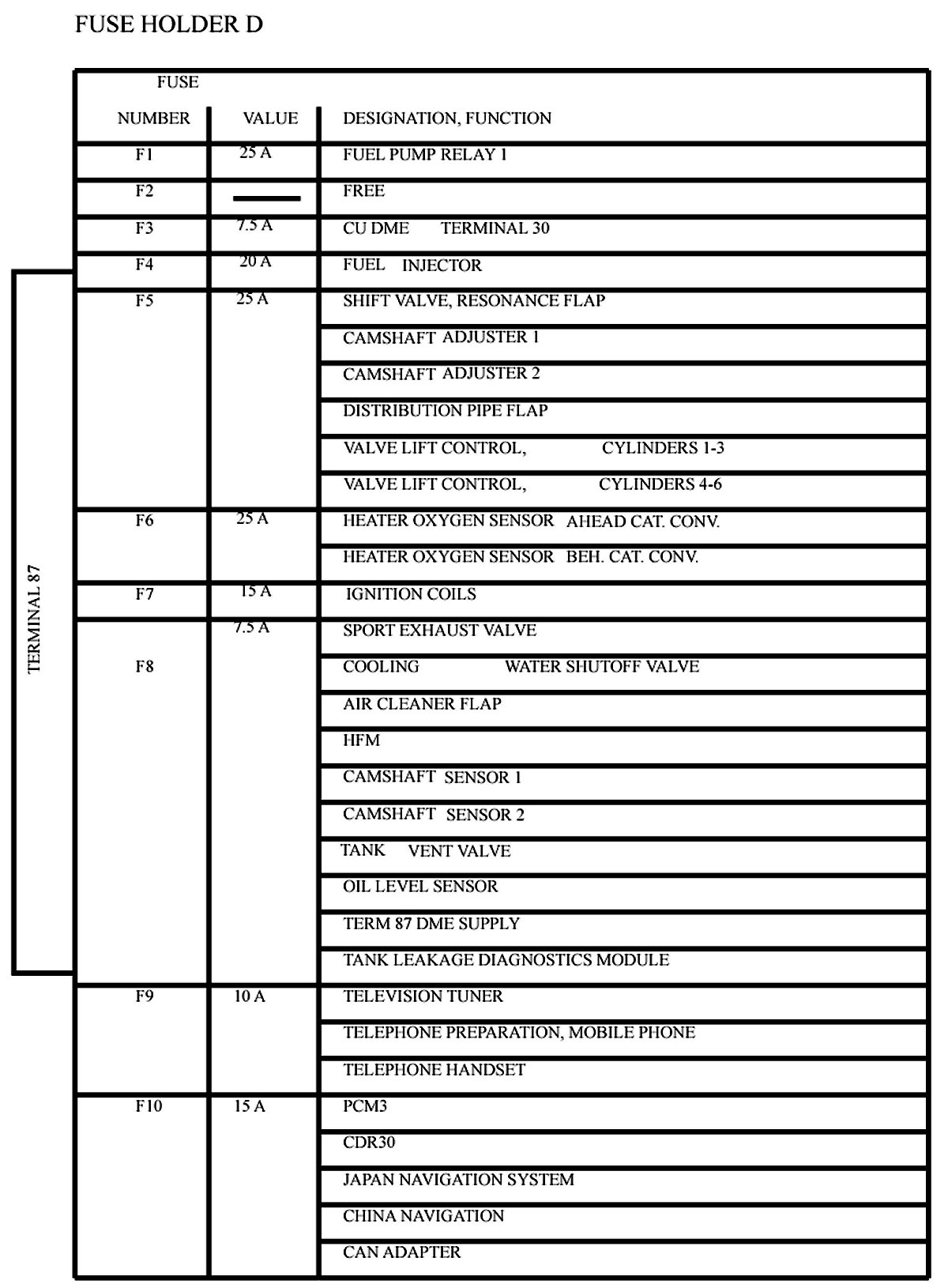

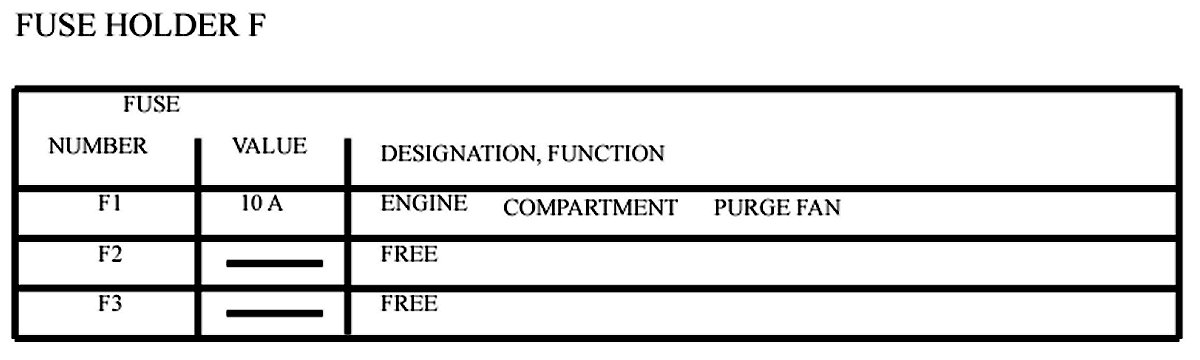

Fuse Location and Assignments

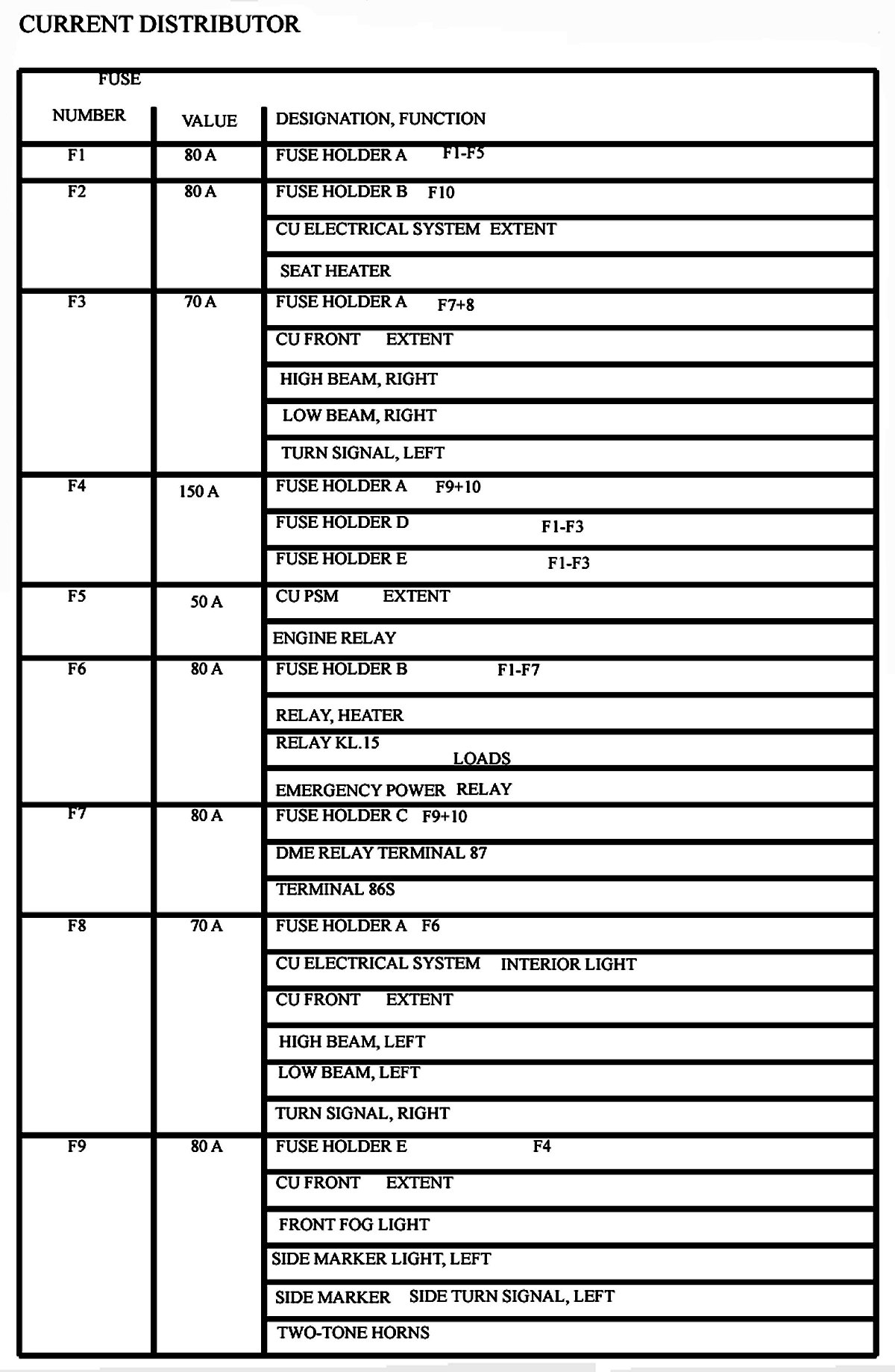

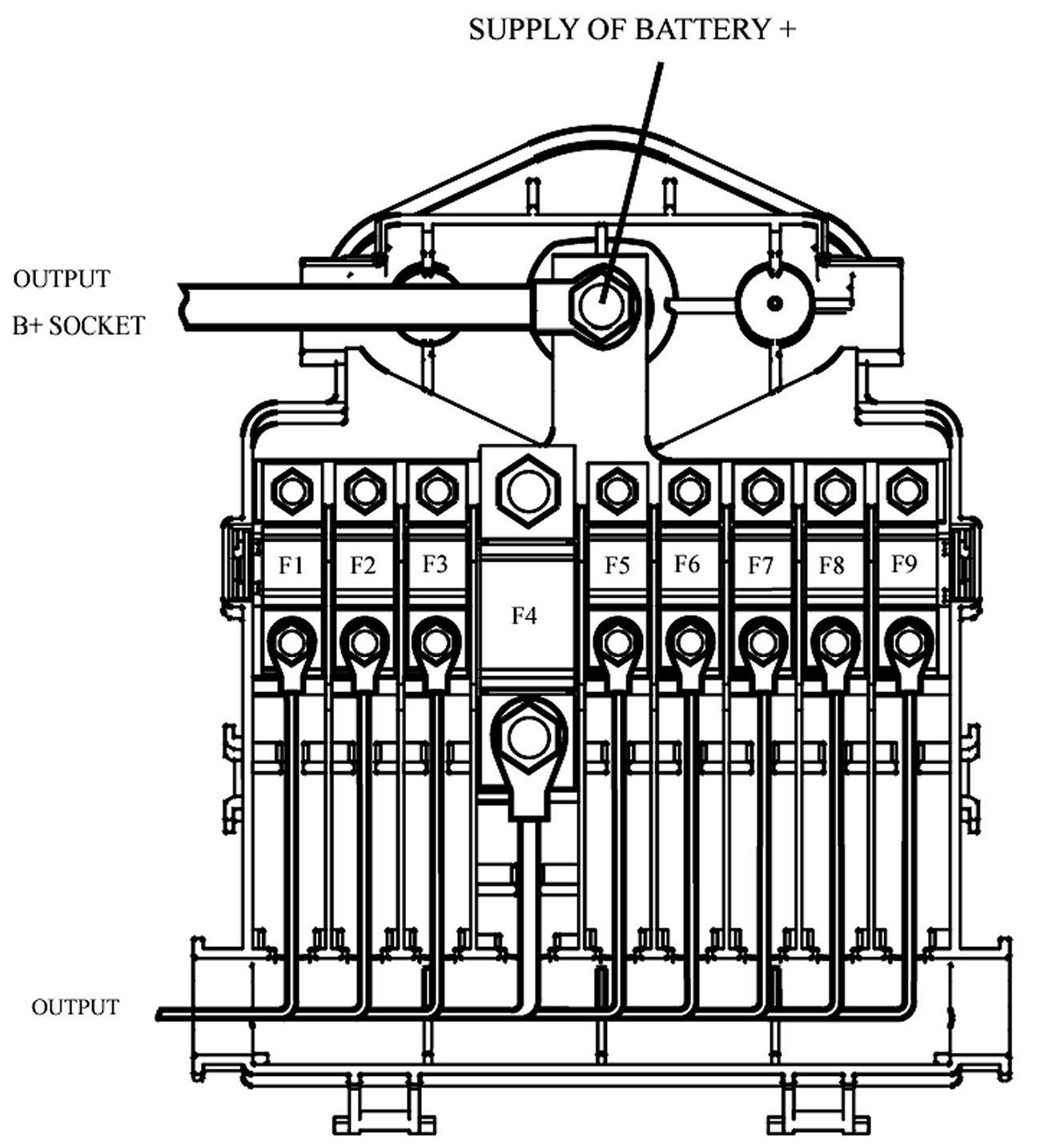

Current Distributor

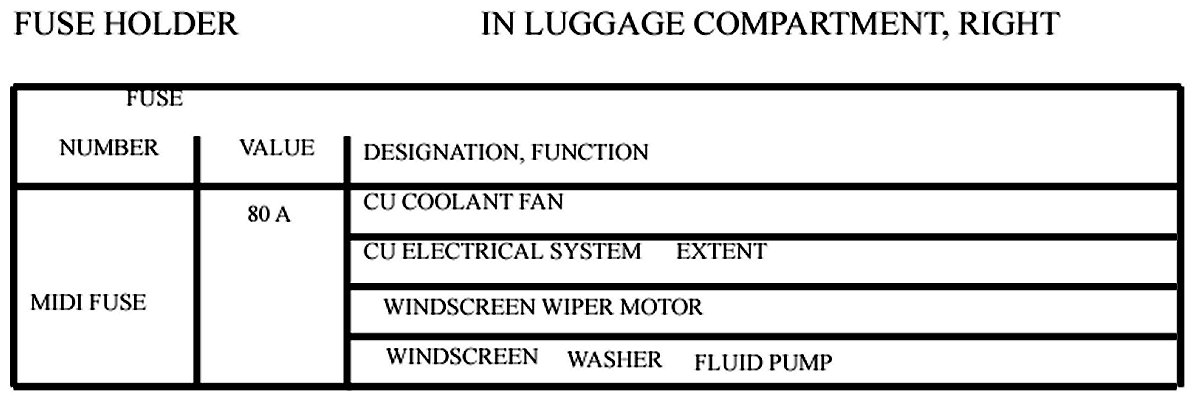

The current distributor is located in the luggage compartment to the right.

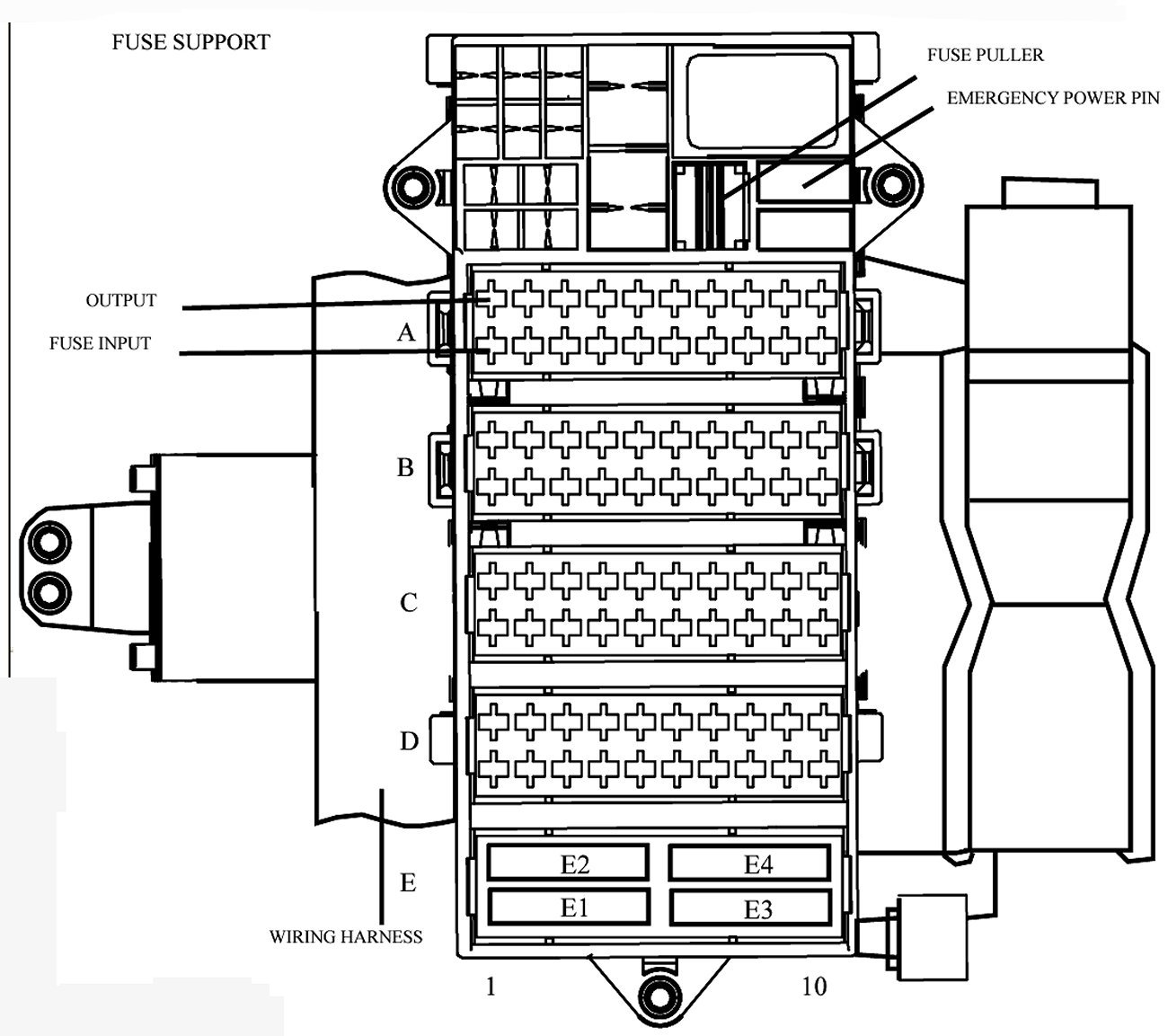

Fuse Support

The fuse support is located in the passenger compartment.
