Removing and Installing Relay Carrier



Removing And Installing Relay Carrier

Preliminary work

Preliminary work for relay carrier
Remove trim panel of rear luggage compartment at the left.

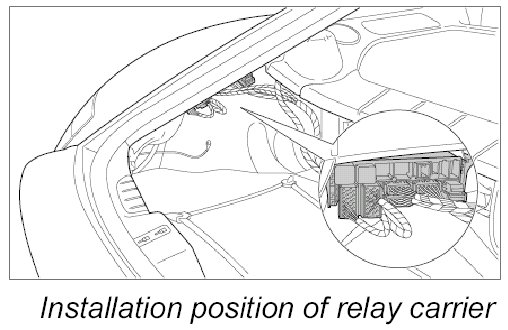

Removing relay carrier












1. Release relay carrier at retaining frame on both left and right side and remove the relay carrier from the bracket.

Installing relay carrier

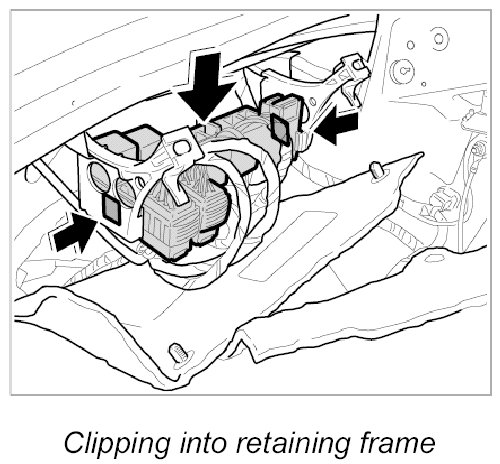

1. Clip relay carrier into the retaining frame at the left and right.

Subsequent work

Subsequent work for relay carrier
Install trim panel of rear luggage compartment at the left.
