Dual Input Clutch Assembly: Specifications


WM 3X00IN Technical data - Porsche Doppelkupplung (PDK)

Technical values





Technical values

Technical values

Transmission type: CG 100

Equipment: 7-speed

Installed in: Boxster (987 II) and Cayman (987 II)

Model year: 2009

Type: Porsche Doppelkupplung (PDK)

Transmission ratios

1st gear: 43/11 = 3.909

2nd gear: 55/24 = 2.291

3rd gear: 43/26 = 1.654

4th gear: 43/33 = 1.303

5th gear: 40/37 = 1.081

6th gear: 37/42 = 0.881

7th gear: 29/47 = 0.617

Reverse gear: 39/11 = 3.545

Constant: 39/35 = 1.114

Ring gear and pinion shaft: 34/11 = 3.090

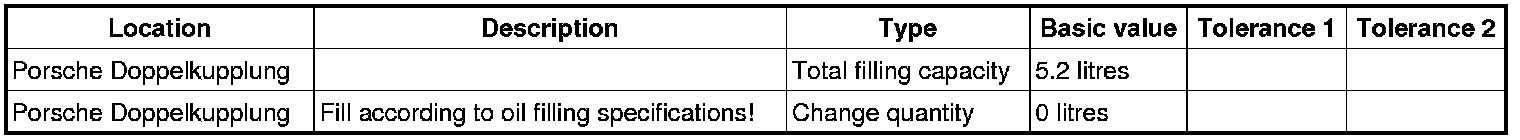

Filling capacities
