Washer Fluid Level Indicator: Service and Repair

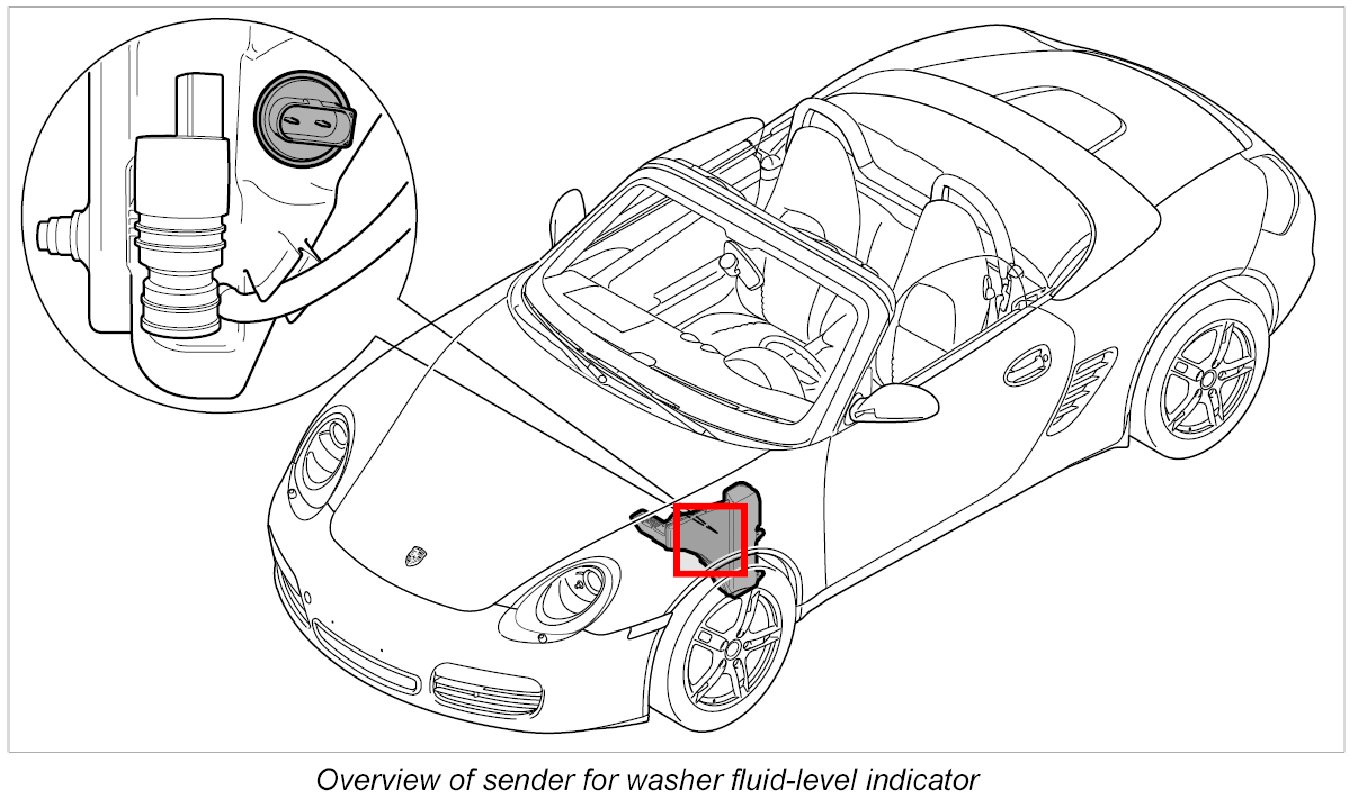

Removing And Installing Sender For Washer Fluid-level Indicator

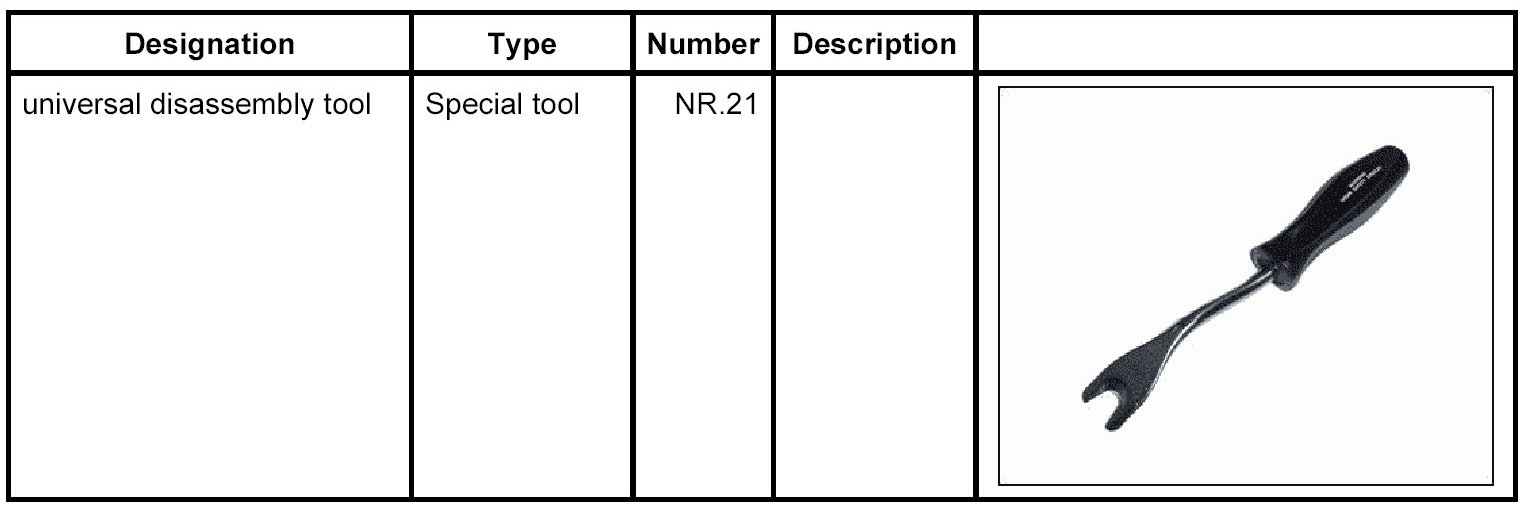

Tools







Preliminary work
Remove tank for windscreen washer system.

Removing sender for washer fluid-level indicator

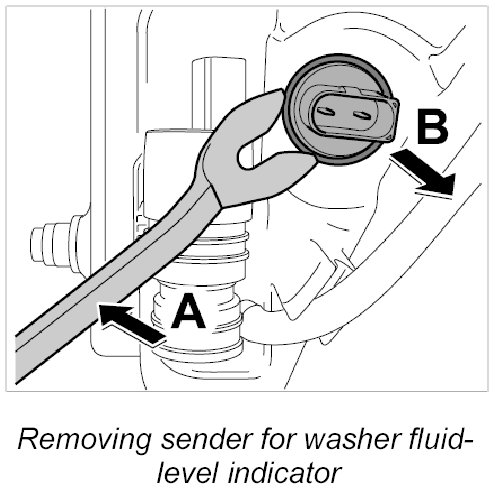

1. Remove sender using the universal disassembly tool NR.21 to lever it out of the rubber seal -arrow A- and remove it -arrow B-.

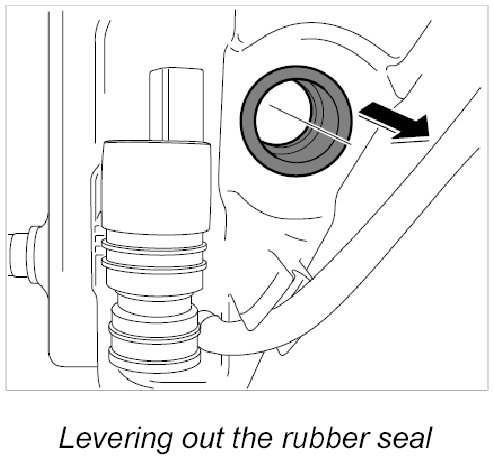

2. Remove rubber seal.

Installing sender for washer fluid-level indicator

Installing sensor for fluid level display

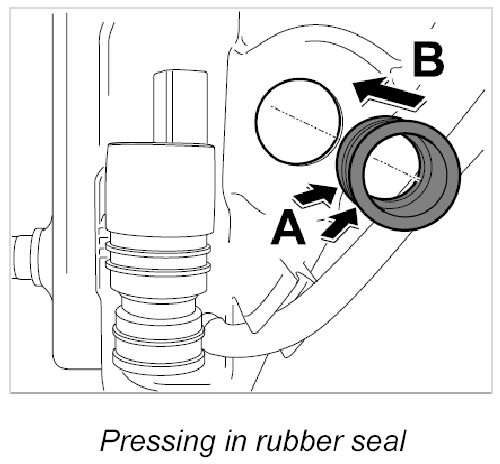

1. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -arrows A- and press the rubber seal into the tank -arrow B- until it is felt to engage.

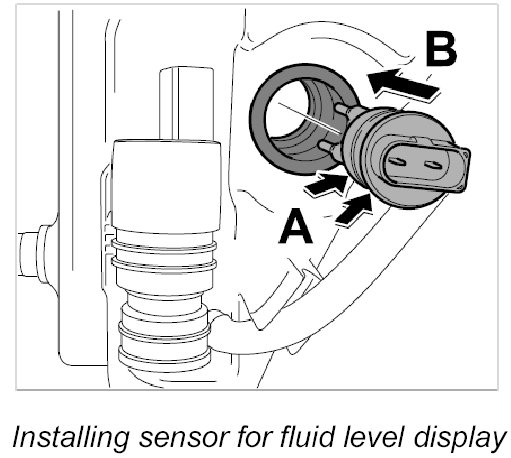

2. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -arrows A- and press the sensor for fluid level display into the rubber seal -arrow B- until the sensor is felt to engage.

Subsequent work
Install reservoir for windscreen washer.
