373115 Adjusting multi-functional switch

WM 373115 Adjusting multi-functional switch

Tools

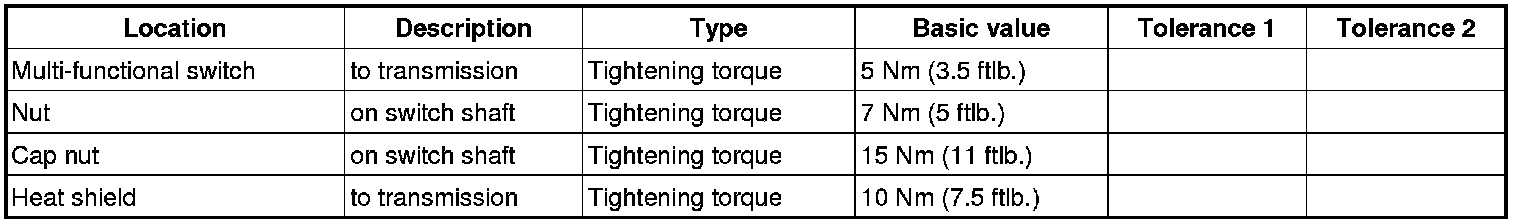

Technical values






Preliminary work for multi-functional switch

1. Remove engine guard. -> 108019 Removing and installing engine guard - section on "Removing" 108019 Removing and installing engine guard (underbody panelling)

Adjusting multi-functional switch





Overview of multi-functional switch

1. Move selector lever to position N.
2. Remove heat shield on the transmission. To do this, unscrew three fastening screws -arrow-.





Heat shield on right side of transmission

3. Pull off cable on multi-functional switch.
4. Remove cap nut, cap, nut with tab washer and rubber washer on the multi-functional switch.





Assembling multi-functional switch

5. Loosen fastening screws -arrow-.





Fastening screws on multi-functional switch

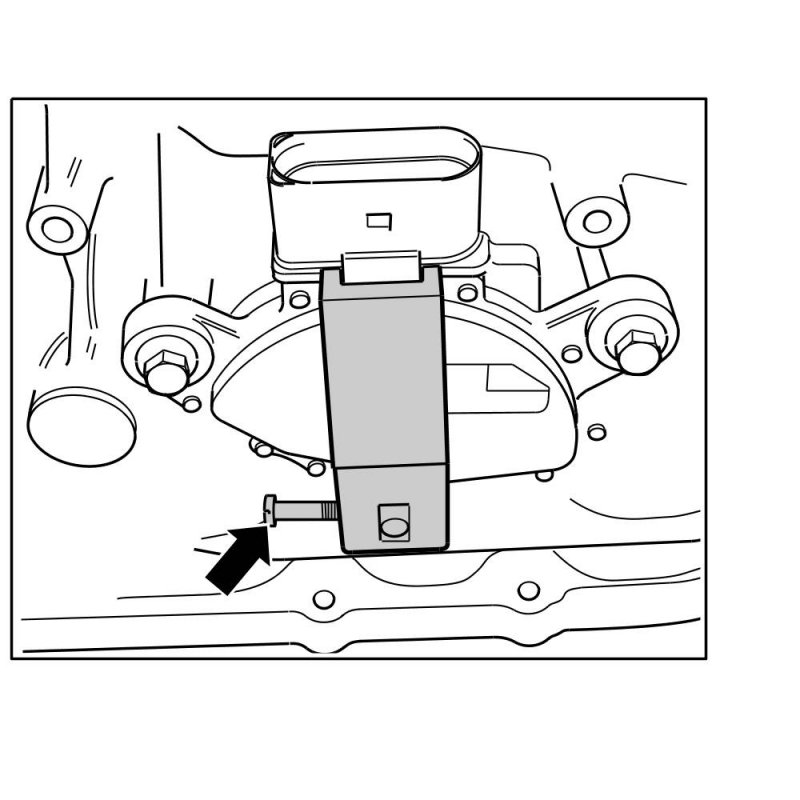

6. Position special tool adjusting tool T10173 on the shaft and fix to the shaft with screws -arrow-.





Adjusting tool on multi-functional switch

7. Screw in fastening screws -arrow- and remove special tool. => Tightening torque: 5 Nm (3.5 ftlb.)





Fastening screws on multi-functional switch

8. Install cap nut, cap, nut with tab washer and rubber washer on the multi-functional switch. => Tightening torque: 7 Nm (5 ftlb.) => Tightening torque: 15 Nm (11 ftlb.)





Assembling multi-functional switch

9. Connect compact connector to multi-functional switch.
10. Install heat shield on transmission. To do this, screw in three fastening screws -arrow-. => Tightening torque: 10 Nm (7.5 ftlb.)





Heat shield on right side of transmission

Subsequent work

Subsequent work for multi-functional switch

1. Install engine guard. -> 108019 Removing and installing engine guard - section on "Installing" 108019 Removing and installing engine guard (underbody panelling)
