Oil Pump, Engine

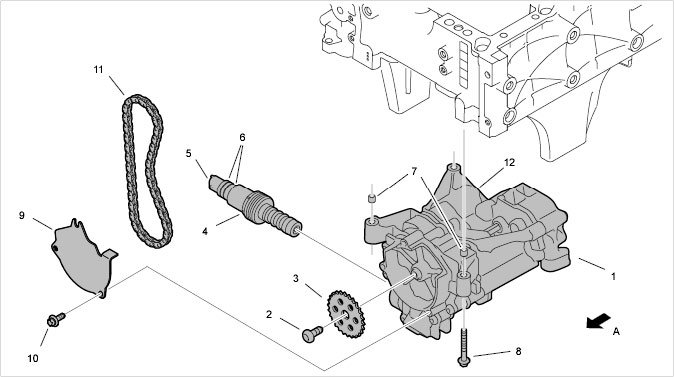

Oil pump on turbo engine M48/51 with oil extraction stage
2
- Screw, M8 x 22; replace
First pass
20 Nm (15 ftlb.)
Final pass
Torque angle 90°
4
- Cap screw, M36 x 1.5 x 12
40 Nm (30 ftlb.)
8
- Screw, M6 x 45
13 Nm (9.5 ftlb.)
10
- Screw, M6 x 16
10 Nm (7.5 ftlb.)
A
- Direction of travel
