Camshafts

Camshafts







The exhaust and intake camshafts are driven directly by the crankshaft via one duplex roller-type chain each. On the 3.6-liter engine, the intake valve lift is 3.6 mm (small) and 10.5 mm (large). On the 3.8-liter engine, the small valve lift is the same as on the 3.6-liter engine, while the large valve lift is 11.0 mm.

The exhaust valve lift is 10.35 mm on the 3.6-liter engine, and 11.00 mm on the 3.8-litre engine.

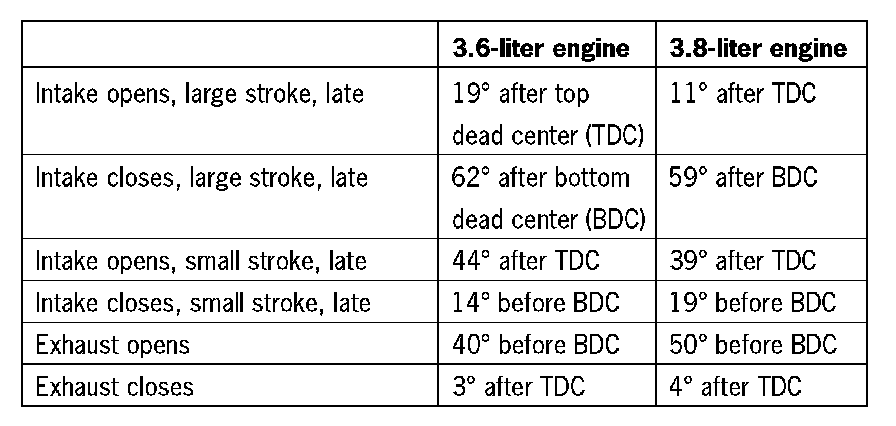

The timing for both engines is as follows:
