Basic Transmission

Basic Transmission

Gear wheel set

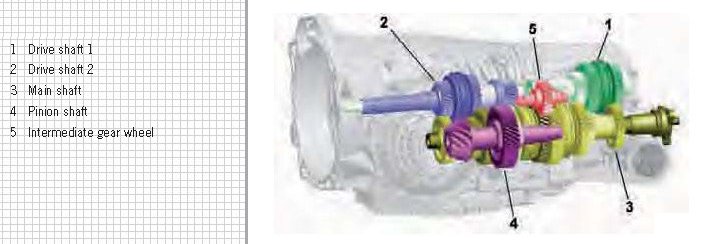

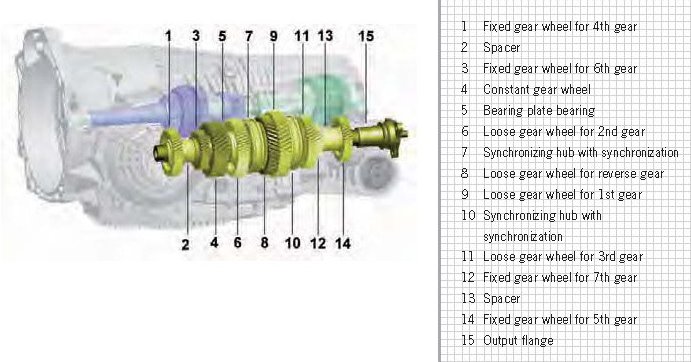

The gear wheel set in the transmission comprises input shaft 1 (1), input shaft 2 (2), the main shaft (3), the pinion shaft (4) and the intermediate gear wheel (5).

1st, 3rd, 5th, 7th and reverse gear are on input shaft 1, while 2nd, 4th and 6th gear are on input shaft 2.

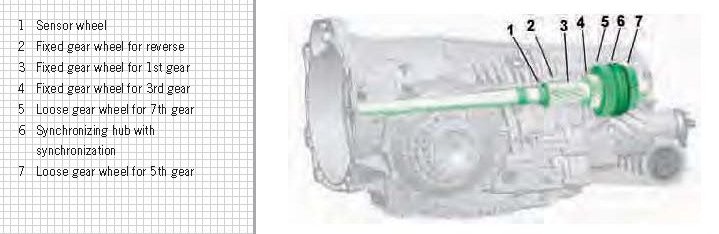

The illustration above shows the structure of input shaft 1

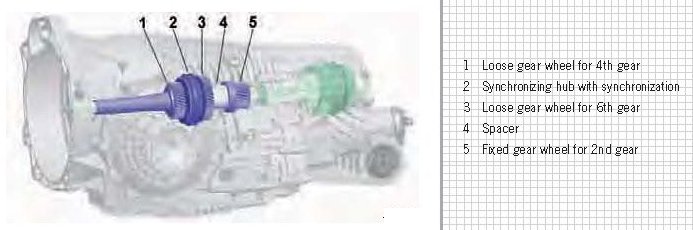

The illustration above shows the structure of input shaft 2

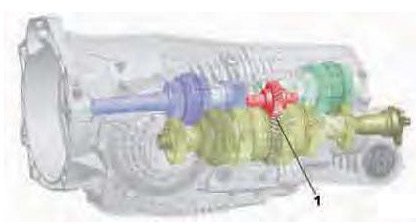

The direction change for reverse gear is accomplished via an intermediate gear wheel (1), which is located between input shaft 1 and the main shaft.
