Intake Air Temperature Sensor
Intake Air Temperature SensorElectrical Intake Air Temperature Sensor Diagnosis
General Description
The purpose of this diagnosis is to detect electrical faults. The input signal is analog from a NTC and has to be in a calibrate able range. Short circuit to ground can be detected immediately, short circuit to voltage battery or an open circuit after a delay time. In addition to detect short circuit to voltage battery or an open circuit, the mass air flow must be under a calibratable threshold. If an error symptom is detected, the error counter is debounced.
Substitute value:
A substitute value is calculated if an IAT electrical malfunction is detected. This substitute value is defined as following:
- if no ECT-sensor malfunction is present and ECT is below a calibrate able threshold then IAT is set to a low value
- if ECT-sensor malfunction is present or ECT is above the same calibrate able threshold, then IAT is set to high value
Montitoring Conditions
See Summary Table Diagnostic Trouble Code Descriptions
Error Symptoms
- Short circuit to voltage battery or open load
- Short circuit to ground

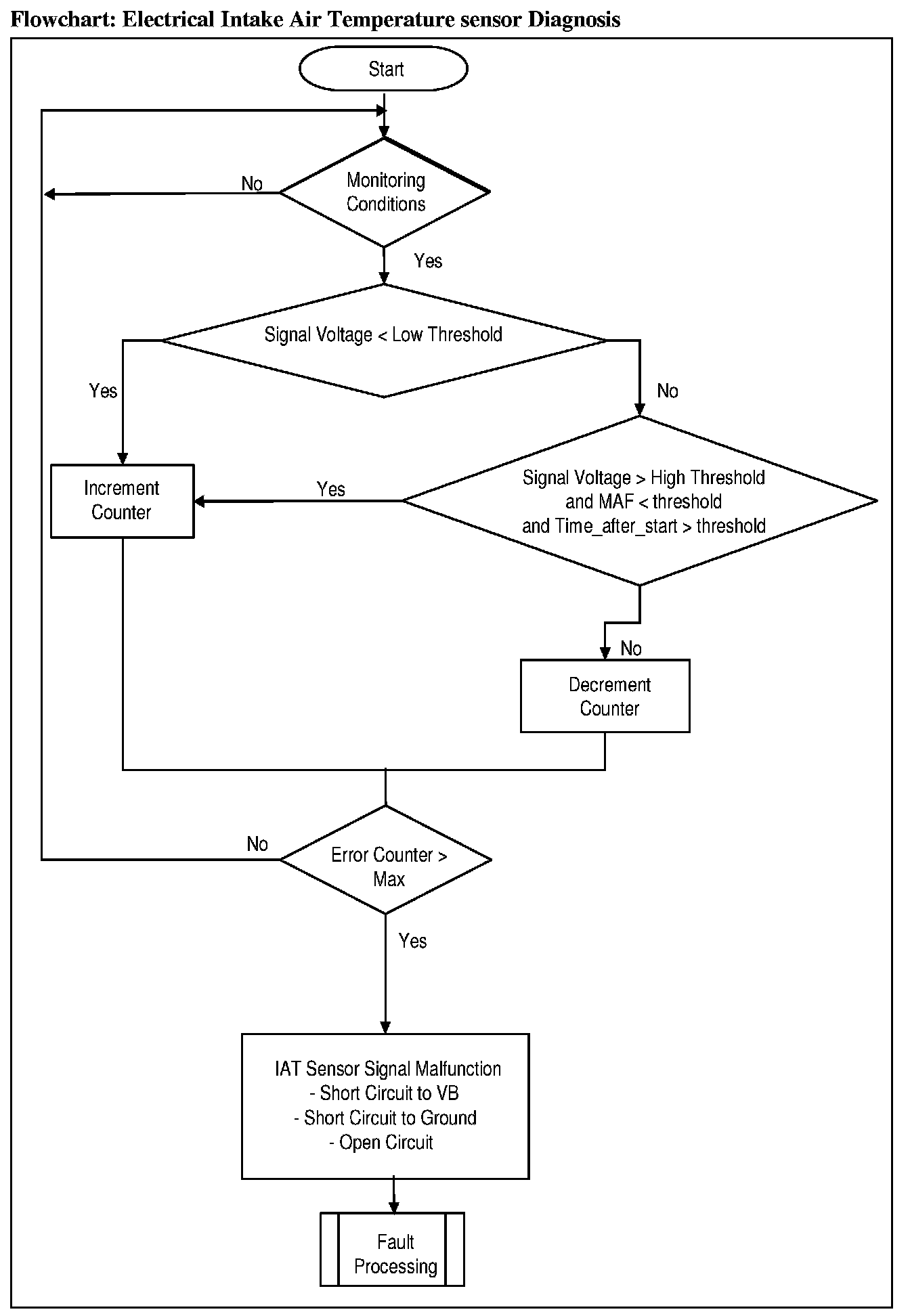

Flowchart: Electrical Intake Air Temperature sensor Diagnosis
Intake Air Plausibility Check - Plausibility diagnosis
General Description
This diagnosis checks IAT for a Stuck signal. If the vehicle was driven for a minimum required distance and time-after-start, then the change in the IAT signal during this period should be above a calibrate able threshold. If this is not the case, a stuck IAT signal is detected.
Montitoring Conditions
See Summary Table Diagnostic Trouble Code Descriptions
Error Symptom:
Signal not plausible

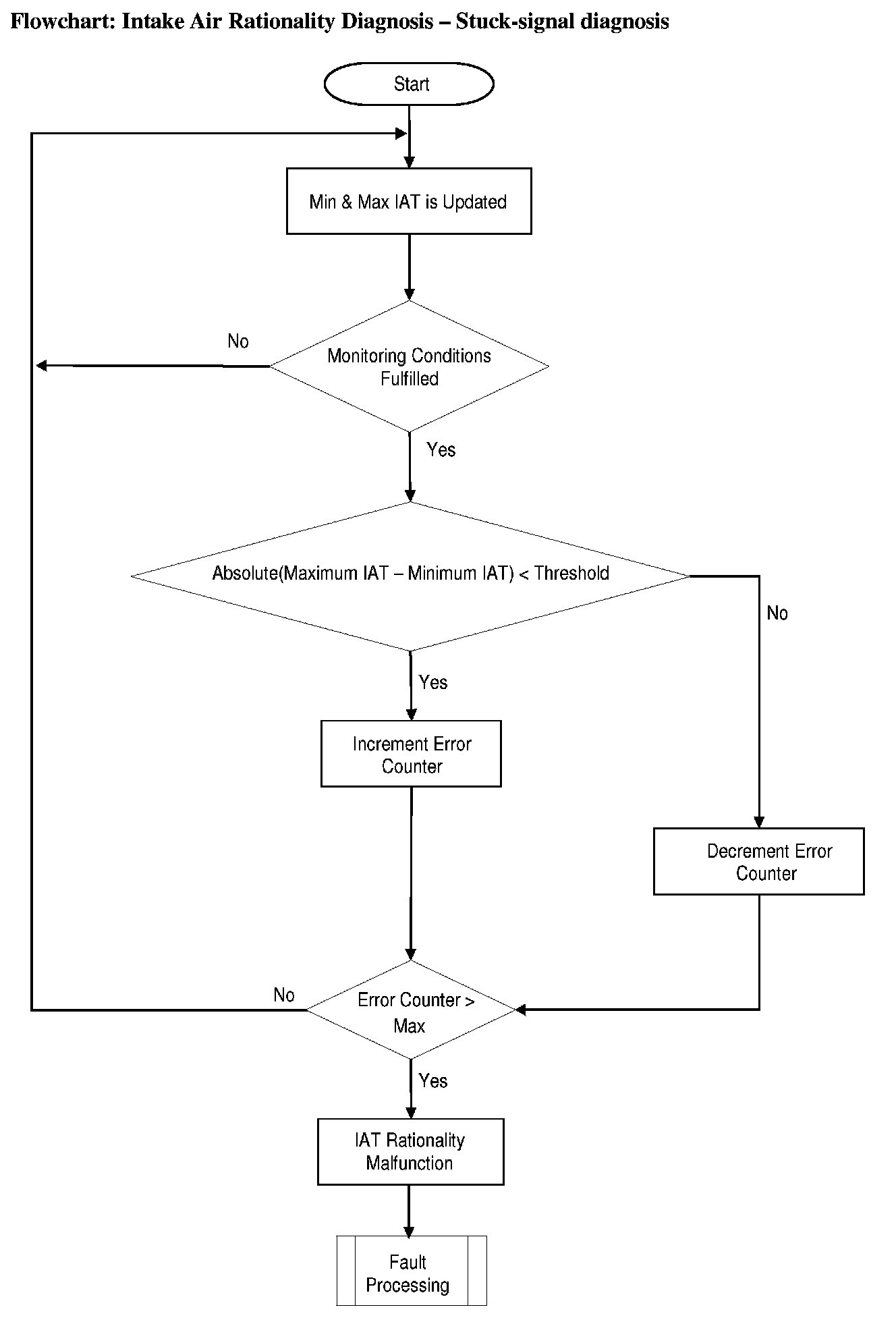

Flowchart: Intake Air Rationality Diagnosis - Stuck-signal diagnosis
Intake Air Plausibility Check - Gradient diagnosis
General Description
The purpose of this diagnosis is to detect an implausible gradient on the intake-air-temperature sensor signal. The diagnosis checks whether the difference between the measured IAT value and a low-pass-filtered (PT1) IAT signal exceeds a calibrate able threshold. If this is the case, a intermittent IAT signal is detected.
Montitoring Conditions
See Summary Table Diagnostic Trouble Code Descriptions
Error Symptom
Signal not plausible
Flowchart: Intake Air Rationality Diagnosis - Gradient diagnosis
