681919 Removing and installing cover for centre console
WM 681919 Removing and installing cover for centre console
Technical values
Preliminary work
Information
For vehicles with manual transmission.
1. Remove shift lever knob. -> 340419 Removing and installing shift lever knob - section on "Removing" 340419 Removing and installing shift lever knob
Information
For vehicles with automatic transmission.
2. Remove selector knob. -> 370419 Removing and installing selector knob - section on "Removing" 370419 Removing and installing selector knob
3. Remove centre console cover at the left and right. -> 681419 Removing and installing centre console cover - section on "Removing" 681419 Removing and installing centre console cover
Removing cover for centre console
Removing cover for support frame
Installation position of centre console cover

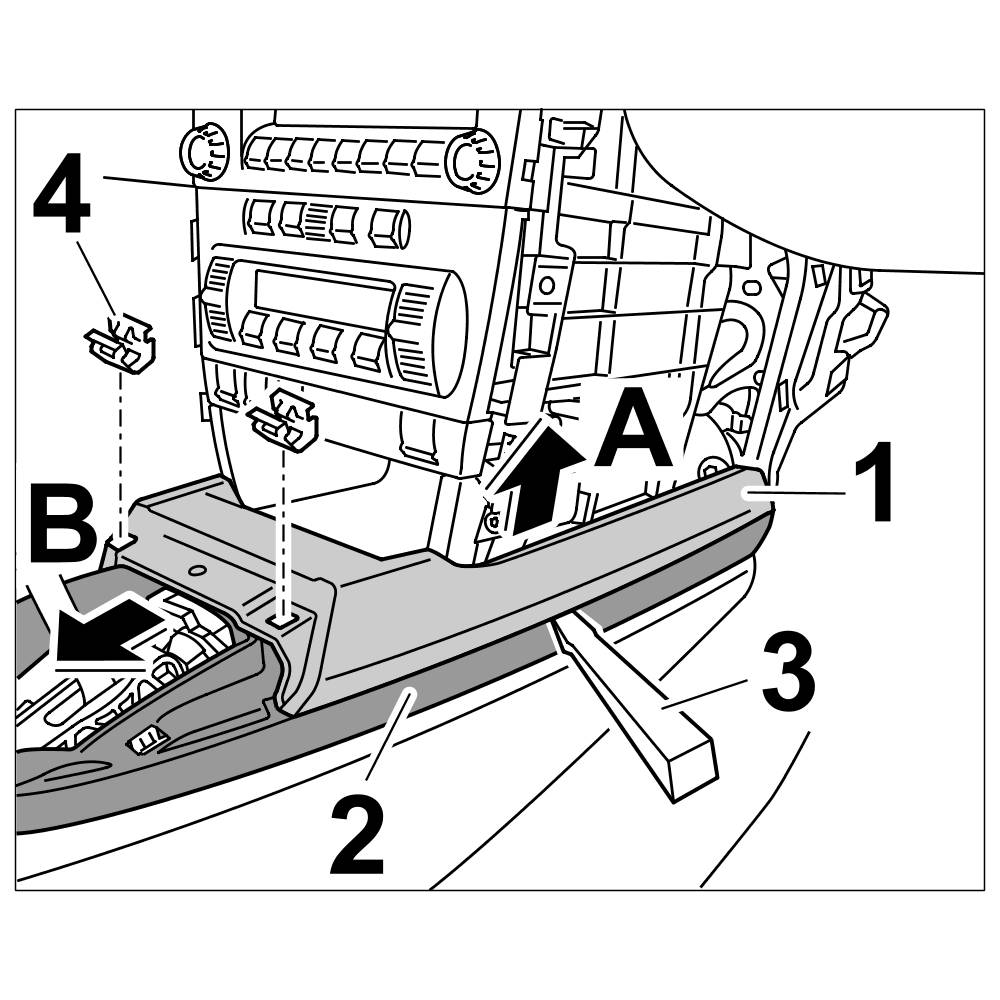

1. Insert a plastic wedge -3- between the cover for support frame -1- and frame -2- and unclip cover -1- ( -arrow A- ).
Unclipping cover for support frame
2. Shift gearshift lever to the rear (4th gear) and take out cover -1- toward the top -arrow B-.
3. Check clamp -4- and replace if necessary.
Removing cover on PDK
1. Move selector lever to position "D".

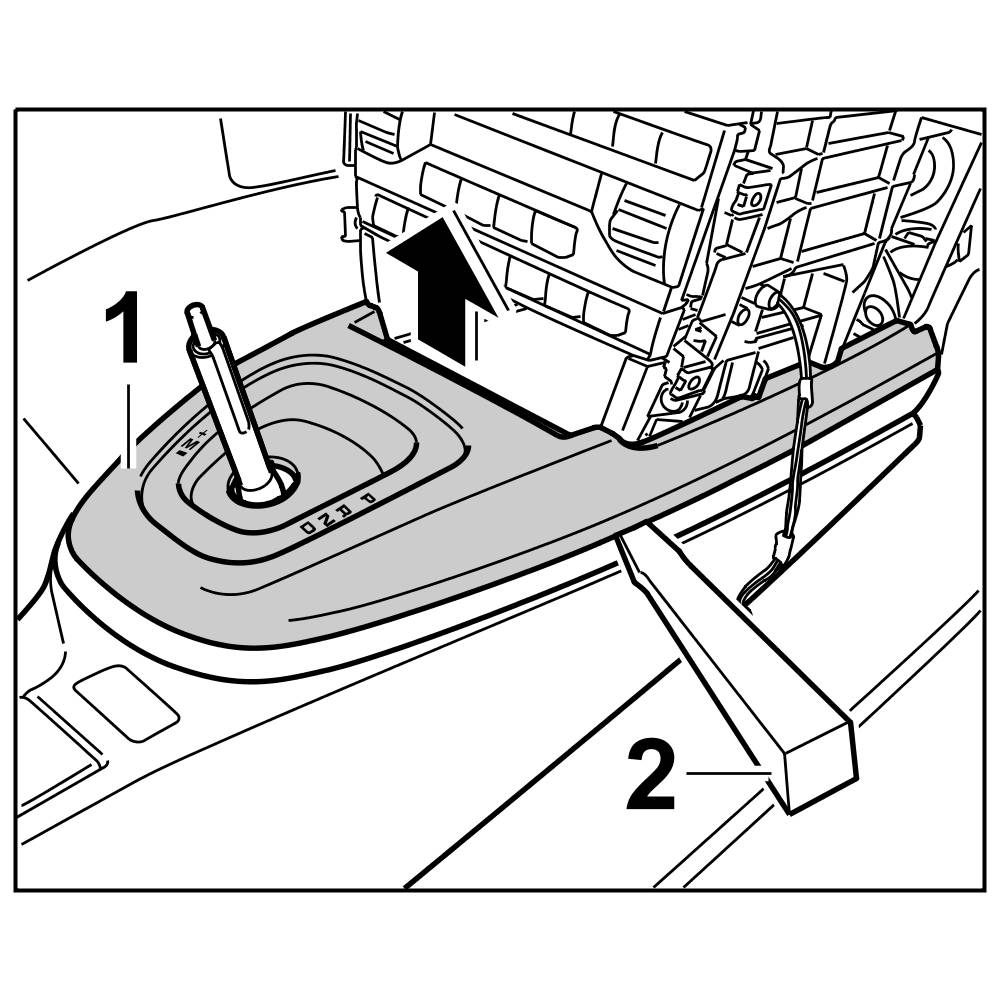

Removing cover on PDK
2. Unclip the cover -1- using a plastic wedge -2- and lift it up and off -arrow-.
Removing frame

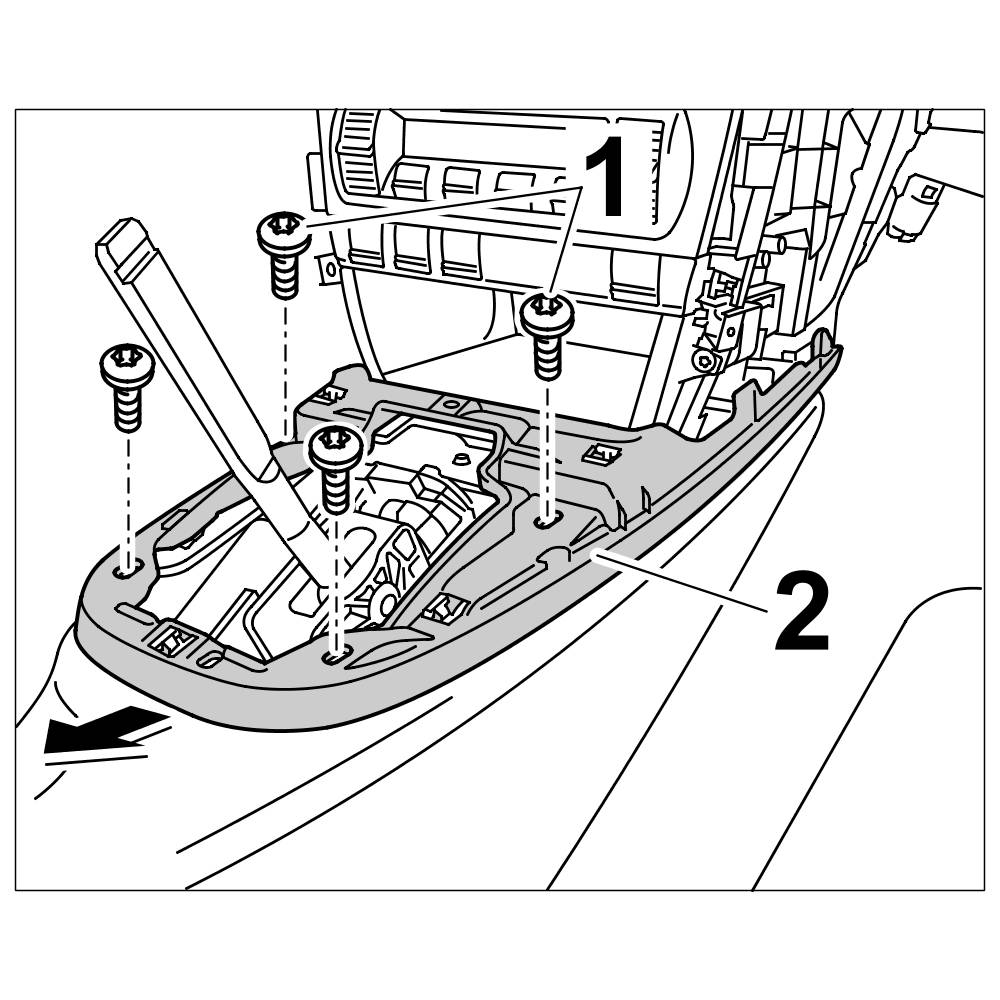

1. Loosen the fastening screws -1- and lift the frame -2- up and off -arrow-.
Removing frame
2. Check fastening clamp and replace if necessary.
Installing cover for centre console
Installing frame
1. Guide front cover -2- into the guide at the left and right -inset-.
Installing frame
2. Tighten fastening screws -1-. => Tightening torque:: 1.8 Nm (1.5 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
Installing cover for support frame
1. Shift gearshift lever to the rear (4th gear).

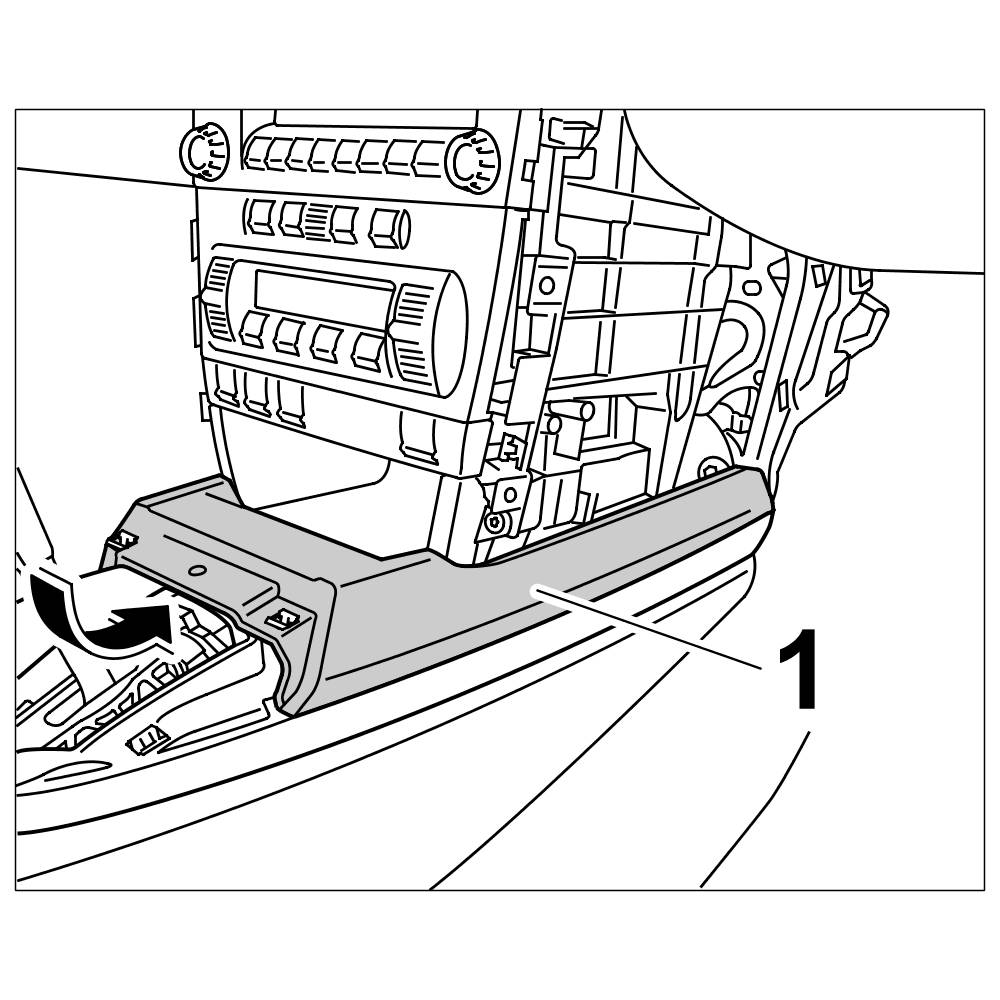

Clipping in support frame cover
2. Position the cover -1- ( -arrow- ) and clip it in fully.

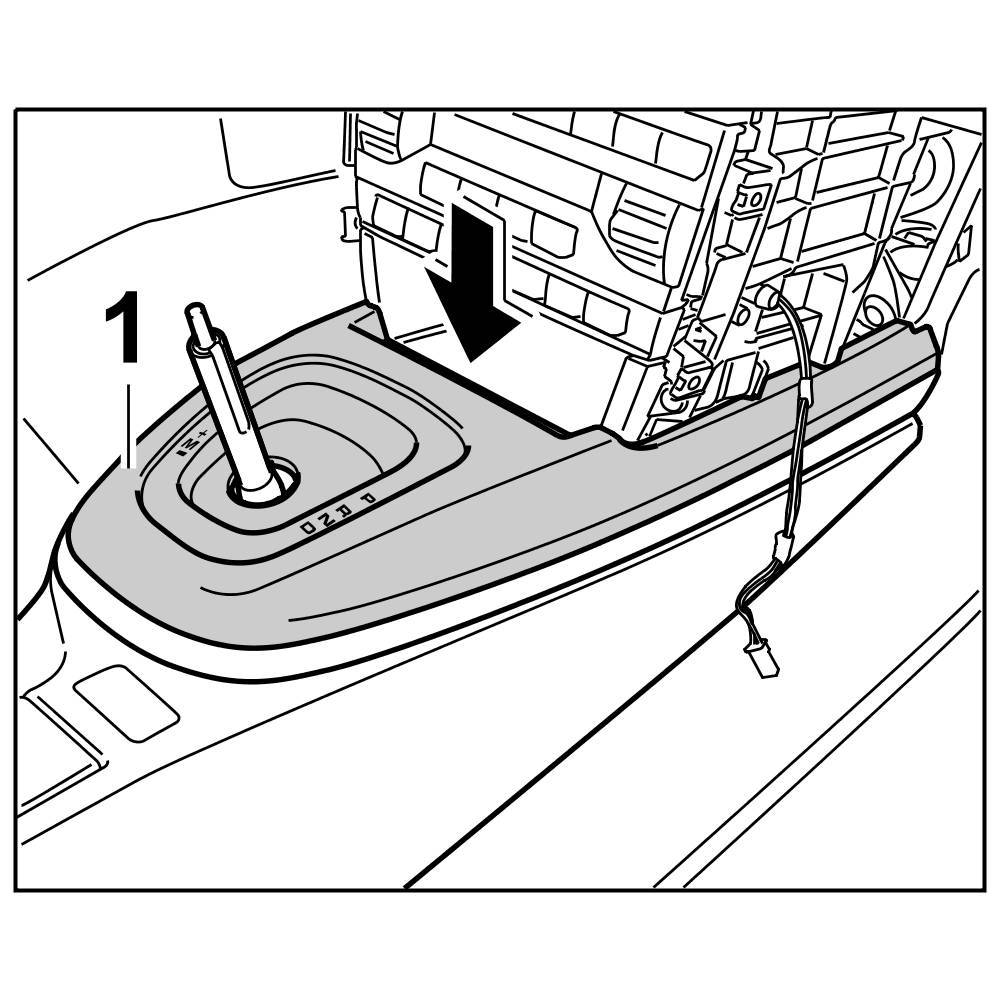

Installing cover on PDK
1. Move selector lever to position "D" and place cover on PDK -1- ( -arrow- ).
Installing cover on PDK
2. Clip in cover on PDK -1- fully.
Subsequent work
1. Install centre console cover at the left and right. -> 681419 Removing and installing centre console cover - section on "Installing" 681419 Removing and installing centre console cover
Information
For vehicles with automatic transmission.
2. Install selector knob. -> 370419 Removing and installing selector knob - section on "Installing" 370419 Removing and installing selector knob
Information
For vehicles with manual transmission.
3. Install shift lever knob. -> 340419 Removing and installing shift lever knob - section on "Installing" 340419 Removing and installing shift lever knob
