741319 Removing and installing cover for front seat (air-conditioned comfort seat)

WM 741319 Removing and installing cover for front seat (air-conditioned comfort seat)

Tools









Technical values





Preliminary work

1. Remove cover for backrest. -> 722619 Removing and installing cover for backrest - section on "Removing" 722619 Removing and installing cover for backrest
2. Mount the front seat on the assembly fixture. -> 7201IN Mounting front seat on assembly fixture 7201IN Mounting front seat on assembly fixture
3. Loosen front belt lock and lay it to one side. -> 692419 Removing and installing front belt lock (air-conditioned comfort seat) - section on "Removing" 692419 Removing and installing front belt lock (air-conditioned comfort seat)

Removing cover for front seat

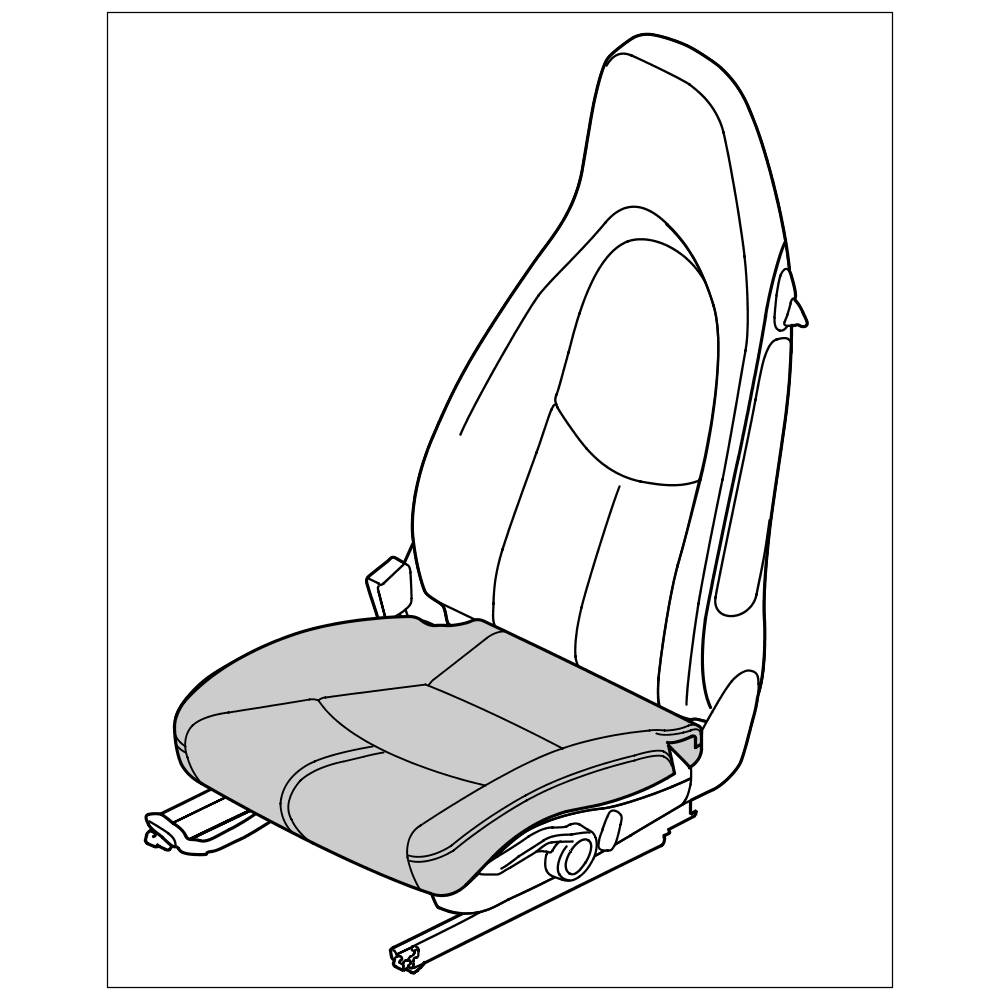

Installation position of cover for front seat

1. Carefully press cover piping out of the seat frame using a screwdriver -arrows-.





Pressing out cover at rear

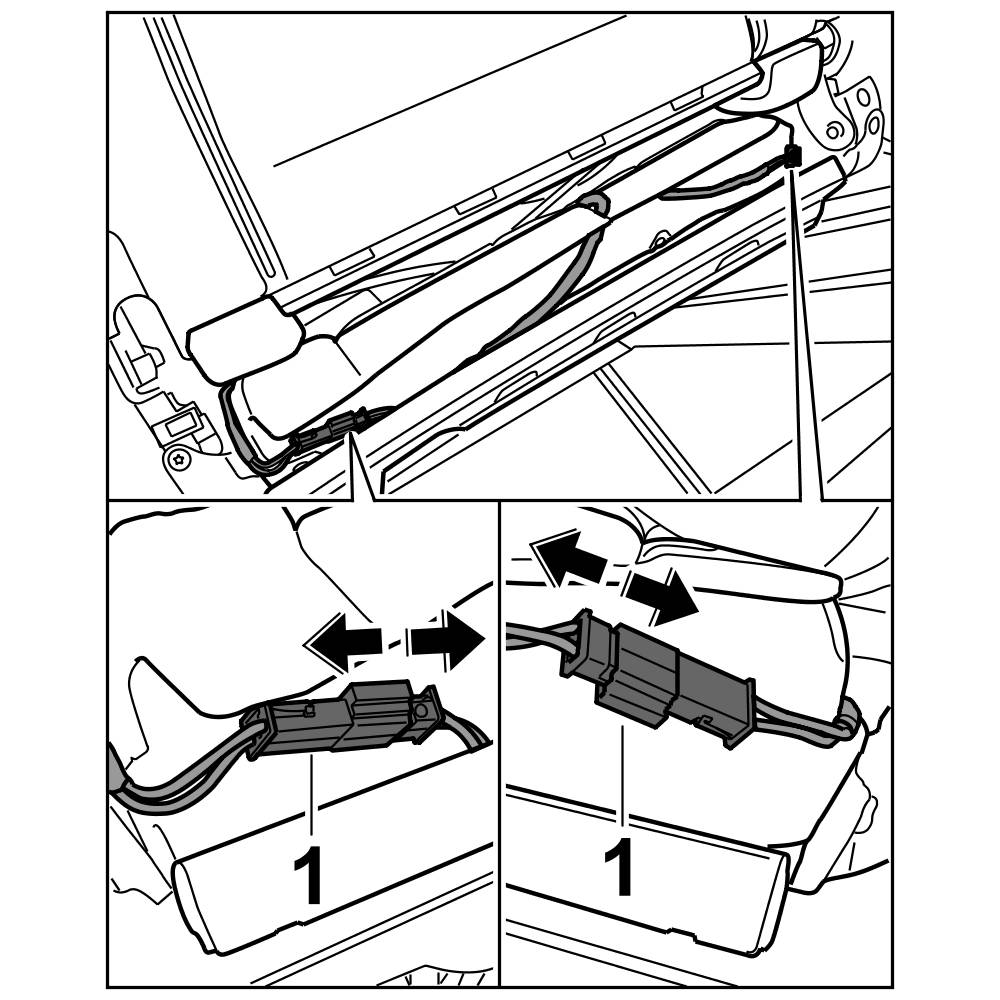

2. Disconnect plug connections for heated seats -1- ( -arrows- ).





Disconnecting plug connections

3. Loosen cover piping -1- slightly with a screwdriver and pull it out with your hand all the way around -arrow-.





Pulling out cover

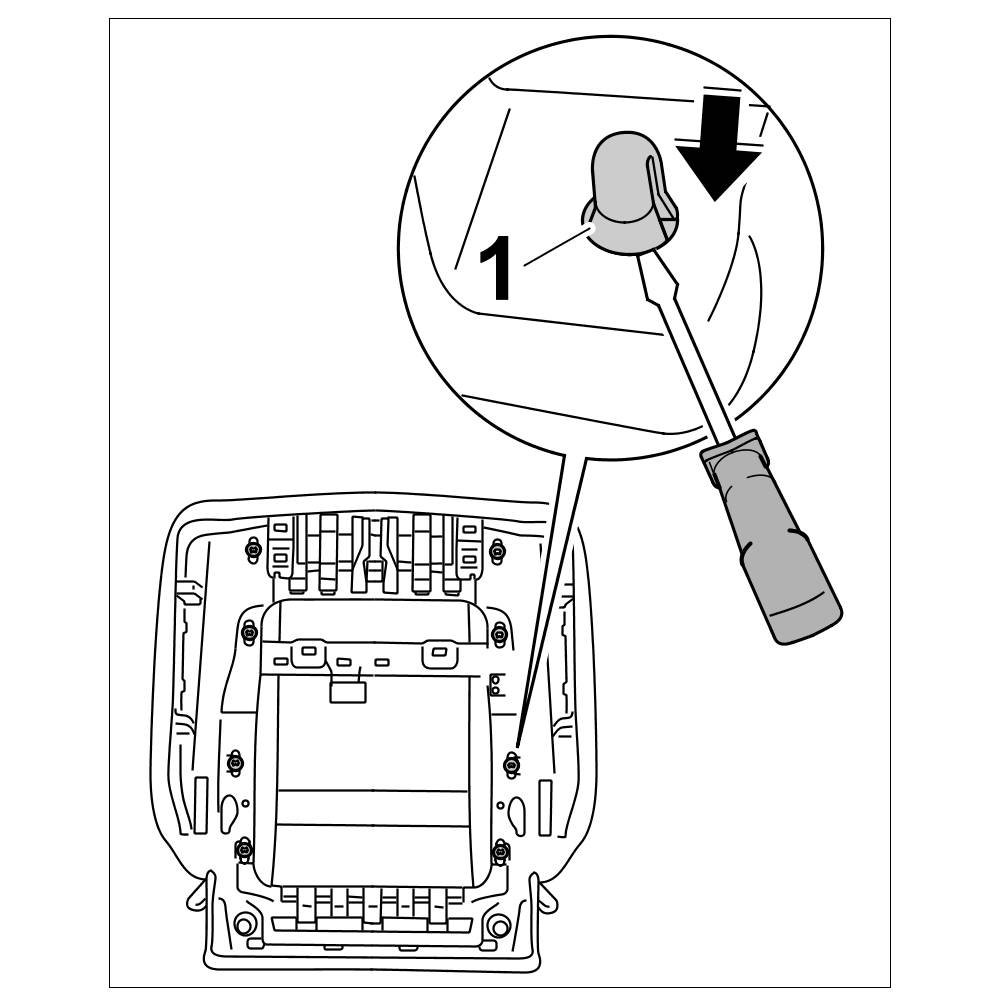

4. Unclip fixing clips -1- with a screwdriver -arrow-.





Unclip fixing clips

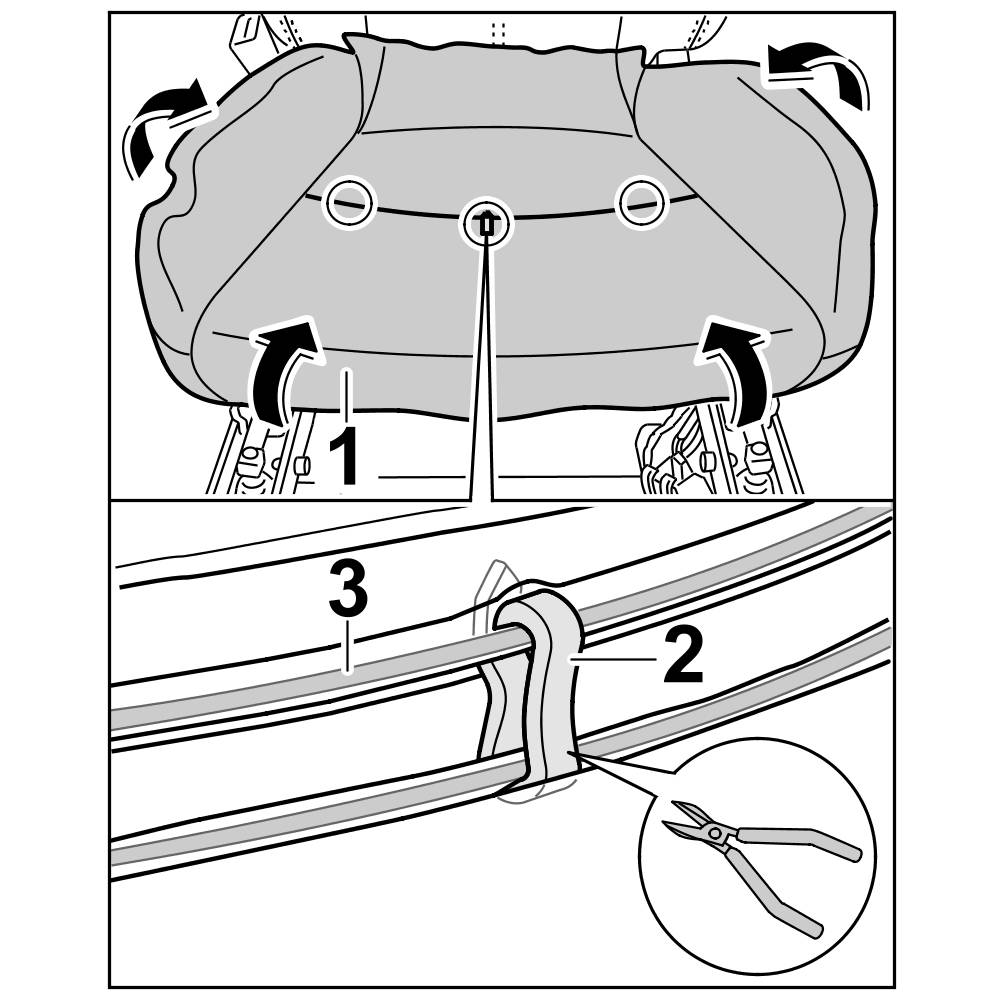

5. Fold cover -1- up slightly -arrows- and cut the cushion clips -2- at the front on the integrated metal strut -3- using side cutters.





Detaching cover at the front

6. Cut cushion clips -1- at the rear on the integrated metal strut -2- using side cutters.





Releasing rear cover

7. Remove cover -3- from the padding -4- ( -arrows- ).

Subsequent work

Removing creases in seat cover (leather)

CAUTION

Risk of damage to cover if excessive heat is applied.

- Creases in cover

-> If creases have formed, only short partial warming with the hot-air gun is permissible.
-> The hot-air temperature must always be => Temperature: 50°C.

1. If creases have formed, partially heat the affected areas of the cover with the hot-air gun and smooth out the cover using the special tool.
Scudding knife P 9747
Knurling tool P 9747/1

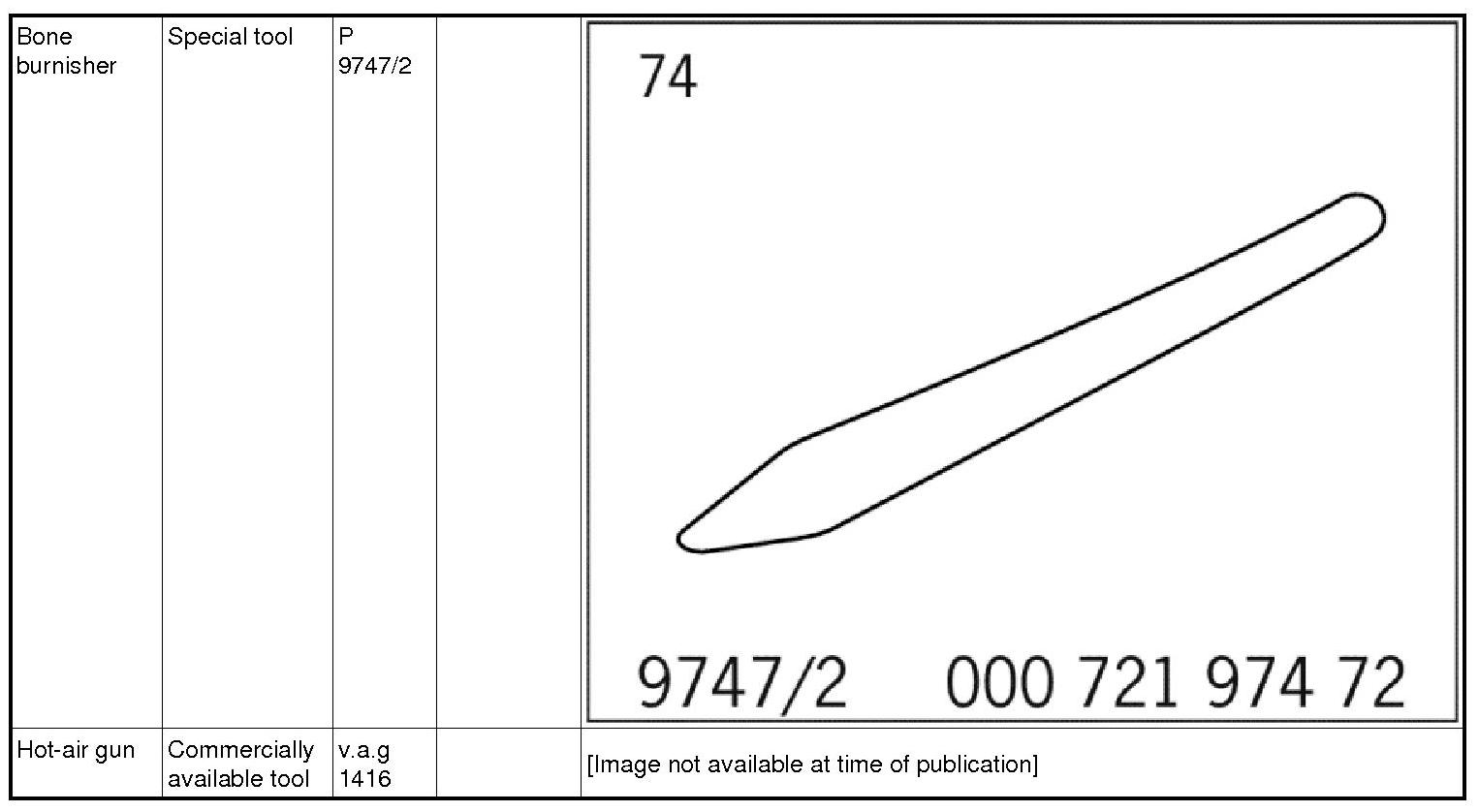

Bone burnisher P 9747/2
Hot-air gun v.a.g 1416

Subsequent work

1. Secure front belt lock. -> 692419 Removing and installing front belt lock (air-conditioned comfort seat) - section on "Installing" 692419 Removing and installing front belt lock (air-conditioned comfort seat)
2. Install cover for backrest. -> 722619 Removing and installing cover for backrest - section on "Installing" 722619 Removing and installing cover for backrest
