741819 Removing and installing padding for front middle backrest

WM 741819 Removing and installing padding for front middle backrest

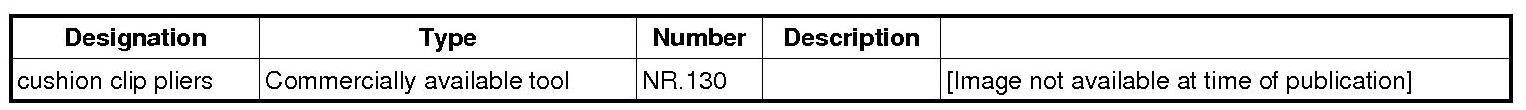

Tools





Preliminary work

Remove cover for front middle backrest. -> 742019 Removing and installing cover for front middle backrest - section on "Removing" 742019 Removing and installing cover for front middle backrest (air-conditioned comfort seat)

Removing padding for front middle backrest





Installation position of cover for front middle backrest

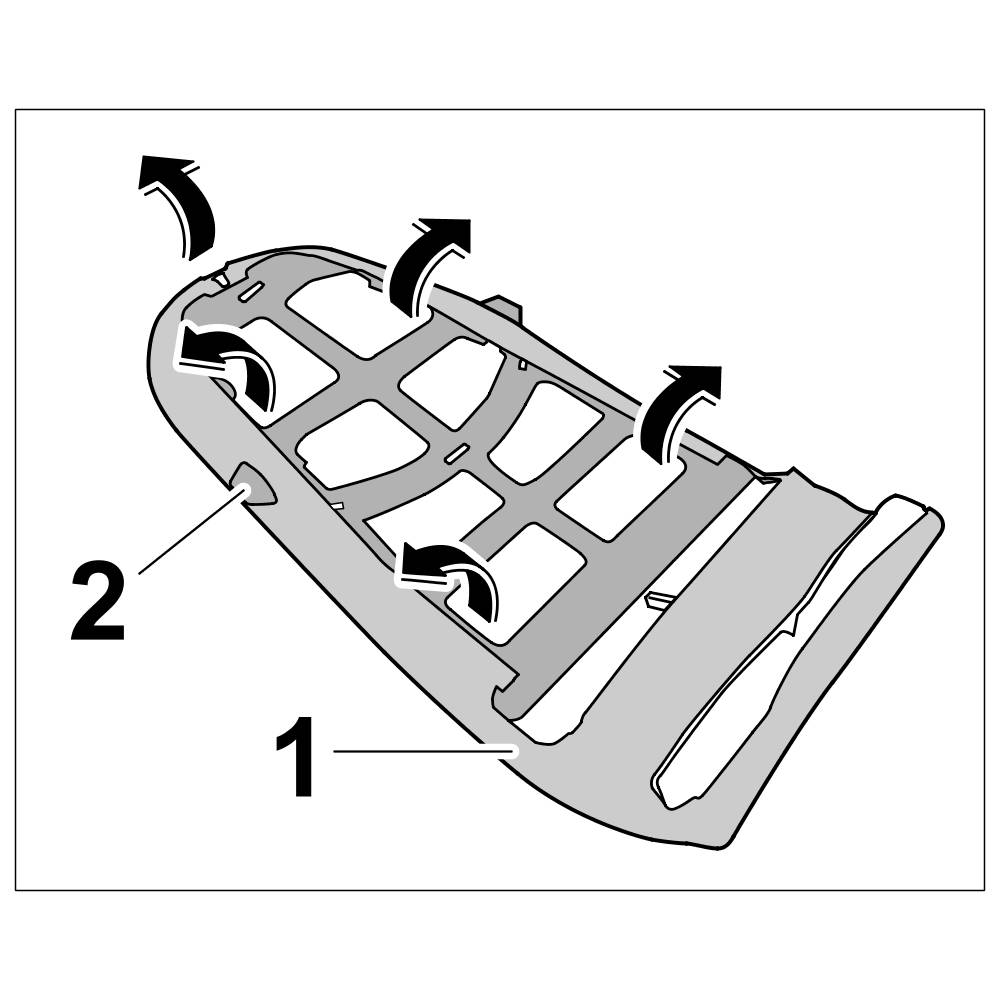

1. Disengage cover for middle backrest -1- out of the plastic frame -2- all the way round.





Disengaging cover for middle backrest

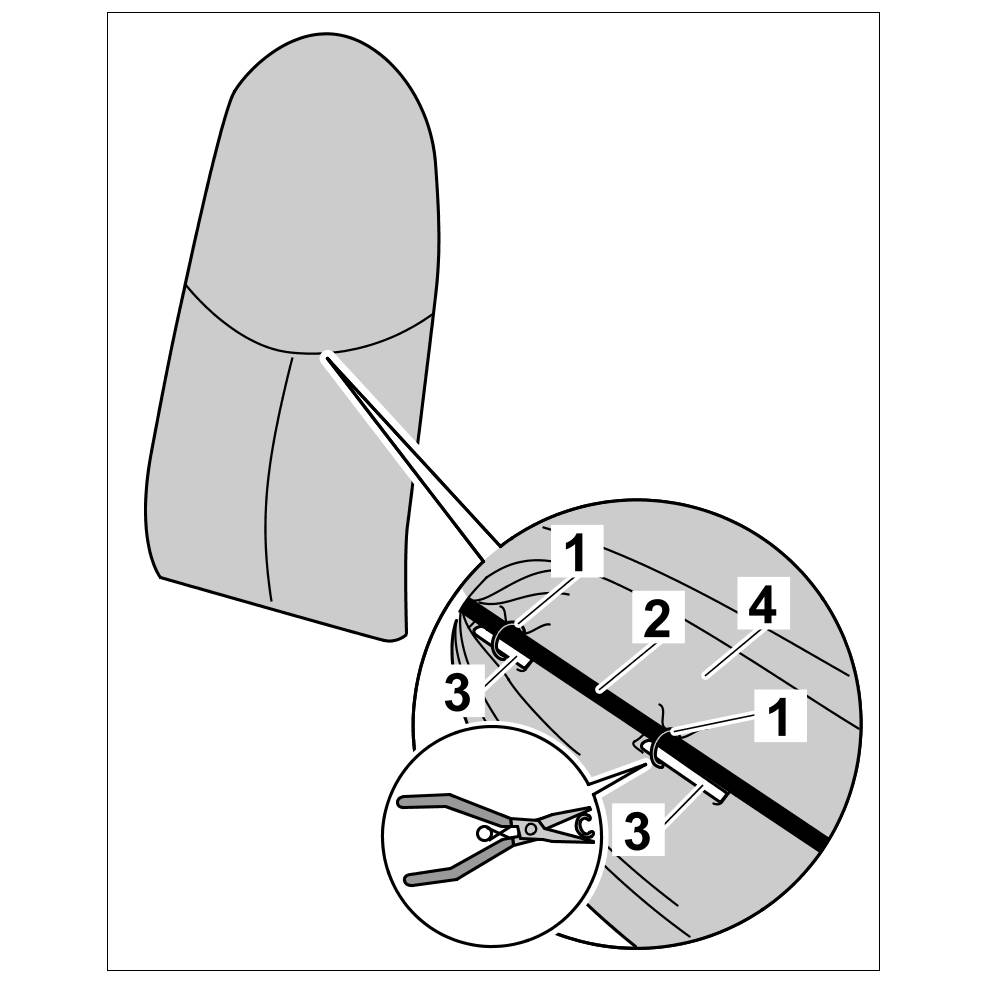

2. Cut through cushion clips -1- using side cutters. Detach piping -2- for cover for middle backrest and remove plastic frame -3- from the padding -4-.





Removing cover for middle backrest

Installing padding for front middle backrest

1. Position piping -2- for cover for middle backrest and padding -4- on the plastic frame -3-. Use the cushion clip pliers NR.130 and the cushion clips -1- to connect the cover strips and the plastic frame -3-.





Installing cover for middle backrest

2. Engage cover for middle backrest -1- in the plastic frame -2- all the way round.





Engaging cover for middle backrest

Subsequent work

Install cover for front middle backrest. -> 742019 Removing and installing cover for front middle backrest - section on "Installing" 742019 Removing and installing cover for front middle backrest (air-conditioned comfort seat)
