552219 Removing and Installing Front Lid

WM 552219 Removing and installing front lid

Technical values





Removing front lid

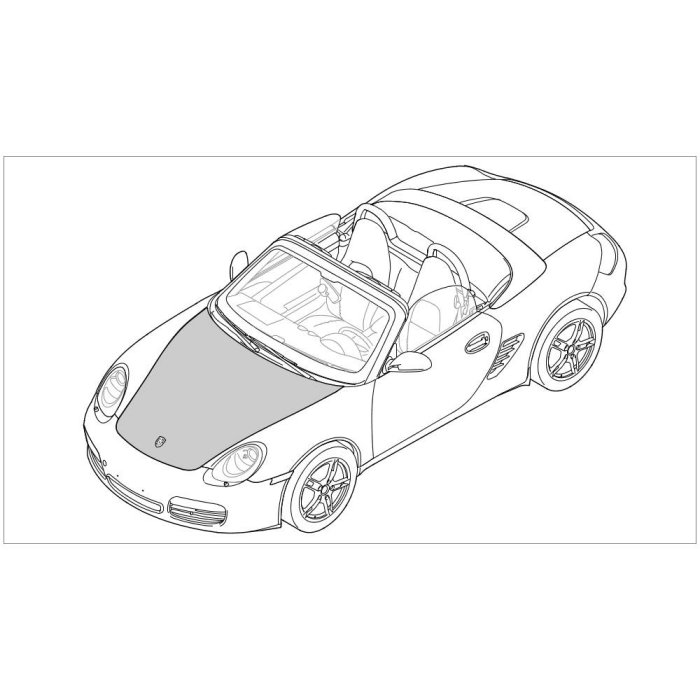

Installation position of front lid

Information

- In addition, assembly work requires a second person to hold the lid open.

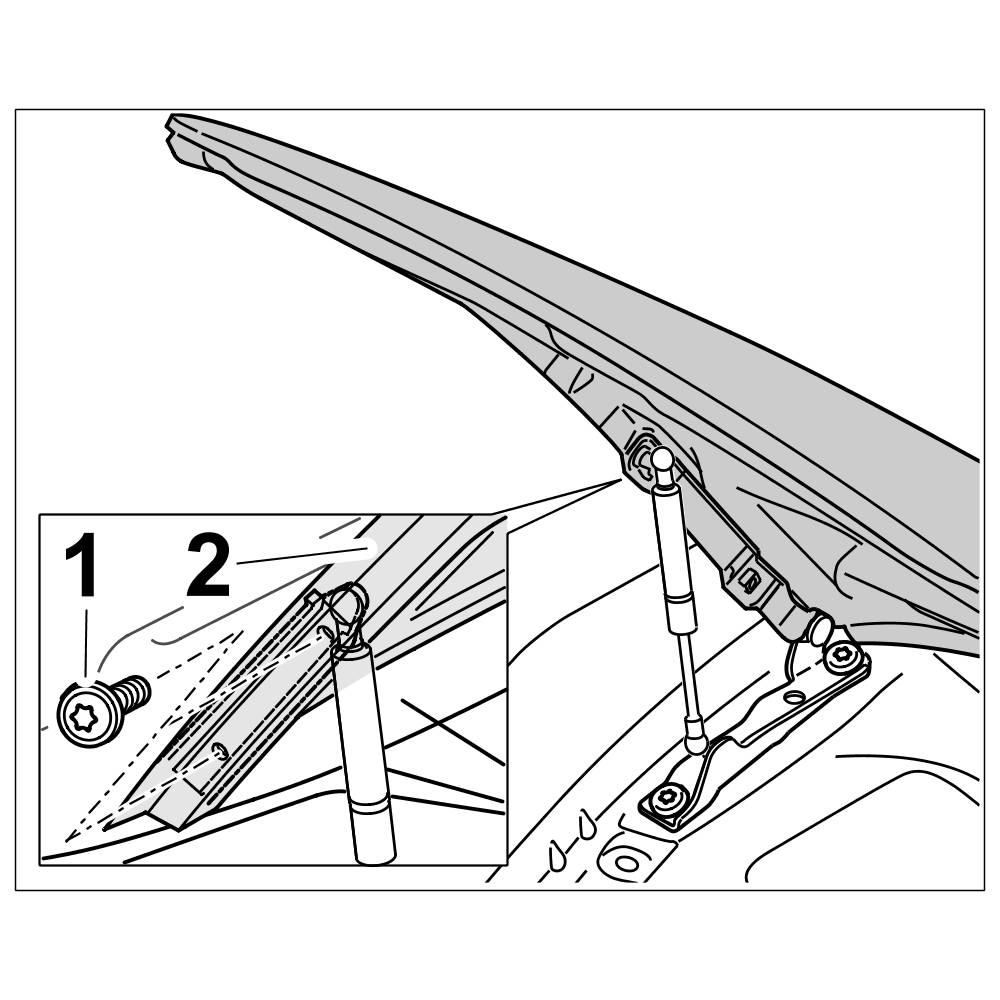

1. Unscrew fastening screws -1- from the front lid -2-.





Removing front lid

Installing front lid





Installation position of front lid

Information

- In addition, assembly work requires a second person to hold the lid open.

1. Position lid -2- at the left and right hinges and tighten using the fastening screws -1-. Tightening torque => Final tightening: 7.2 ftlb.





Installing front lid

Subsequent work

Adjust front lid. -> 552215 Adjusting front lid - section on "adjusting" Adjustments
