708119 Removing and installing trim for roll-over bar

WM 708119 Removing and installing trim for roll-over bar

Removing trim for roll-over bar

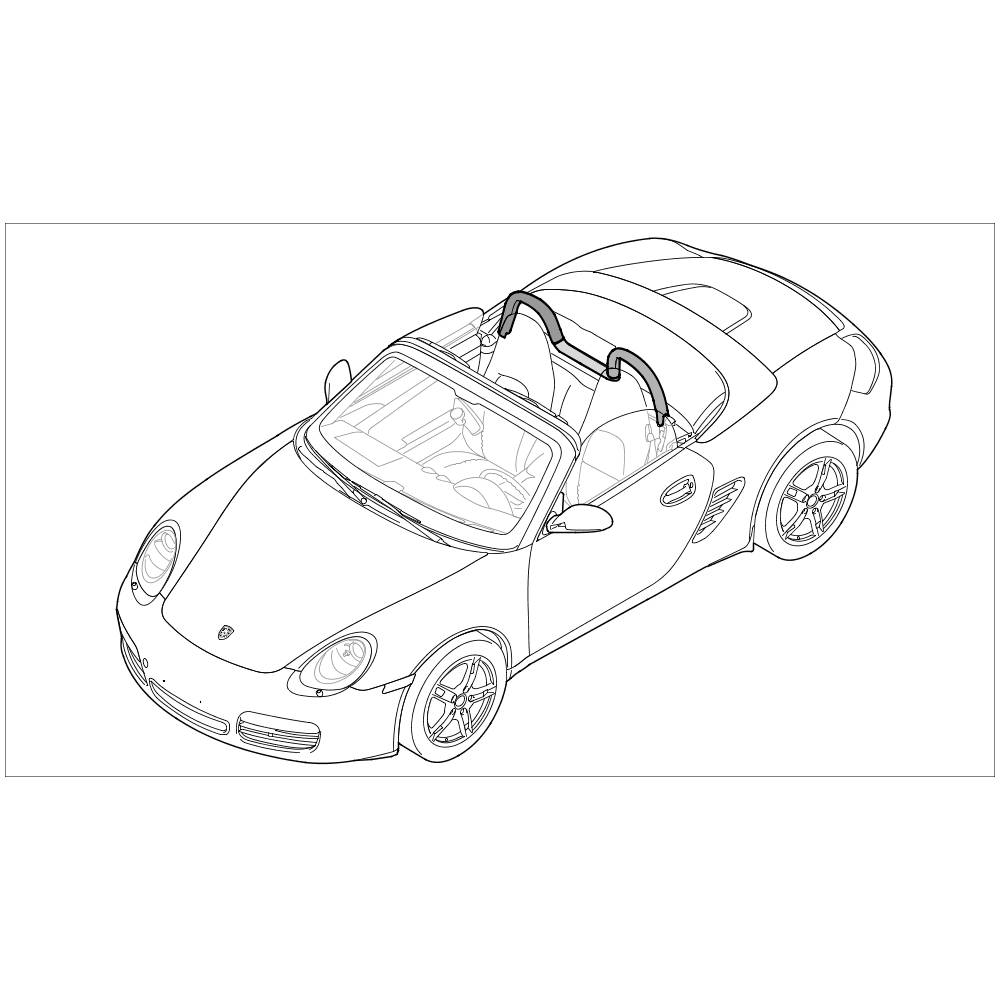

Installation position of trim for roll-over bar

1. Loosen linings -1 to 3- with plastic wedge and remove.

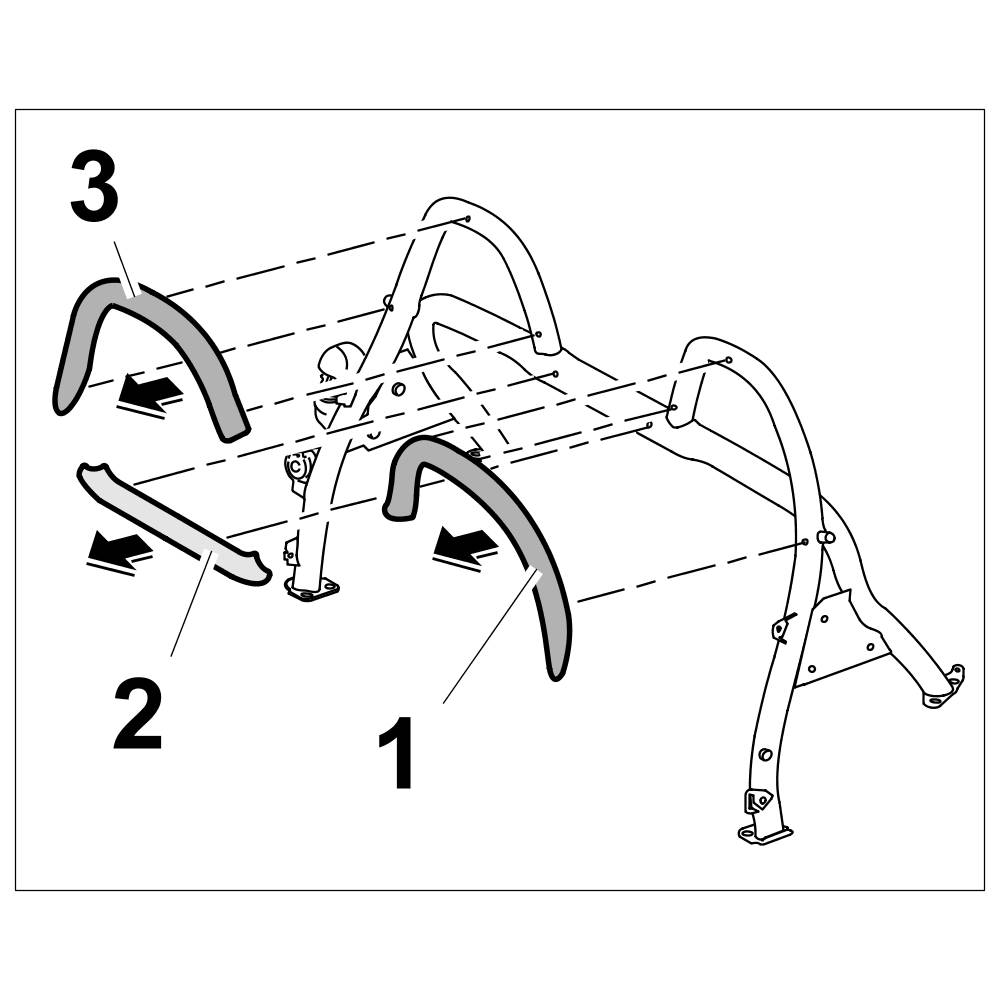

Removing linings

Installing trim for roll-over bar





Installation position of trim for roll-over bar

1. Check plastic inserts -1- for damage, replacing if necessary.

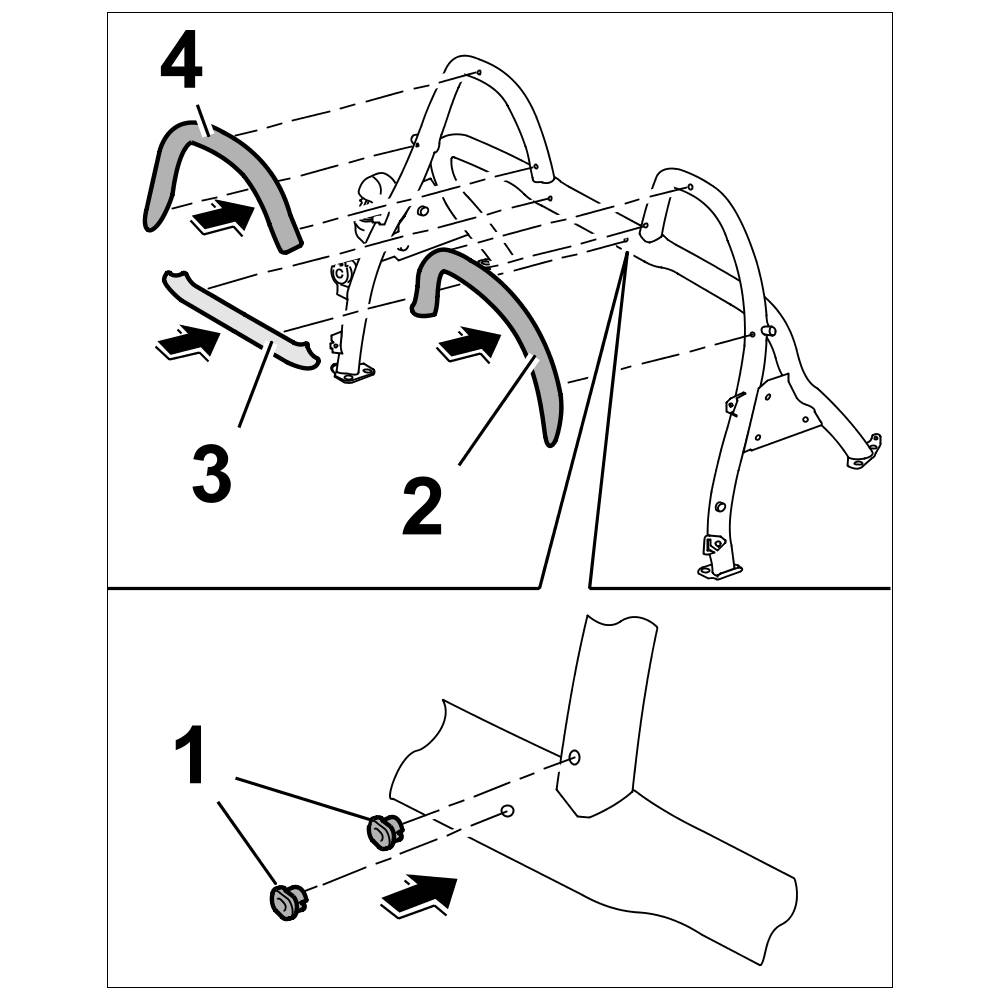

Installing linings

2. Position linings -2 to 4- and press in.
