90031900 Removing and installing dashboard insert

WM 900319 Removing and installing dashboard insert

Technical values





Preliminary work

Preliminary work for the dashboard insert

1. Remove instrument cluster. -> 902519 Removing and installing instrument cluster - section on "removing" 90251900 Removing and installing instrument cluster

Removing dashboard insert

1. Adjust the steering wheel as far down and as far back as it will go (as seen from the direction of travel)
2. Unscrew fastening screw -2-.

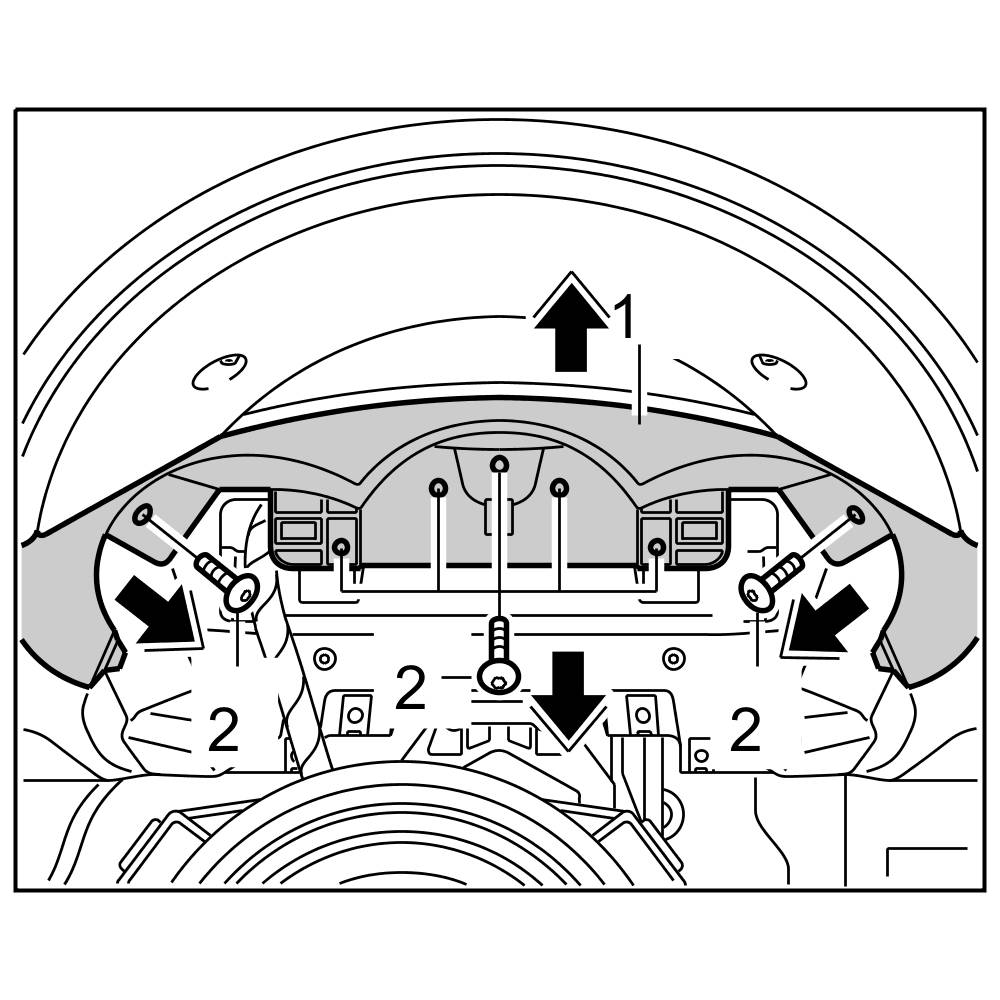

Unscrewing fastening screws

3. Lift up the dashboard insert -1- and remove.

Installing dashboard insert

1. Position dashboard insert -1- on the dashboard and screw into place with the seven fastening screws -2-. => Tightening torque: 2.0 ftlb.





Tightening fastening screws

Subsequent work

Subsequent work for dashboard insert

1. Remove instrument cluster. -> 902519 Removing and installing instrument cluster - section on "installing" 90251900 Removing and installing instrument cluster
