741919 Removing Cover For Front Backrest

WM 741919 Removing cover for front backrest

Tools

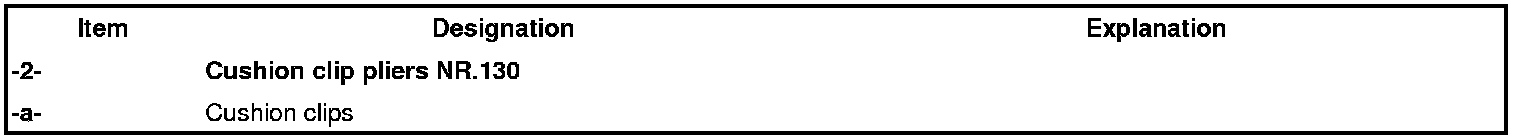

Tools and materials






Removing cover for front backrest





1. Remove padding for backrest. -> 741719 Removing and installing padding for front backrest - section on "Removing" 741719 Removing and installing padding for front backrest

Information

- Only in cars with seat heating.

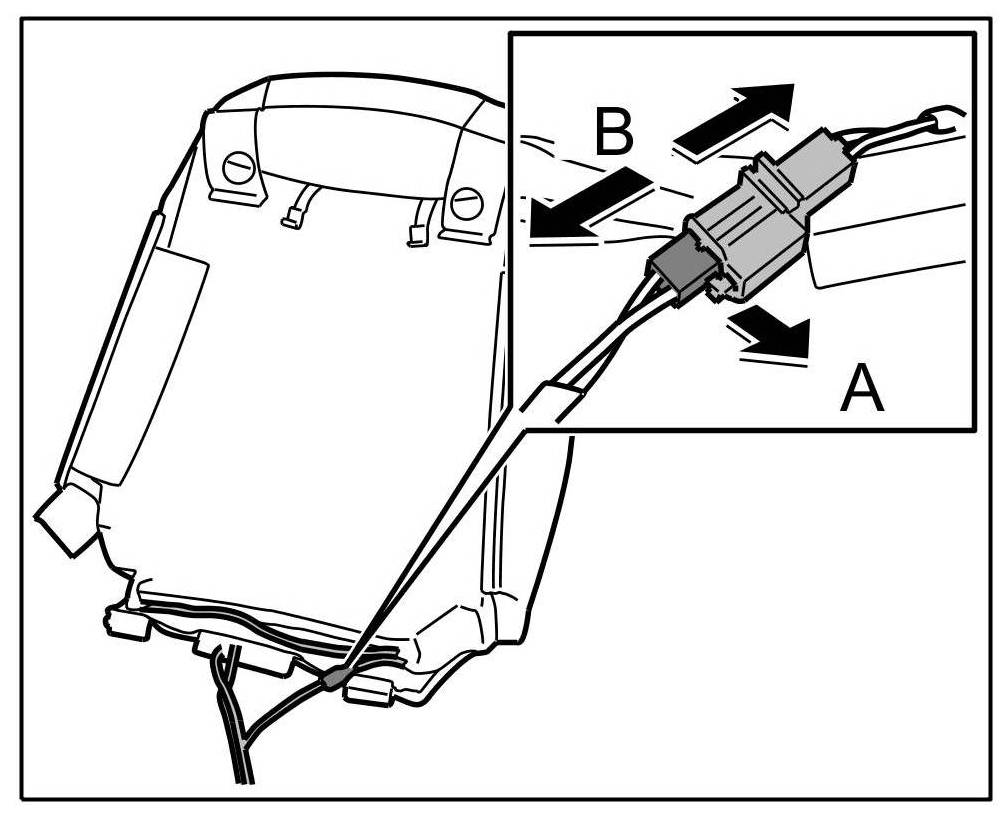

2. Release plug connection -Arrow A- and disconnect -Arrows B-.





3. Pull the cover forwards -Arrow A- and push the retaining straps forward through the padding -Arrows B-.





Information

- Detach covering, starting from the outside of the padding.

- Do so in the following sequence: left/right, top/bottom, middle.

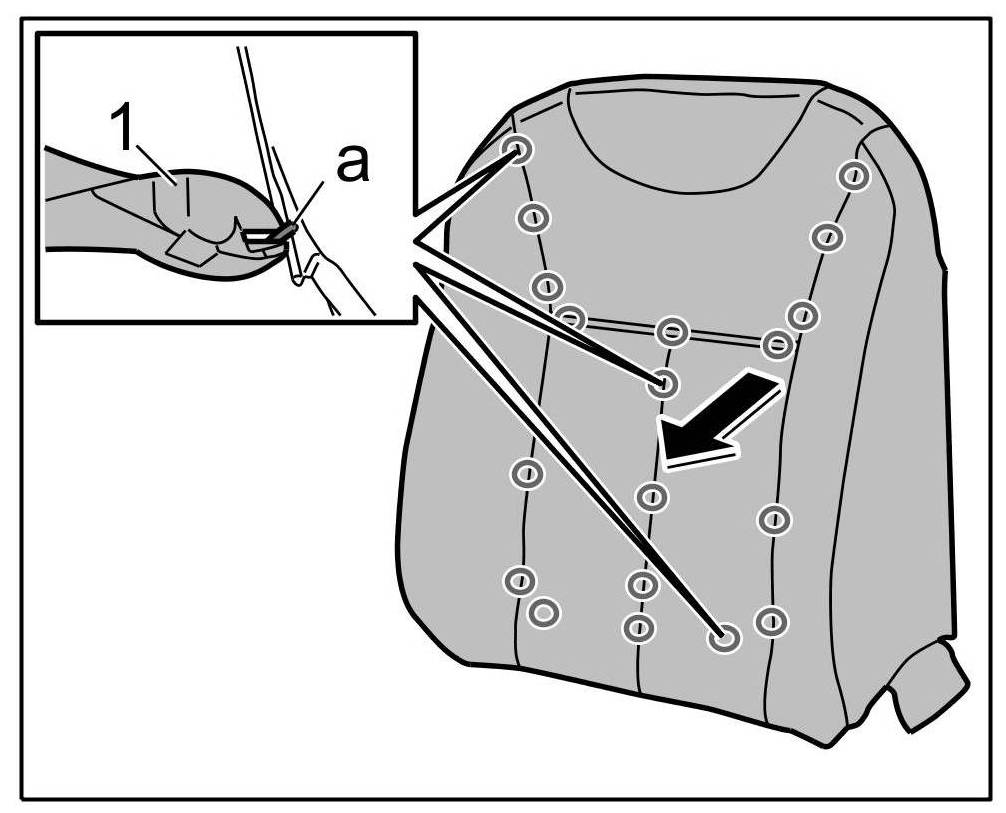

4. Cut open cushion clips -a- with side cutters -1- and remove cover from padding -arrow-.






Installing cover for front backrest

Installing cover for backrest

1. Place cover on the padding -arrow- and align with contour of padding.





Information

- Fasten covering to the padding, starting from the middle.

- Do so in the following sequence: middle, top/bottom, left/right.

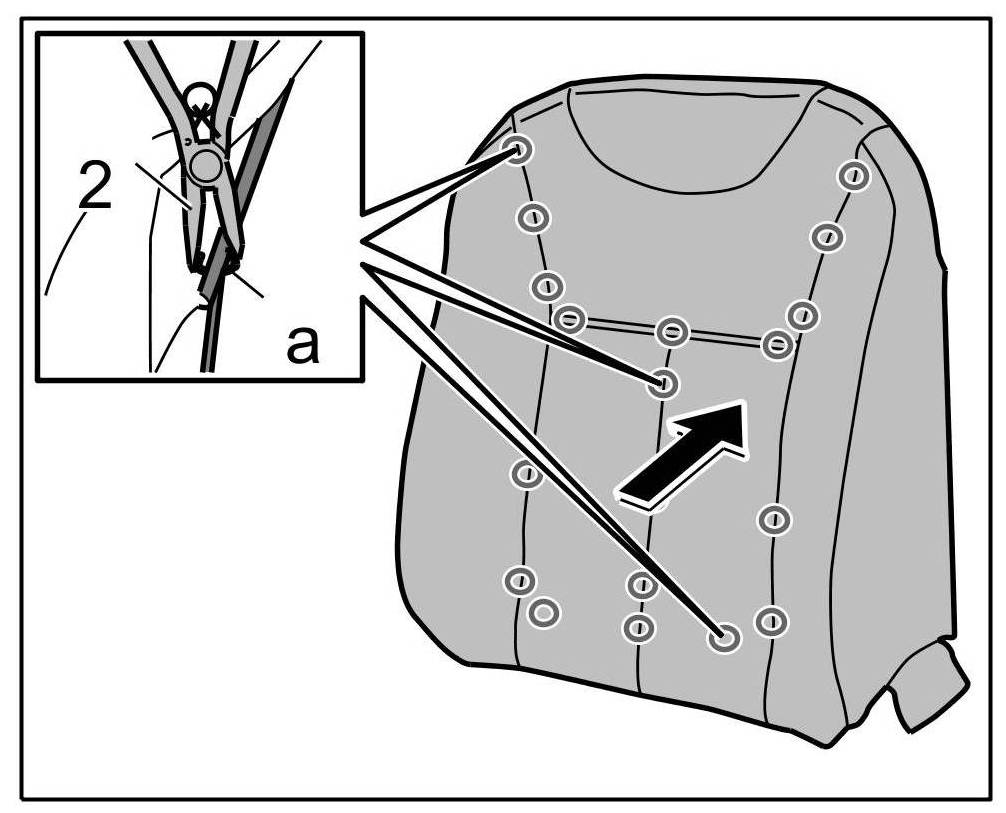

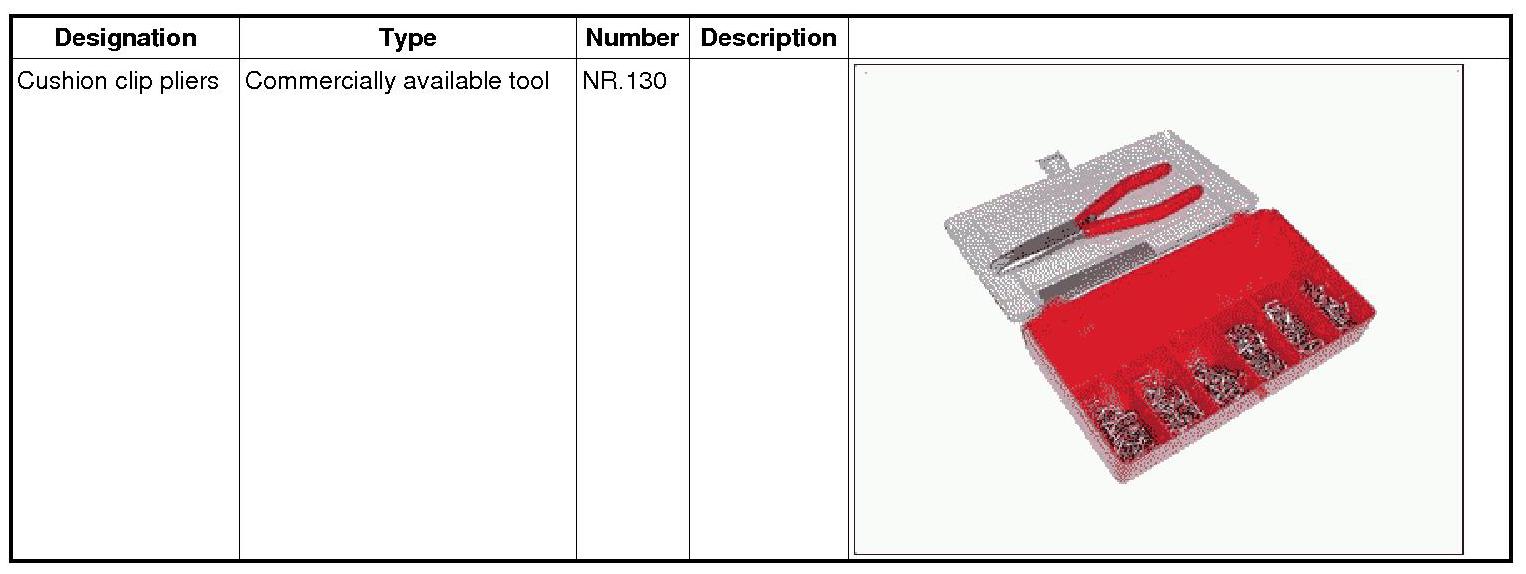

2. Fasten cover to the padding using cushion clip pliers NR.130 -2- -> 741919 Removing cover for front backrest - section on "Installing" and new cushion clips -a-.





3. Pull the retaining straps to the rear through the openings in the padding -arrow-.





Information

- Only in cars with seat heating.

4. Push together plug connection -Arrows A- until the locking tabs -B- are felt to engage.





5. Install padding for backrest. -> 741719 Removing and installing padding for front backrest - section on "Installing" 741719 Removing and installing padding for front backrest
