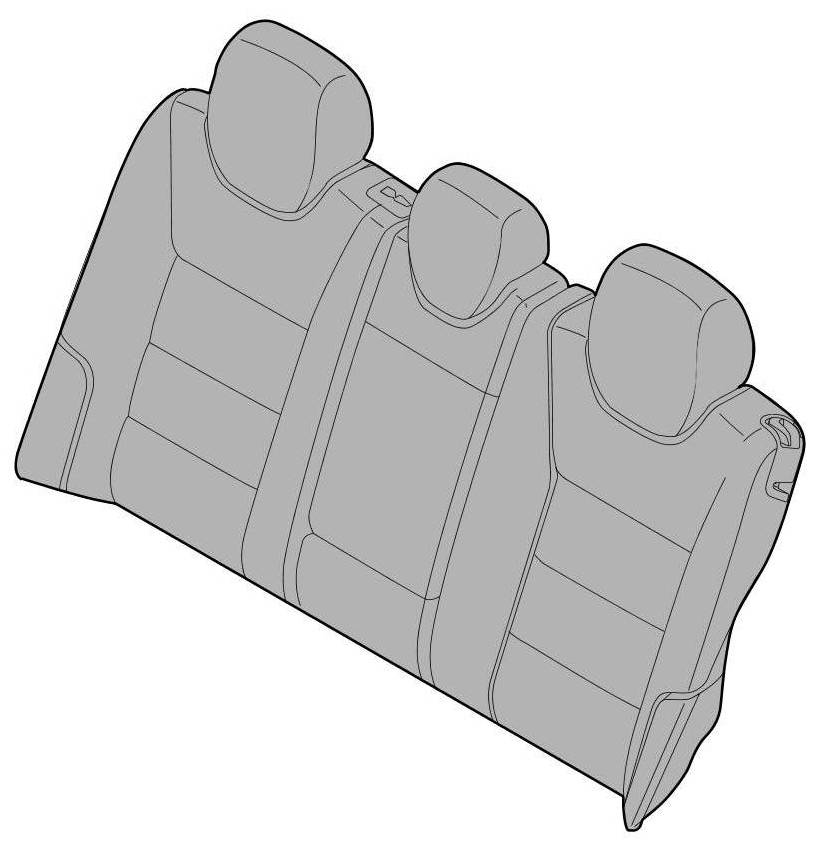

74521901 Removing and installing padding for 1/3-split folding rear backrest

WM 745219 Removing and installing padding for 1/3-split folding rear backrest

Technical values

Tightening torques






Removing padding for 1/3-split folding rear backrest









1. Remove backrest. => 724719 Removing and installing rear backrest - "Removing" section
2. Remove locking mechanism for rear backrest. => 726319 Removing and installing locking mechanism for rear backrest - section on "Removing"
3. Removing headrest
4. Remove support: Undo fastening screws -2-.





5. Remove the support -1- -Arrow A-.





6. Removing headrest guides: Insert screwdriver (width 2 mm) from inside into bore above locking tab.
7. Press screwdriver in direction of arrow -Arrow B- and release locking tab -Arrow C-.





8. Pull out headrest guides -3- -Arrow D-.

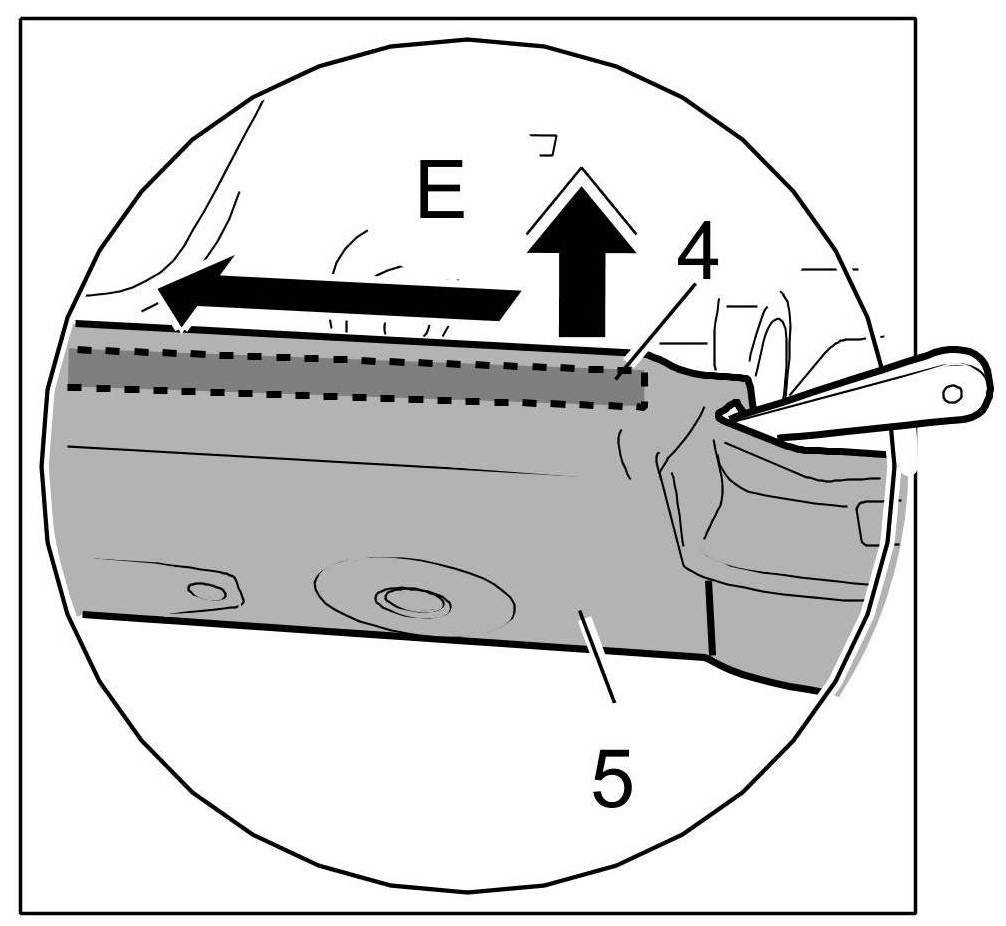

9. Remove padding for backrest: Lever out piping -4- of cover for seat -5- with a plastic wedge at the upper left corner -Arrow E-.





10. Pull piping -4- of cover for backrest -5- out completely in the direction of the arrow.

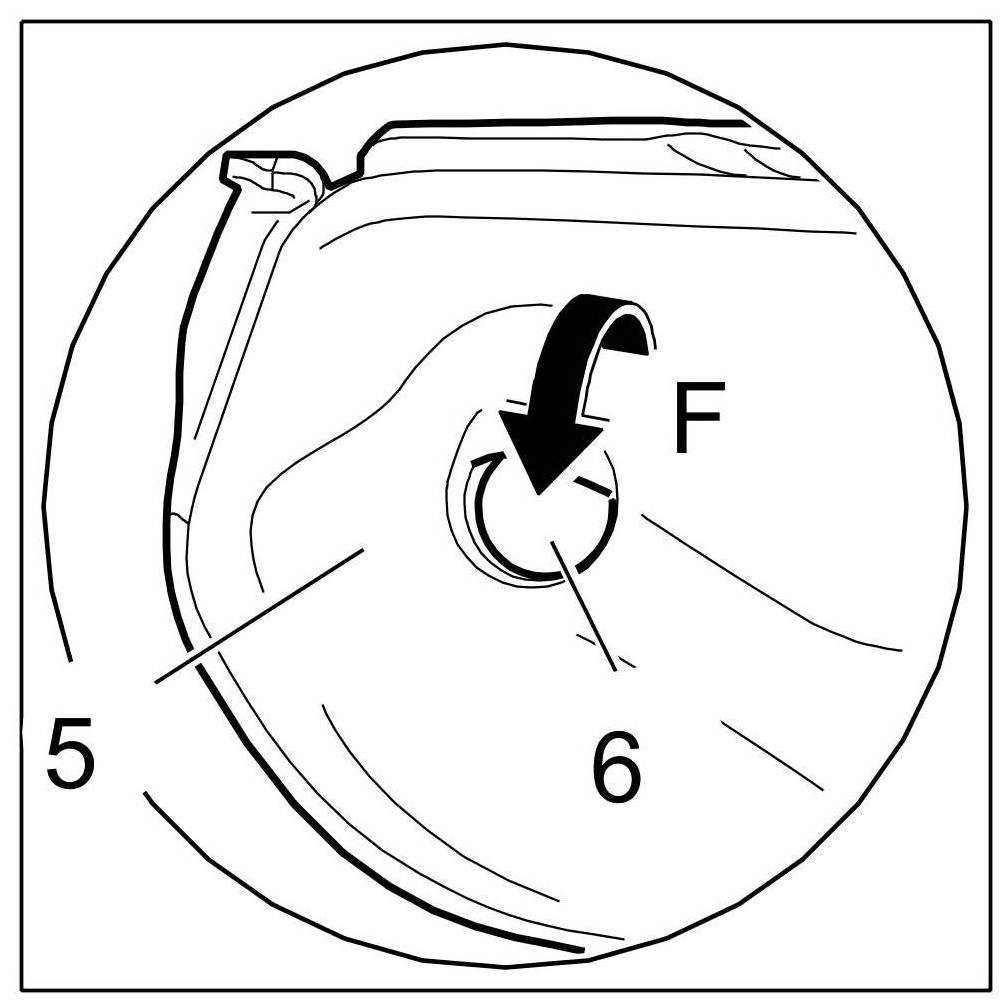

11. Pull cover for backrest -5- over the pin -6- -Arrow F-.

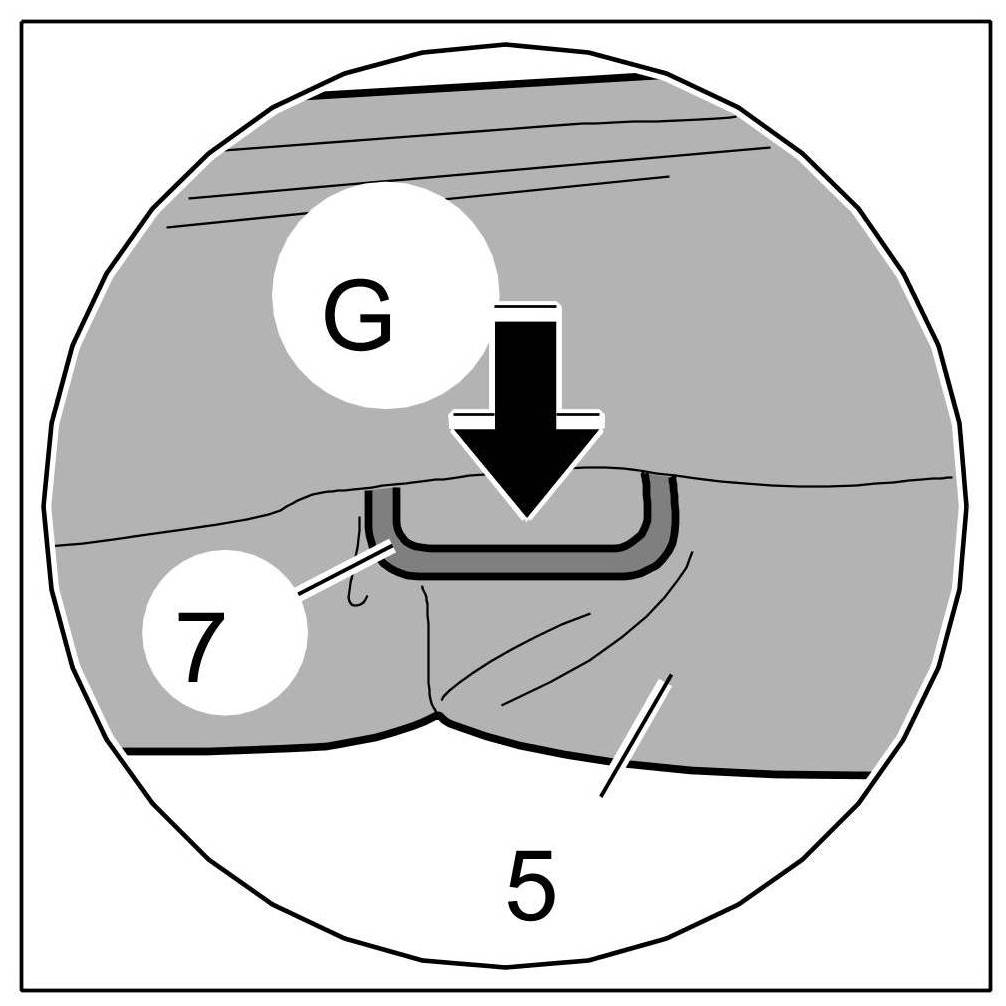

12. Pull cover for backrest -5- over the holder for child-lock button -7- -Arrow G-.





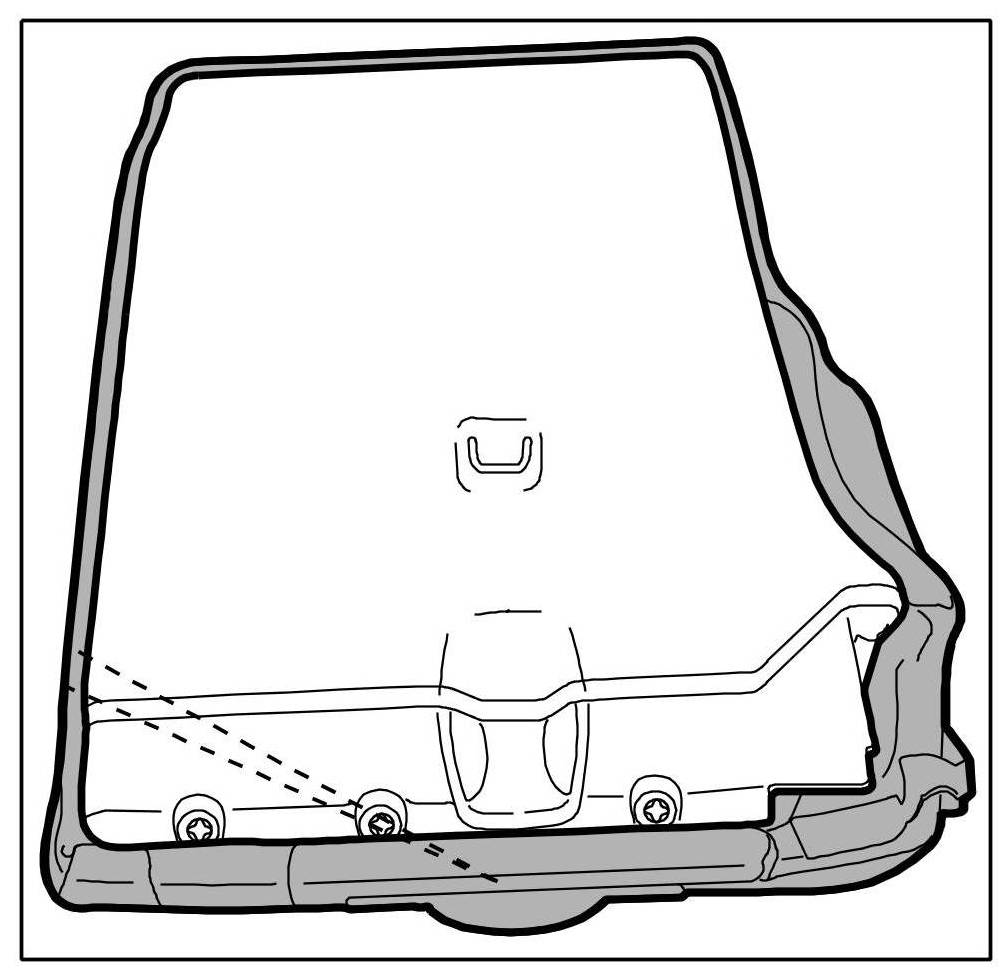

13. Remove backrest frame -8- from the padding with cover for backrest -5- -Arrow H-.





14. Remove cover for rear backrest. => 745319 Removing and installing cover for rear backrest - section on "Removing"

Installing padding for 1/3-split folding rear backrest









1. Install cover for rear backrest. => 745319 Removing and installing cover for rear backrest - section on "Installing"

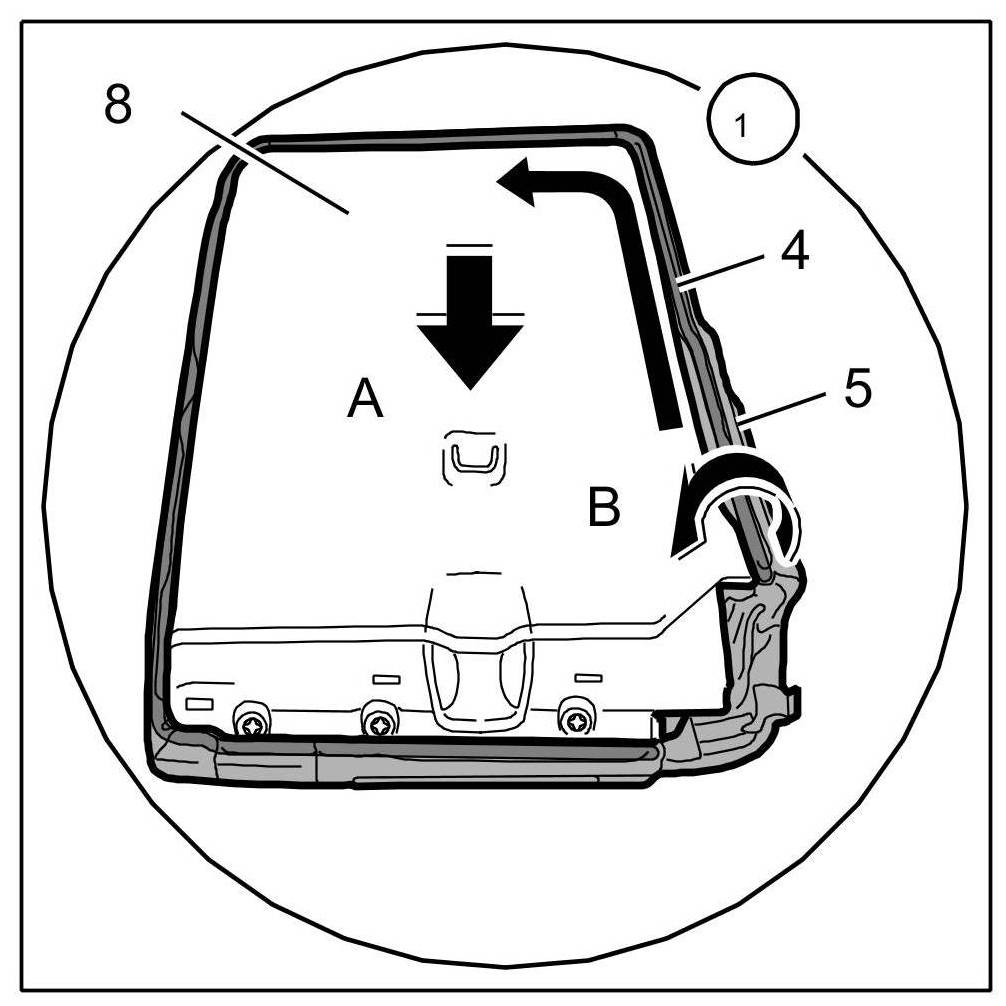

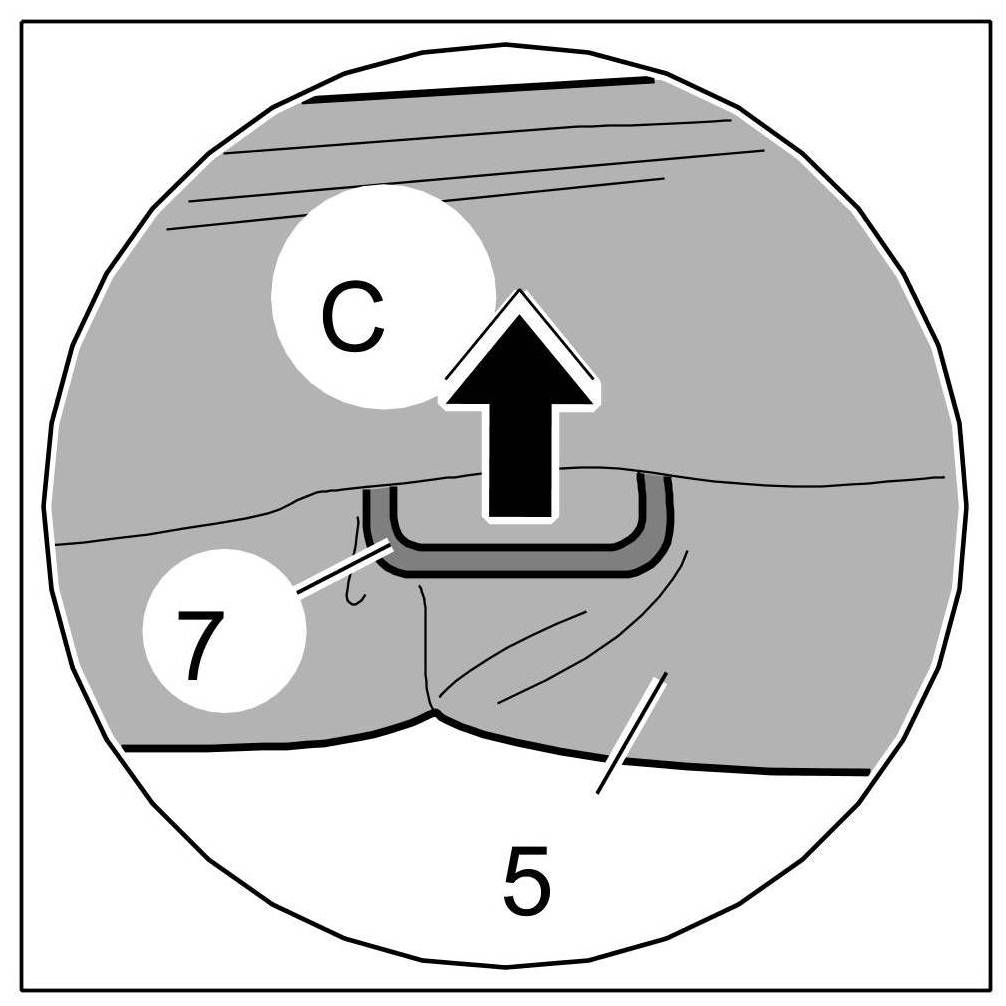

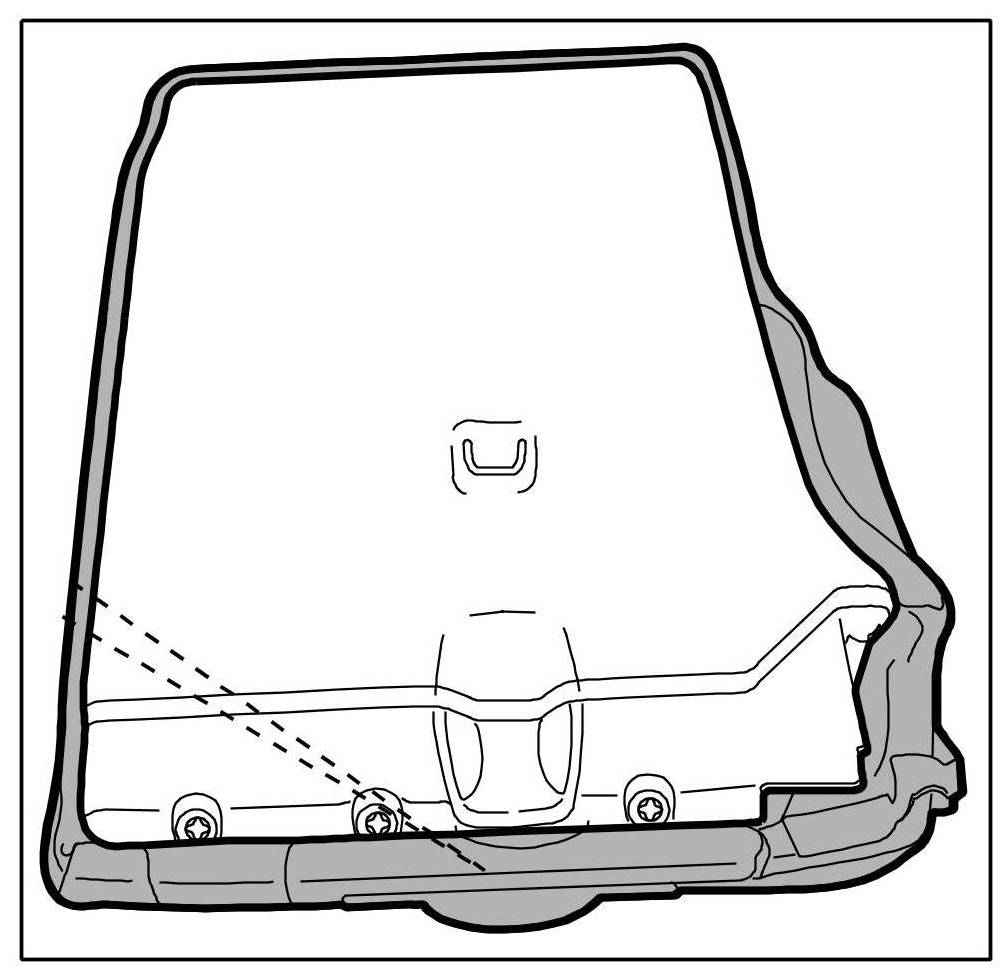

2. Place backrest frame -8- on the padding with cover for backrest -5- and align -Arrow A-. In doing so, pull cover for backrest -5- over the holder for child-lock button -7- -Arrow C-.

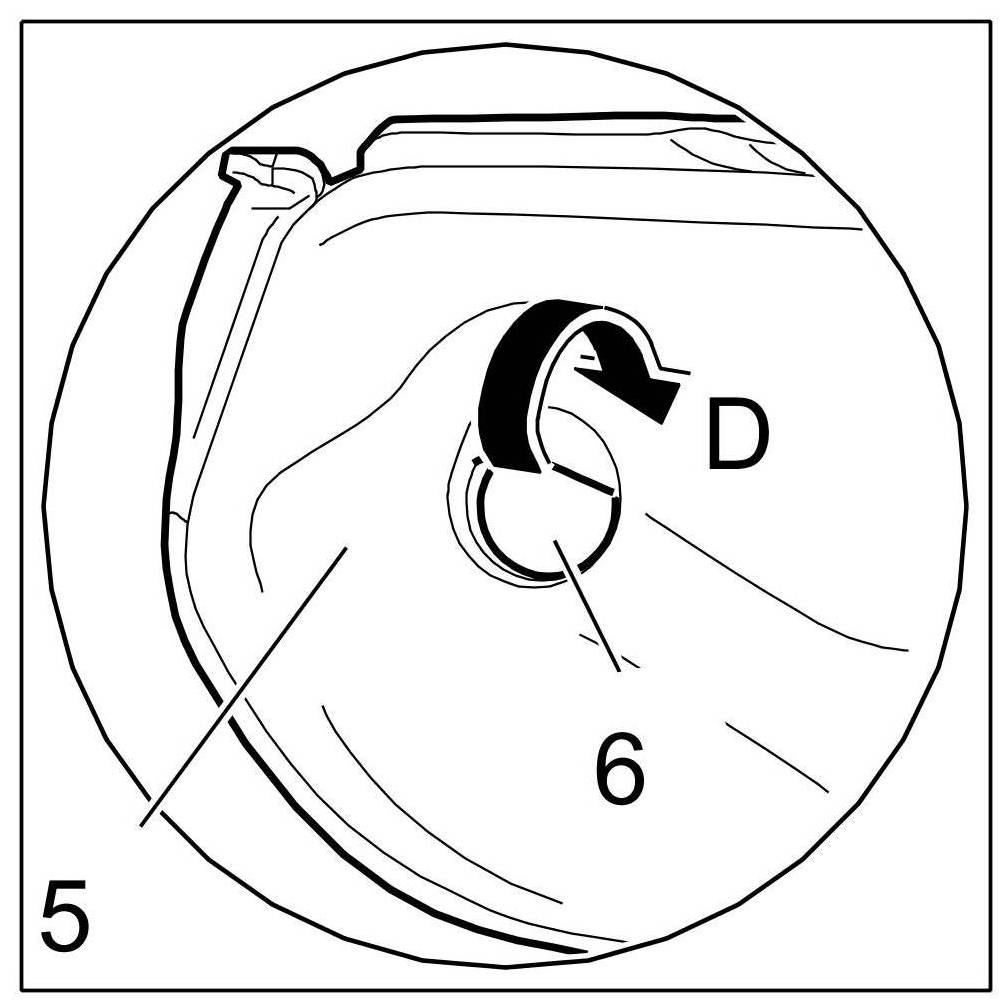

3. Pull cover for backrest -5- over the pin -6- -Arrow D-.





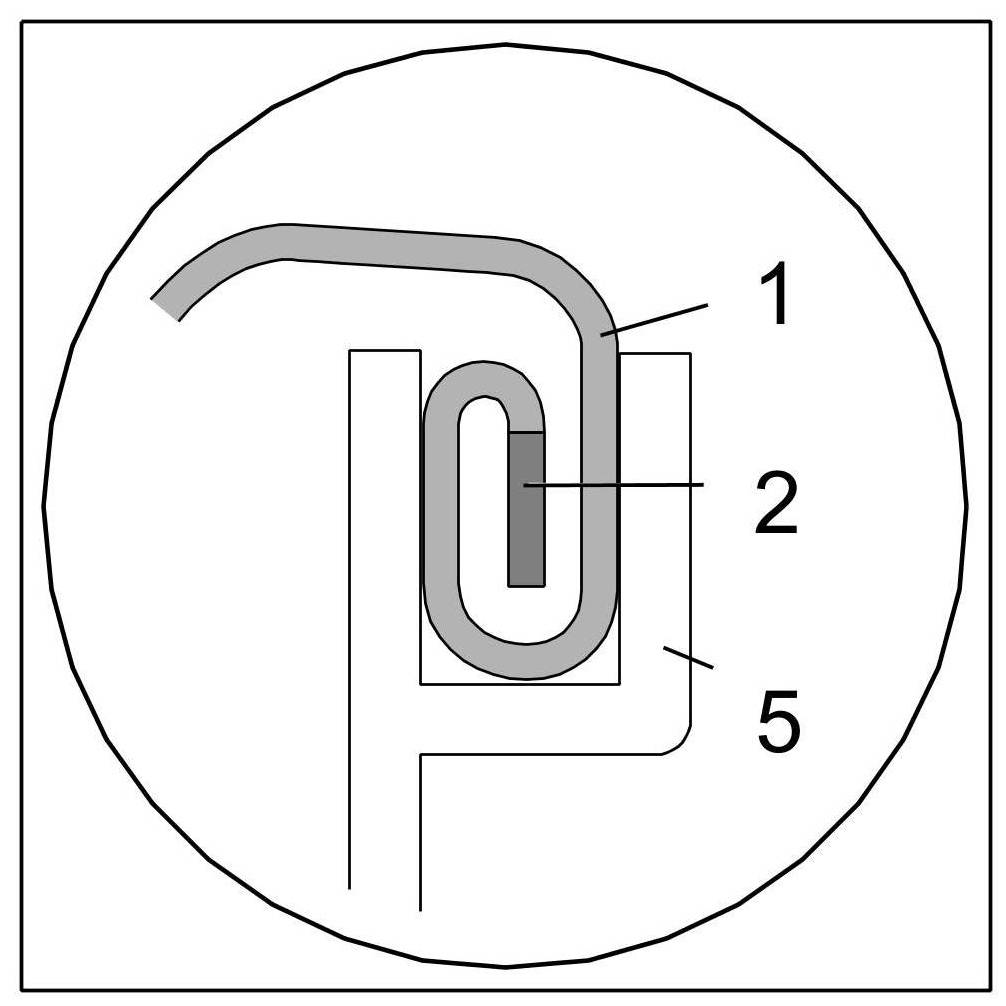

4. Press piping -4- of cover for backrest -5- completely into the backrest frame in direction of arrow -8- -Arrow B-.









Information

The headrest guide with the headrest release is installed at the left side; the locking tabs of both headrest guides are facing inwards.

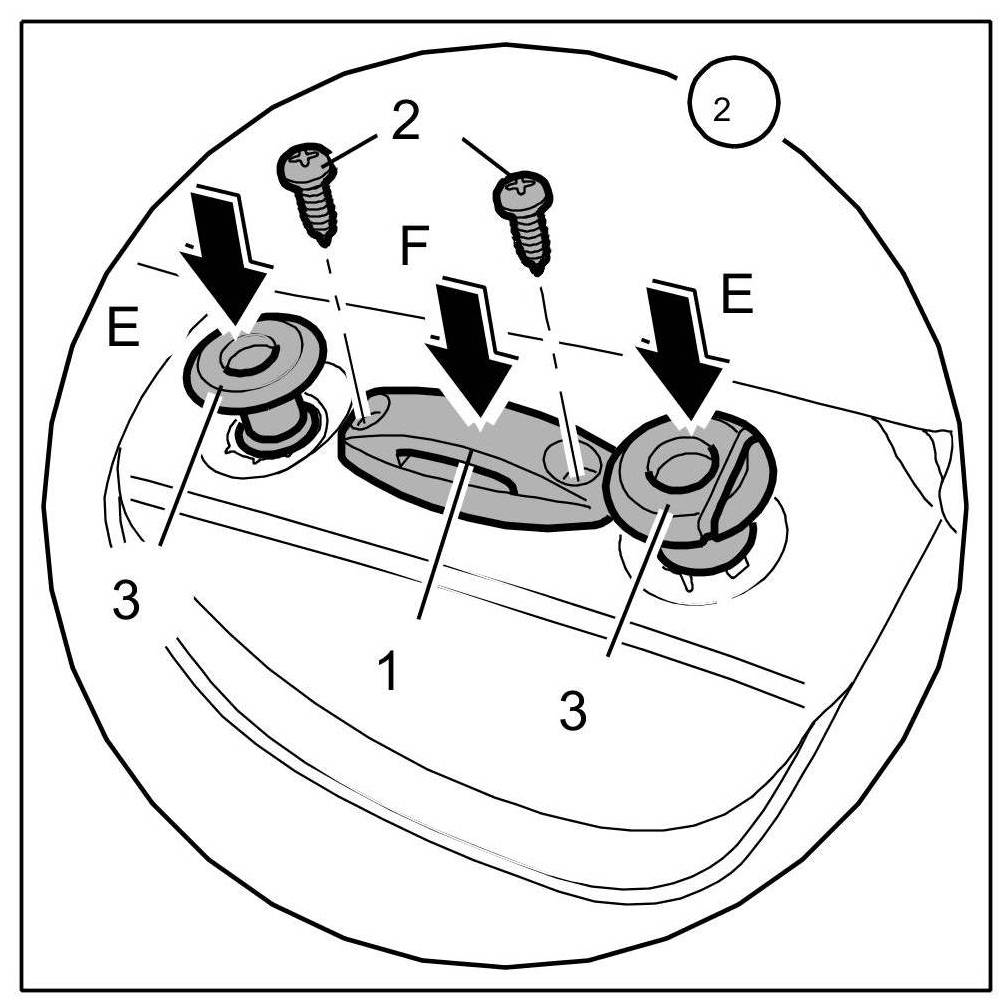

5. Installing headrest guides: Press in headrest guides -3- -Arrows E- , until the locking tabs engage audibly.





6. Install support: Position the support -1- -Arrow F-.





7. Screw in fastening screws -2- and tighten to the specified torque. => 726319 Removing and installing locking mechanism for rear backrest - section on "Technical values"





8. Install locking mechanism for rear backrest => 726319 Removing and installing rear backrest - section on "Installing"
9. Install backrest. => 724719 Removing and installing rear backrest - "Installing" section
