945419 Removing and Installing Front Direction Indicator Light

WM 945419 Removing and installing front direction indicator light

Preliminary work

1. Remove main headlight. => 94151900 Removing and installing main headlights - section on "Removing"

Removing front direction indicator light

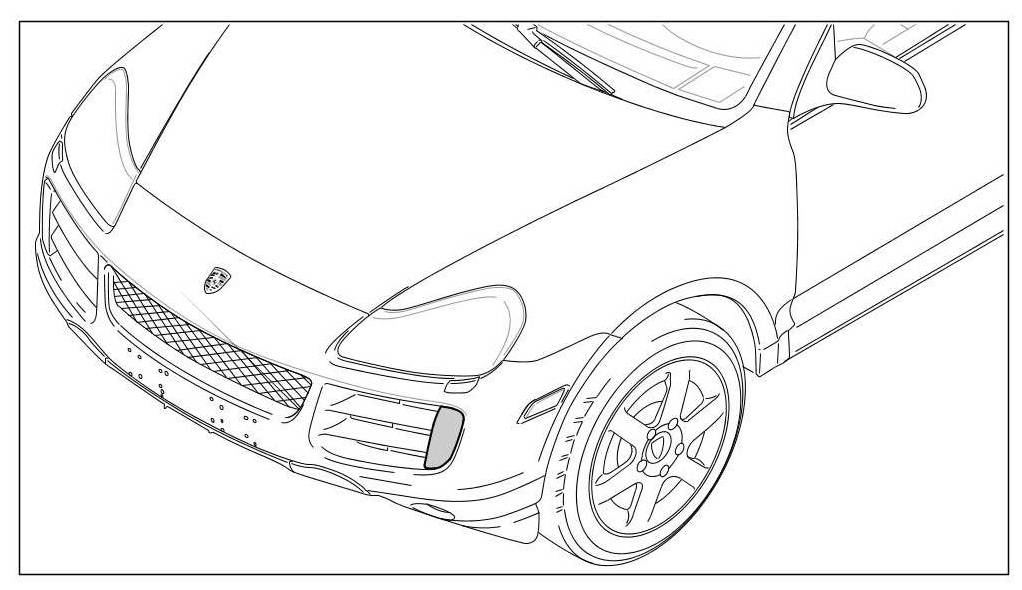

Installation position of front direction indicator light

CAUTION

Risk of short circuit.

-> Before removing the direction indicator light, remove ignition key and turn off light.

Information

The clips on the direction indicator light can be accessed from above when the main headlight is removed.

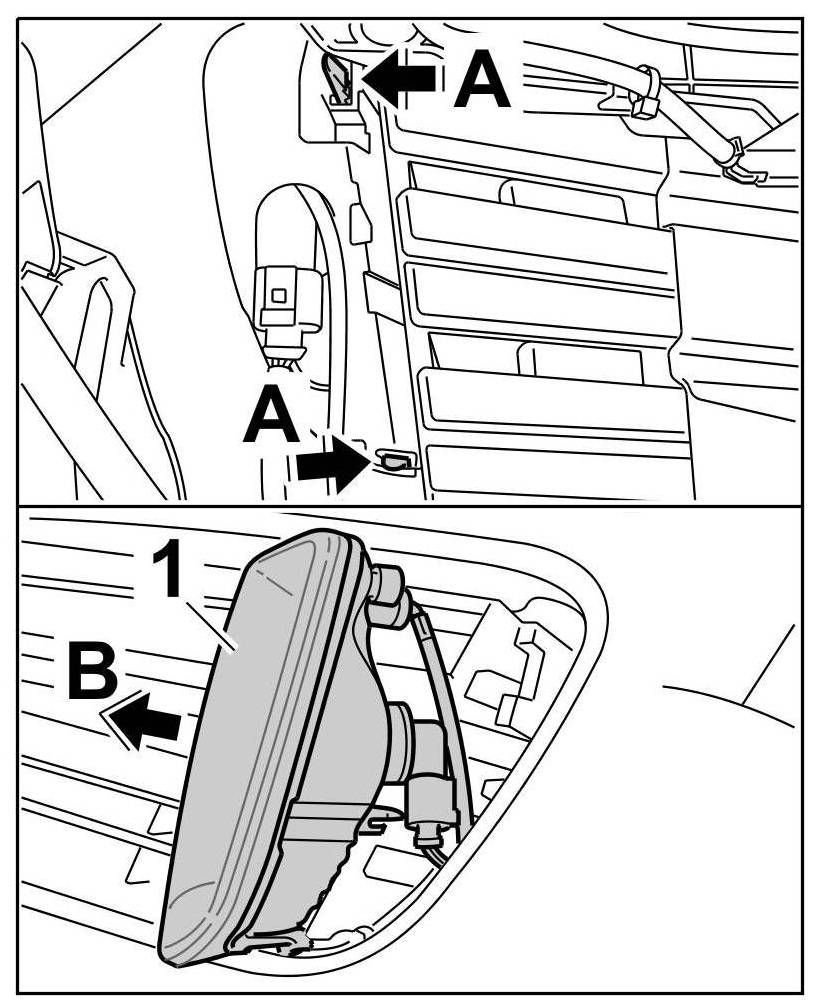

1. Release front direction indicator light -1- at the clips -arrows A- and pull it forward out of the front apron -arrow B-.





Loosening front direction indicator light

2. Disconnect plug connections for front direction indicator light.

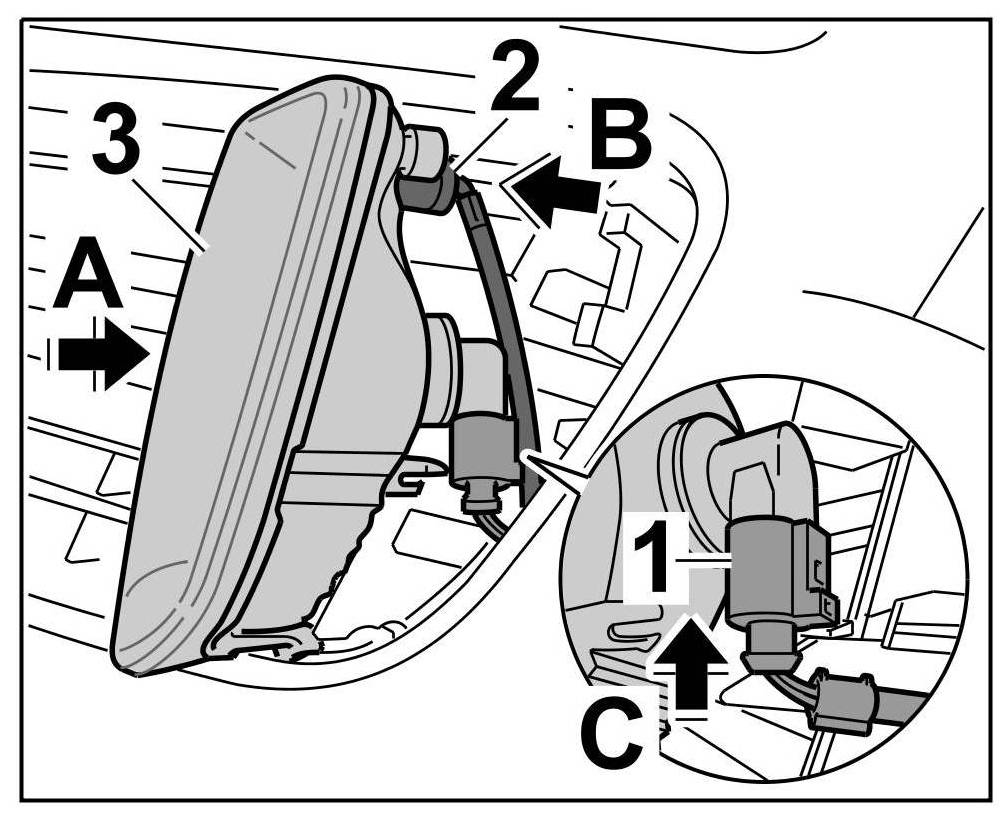

2.1. Release connector for direction indicator light -1- ( -arrow A- ) and pull it off -arrow B-.
2.2. Pull bulb socket for parking light -2- off the front direction indicator light -3- ( -arrow C- ).
2.3. Remove front direction indicator light -3- ( -arrow D- ).





Disconnecting plug connections for front direction indicator light

Installing front direction indicator light

1. Connect plug connections for front direction indicator light.
1.1. Insert front direction indicator light -3- into the front apron -arrow A-.
1.2. Press bulb socket for parking light -2- onto the front direction indicator light -3- ( -arrow B- ).
1.3. Press in connector for direction indicator light -1- ( -arrow C- ) until the connector -1- engages securely.





Connecting plug connections for auxiliary headlights

2. Push front direction indicator light -1- into the front apron and press it in -arrow- until the two clips -arrows- engage securely.





Securing front direction indicator light

Subsequent work

1. Install main headlight. => 94151900 Removing and installing main headlights - section on "Installing"
