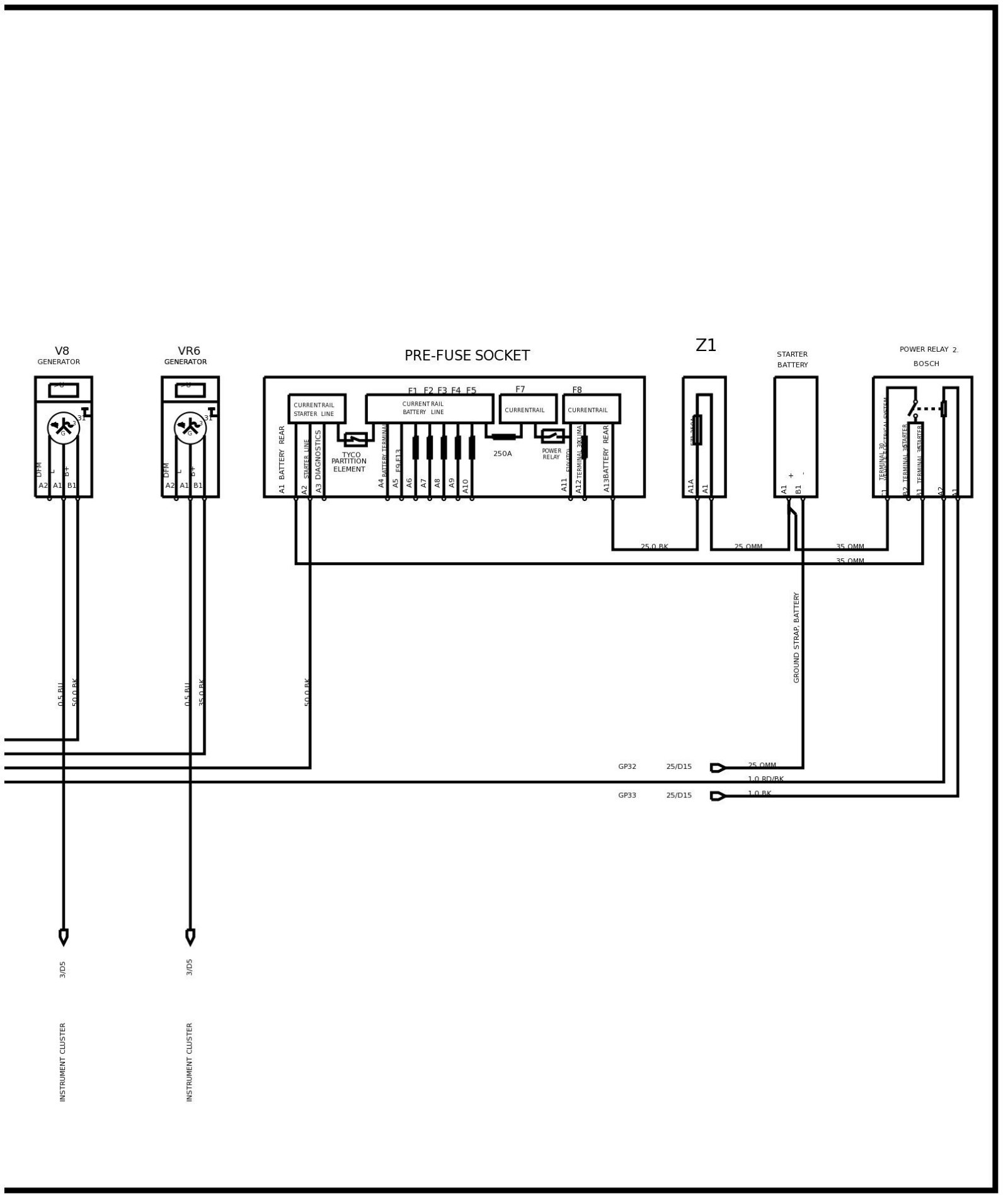

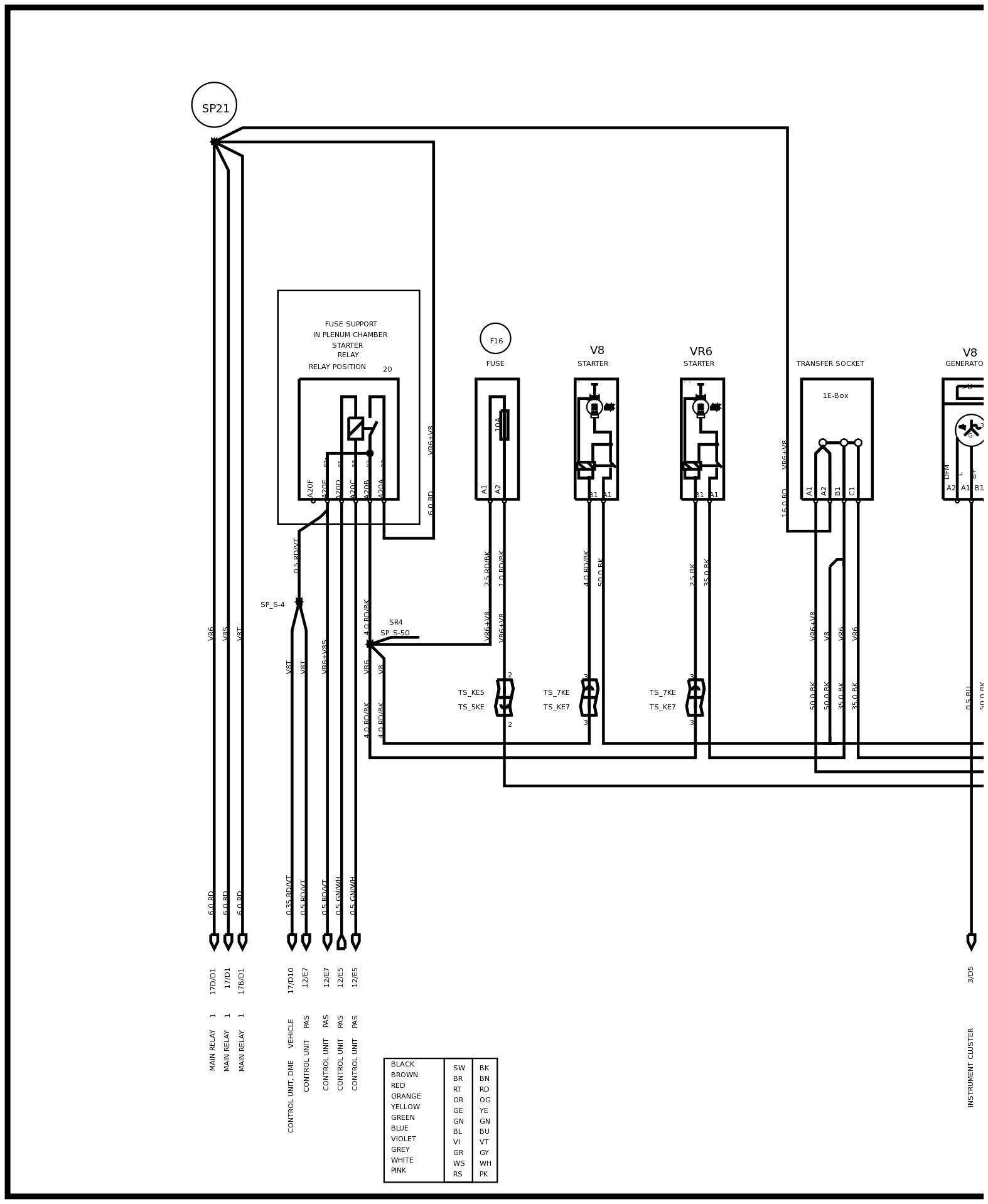

Power Supply For Generator and Starter - Sheet 24E

Power Supply For Generator and Starter - Sheet 24E











Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
