9797IN Connector - General information
WM 9797IN Connector - General information

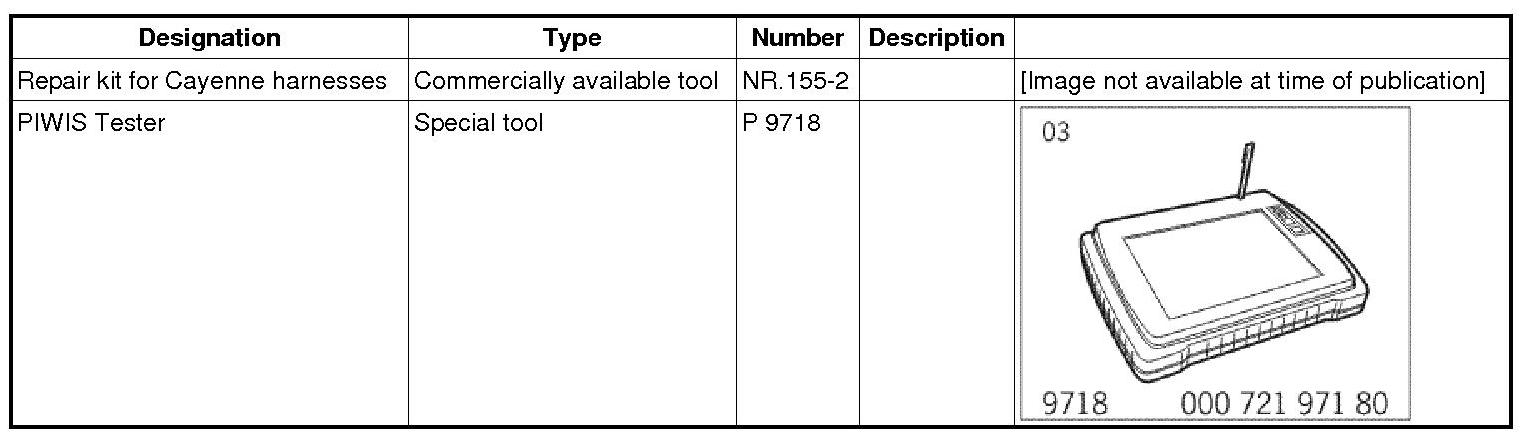

Tools
Connector - General information
Information
For repairing wire harnesses, the wire harnesses listed in step 1 are only offered as complete units, without exchanging individual connectors.
For repairing or replacing connectors on wire harnesses which do not have to be completely replaced, the correct procedure is listed under Step 2 and 3.
1. Wire harnesses which are replaced only as a complete unit.
1.1. Wire harness for door sub-frame and wire harness for door trim panel-> 973219 Removing and installing wire harness for door
1.2. Wire harness for rear-view mirror -> 974319 Removing and installing wire harness for rear-view mirror 974319 Removing and Installing Wiring Harness For Rear-View Mirror
1.3. Front wire harness -> 971619 Removing and installing front wire harness 971619 Removing and Installing Front Wiring Harness
1.4. Wire harness for bonnet -> 971319 Removing and installing wire harness in engine compartment 971319 Removing and installing wire harness in engine compartment
1.5. Rear wire harness -> 635537 Disassembling and assembling rear apron
1.6. Wire harness for tailgate and wire harness for rear window -> 972719 Removing and installing wire harness for tailgate 972719 Removing and Installing Wiring Harness For Tailgate
1.7. Wire harness for spare wheel mount -> 974919 Removing and installing wire harness for spare wheel mount 974919 Removing and Installing Wiring Harness of the Spare Wheel Mount
1.8. Wire harness for removable towbar -> 972419 Removing and installing wire harness for removable towbar 972419 Removing and Installing Wire Harness For Removable Trailer Hitch
1.9. Wire harness for engine -> 975221 Removing wire harness for engine (V6) and -> 975223 Installing wire harness for engine (V6)
1.10. Wire harness in transmission -> 381819 Removing and installing wire harness in transmission
1.11. Wire harness for battery wiring-> 974519 Removing and installing wire harness for starter battery 974519 Removing and Installing Wire Harness For Starter Battery
1.12. Wire harness for additional heating -> 976119 Removing and installing wire harness for additional heating 976119 Removing and installing wiring harness for additional heating
1.13. Antenna leads -> 912855 Replacing the antenna leads Service and Repair
2. Connectors contained in the Repair kit for Cayenne harnesses NR.155-2 and can be replaced individually.
CAUTION
Using plug-in contacts made of different materials
- Oxidation of plug-in contacts
-> Only use the plug-in contacts listed in the wiring diagram for the corresponding plug connection. Always plug gold contacts together with gold contacts.
-> The wiring diagrams can be displayed using the PIWIS Tester P 9718.
For repairing wire harnesses individual connectors are offered in a Repair kit for Cayenne harnesses NR.155-2. In this Repair kit for Cayenne harnesses NR.155-2 , connectors are contained primarily that are installed in crash and external areas.
The Repair kit for Cayenne harnesses NR.155-2 contains detailed descriptions about removing and installing individual plug-in contacts.
3. Connectors not contained in the Repair kit for Cayenne harnesses NR.155-2.
Connectors not contained in the Repair kit for Cayenne harnesses NR.155-2 can be ordered from the CARTOOL company.
The order must contain the following specifications.
3.1. Version 1 for identifying the required connector:
3.1.1. Legible specifications of the manufacturer on the connector, e.g., complete item number, number of pins, housing colour, and whether pin or socket housing.
3.1.2. If the data mentioned in Version 1 is not legible, is incomplete, or not present, Version 2 is also possible for ordering.
3.2. Version 2 for identifying the required connector:
3.2.1. Vehicle type
3.2.2. Model year
3.2.3. PORSCHE part number from the Parts Catalogue
3.2.4. Which wire harness (e.g. main wire harness, wire harness for engine, etc.)
3.2.5. Specifications from the wiring diagram
a) Page number
b) Field
c) Component (for components with multiple connectors e.g. instrument cluster, please specify connector 1, 2, 3 etc.)
d) Connection point (e.g. X11, X12 etc.)
3.3. Version 3 for identifying the required connector:
3.3.1. Call up corresponding wiring diagram in PIWIS Tester P 9718.
3.3.2. Click on one of the plug-in contacts of the required connector with the mouse.
Information
The specifications displayed are subject to a constant updating process. For this reason, it can happen that specifications are incomplete or not available. If this is the case, use one of the other versions for ordering connectors if possible.
3.3.3. Note all displayed specifications for this connector and specify when ordering the connector.
3.4. If the data listed under Version 1 to Version 3 is included and complete, the CARTOOL company can identify the correct connector.
3.5. Ordering address:
CARTOOL company, GmbH
Straußenlettenstr. 15
85053 Ingolstadt
Tel. (0841) 96 500-70 (in Germany)
Tel. (0841) 96 500-80 (outside of Germany)
Fax (0841) 96 500-90
Procedure for releasing connectors that are difficult to move
1. Pull connector off lid-release motor.

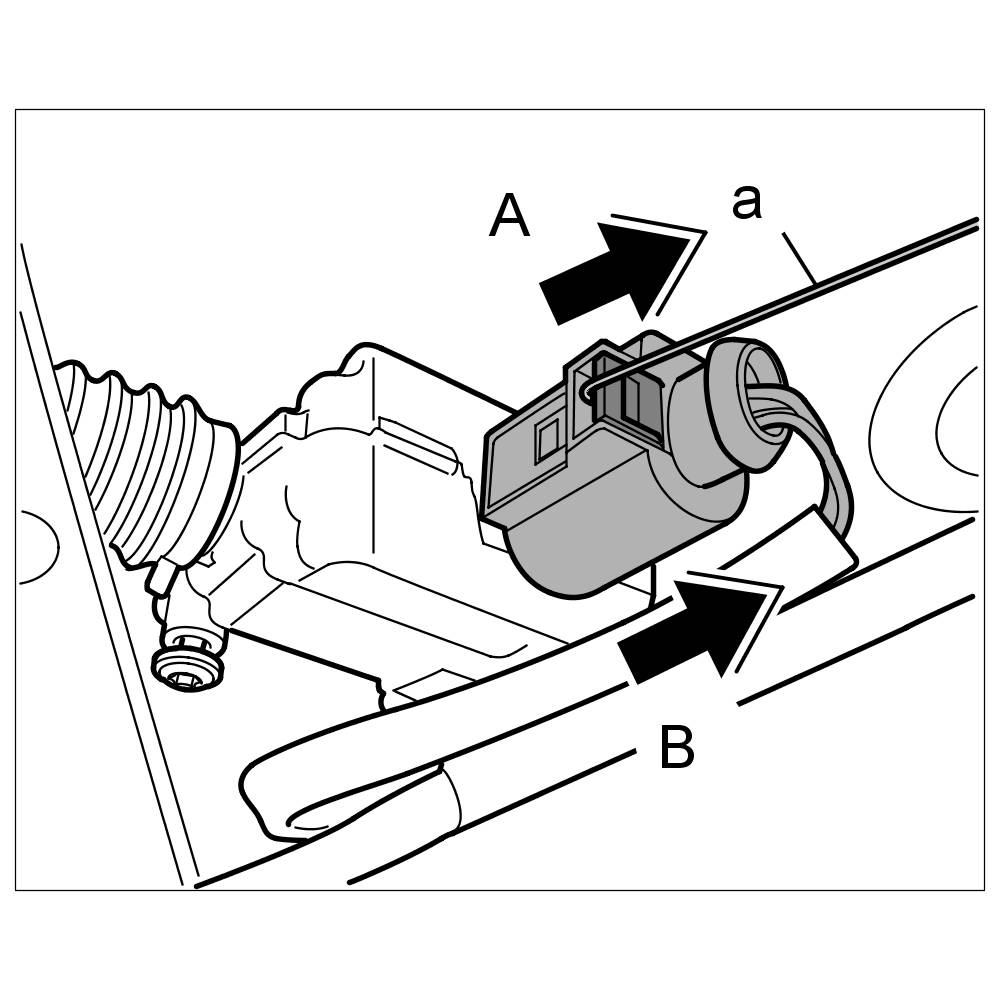

Pulling connector off lid-release motor from rear
1.1. Release connector on motor for lid-release with suitable auxiliary materials (e.g. angled piece of wire with diameter of approx. 1mm) -a- -arrow A- and pull off -arrow B-.
Engage wire at the release. Pulling on the wire in direction of arrow releases the connector and can be pulled off.
2. Pull off connector on sensor for airbag.

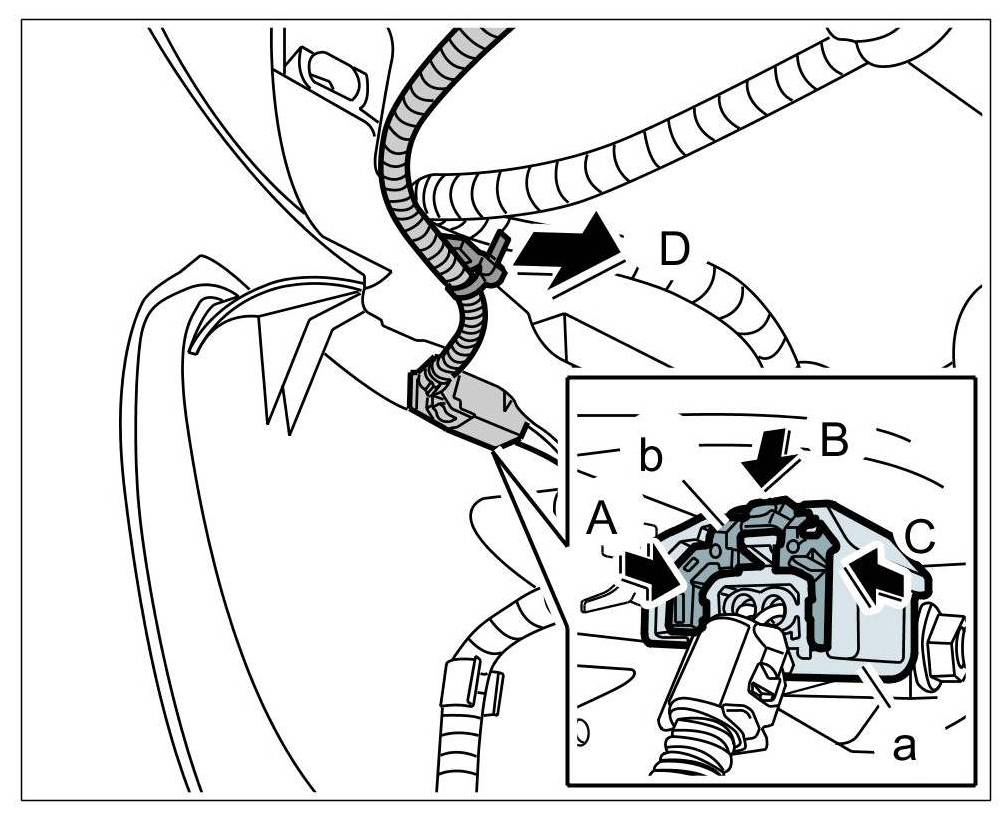

Pulling off connector on sensor for airbag
2.1. Push in lock -b- on connector for airbag sensor -a- , until this is felt to engage -arrow A-.
2.2. Release locking mechanism on the latch -b- -arrow B- and pull off connector on sensor for airbag -a- -arrow C-.
3. Pull off head airbag connector.
Pulling off head airbag connector
3.1. Press down the lock on the plug socket -arrow A- and maintain in this position.
3.2. Release -arrow B- and pull off -arrow C- connector.
4. Pull off connector on brake fluid reservoir.

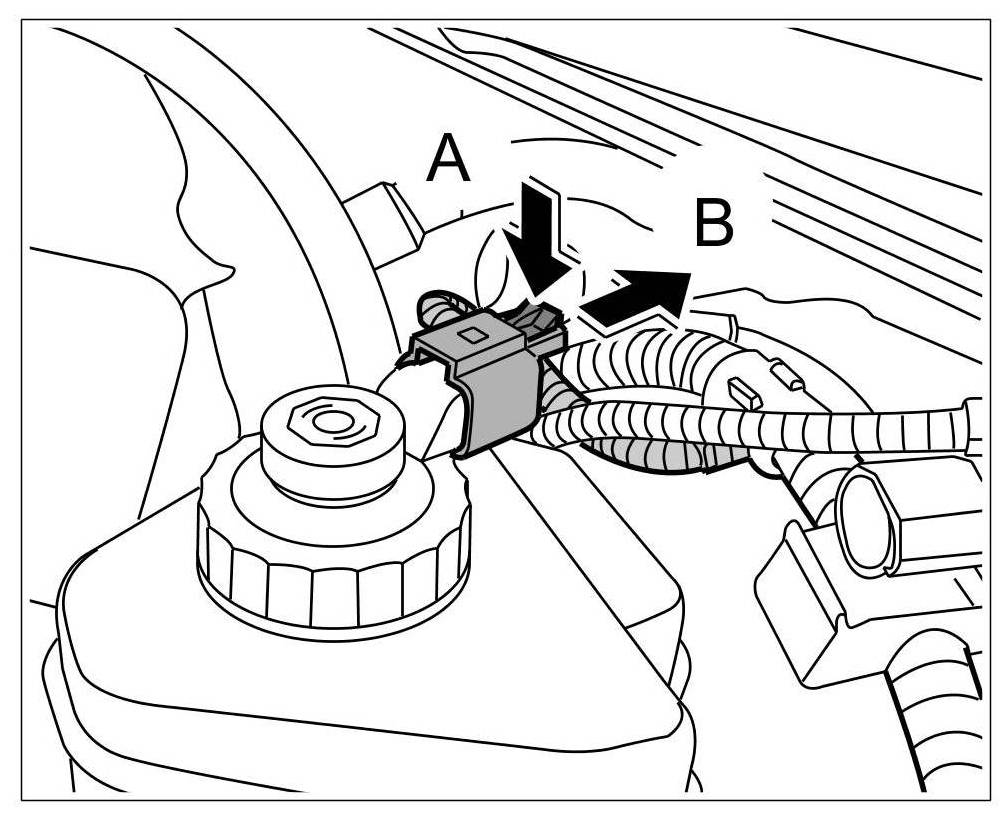

Pulling off connector on brake fluid reservoir
4.1. Release connector on brake fluid reservoir -arrow A- and pull it off -arrow B-.
5. Pull off connector for camshaft switch-over valve.
Pulling off connector for camshaft switch-over valve 1-4 and 5-8
5.1. Release and remove connector.
