974319 Removing and Installing Wiring Harness For Rear-View Mirror
WM 974319 Removing and installing wiring harness for rear-view mirror

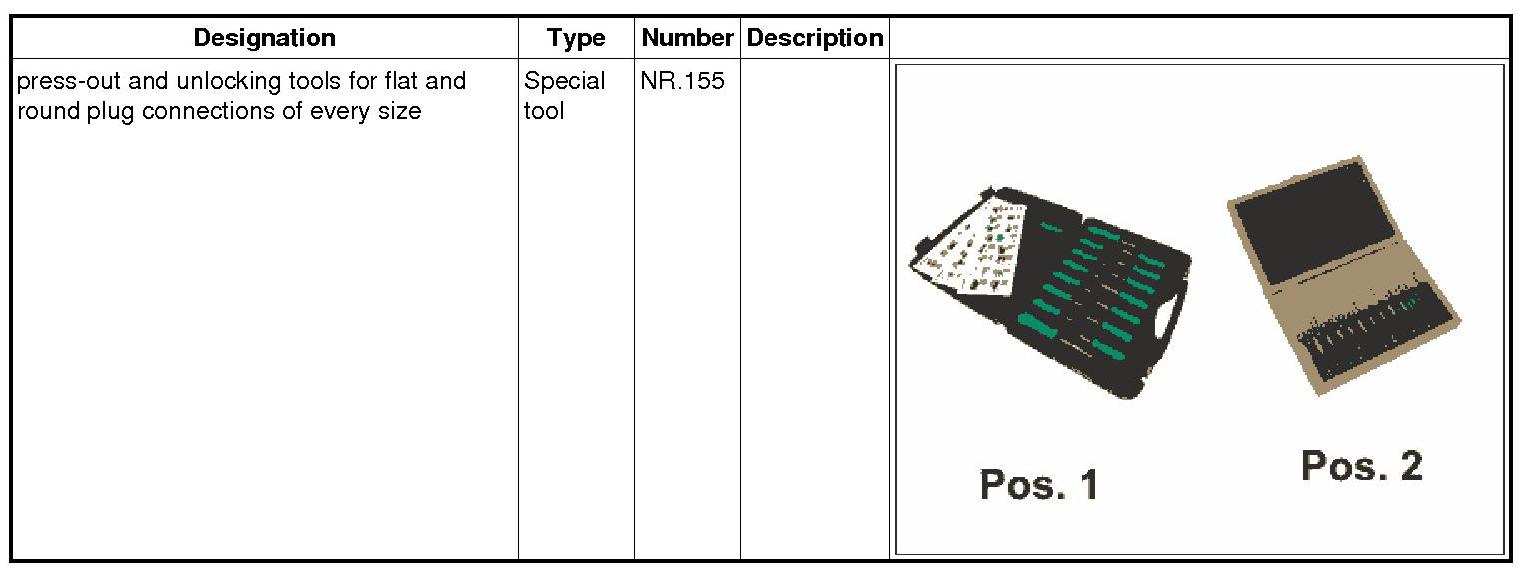

Tools
Preliminary work
1. Remove rear-view mirror. -> 668919 Removing and installing rear-view mirror - section on "Removing"
2. Remove mirror glass. -> 667819 Removing and installing mirror glass - section on "Removing" 667819 Removing and installing mirror glass
Removing wiring harness for rear-view mirror
Overview of wiring harness for rear-view mirror

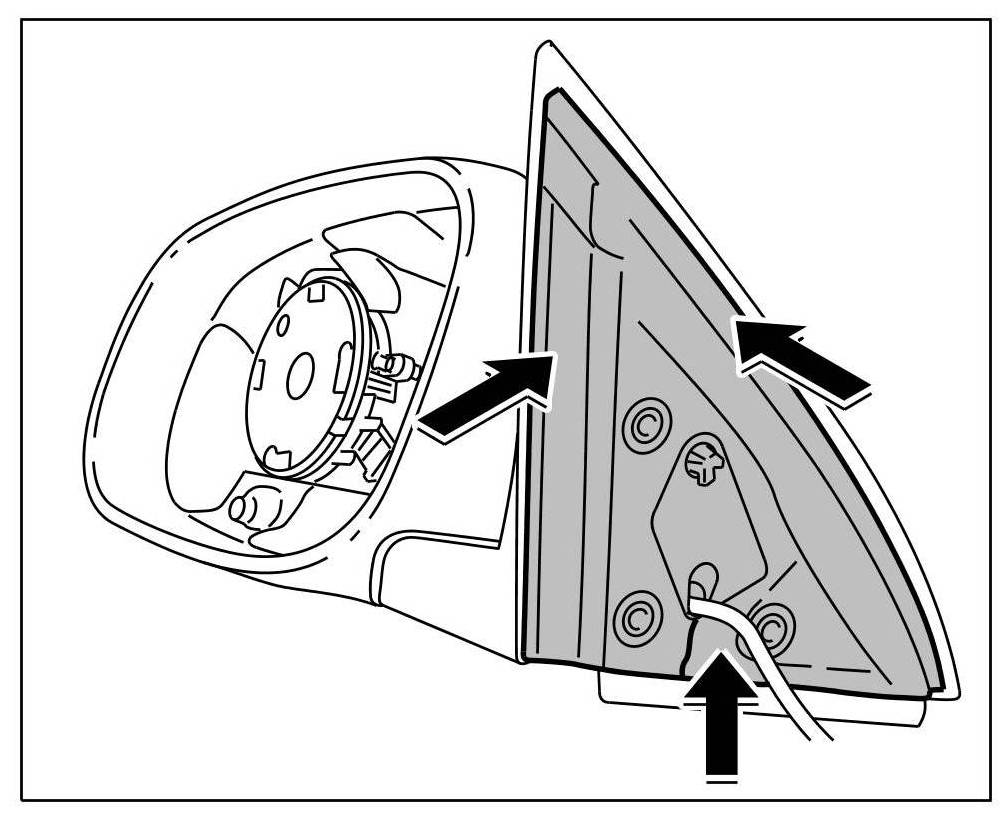

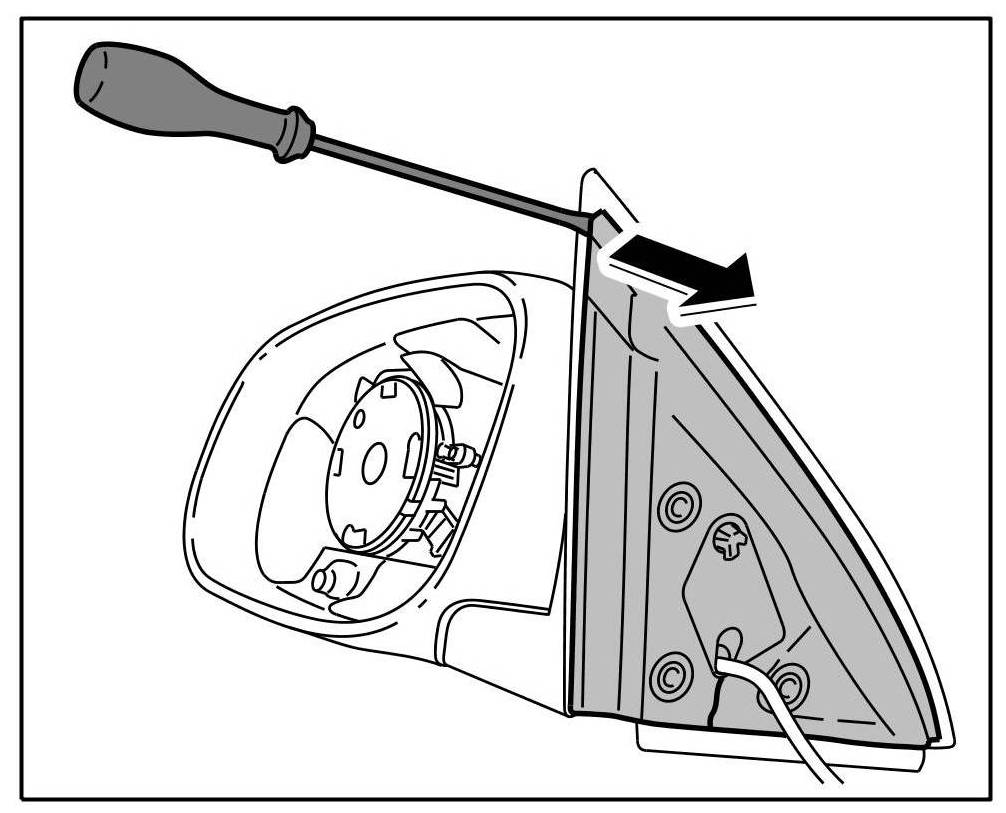

1. Remove insulation on mirror base -arrow-.
Removing insulation on mirror base
2. Fold in door mirror.

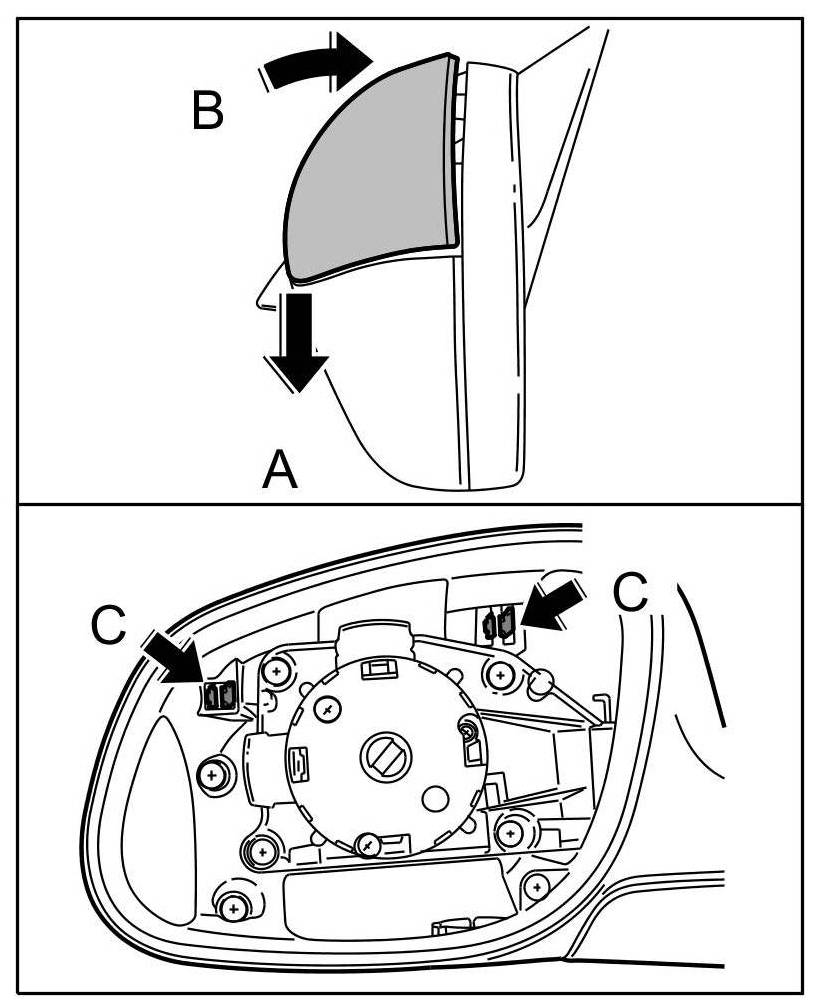

3. Press locking tabs on upper mirror housing apart with a screwdriver -arrows A- and remove upper mirror housing to the rear -arrows B-.
Detaching mirror housing
4. Open the locking tabs (arrows A) and remove the plug connection.
Information
Only for vehicles with a light in the rear-view mirror.

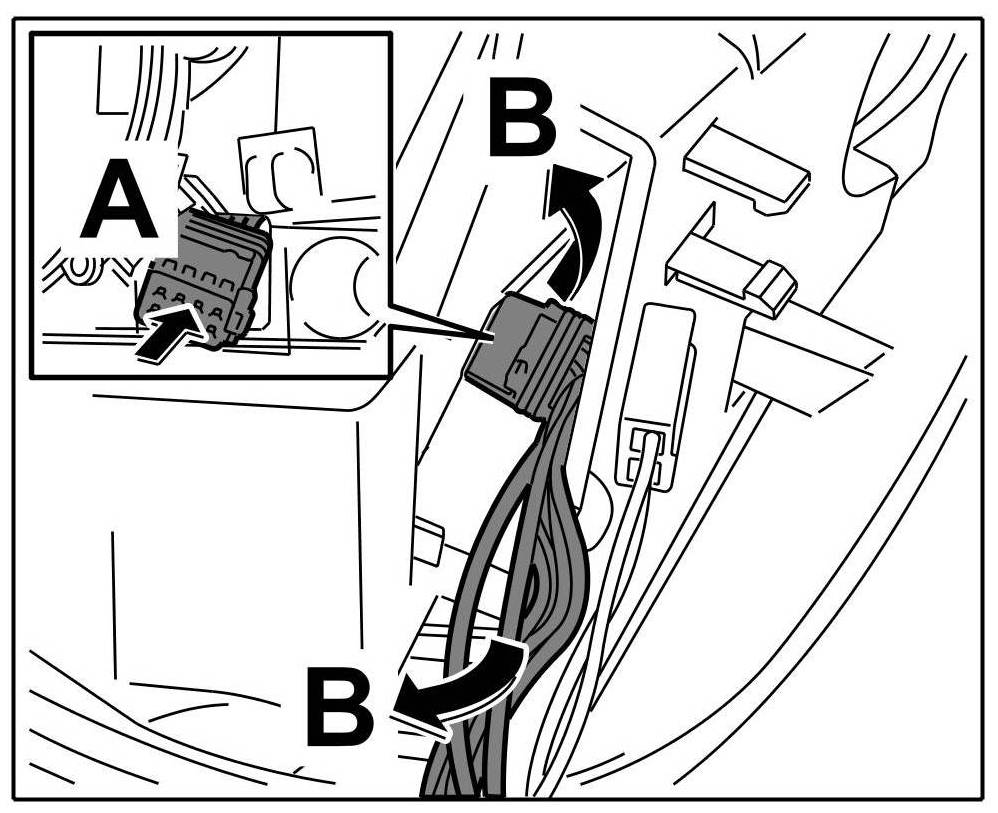

5. Push the plug connection back -arrow A- and remove it from the bracket -arrow B-.
Disconnecting plug connection
6. Release plug connection -arrow C- and disconnect it -arrows D-.

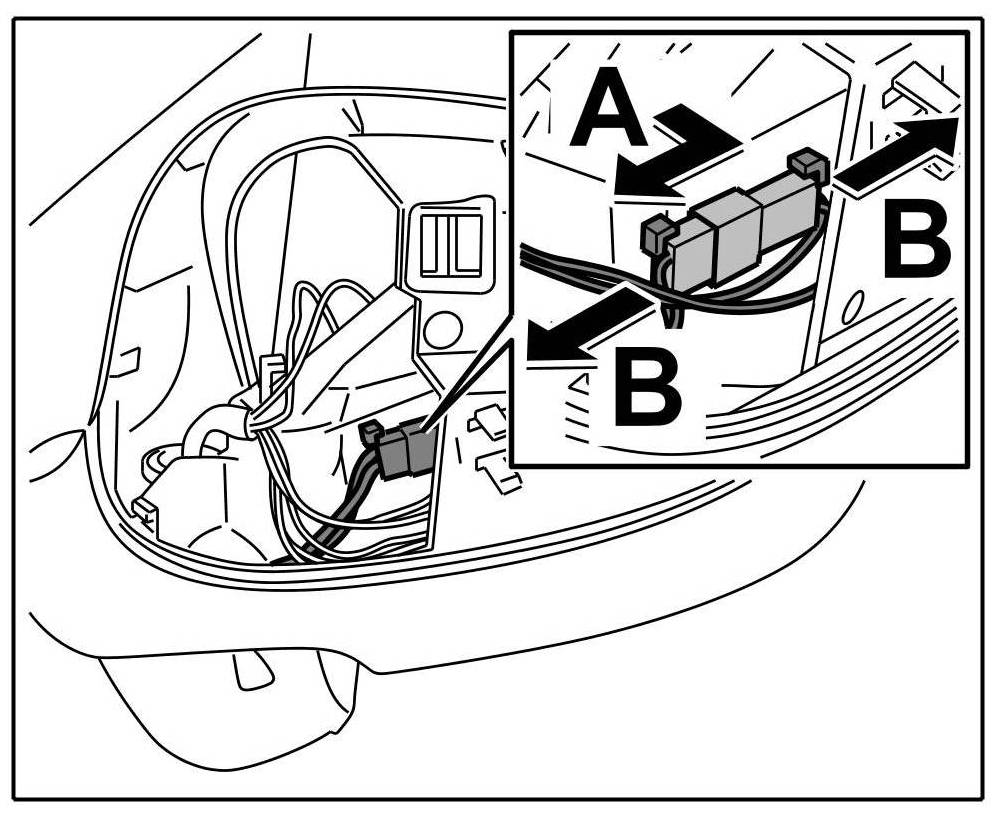

7. Pull the plug connection for the flap motor out of its installation position -arrow A- and disconnect it -arrows B-.
Disconnecting plug connection for flap motor

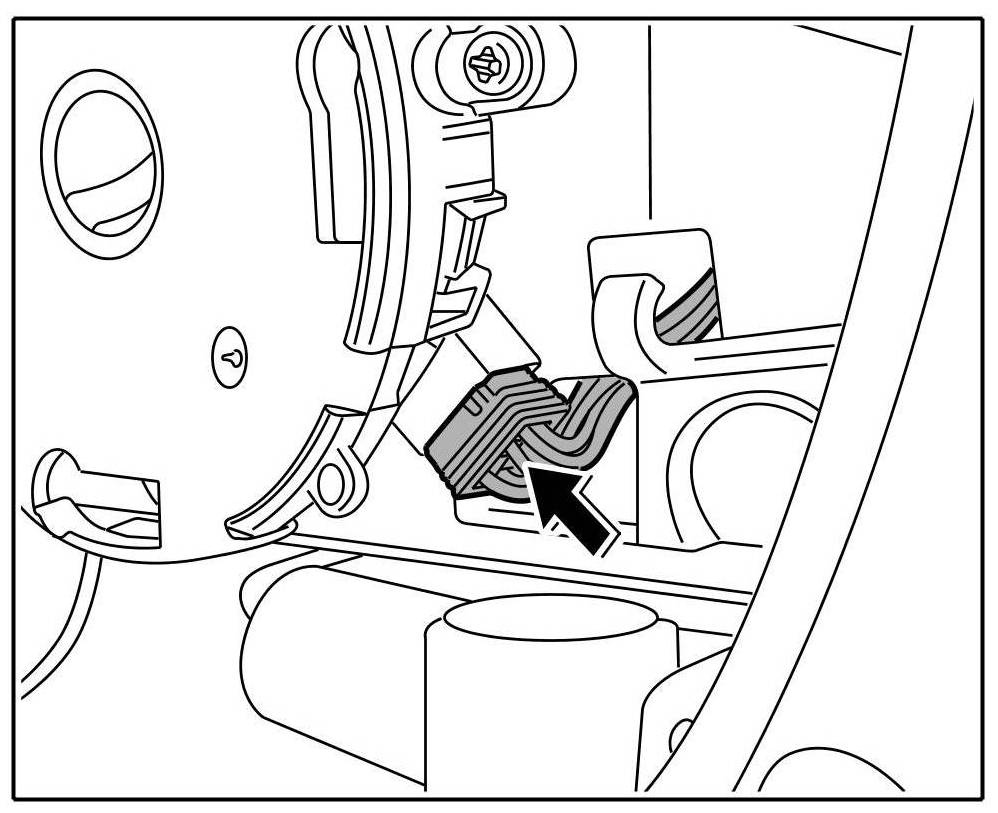

8. Pull the connector off the mirror adjustment motor -arrow-.
Pulling connector off mirror adjustment motor
9. Push the wiring through the mirror base -arrow A- and pull it out at the front -arrows B-.
Removing wiring
Information
- When technical modifications are made, wiring colours on plug connections may change. Therefore, before removing the connector contacts from the connector or the connecting socket, do not forget to make a note of the installation position and the colours of the individual wires.

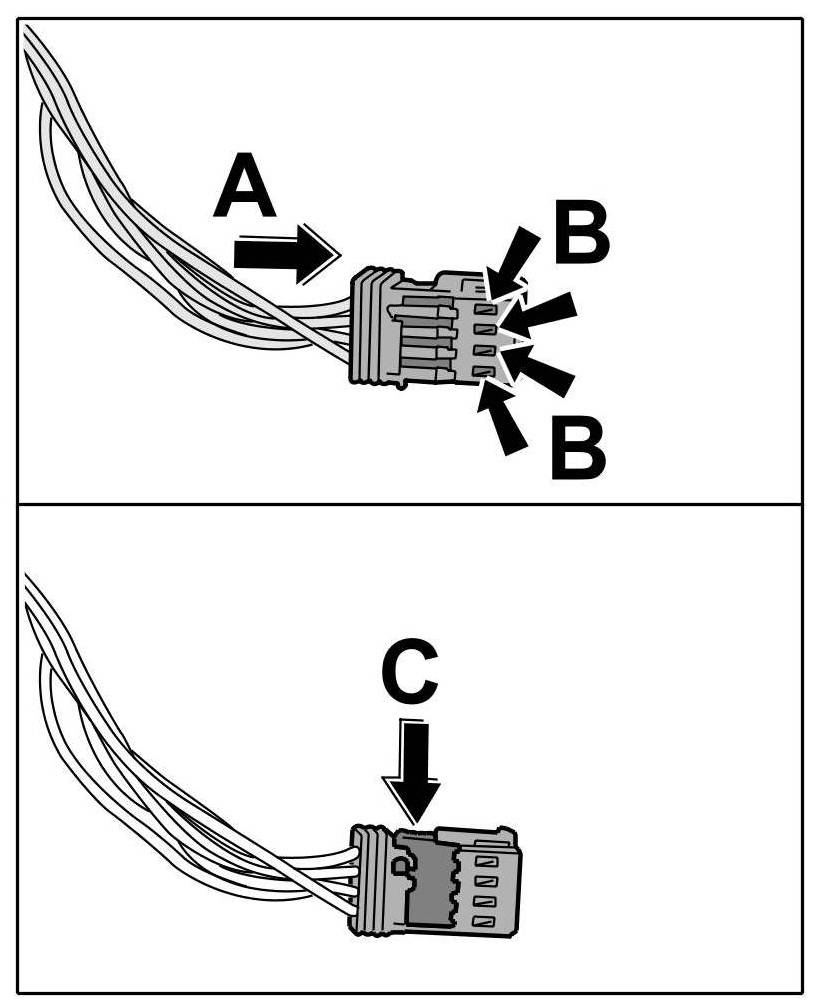

10. Press out plug contacts from connector housing using press-out and unlocking tools for flat and round plug connections of every size NR.155 -a- ( -arrow A- ).
Pressing out plug contacts
11. Press the plug contacts out of the connector housing using press-out and unlocking tools for flat and round plug connections of every size NR.155 -arrow B- (only for vehicles with a light in the rear-view mirror).

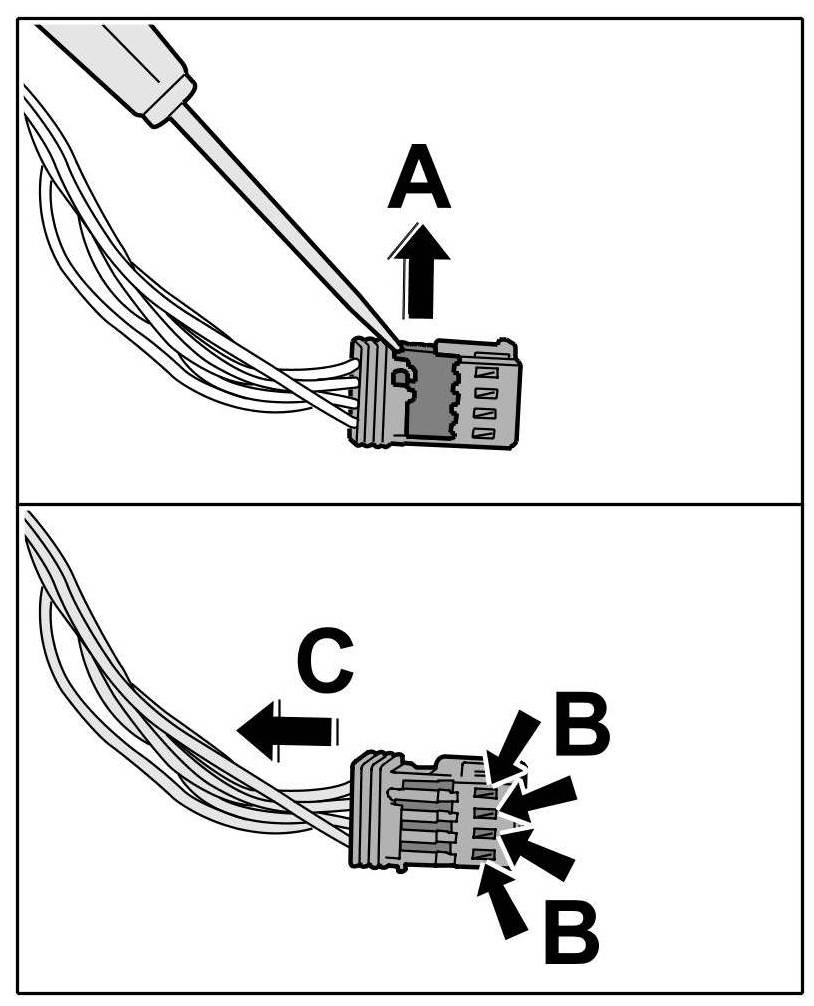

12. Lever out the fuse using a small screwdriver -arrow A- and remove it -arrows B-.
Removing fuse and pulling off plug contacts
13. Release the plug contacts and remove from the combination connector -arrow C-.

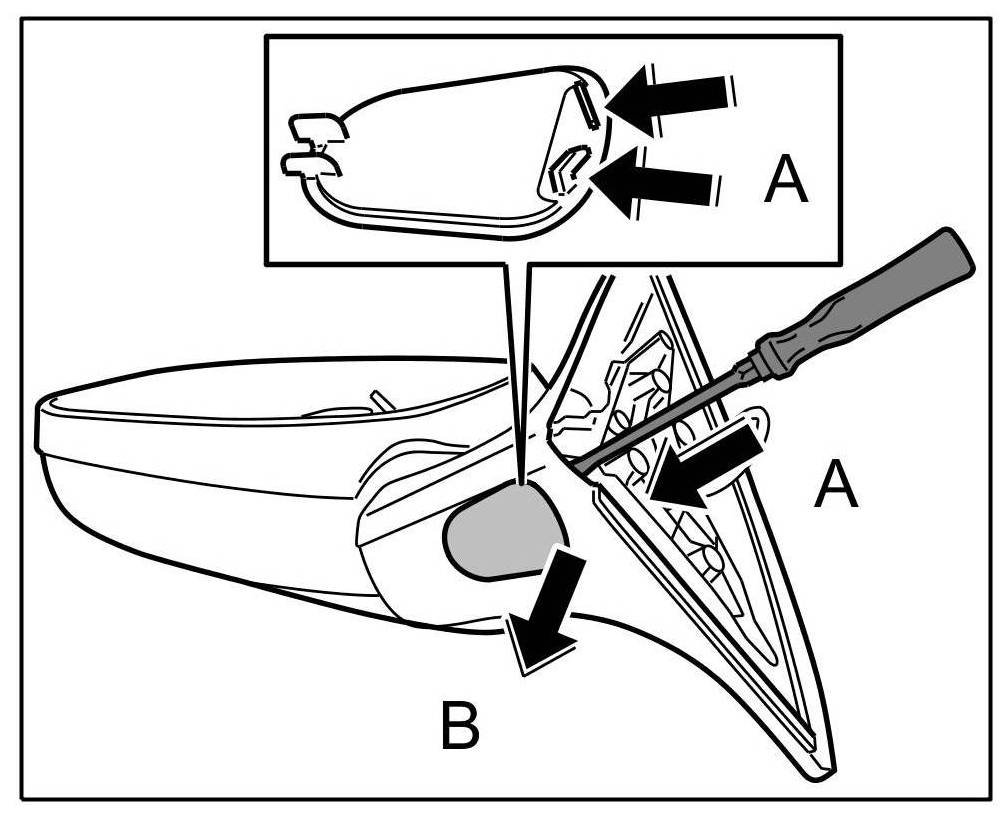

14. Press in the locking tabs on the cover using a screwdriver -arrows A- and remove the cover -arrow B-.
Releasing locking tabs and removing cover

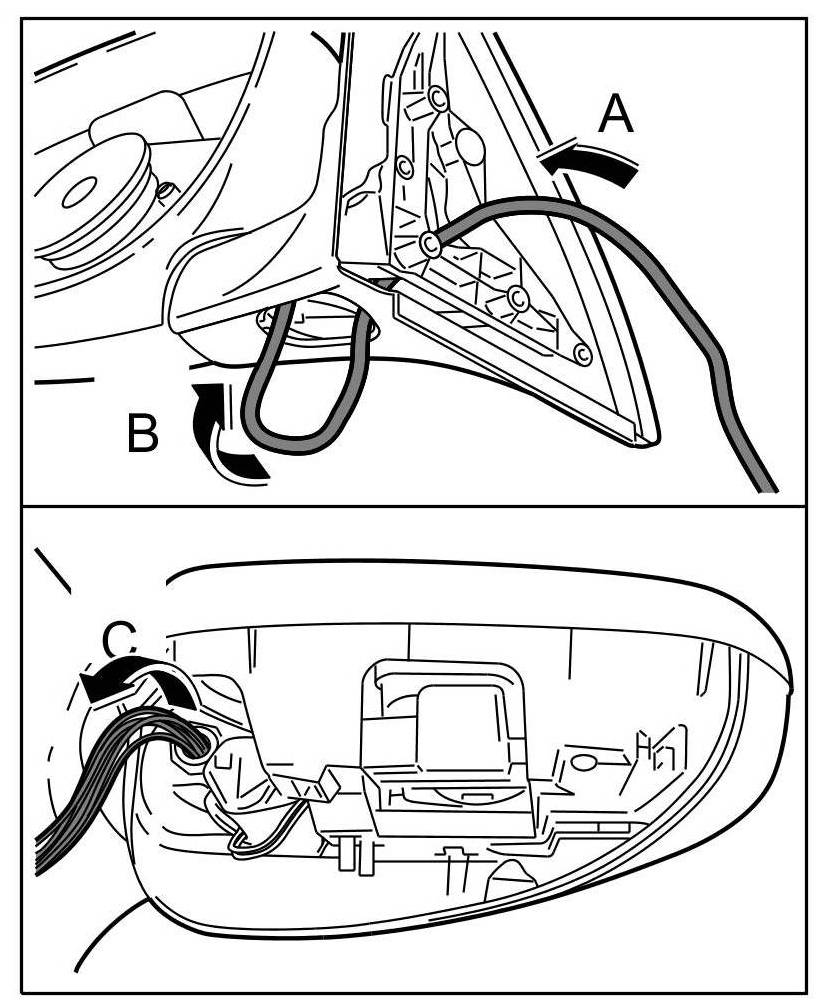

15. Push the wiring harness down through the joint -arrow A-.
Removing wiring harness
16. First pull the wiring down -arrow B- and remove it at the mirror base -arrow C-.
Installing wiring harness for rear-view mirror

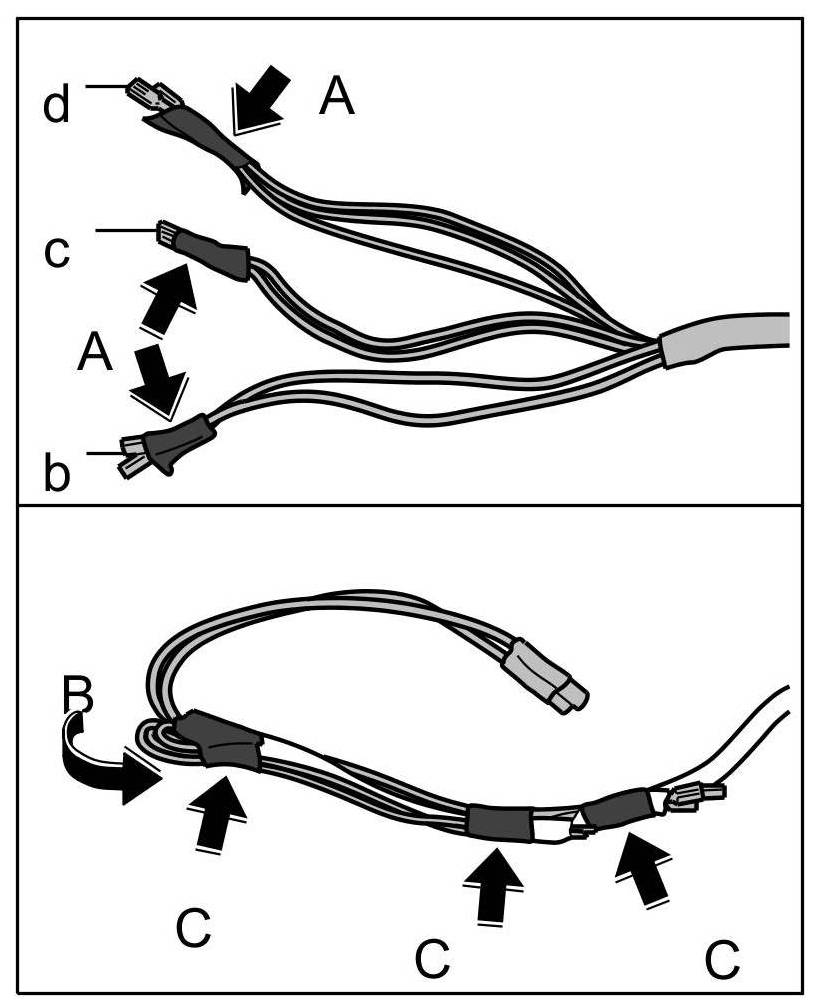

1. Tie the wires for mirror heating -b- , flap -c- and positioning motor -d- together using fabric or insulating tape -A-.
Securing wires together
2. Fold back wires for flap and positioning motor -arrow B- and secure to wiring harness with fabric or insulating tape -C-.
Information
- To minimise the thickness of the cable, tighten the wires at different places on the wiring harness.

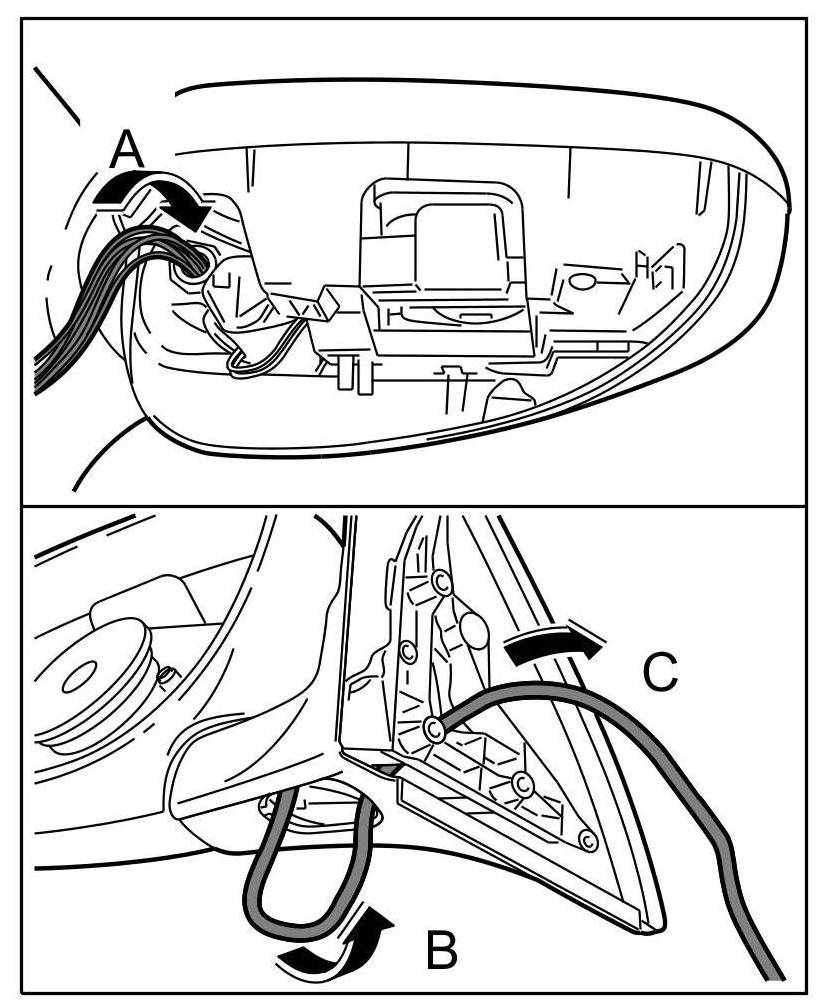

3. Slide the wiring harness for the mirror-heating wires from the inside through the mirror base -arrow A-.
Inserting wiring harness
4. Pull the wiring harness downwards -arrow B- , then up and out through the flap joint -arrow C-.
Information
- When connecting the plug contacts, make sure the order of the wires is correct in the combination connector.

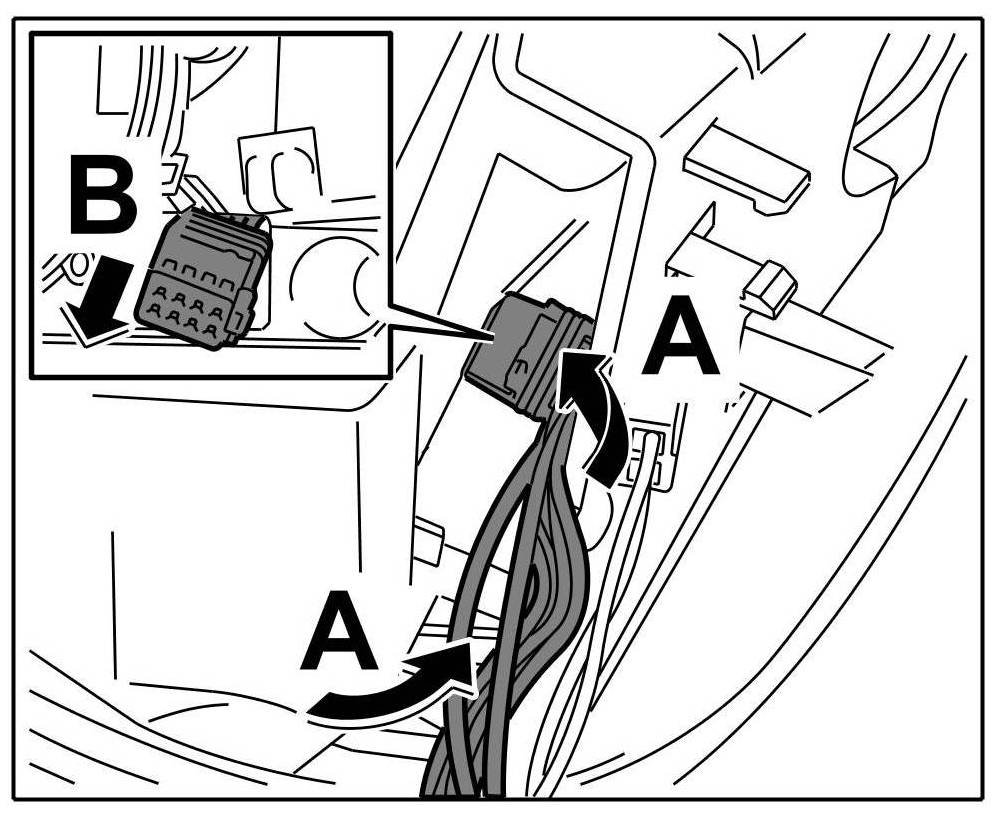

5. Insert the wires 1 - 7 for the positioning motor into the combination connector -arrow A- until the plug contacts are felt to engage.
Inserting wires for positioning motor into combination connector
6. Press in the fuse -arrows B- until you feel the locking tabs engage.
Information
The wires -10- and -11- are only available for vehicles that have a light in the rear-view mirror.
Wiring for vehicles with a light in the rear-view mirror

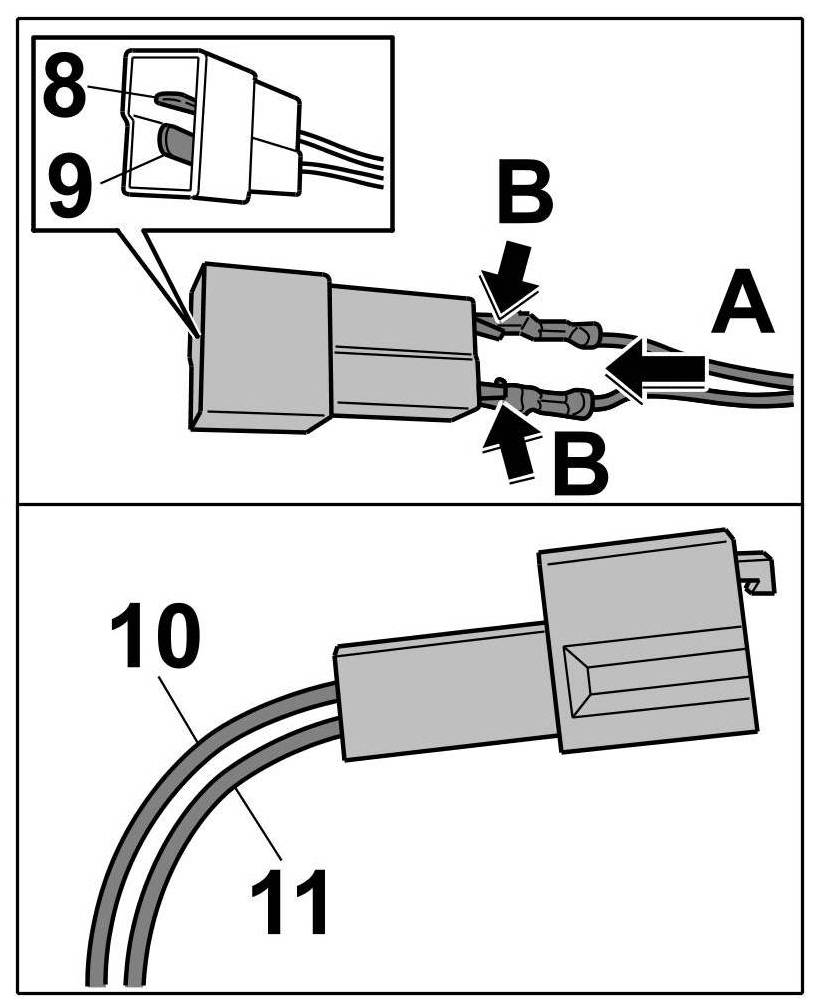

7. Insert the wires for the flap motor into the combination connector until the locking tabs of plug contacts -8 and 9- are felt to engage -arrows B-.
Inserting wires for flap motor into combination connector
8. Insert the wires -10 and 11- until you feel the locking tabs engage.
9. Push the wiring through the mirror base -arrows A- and pull it out at the inside -arrow B-.
Pushing wiring through mirror base
10. Connect the connector on the mirror adjusting motor -arrow- until the connector lock is felt to engage.
Connecting connector on mirror adjusting motor
11. Push together plug connection for fold-in motor -arrows A- and press onto adhesive point of mirror holder -arrow B-.
Connecting plug connection for fold-in motor

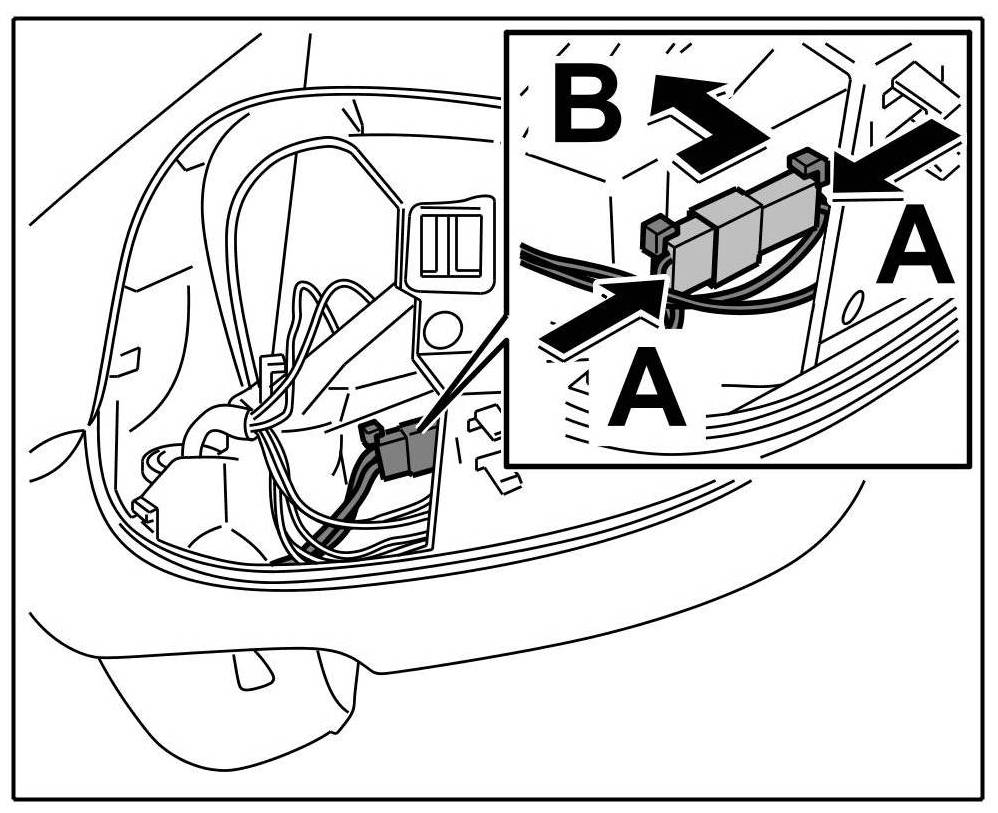

12. Push plug connection together -arrows A- until the locking lug -arrow B- is felt to engage.
Connecting plug connection
13. Insert the plug connection into the holder -arrow C- until it is felt to engage.

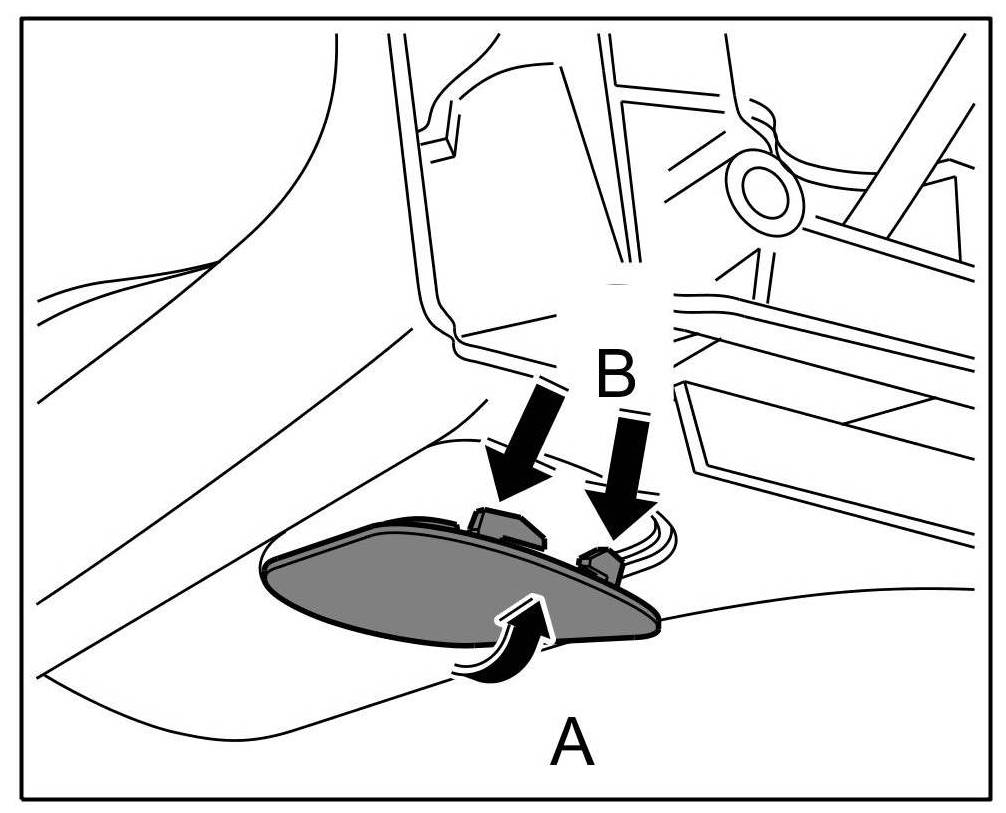

14. Engage the cover and fold upwards -arrow A- until the locking tabs -arrows B- are felt to engage.
Install cover
15. Engage upper mirror housing in lower mirror housing -arrow A- and fold onto mirror cover -arrow B- until the locking tabs -arrows C- are felt to engage.
Installing upper mirror housing
16. Install insulation on mirror base.
Installing insulation on mirror base
Subsequent work
1. Install mirror glass. -> 667819 Removing and installing mirror glass - section on "Installing" 667819 Removing and installing mirror glass
2. Install rear-view mirror. -> 668919 Removing and installing rear-view mirror - section on "Installing"

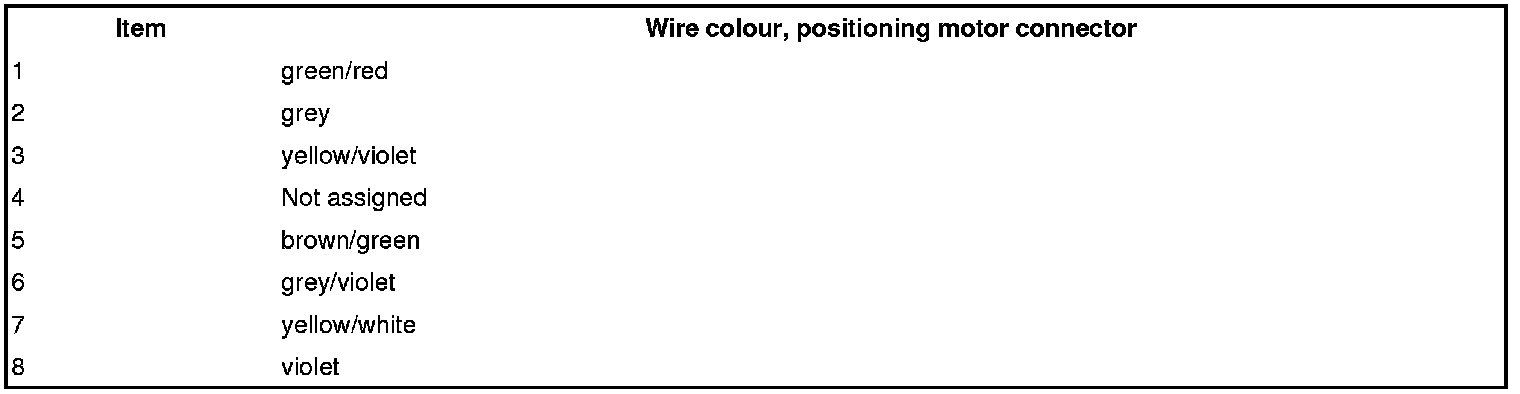

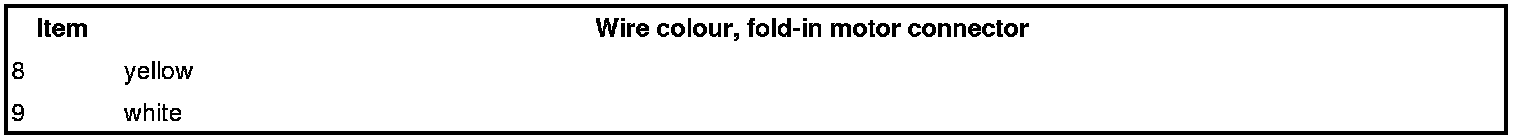

Classification of wire colours in combination connectors
Information
- When technical modifications are made, wiring colours on plug connections may change. Therefore, before removing the connector contacts from the connector or the connecting socket, do not forget to make a note of the installation position and the colours of the individual wires.
