728619 Removing and installing switch for seat adjustment

WM 728619 Removing and installing switch for seat adjustment

Preliminary work

1. Remove front seat trim and disconnect both plugs from seat adjustment switch. -> 721619 Removing and installing front seat trim - "Removing" section 721619 Removing and Installing Front Seat Trim

Removing switch for seat adjustment

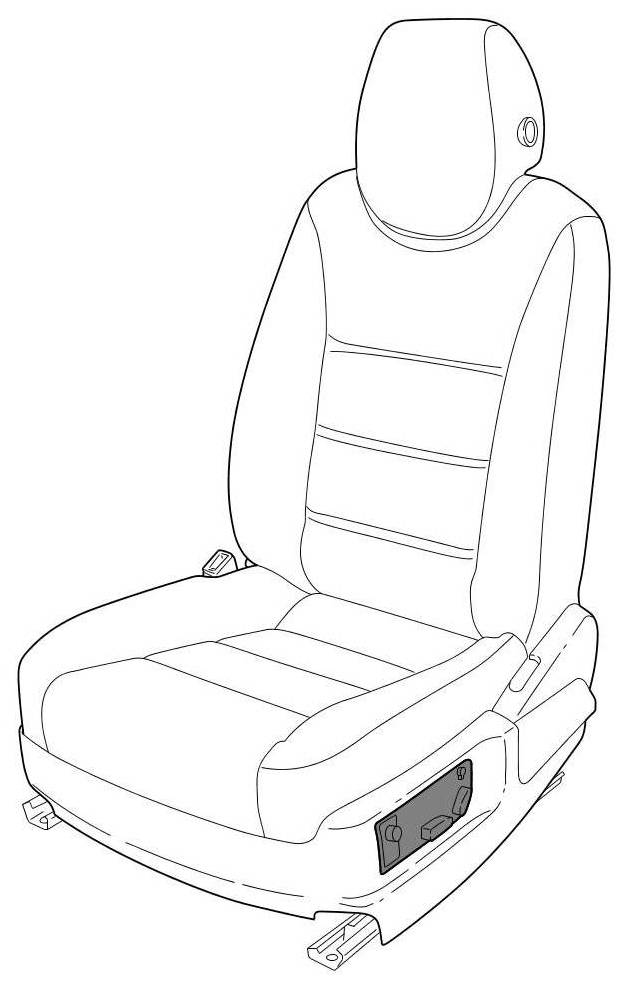

Overview of switch for seat adjustment

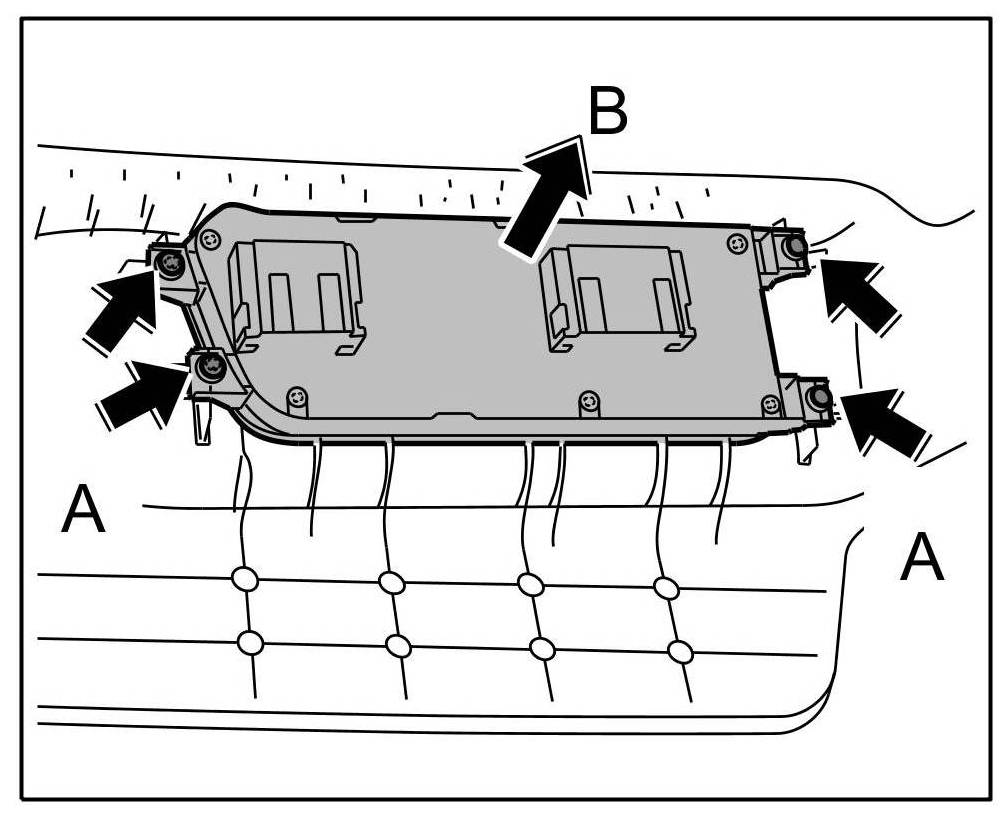

1. Unscrew fastening screws -Arrows A- and remove switch for seat adjustment -Arrow B-.





Removing switch for seat adjustment

Installing switch for seat adjustment

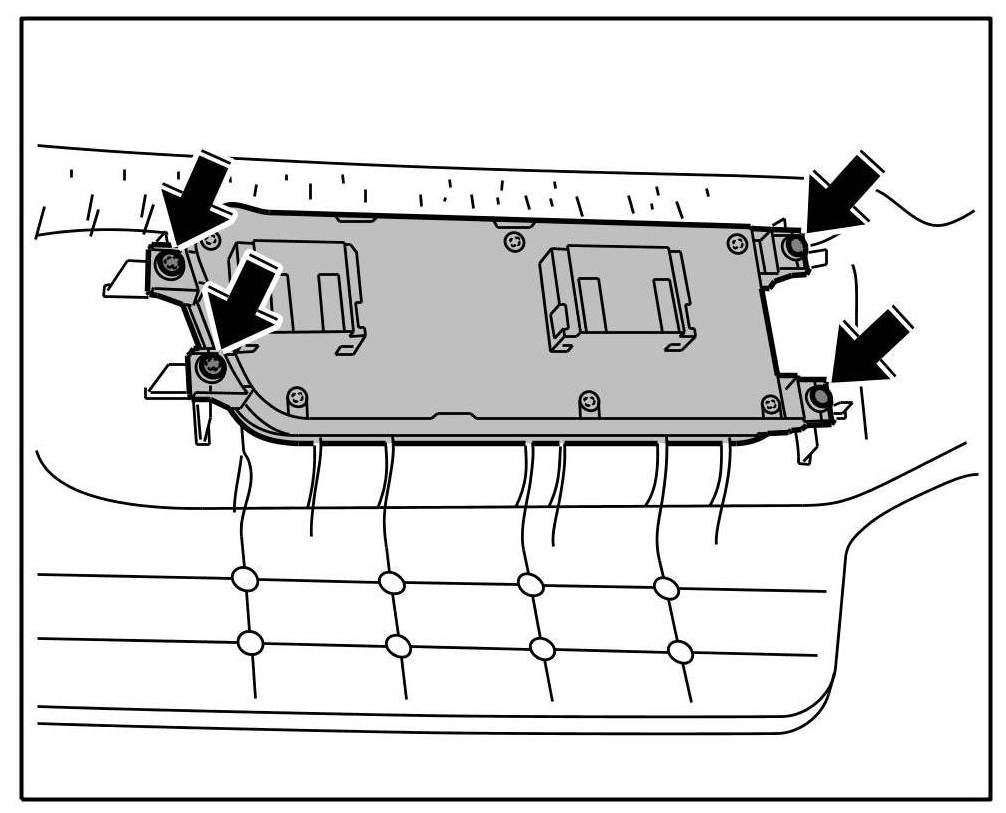

1. Insert switch in front seat trim and screw it down -arrows-.





Installing switch for seat adjustment

Subsequent work

1. Install front seat trim and insert both plugs at seat adjustment switch until they can be heard to engage. -> 721619 Removing and installing front seat trim - "Installing" section 721619 Removing and Installing Front Seat Trim
