Part 2

WM 1001IN Tightening torques, tightening sequences, assembly overviews for V8 4.8 l DFI naturally aspirated and turbo engine as of October 2008

Group 15

Information

- The eyelets must not be inadvertently secured using aluminium screws. => Aluminium screws would break and the suspended engine would fall down.

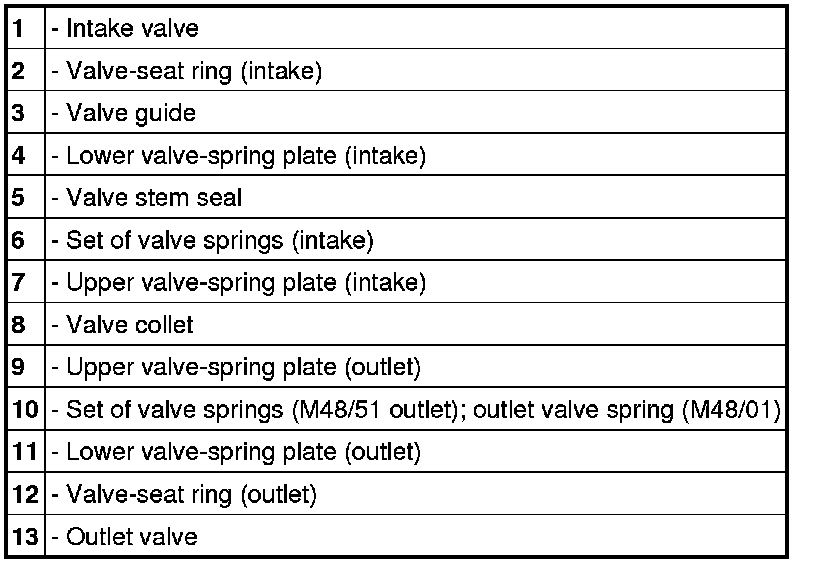

Valves (cylinder bank 5 to 8)

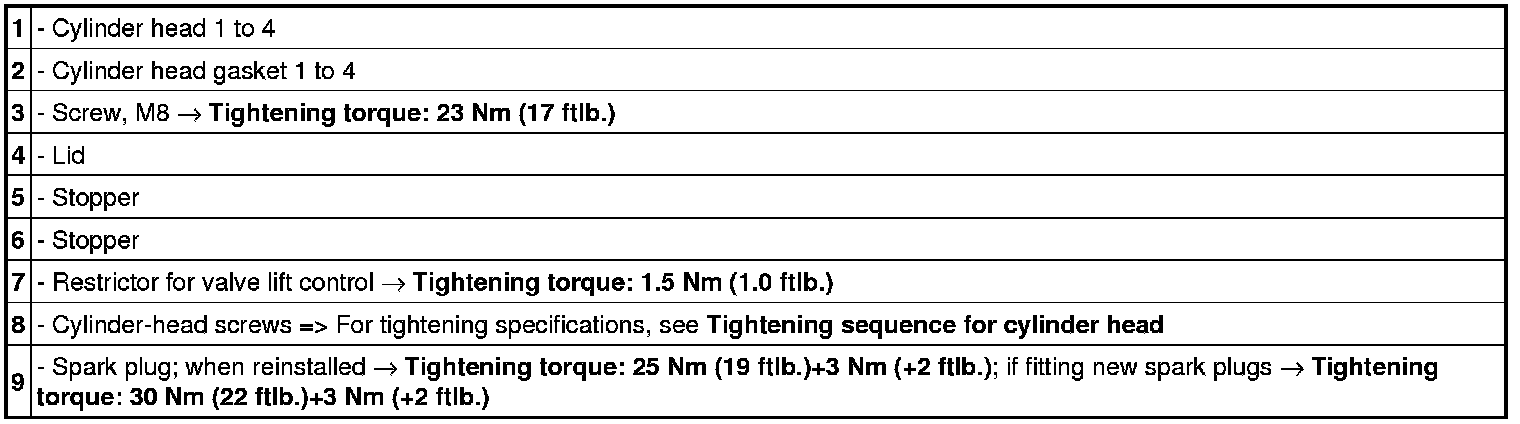

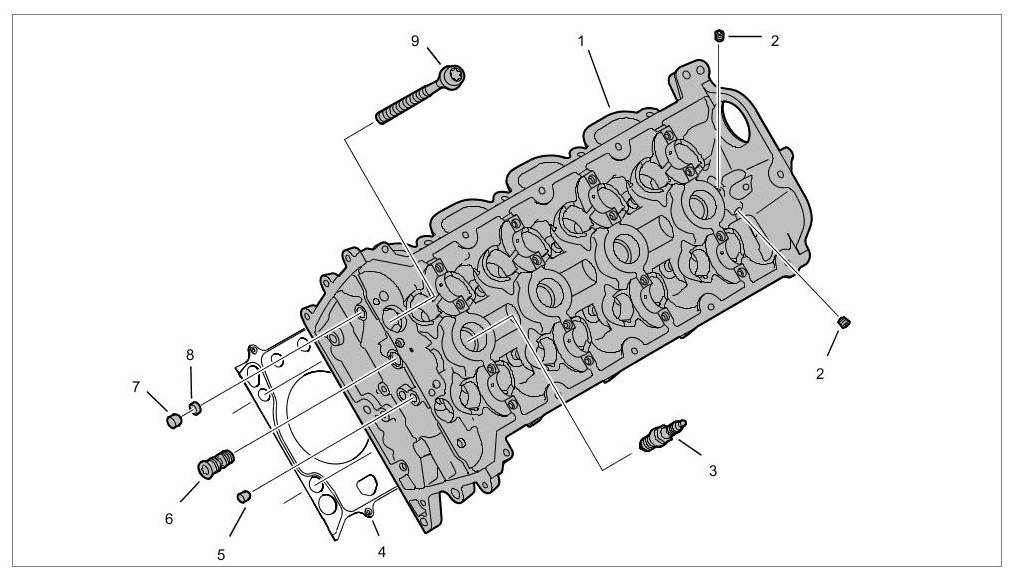

Cylinder head 1 to 4









Cylinder head 5 to 8

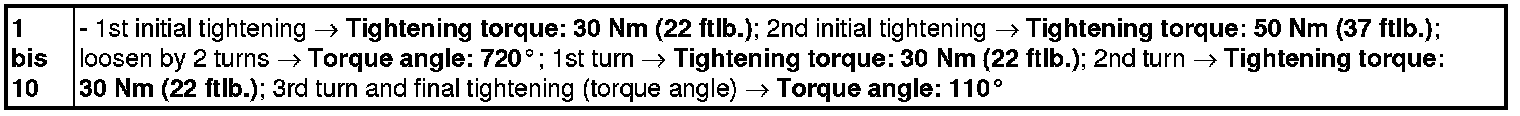

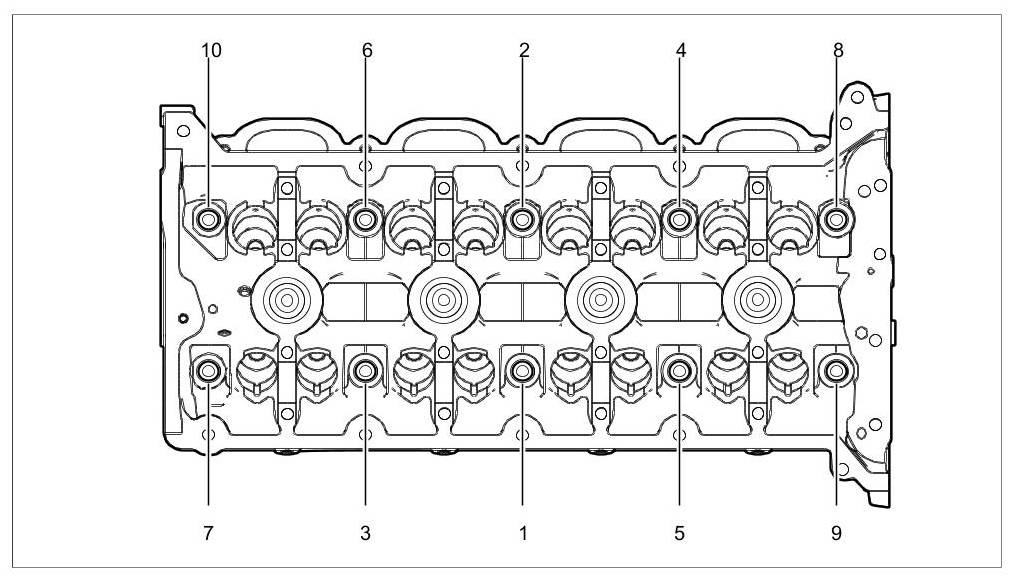

Tightening sequence for cylinder head

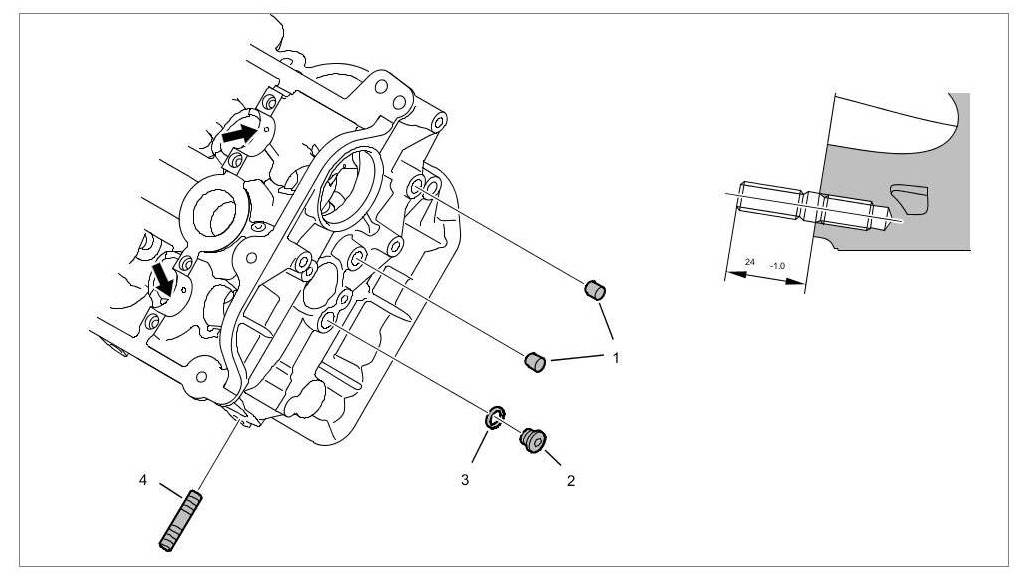

Studs for cylinders 1 to 4, catches

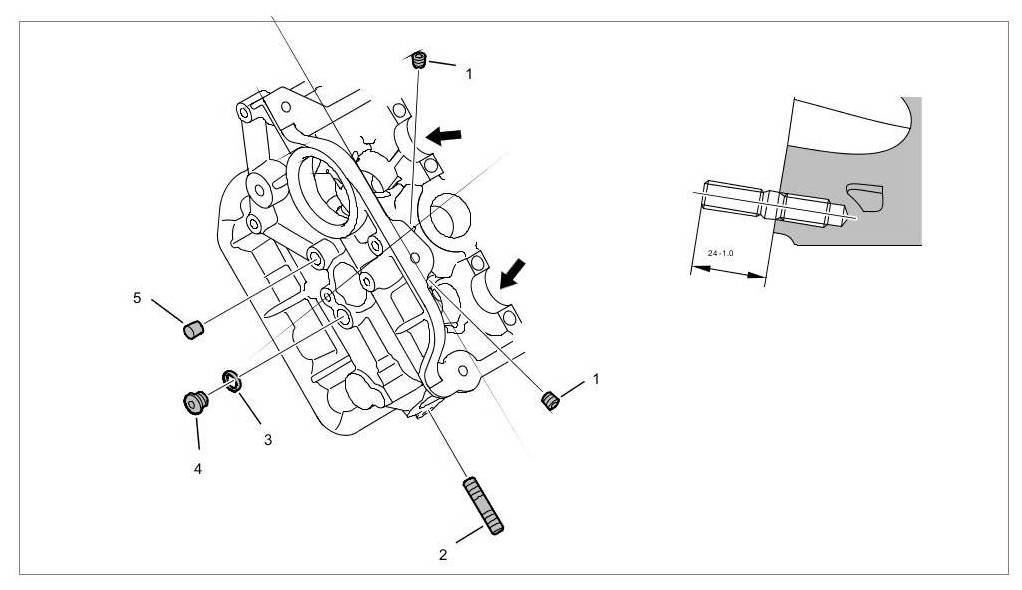

Studs for cylinders 5 to 8, catches









Valve cover seals, cylinders 1 to 4









Valve cover seals, cylinders 5 to 8









Tightening sequence for valve cover for cylinders 1 to 4





Tightening sequence for valve cover for cylinders 5 to 8

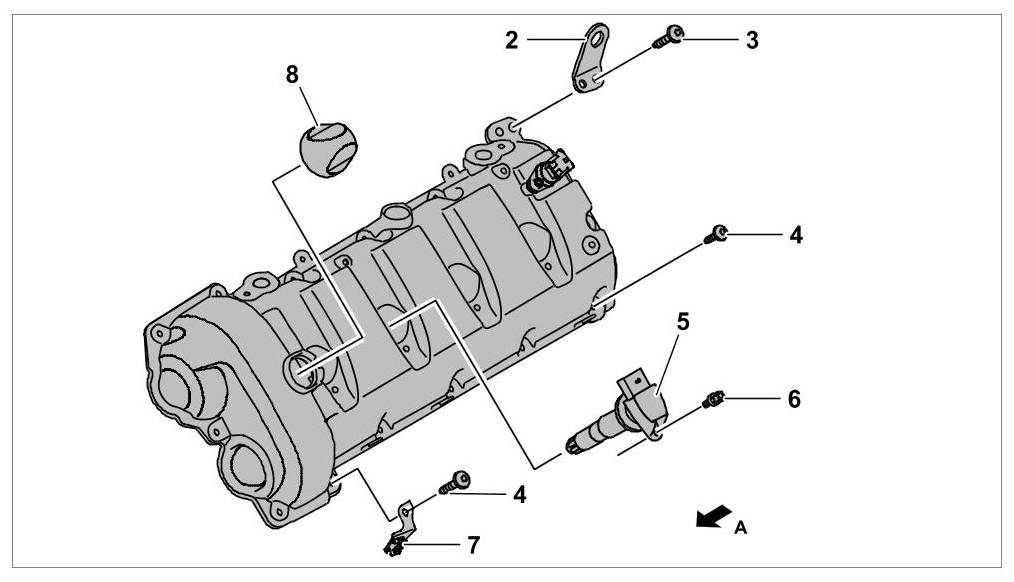

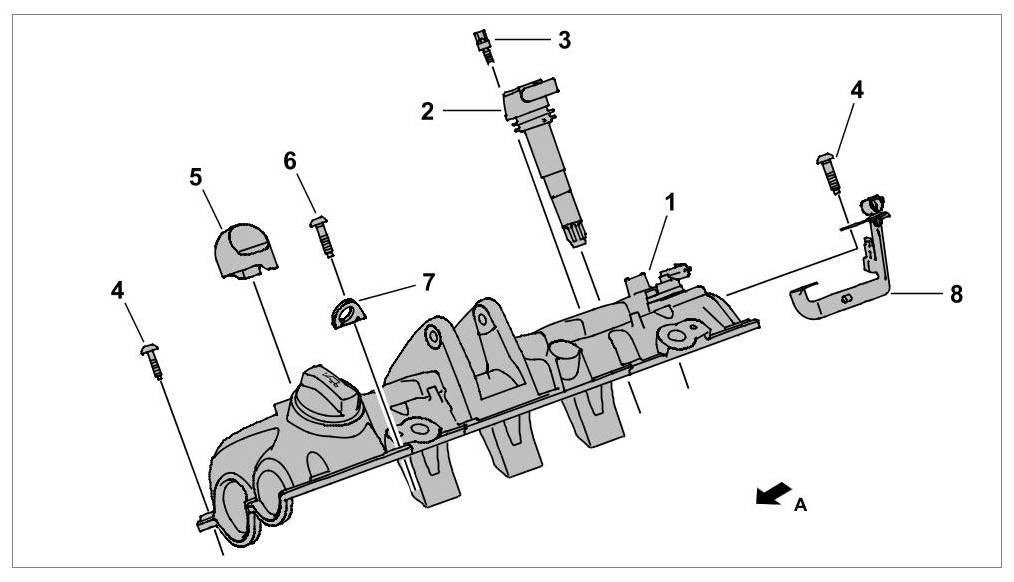

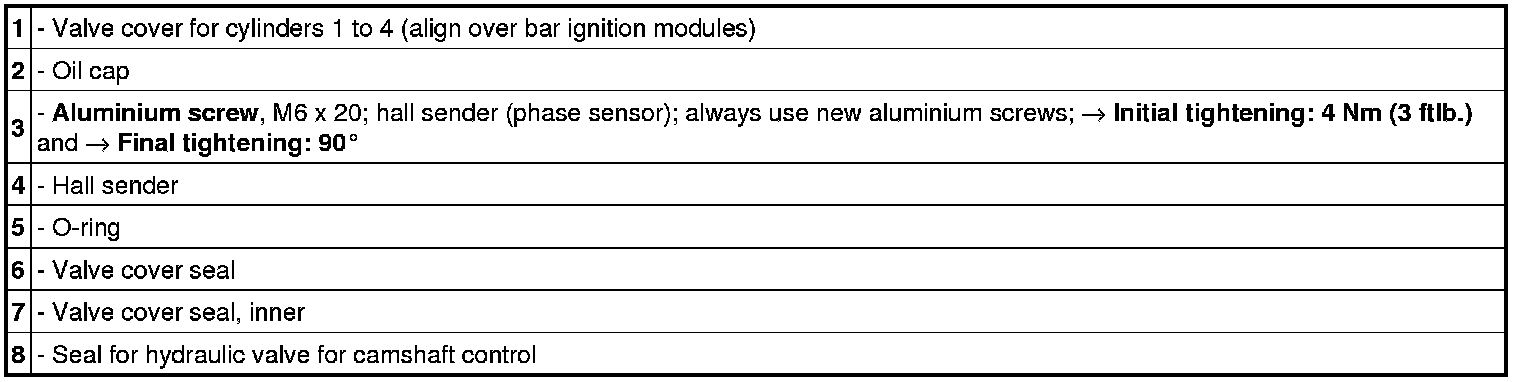

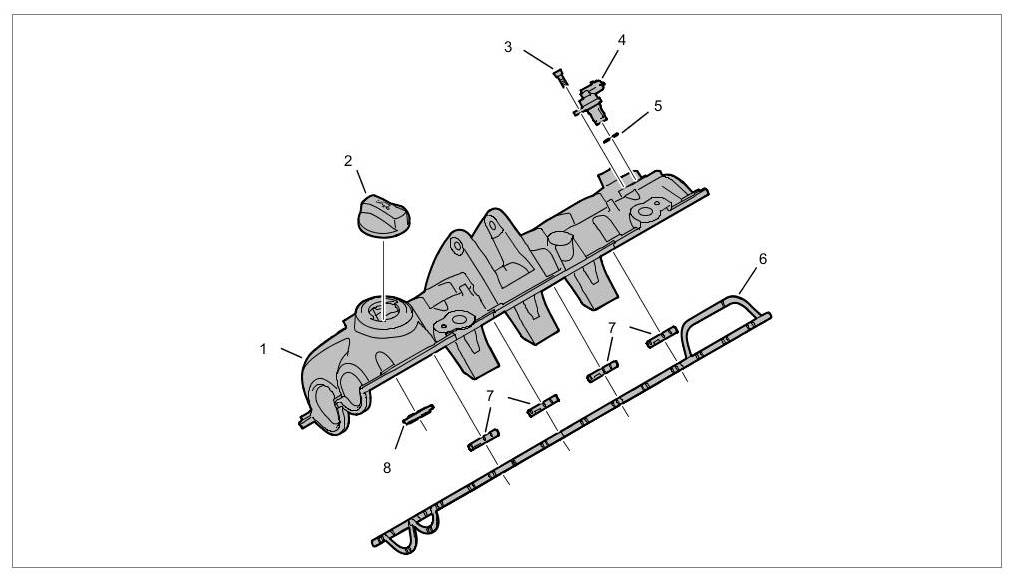

Bar ignition modules and valve cover, cylinder bank 1 to 4

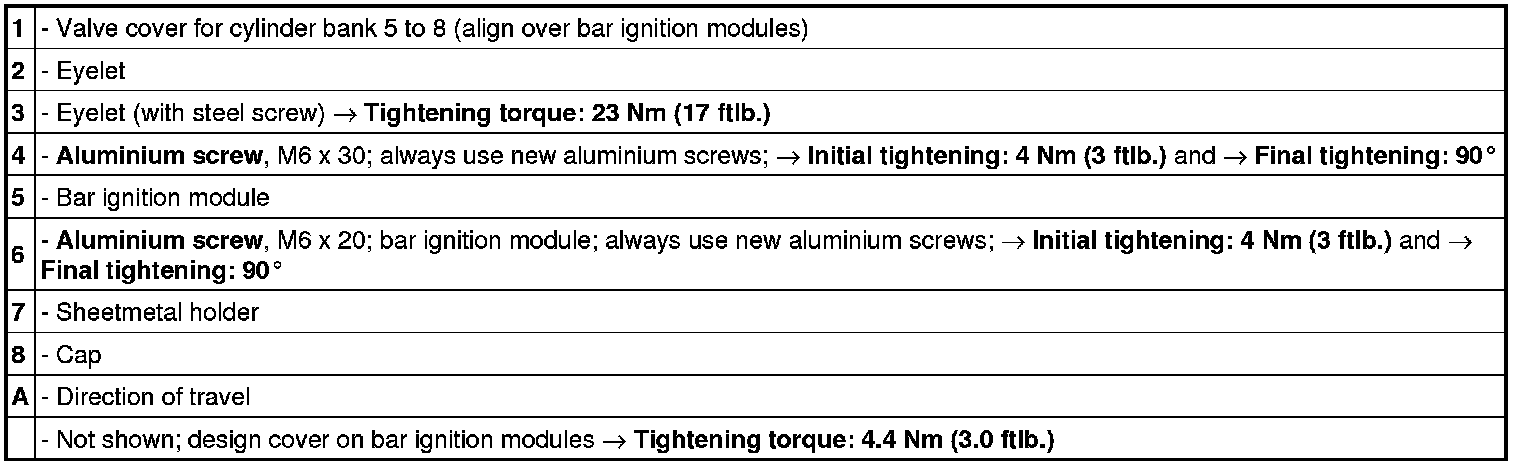

Bar ignition modules and valve cover, cylinder bank 5 to 8

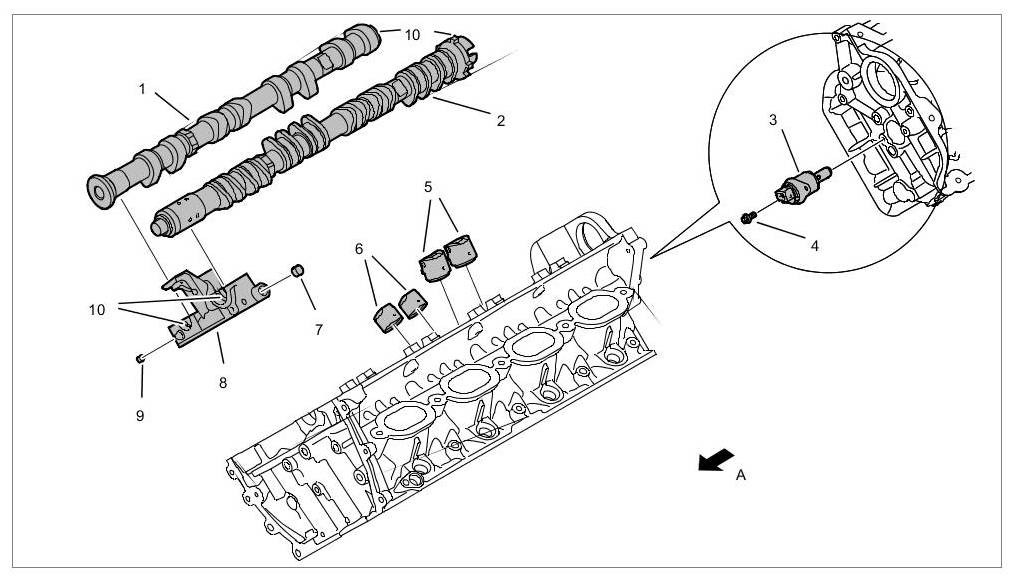

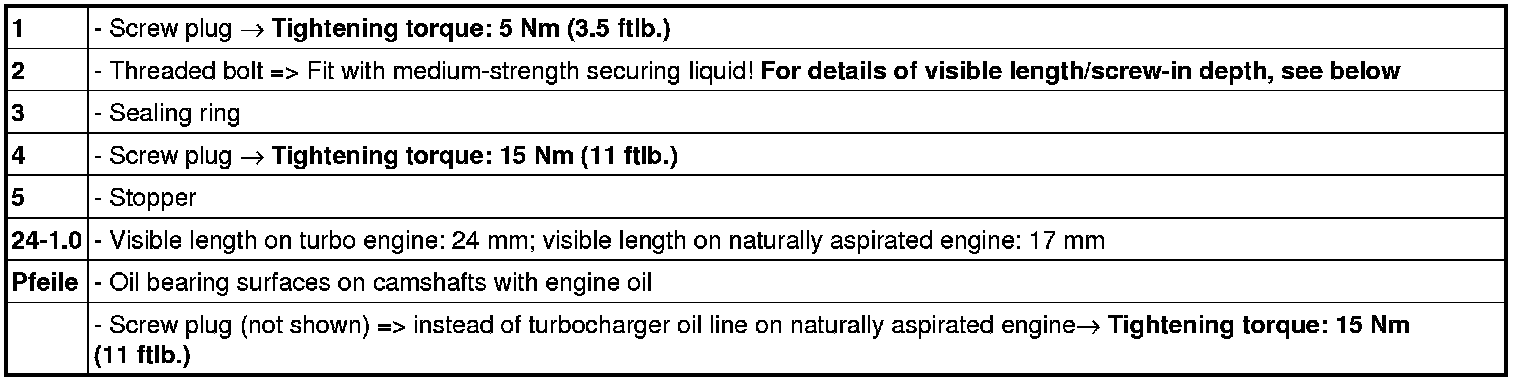

Camshafts, cylinder bank 1 to 4

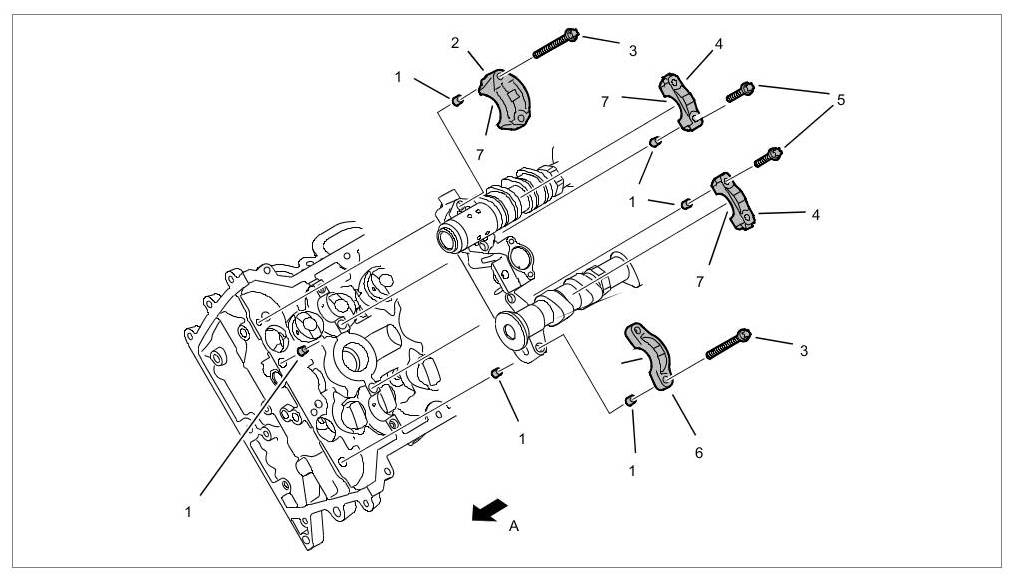

Camshaft mount, cylinder bank 1 to 4

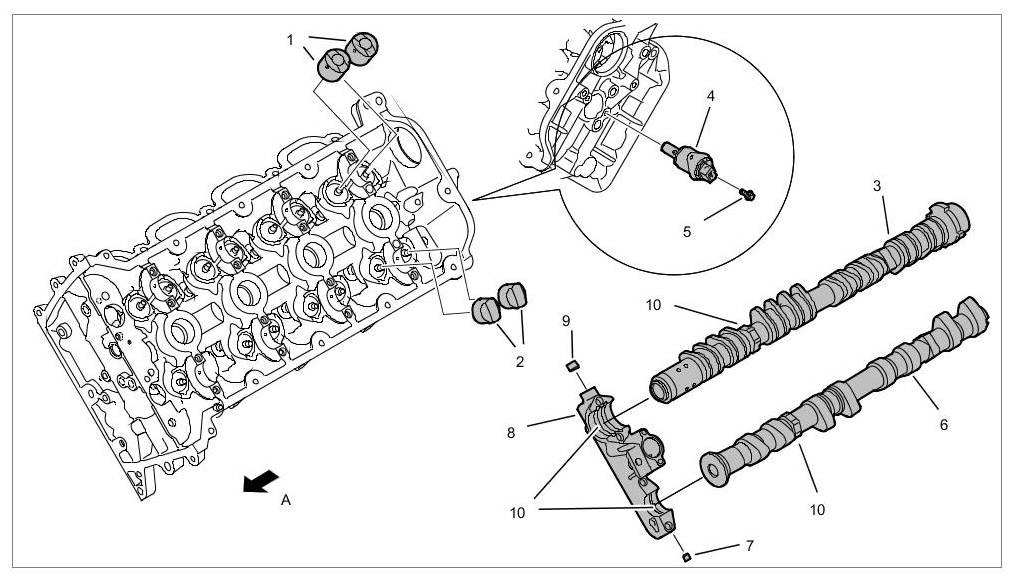

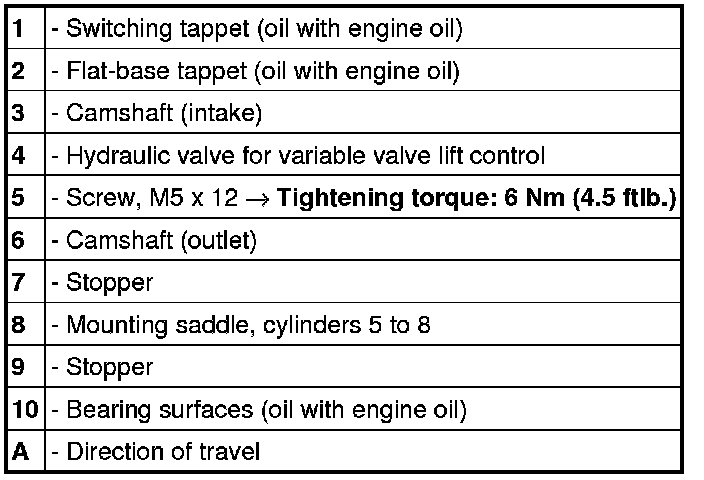

Camshafts, cylinders 5 to 8









Camshaft mount, cylinders 5 to 8

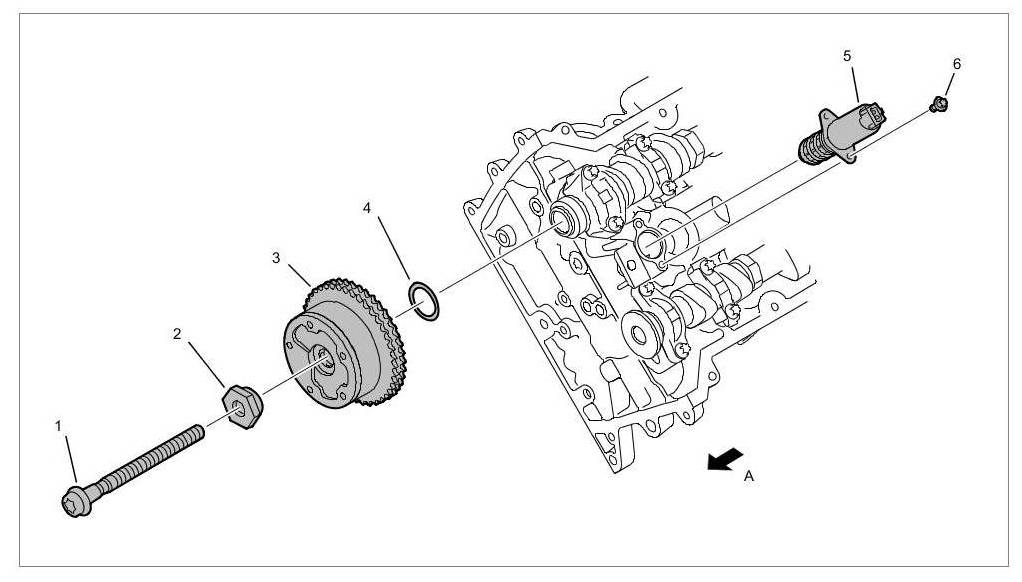

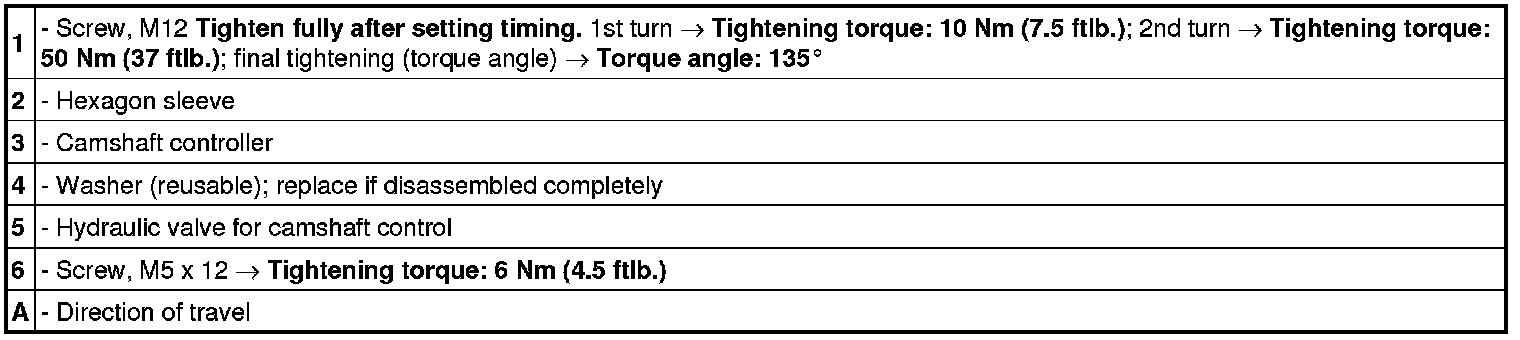

Camshaft control

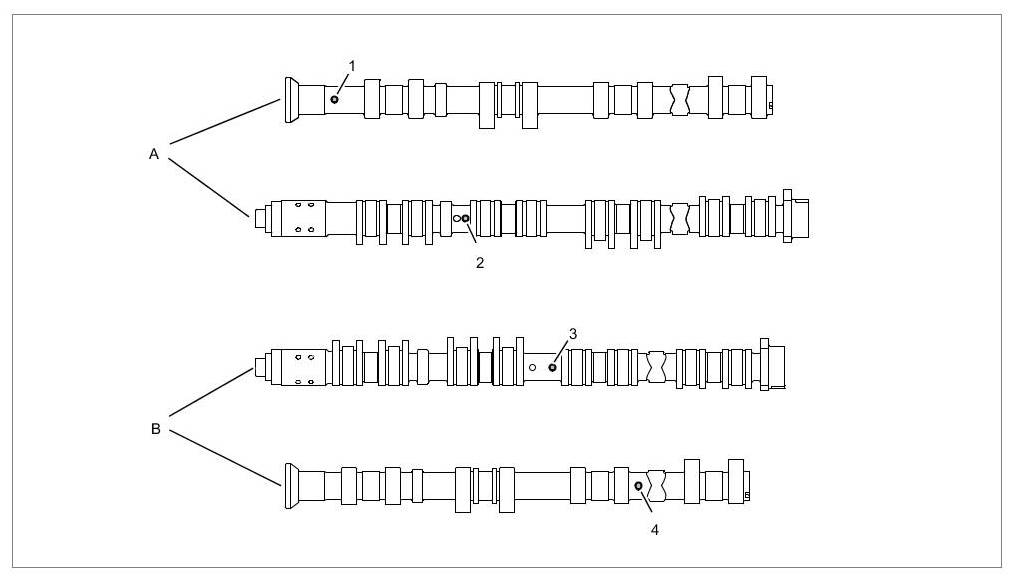

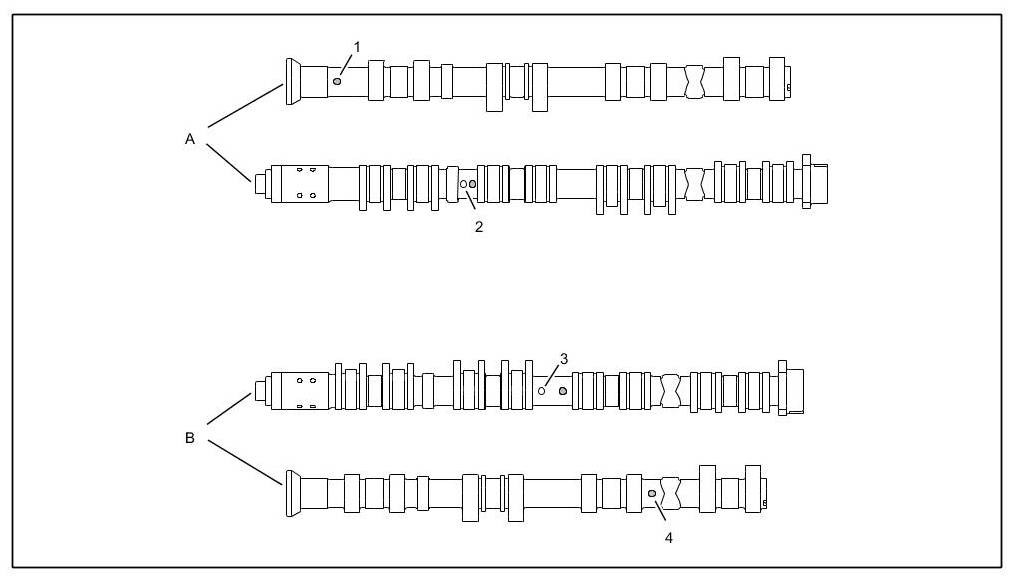

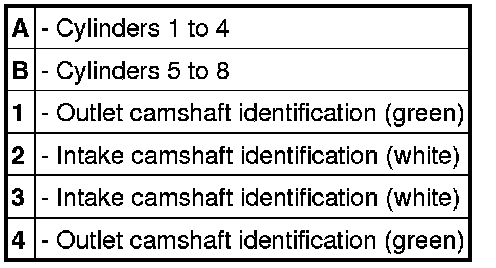

Camshaft identification on V8 turbo engine M48/51









Camshaft identification on V8 naturally aspirated engine M48/01

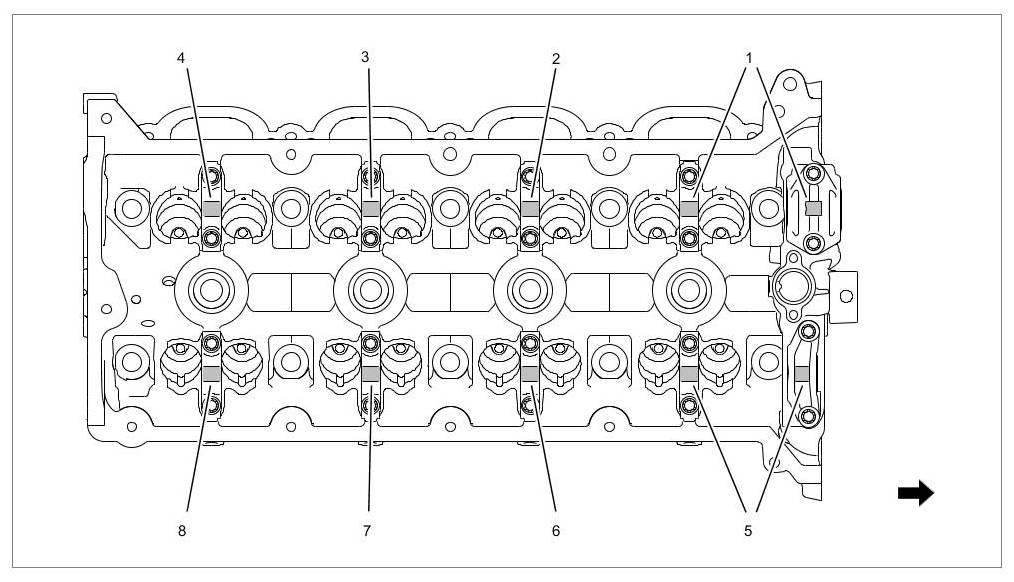

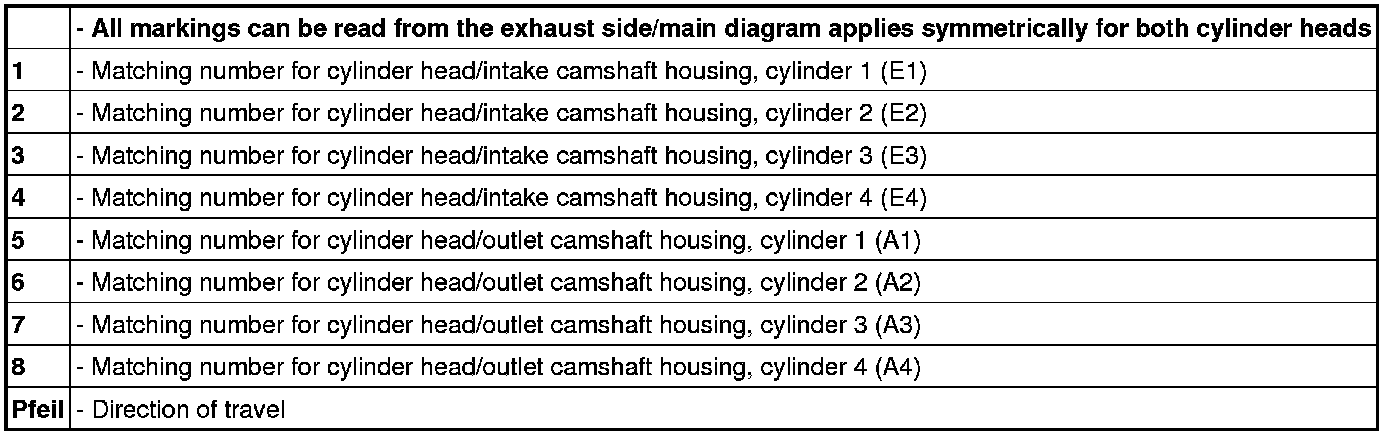

Camshaft housing identification

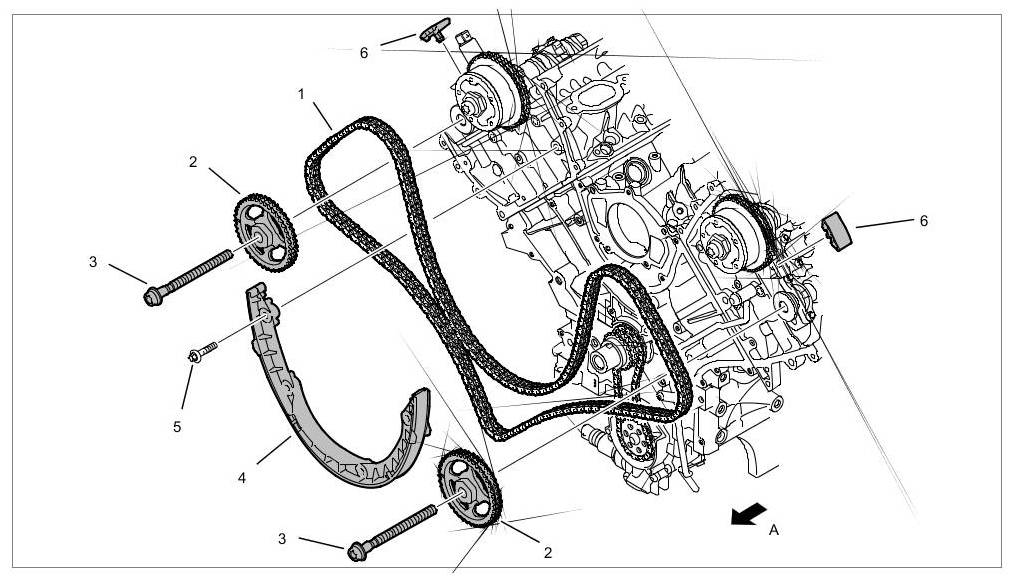

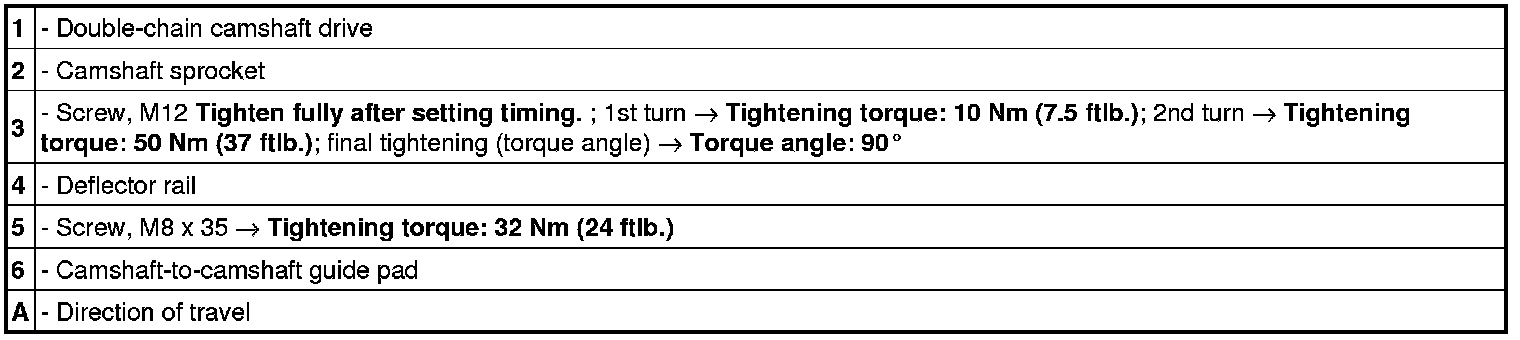

Timing chain and sprockets

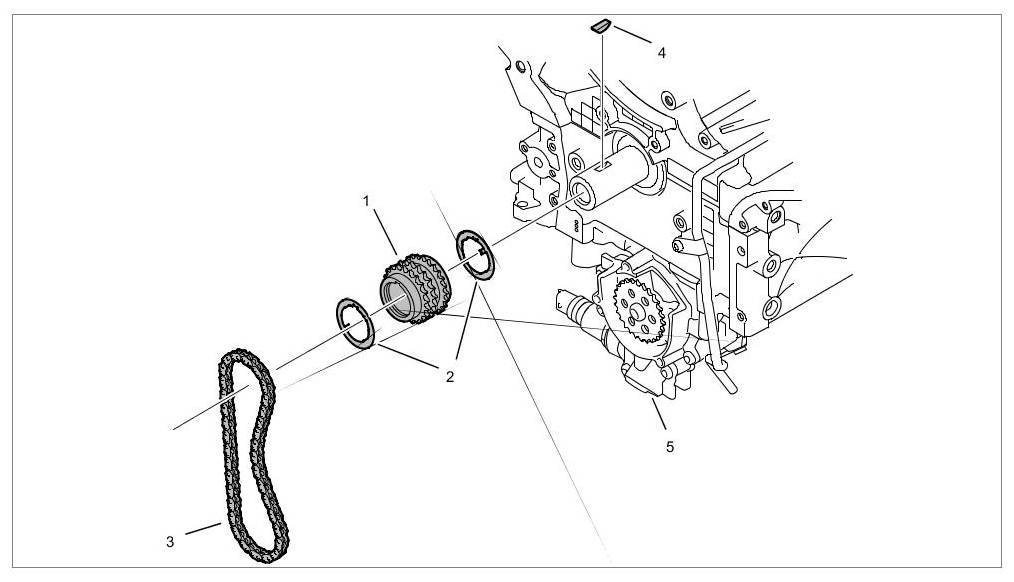

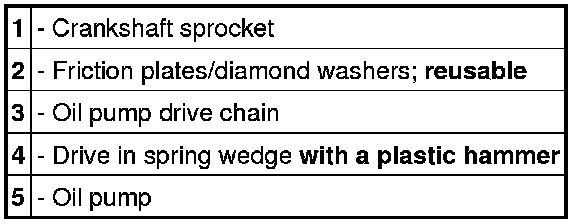

Oil pump chain drive

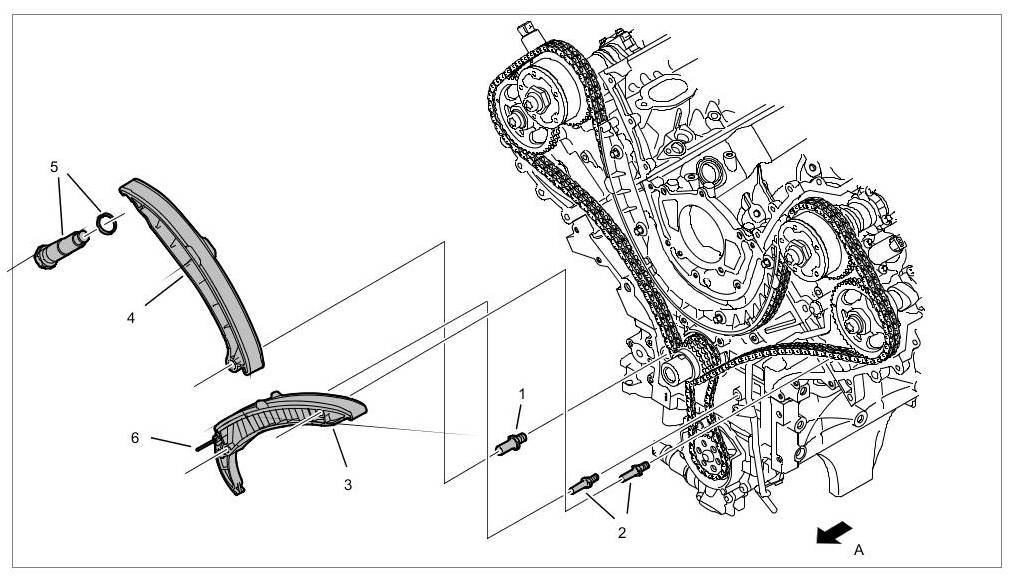

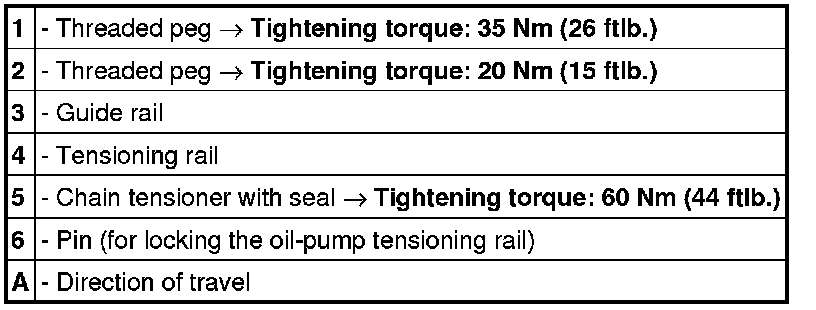

Timing chain and chain guide

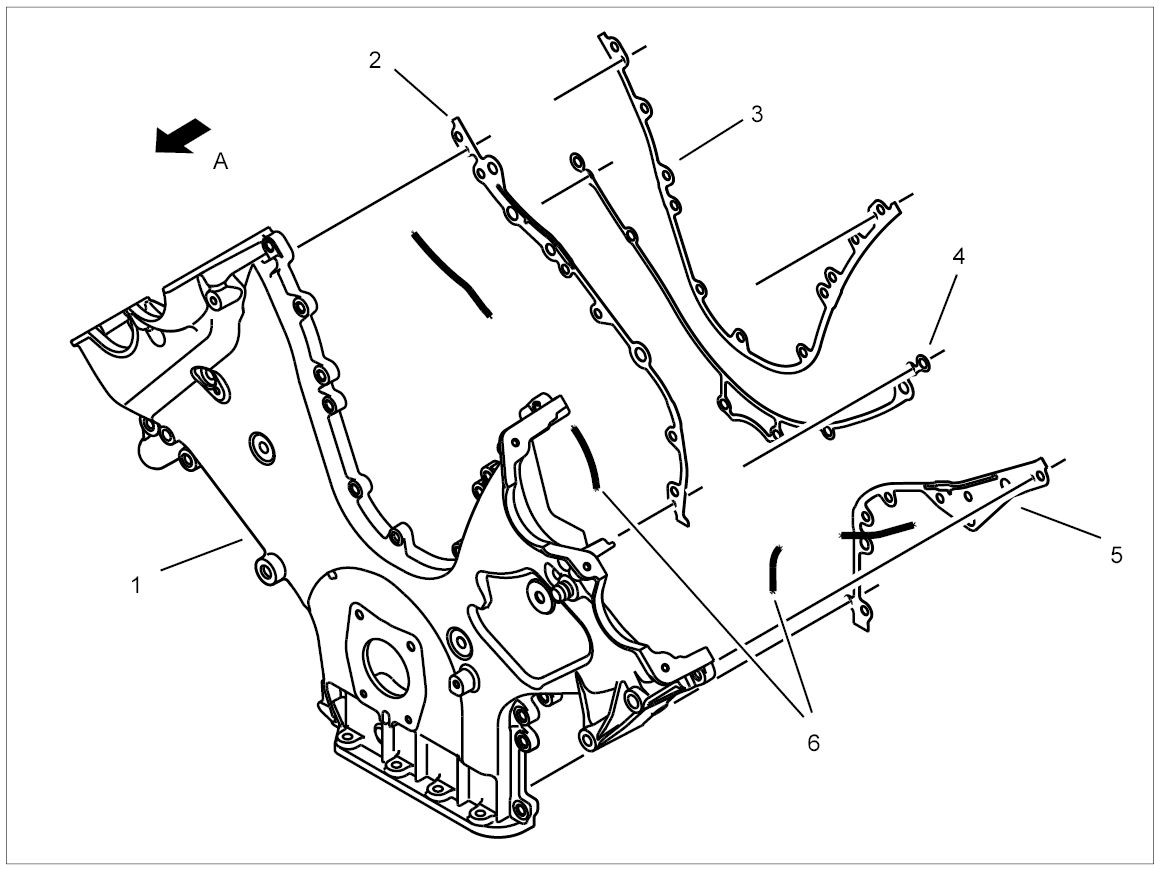

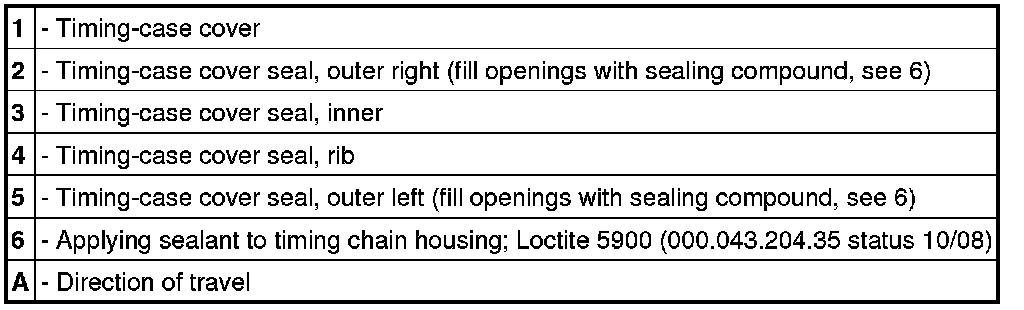

Timing-case cover seals

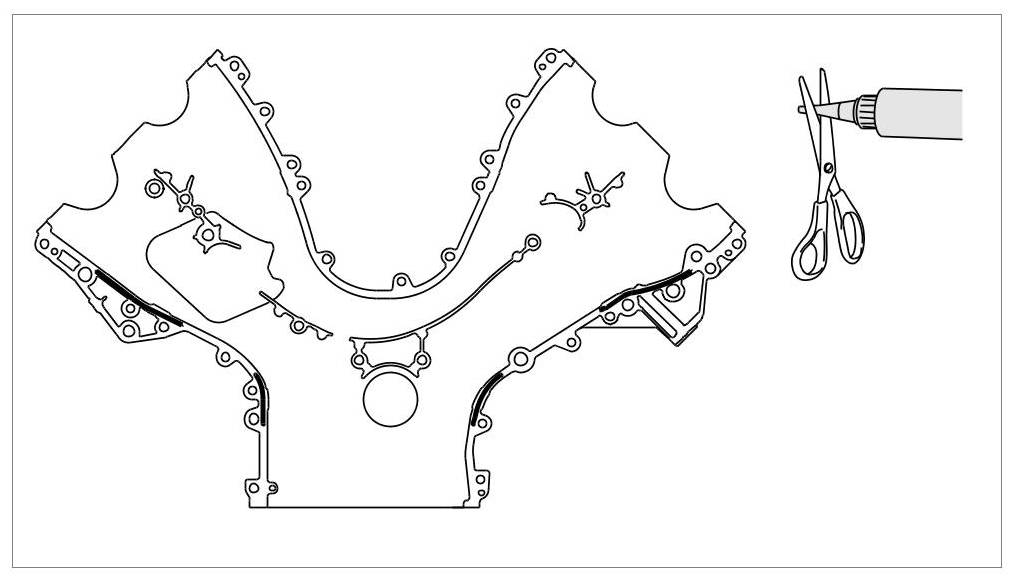

Applying sealing compound (fill openings in sheetmetal seal with sealing compound)

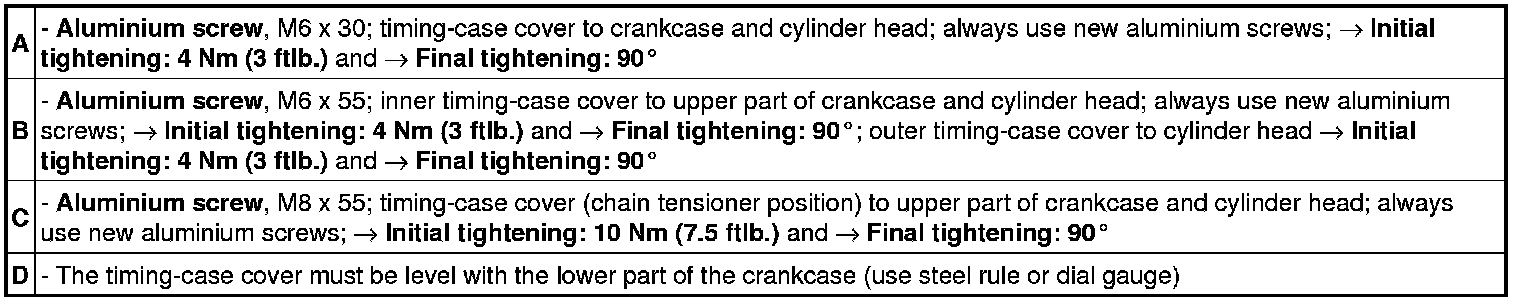

Tightening sequence for timing-case cover

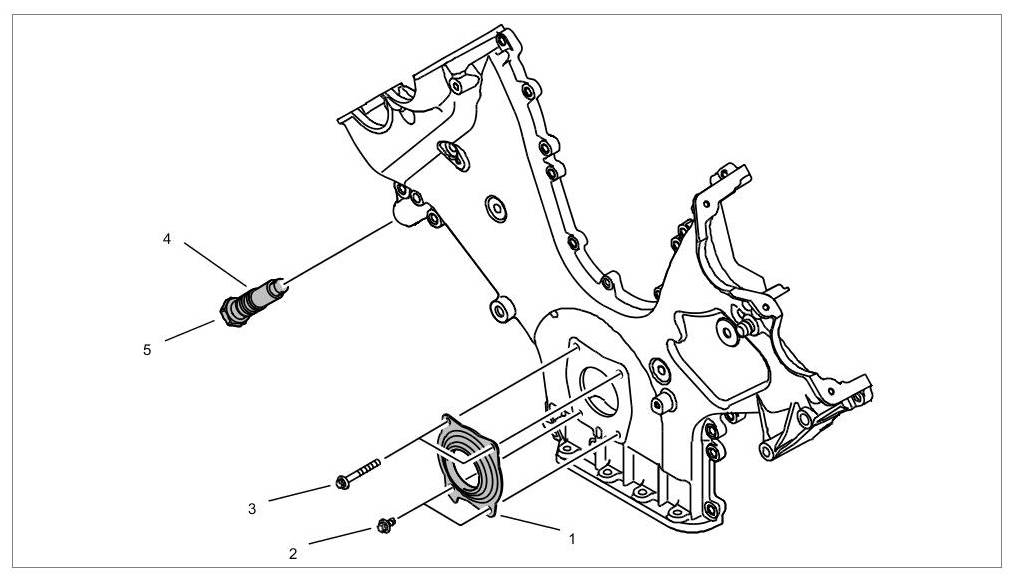

Chain tensioner, sealing flange
