Camshaft Position Sensor: Service and Repair

WM 283919 Removing and installing hall senders (camshafts) on DFI engines

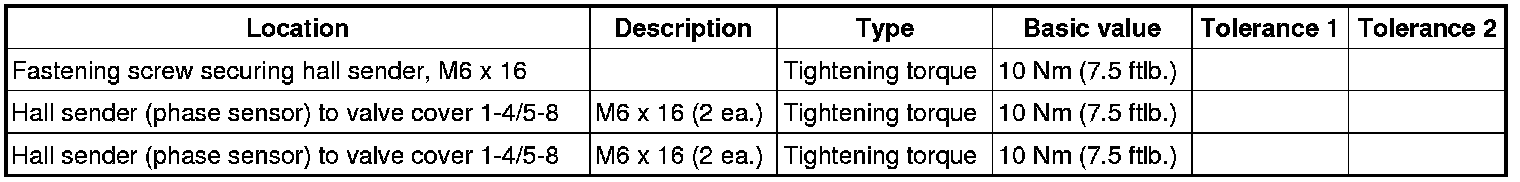

Technical values






Preliminary work

1. Remove design cover on bar ignition modules. -> 108319 Removing and installing engine cover (design cover) on DFI engines - section on "Removing"

Removing hall sender

Information

- Replace all gaskets and O-rings.

- Use the lubricant Kluber Syntheso Glep (Part No. 000.043.204.68).

1. Disconnect connector on hall sender. To do so, push the button and remove.

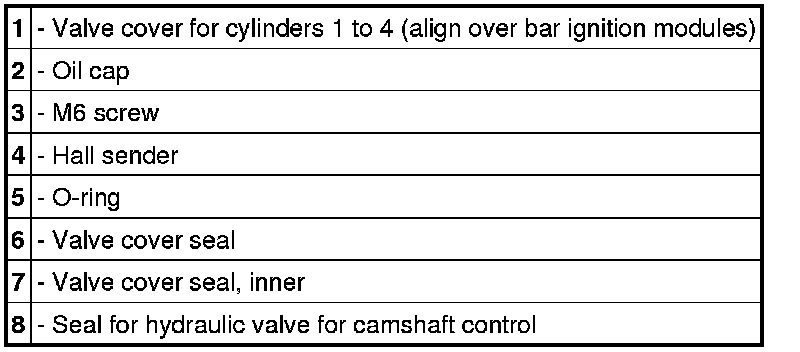

Valve cover seals, cylinders 1 to 4

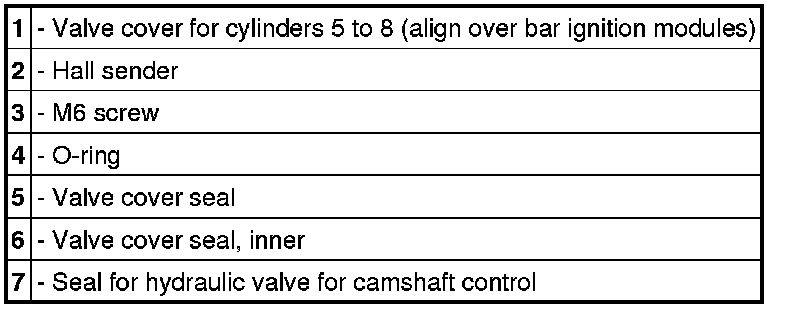

Valve cover seals, cylinders 5 to 8





2. Loosen fastening screw on hall sender and pull hall sender out carefully.

Installing hall senders (up to October 2008)

1. Fit the hall sender into the valve cover and tighten the fastening screw. => Tightening torque: 10 Nm (7.5 ftlb.)

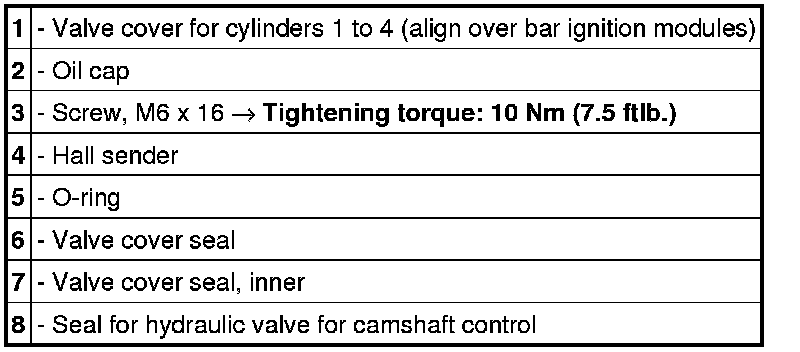

Valve cover seals, cylinders 1 to 4

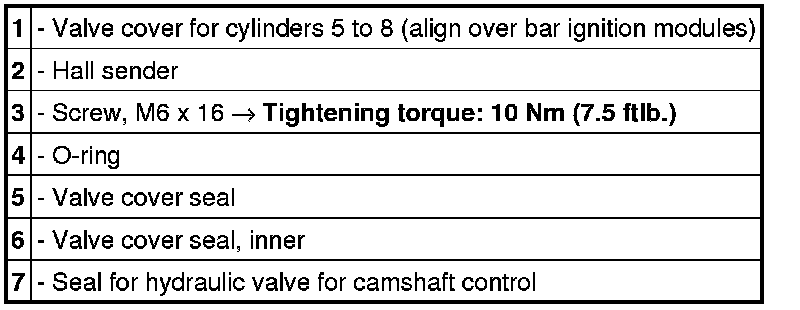

Valve cover seals, cylinders 5 to 8





2. Slide on cable plug. The connector must engage audibly.

Subsequent work

1. Install design cover. -> 108319 Removing and installing engine cover (design cover) on DFI engines - section on "Installing"
