Water Pump

WM 195019 Removing and installing coolant pump on DFI engines

Coolant pump






Tighten fastening screws.

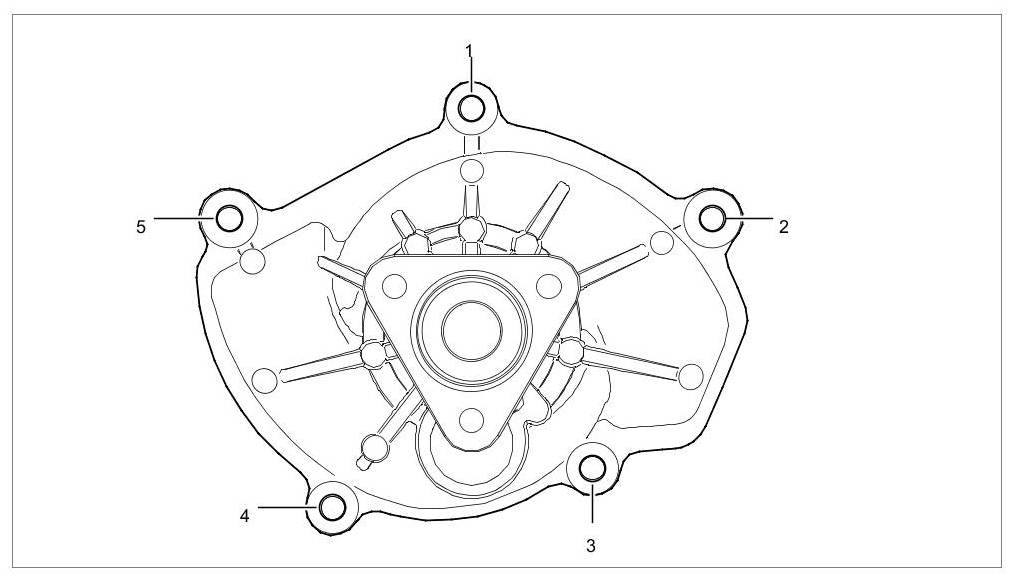

Tightening sequence for coolant pump

Fit the pulley on the coolant pump. Screw in the three fastening screws by hand.

Tighten the three fastening screws on the coolant pump pulley. Block the pulley with a holder Nr.38 if necessary.

Tightening torque: 23 Nm (17 ftlb.)

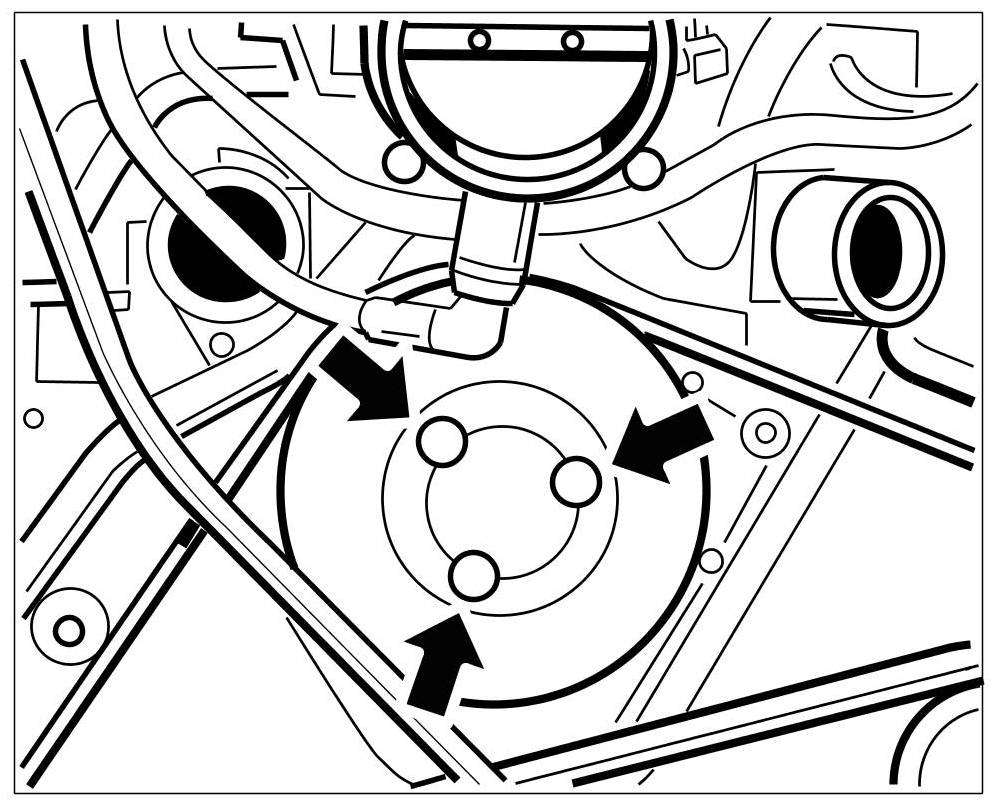

Fastening screws for coolant pump pulley
