919155 Additional Handset For Telephone >> Replacing Battery

WM 919155 Additional handset for telephone >> Replacing battery

Additional handset for telephone >> Replacing battery

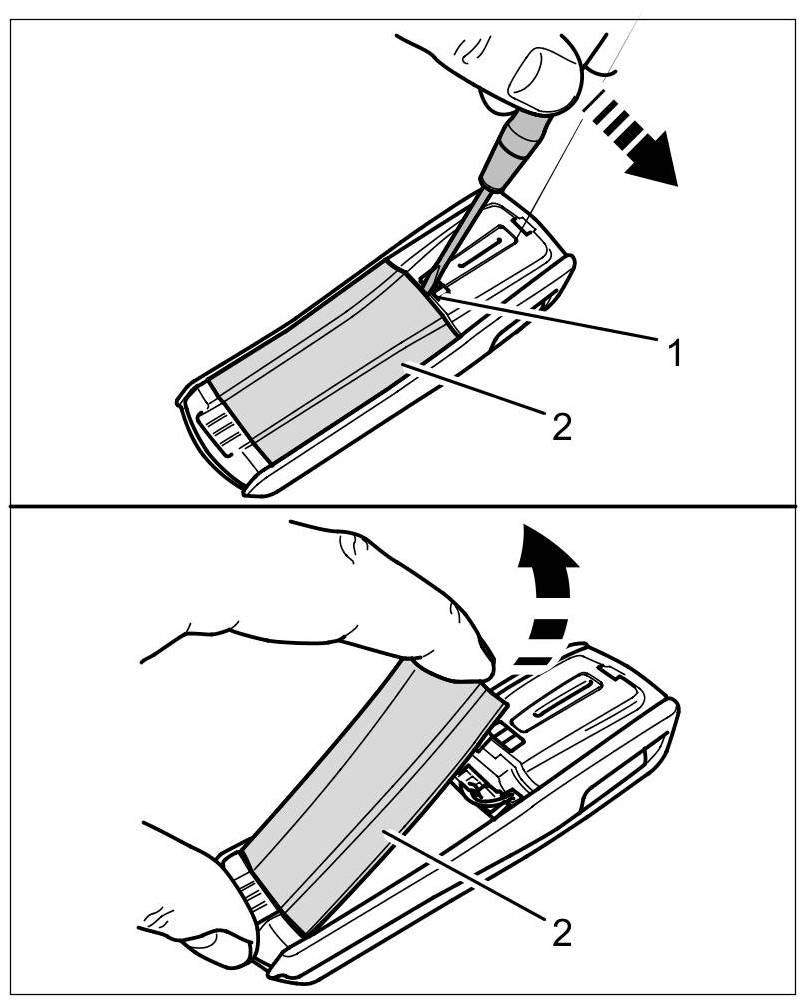

1. Insert a small screwdriver into the opening -1- on the back of the additional handset and carefully prise off the cover -2-.





Opening battery cover

2. Lift up battery -3- and pull off electric connector -4- on the additional handset.





Removing battery

3. Unpack new battery.

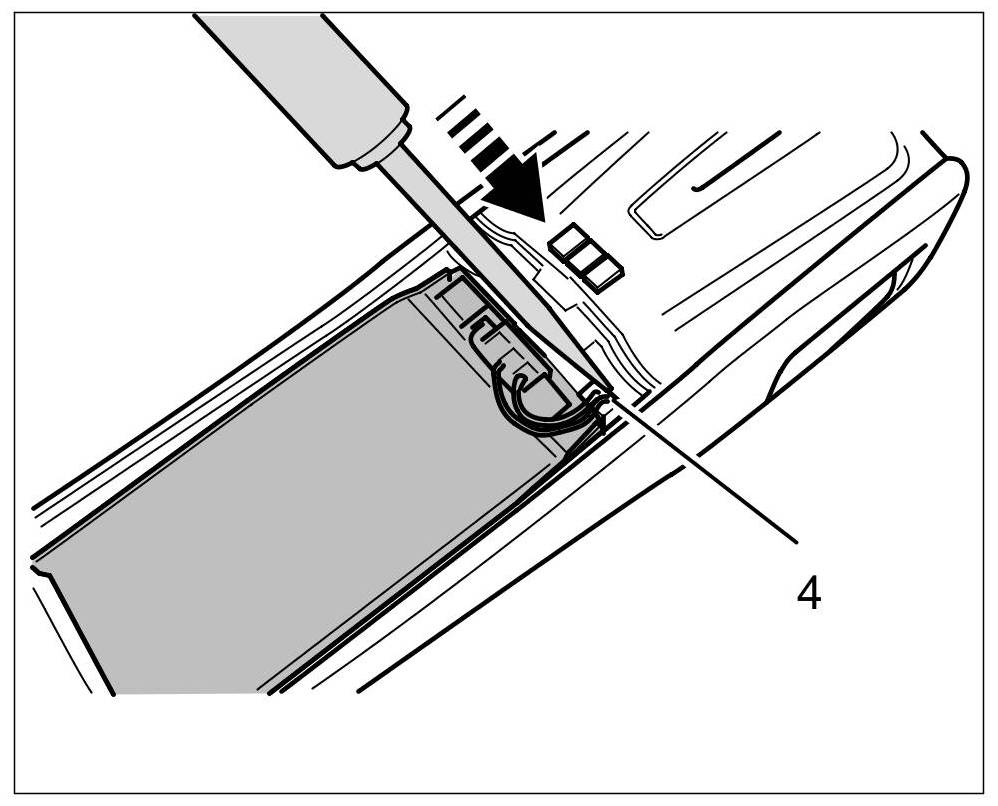

4. Plug in electric connector -4- on the additional handset and carefully push the plug connection on as far as it will go using a small screwdriver if necessary.





Plugging in electric connector on additional handset

5. Insert the battery into the additional handset and close the cover until it engages securely.
